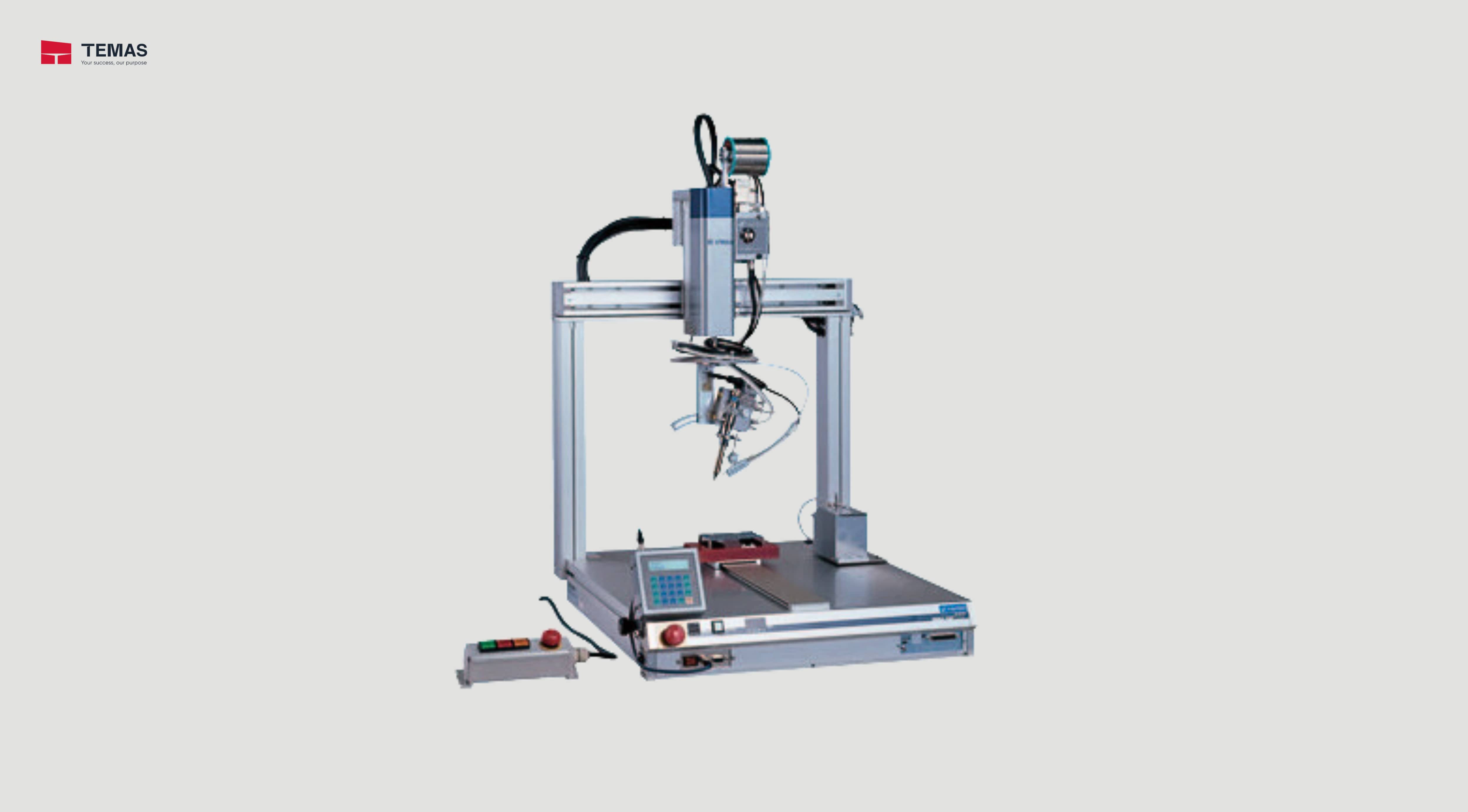

| Specifications | mCROSS（TX-m 444） |
|---|---|
| Power requirement/ Frequency | AC100V ±10% 50/60Hz 1.0KVA |
| Working ambient temp. and environment | 0 to 40 degree (No condensation or corrosive gas/no excessive dust) |
| Air requirement | 0.4 to 0.5MPa (4 to 5kgf/cm2) as dry air |
| Operating method, No. of control axes | PTP 4-axis simultaneous control （ Equipped with simultaneous 3-axis PTP and CP functions ） |
| Drive system | Pulse motor, Ball screw drive |
| Axis | Stroke/ Positioning repeatability/ Max. speed |
| X-axis | 400mm/ ±0.02mm/ 600mm/s |
| Y-axis | 400mm/ ±0.02mm/ 600mm/s |
| Z-axis | 100mm/ ±0.02mm/ 300mm/s |
| R-axis | 360°/ ±0.2/ 360°/s |
| No. of program | 48 |
| Data storage capacity |
Total Program steps: 6,000 steps Point : 3,000 points (some are used for system) |
| Teaching system | By Teaching pendant, TTP-822（Optional parts） Direct teaching by jogging or MDI using Teaching Pendant. |
| Soldering conditions | 99 blocks. Free Program Method |
| Soldering motion | Point soldering or Slide soldering |
| Weight | 48kg |
