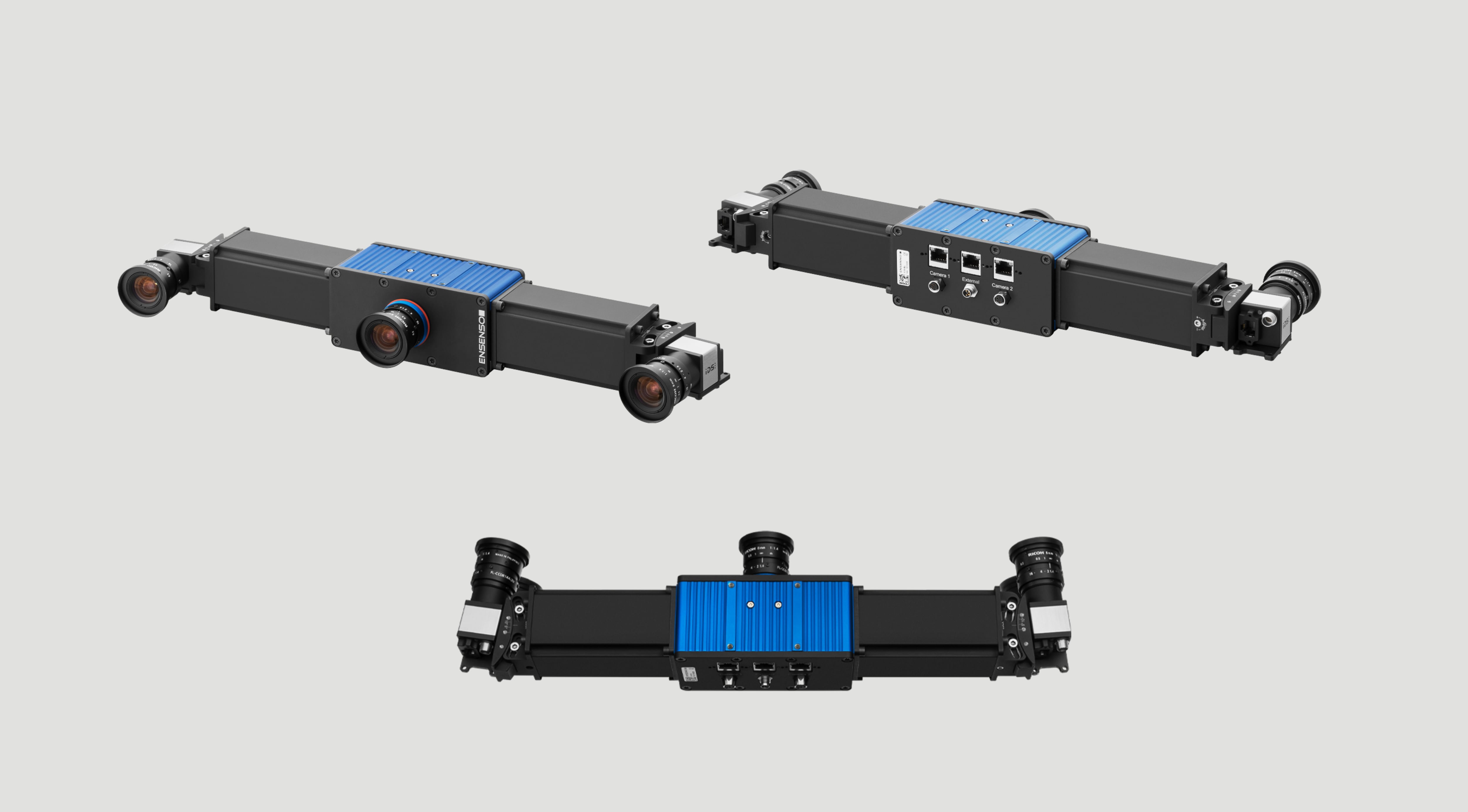

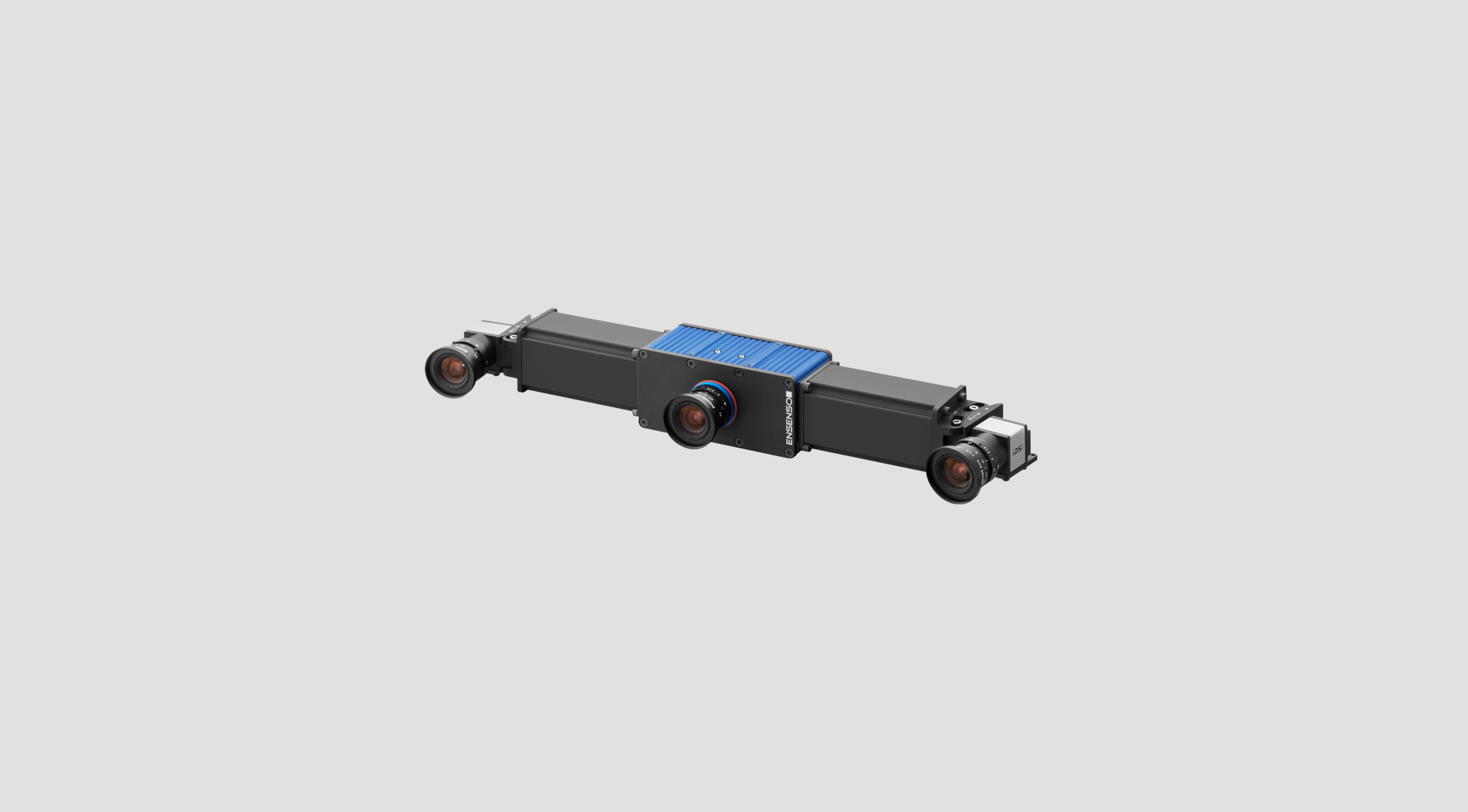

3d camera ensenso x series

3D CAMERA ENSENSO X SERIES

The ultra-flexible 3D camera system

Model: X30-1CP, X30-2CP, X30-5CP, X30-2FA, X30-5FA, C36-1CP, X36-2CP, X36-5CP, X36-2FA, X36-5FA

3D CAMERA ENSENSO X SERIES

Projector unit with 100 W LED projector power and integrated GigE switch
Fully modular with variable baseline for working distances up to 5 m or volume up to 8 m³
Setup wizard for focusing and calibrating the 3D cameras
3D cameras for both stationary and moving objects
Difference between Ensenso X30 and X36: Ensenso X30 is used for moving objects, while Ensenso X36 suitable for stationary objects.
Easy to set up and operate via the Ensenso SDK.

download Request a quotation

Technical Information

Individually adaptable!

3D vision even more precise and flexible

With the camera, different working distances and viewing angles can be realized and even larger objects, such as complete pallets or rooms can be captured.

Very powerful, suitable for numerous applications

Can be used e.g. for 3D object recognition, localization [&] classification, object reconstructions, robot applications and in logistics or factory automation.

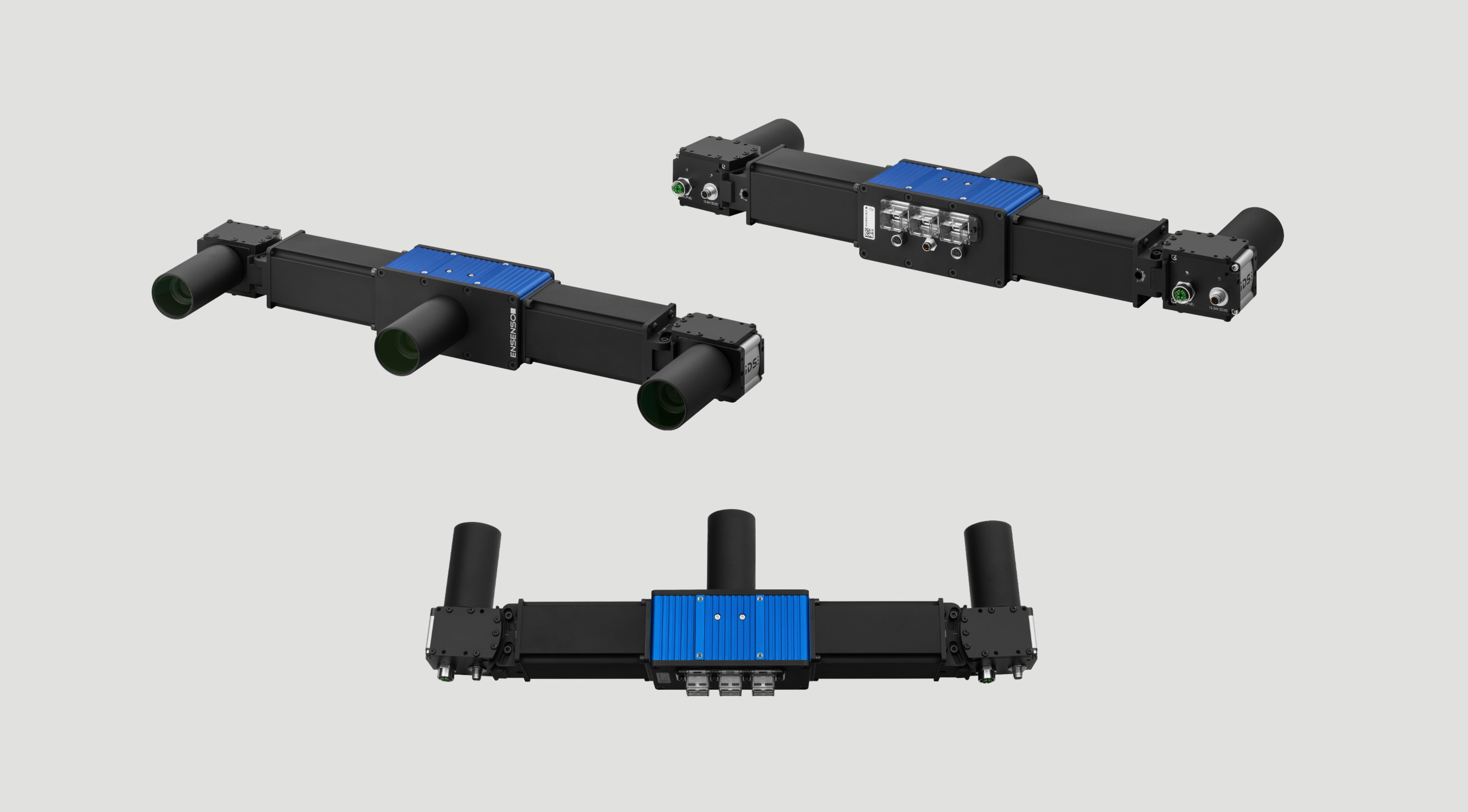

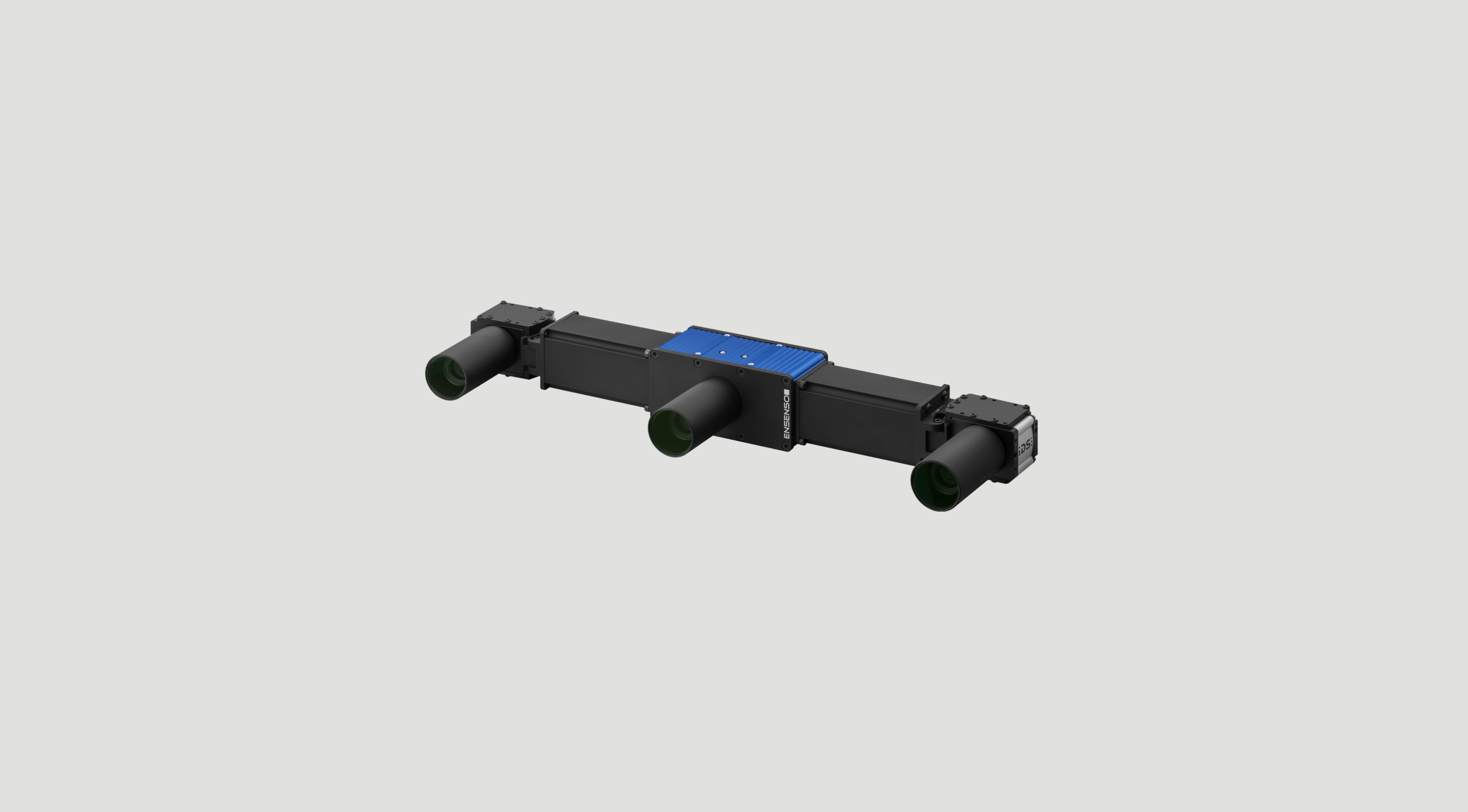

Users can choose between variants with protection class IP30 (Ensenso X30 CP) or IP65/67 (Ensenso X30 FA). In addition to special cables, the latter also include lens tubes for the cameras and the projector.
