Air curtain airtech aac-20250c

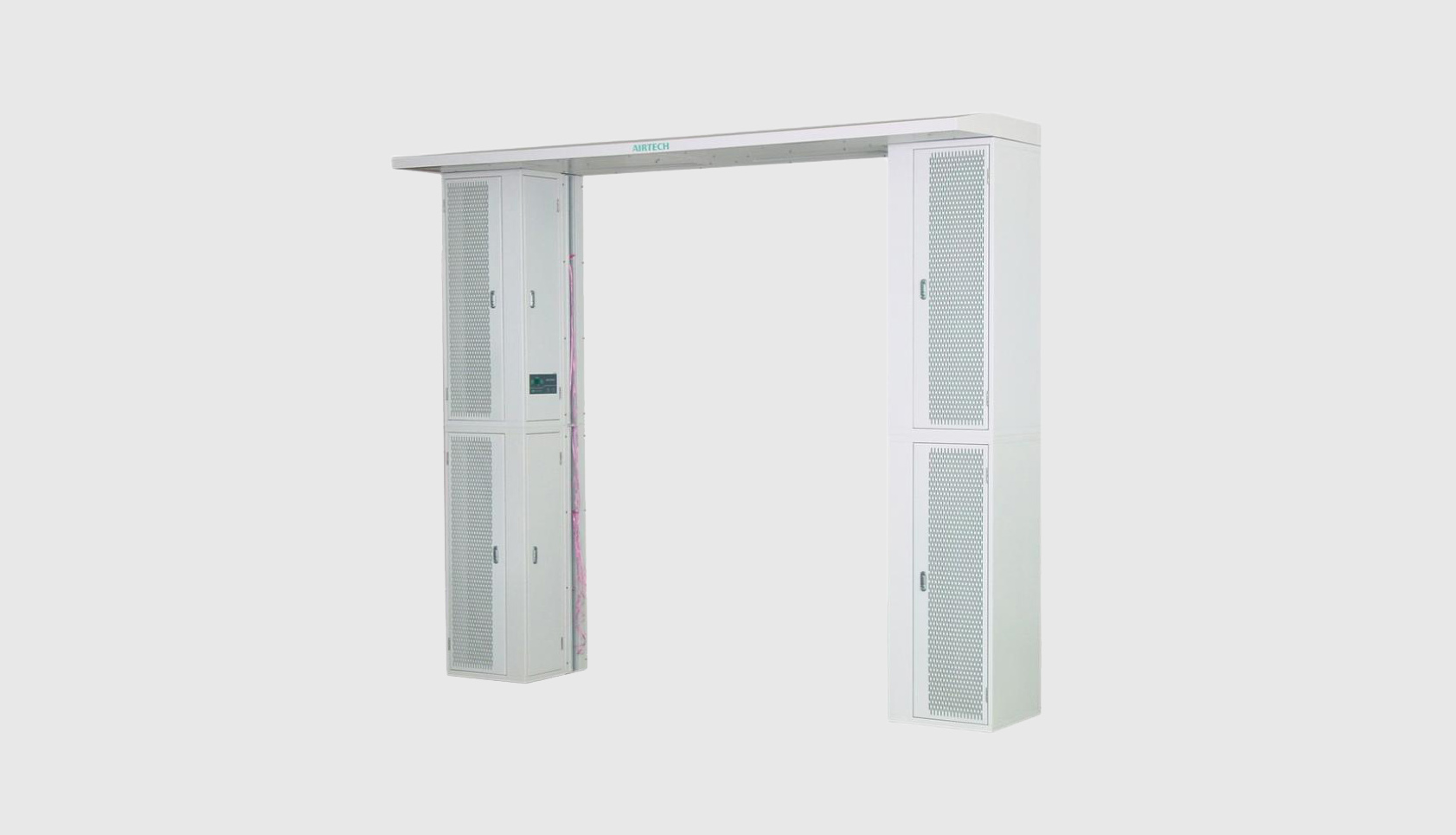

AIR CURTAIN AIRTECH AAC-20250C

Air Curtain is supporting equipment for clean room and workshop with an air flow to prevent insects from entering and remove the dust adhering of the operator and goods into the working area.

Model: AAC-20250C

AIR CURTAIN AIRTECH AAC-20250C

Unbalanced cross high speed air flow on both sides can effectively prevent insects from entering.
It adopts adjustable fan that can realize frequency control on both sides.
It has small floor space and low power consumption.
The layout can be adjusted by changing the position of high speed and low speed side according to environmental conditions.
It can be interlocked with the sliding door.
It can be specially designed by the environmental conditions.

download Request a quotation

Technical Information

Model	AAC-20250C
Insectproof Efficiency	~ 95%
Air Volume	~ 260 m3/phút
Air Velocity	Cao: 20 ~ 24 m/s , Thấp: 13 ~ 15 m/s
Power Supply	AC380V, 3φ, 50Hz
Rated Power	4,5 kw
Body	High grade steel with ivory static color powder coating
Overall Dim. (WXDXH)	3000x850x2600 mm
Dim.of Showering Area (WXDXH)	2000x500x2500 mm
