CUSTOMIZED AIRSHOWER AIRTECH

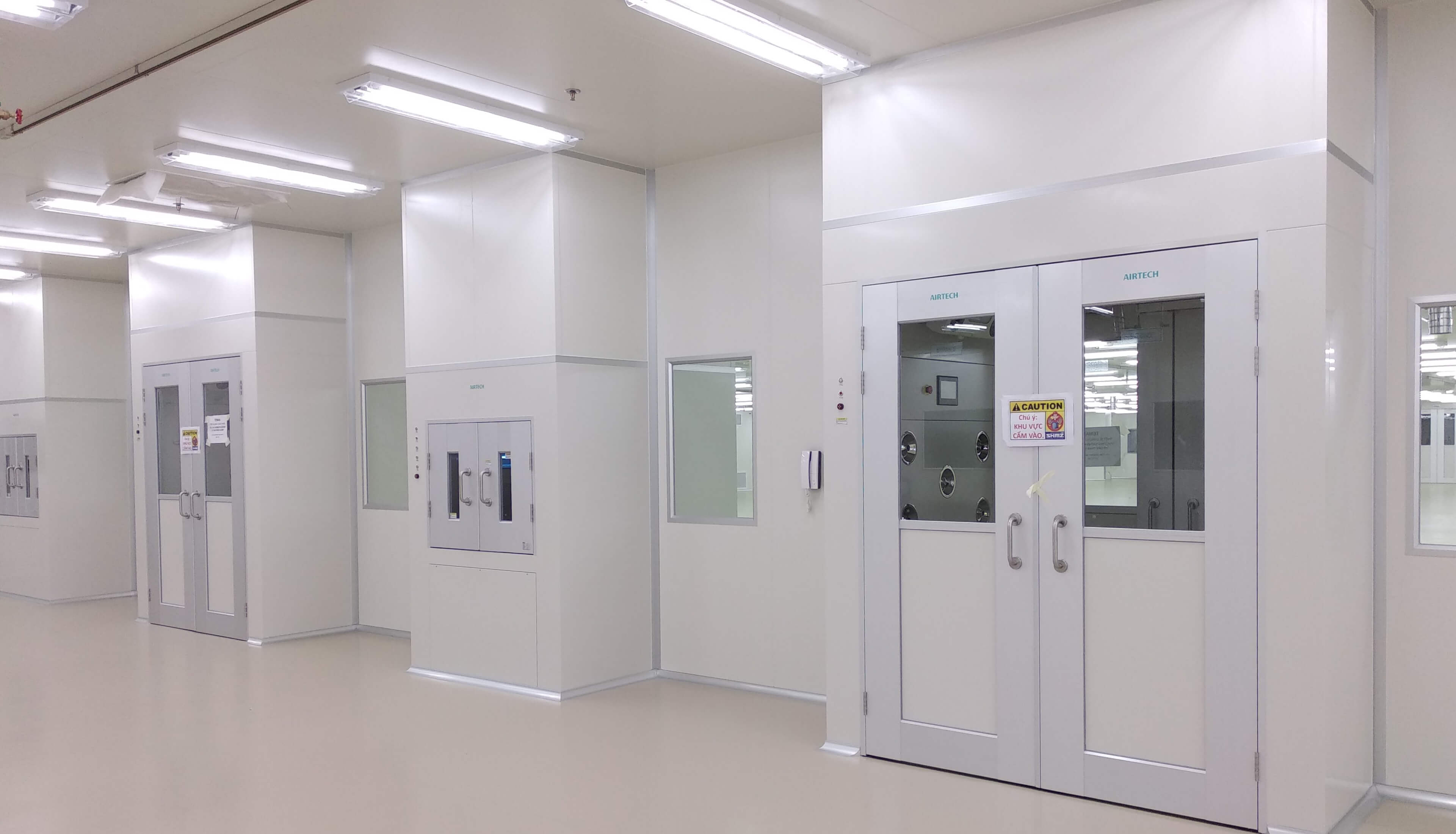

The air shower is installed at the door of the clean room to clean, remove dirt from sticking to people and materials into the room.

Technical Information

Model Double-Door AS Auto-Door AS Shutter-Door AS
Filter efficiency ≥99.99%, (@≥0.3μm)
Air velocity ≥25 m/s (4920 fpm)
Showering time 0~99 s

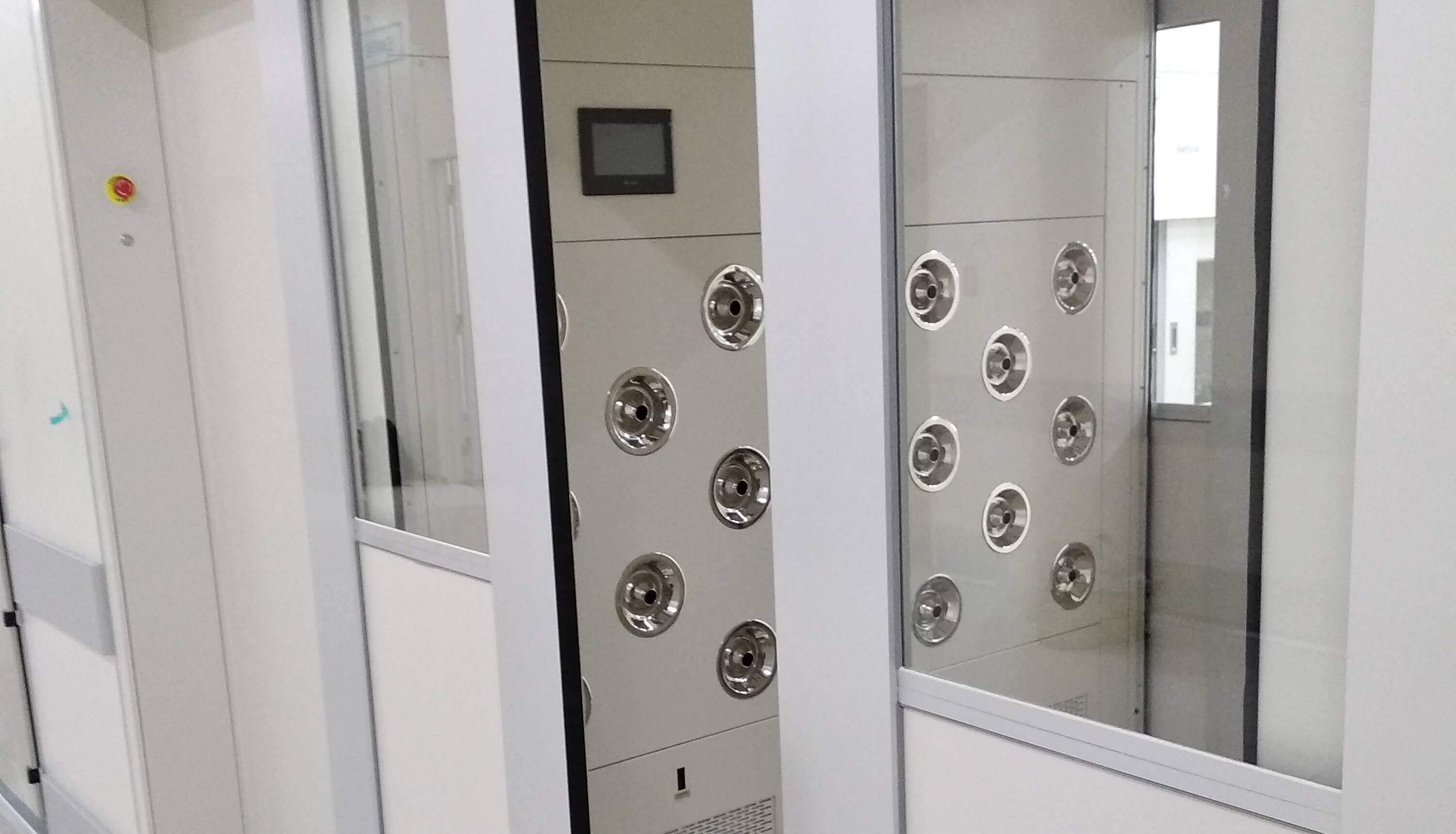

No. of nozzle 16Xi
Power consumption 1.8+1.5X(i-1) kw 2.5+1.5X(i-1) kw 5+1.5X(i-1) kw
Body High grade steel with ivory static color powder coating
Floor High grade steel and coated with SUS 304
Overall dimensions (WXDXH)

(W1+400)X(D1+100)X(H1+90)

 (W1X2+300)X(D1+400)X(H1+250) (W1+800)X(D1+400)X(H1+600)
Dim. of showing area (WXDXH)
 W1XD1XH1 (mm)
