AIRSHOWER AIRTECH AAS, HAS, EAS SERIES

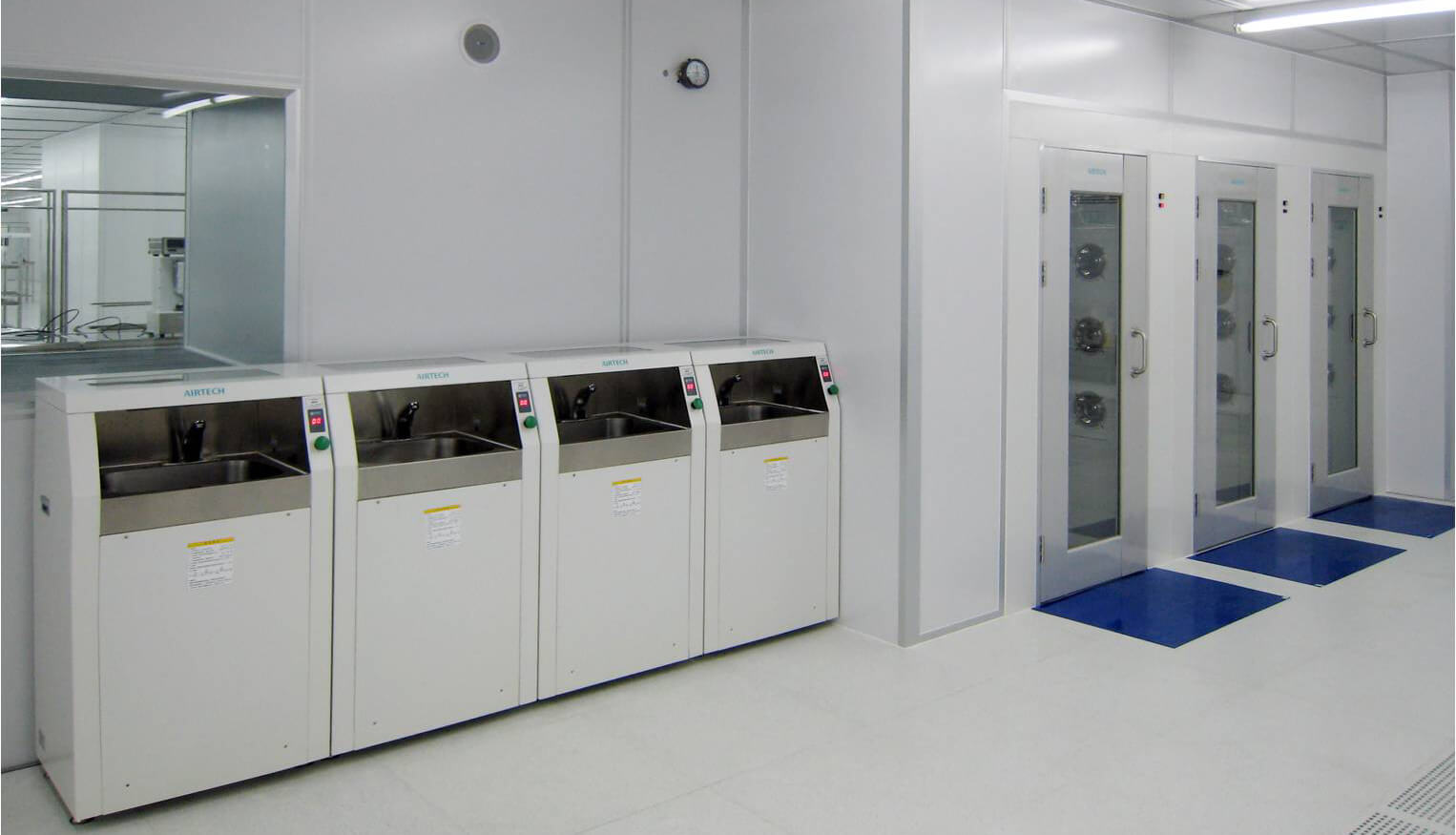

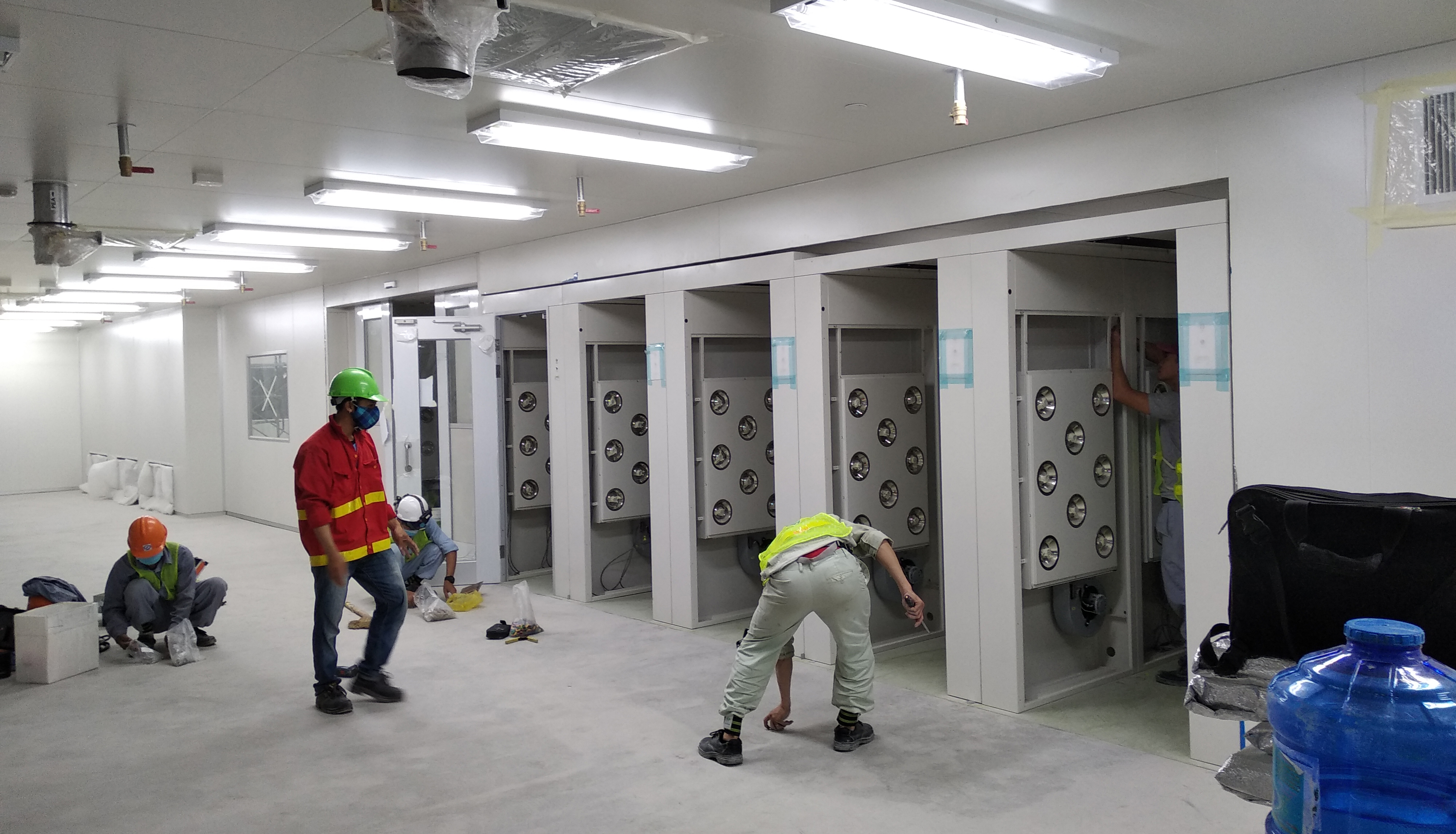

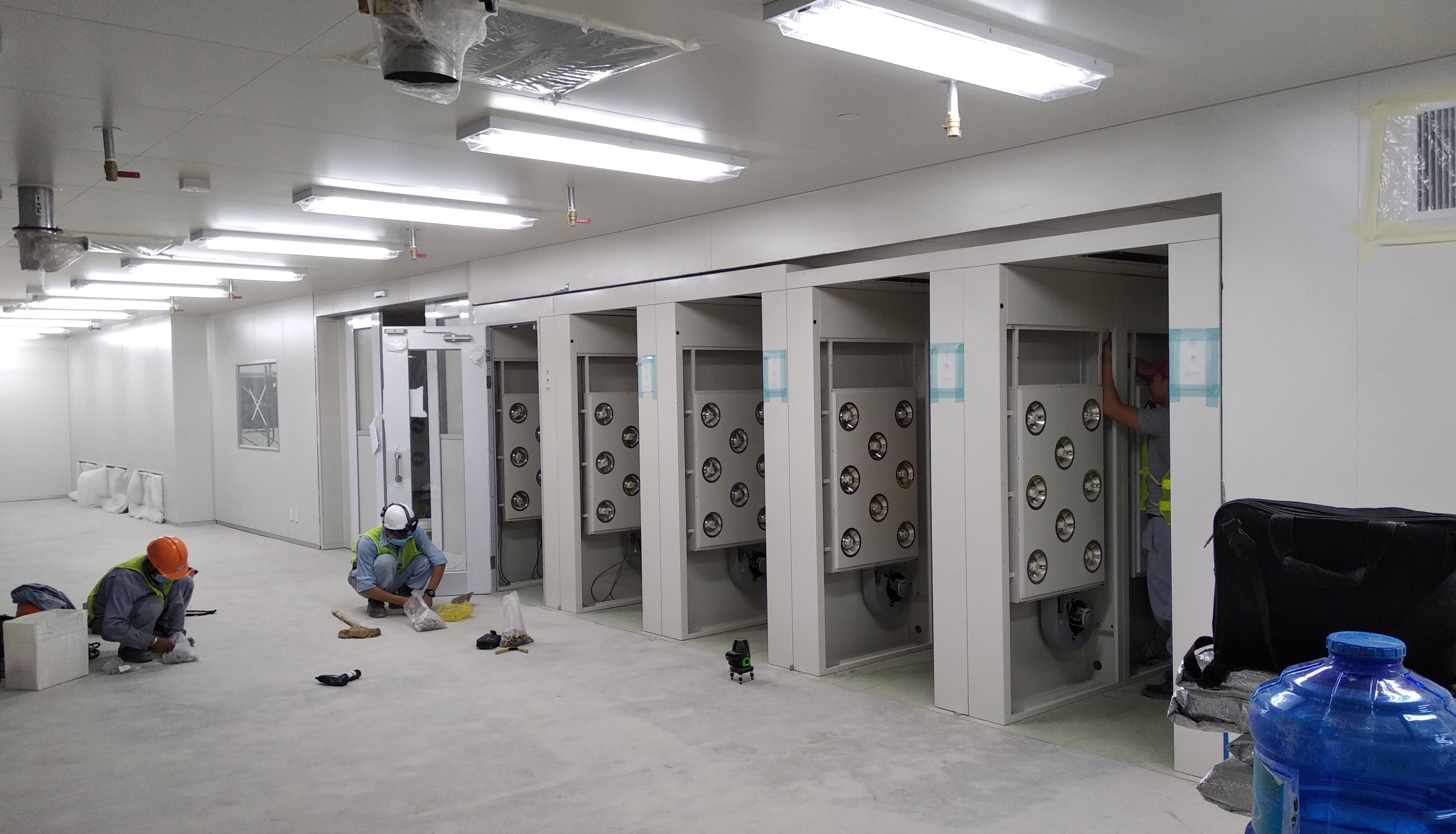

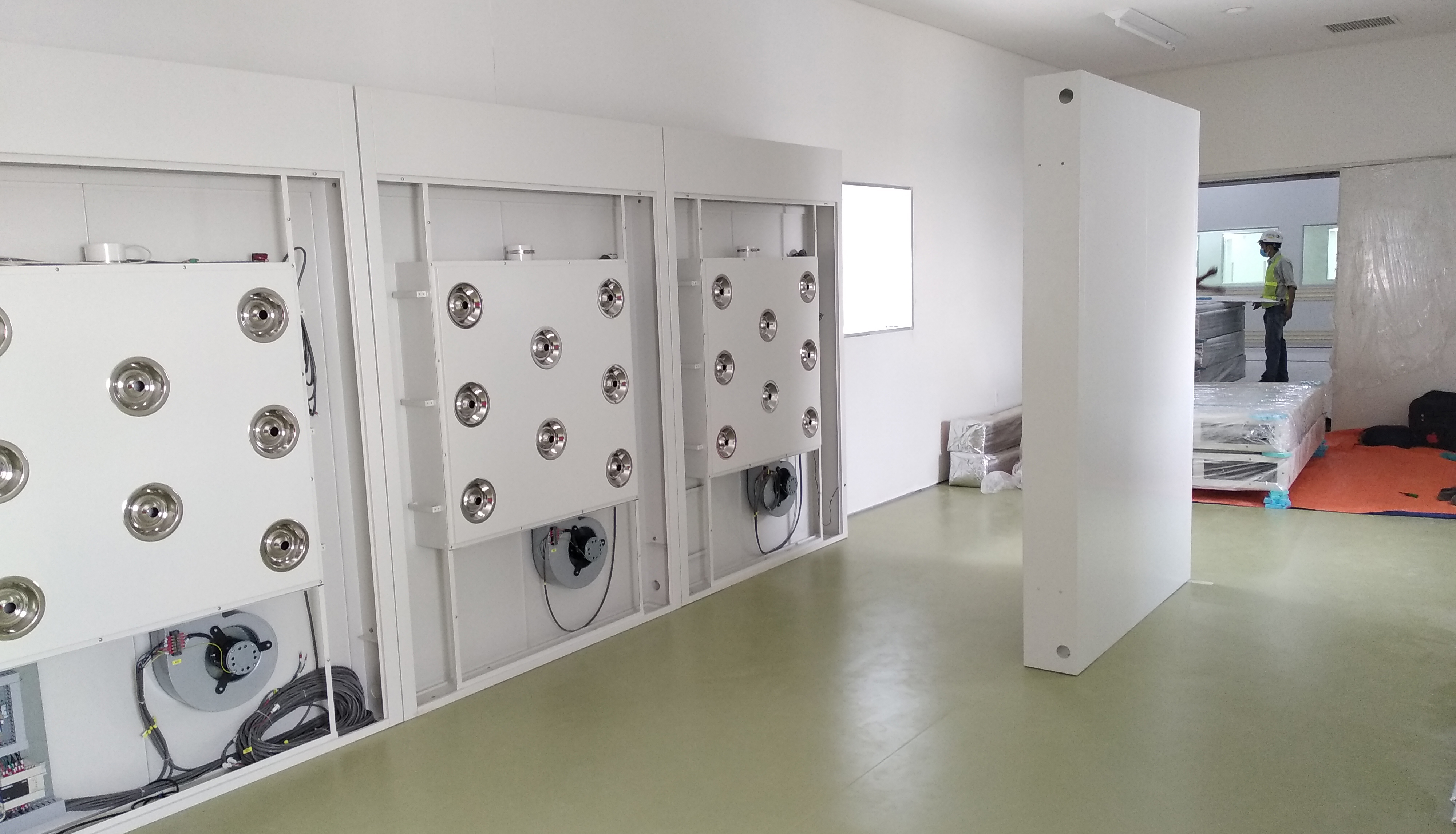

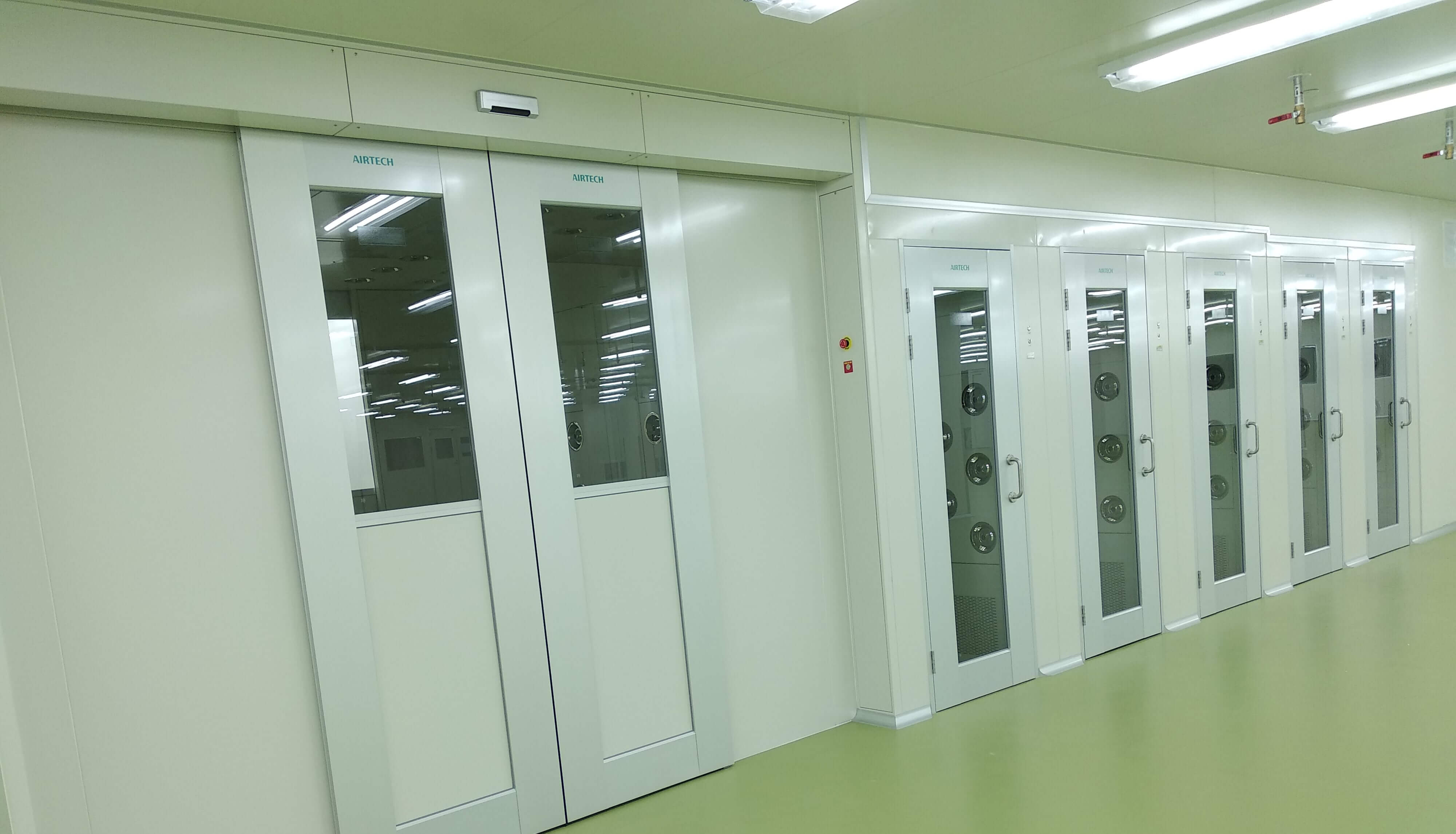

The air shower is installed at the door of the clean room to clean, remove dirt from sticking to people and materials into the room.

Model: AAS-801AR, AAS-801AS, EAS-800AR, EAS-800AS, HAS-800AR

Technical Information

Model

AAS-801AR(S)

EAS-800AR(S)

HAS-800AR

Filter Efficiency

≥99.99%(@≥0.3μm)

Air velocity

≥25 m/s(4920fpm)

≥20 m/s(3936fpm)

≥23~28 m/s Pulse(4526~5510fpm)

Showering time

0~99 s

0~99 s

0~99 s

No. of Nozzle

16 nozzles

12 nozzles

26 nozzles

Power Supply

AC380V, 3Φ, 50Hz

Power consumption

1.8(1.6) kw

1.6(1.3) kw

2.3 kw

Body

High grade steel with ivory static color powder coating

Floor

High grade steel and coated with SUS 304

Door

Aluminum alloy with tempered glass

Overall dimensions (WXDXH)

1200*1000*2100 mm

(47.2''x39.4''x82.7'')

1150*1000*2160 mm

(45.3''x39.4''x85.0'')

1200*1000*2160 mm

(47.2''x39.4''x85.0'')

Dim. of showing area (WXDXH)

800*900*1960 mm (31.5''x35.4''x77.2'')

Weight

300 Kg

280 Kg

350 Kg
