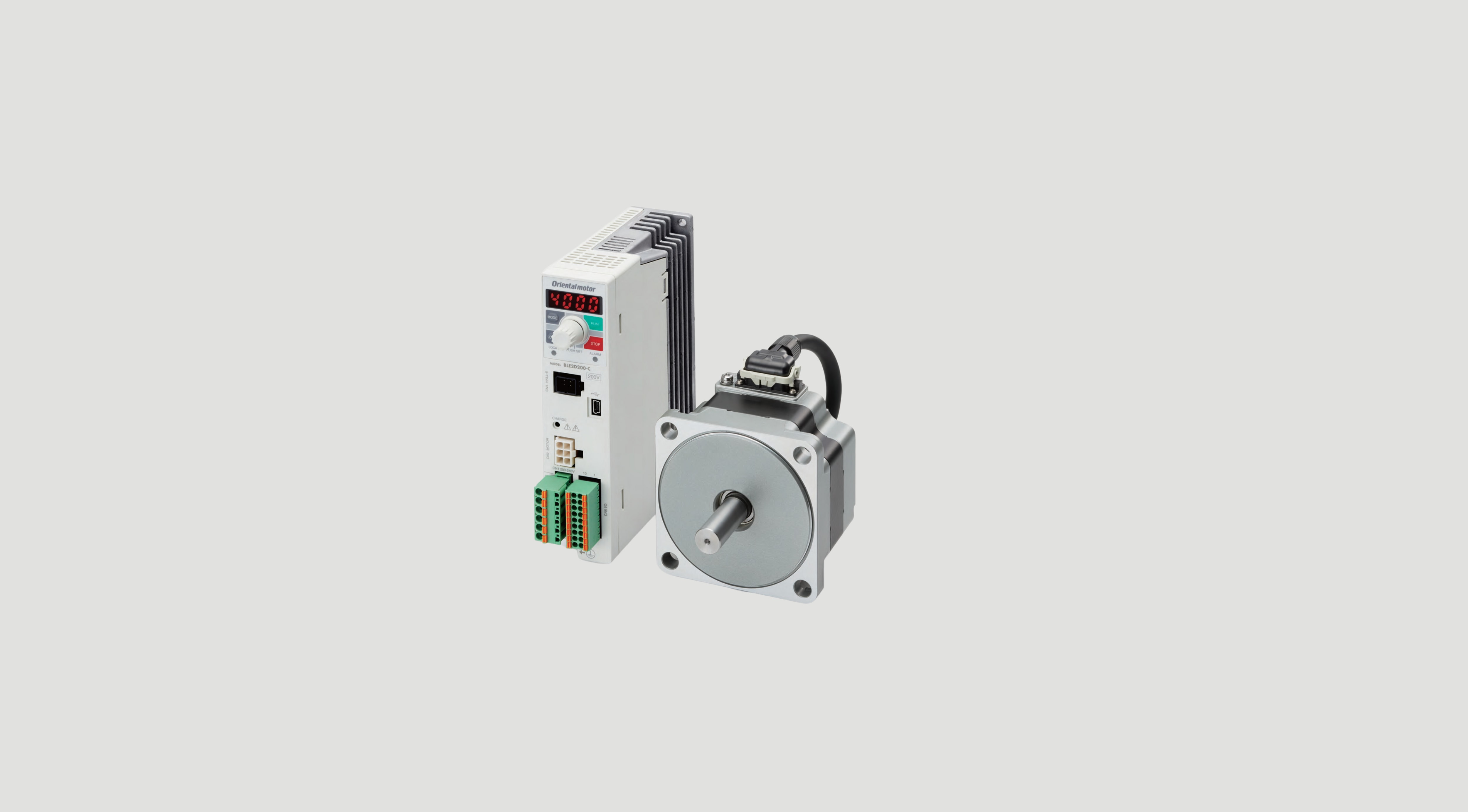

Enriched performance and functions

• Speed Control Range　80～4000 r/min
• Speed Regulation　±0.2% (Digital setting)
• Enabled torque control
• Multiple speed operation up to 16 speed　
• Output shaft is held when stopped (up to 50% of the rated torque)
• Degree of Protection IP66 (Motor only)
• Highly resistant to rust and corrosion by the stainless steel shaft
• Monitoring and testing functions effective for equipment activation and prevention,

Usability and reasonable prices

• The main body of the driver allows for digital settings and operation
• The new driver is compact and thin, and multiple drivers can be closely attached with each other
• Speed can be set through PC operation or external signal
• Two cable directions can be selected　
• The motor can directly be connected to the driver Up to 20 m

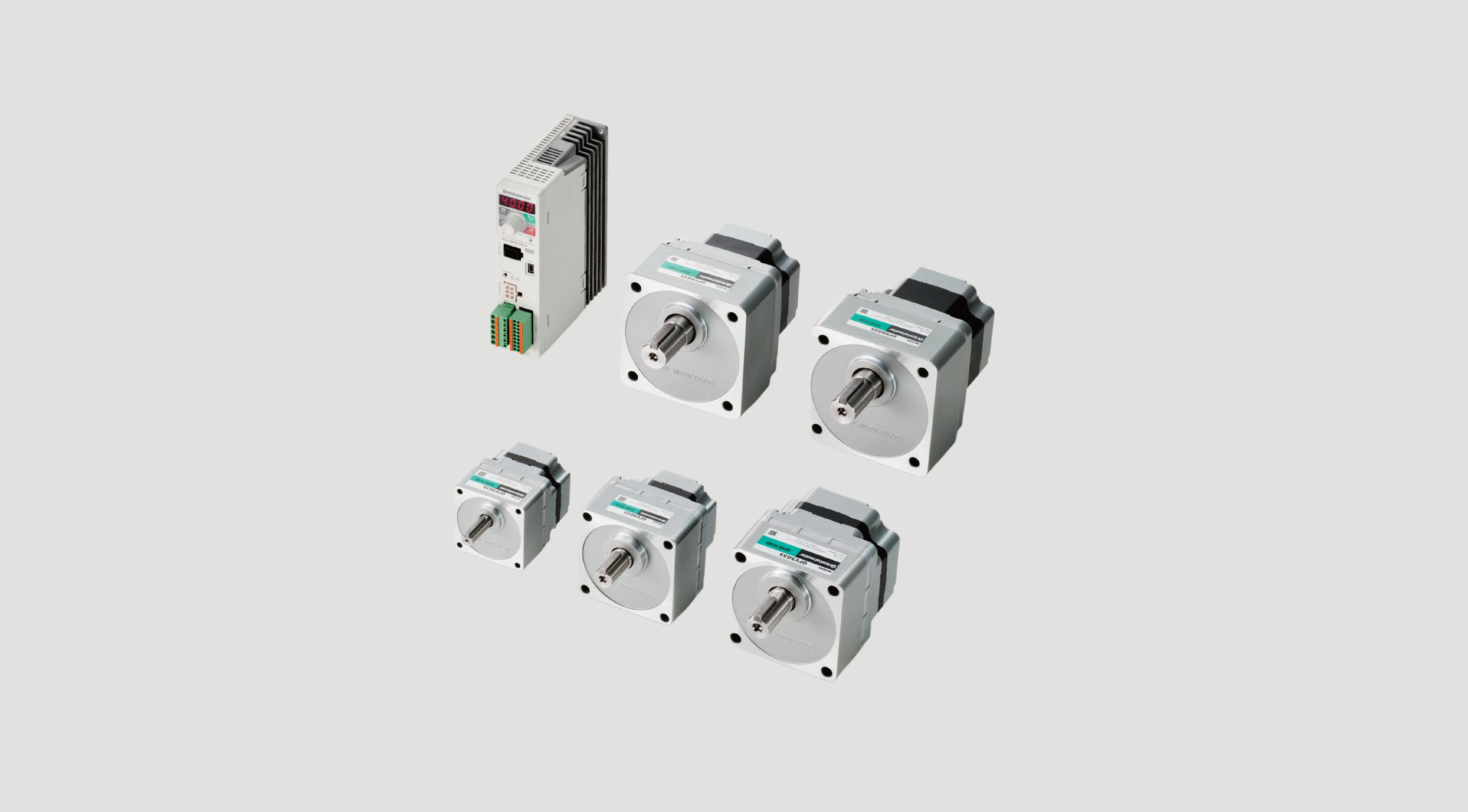

• Lineup　30 W～400 W

New additional lineup

Hypoid Right-Angle Hollow Shaft JH Gear

Legged Gearhead JB Gear/Parallel Shaft Gearhead JV Gear

Features of Hypoid Right-Angle Hollow Shaft Gear

Types and Features of Gearheads for selection

Types	Parallel Shaft Gearhead		Legged Gearhead	Hypoid Right-Angle Gearhead	Round Shaft
	GFV Gearhead	JV Gearhead	JB Gearhead	JH Gearhead	Round Shaft Type
Product Appearance
Characteristic	Stainless steel shaft	High gear Ratio ~ 1/450 Stainless steel shaft	Integrated leg attachment High rigidity High gear ratio ~ 1/1200	Space saving, cost saving High Strength Stainless steel shaft	Stainless steel shaft
Output	30W ~ 400W	200W	200W	60W, 120W, 200W	30W ~ 400W
Protection grade	IP66	IP66	IP44	IP66	IP66
Gear Ratio	5 ~ 200	300, 450	5 ~ 1200	5 ~ 200	-
Permissible radial load / Permissible axial load	1400N / 400N	3123N / 480N	3672N / 577N	2405N / 550N	170N / Half of motor mass or less
Permissible Torque	~ 70 N.m	~ 198 N.m	~ 518 N.m	~ 82.8 N.m	~ 1.27 N.m
