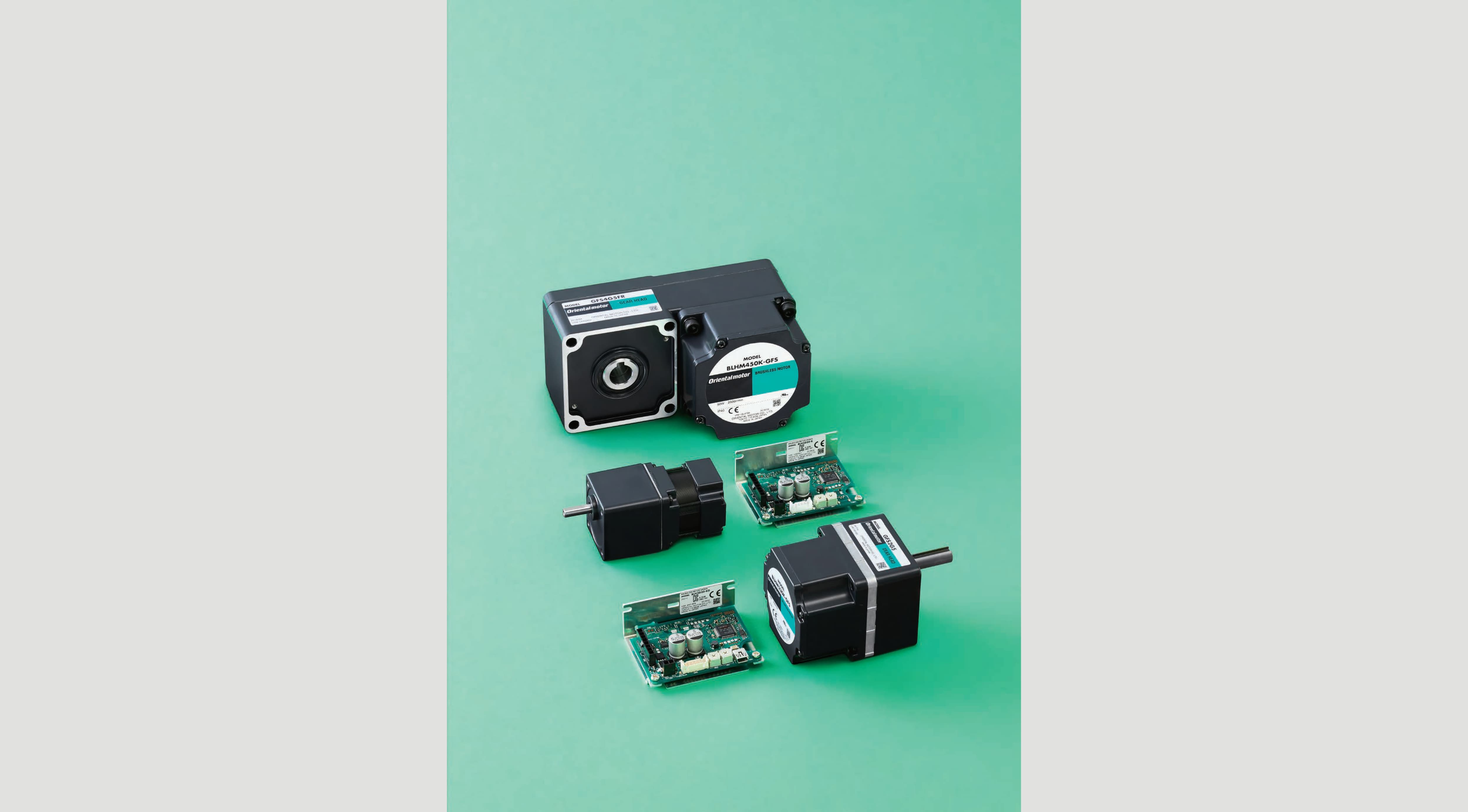

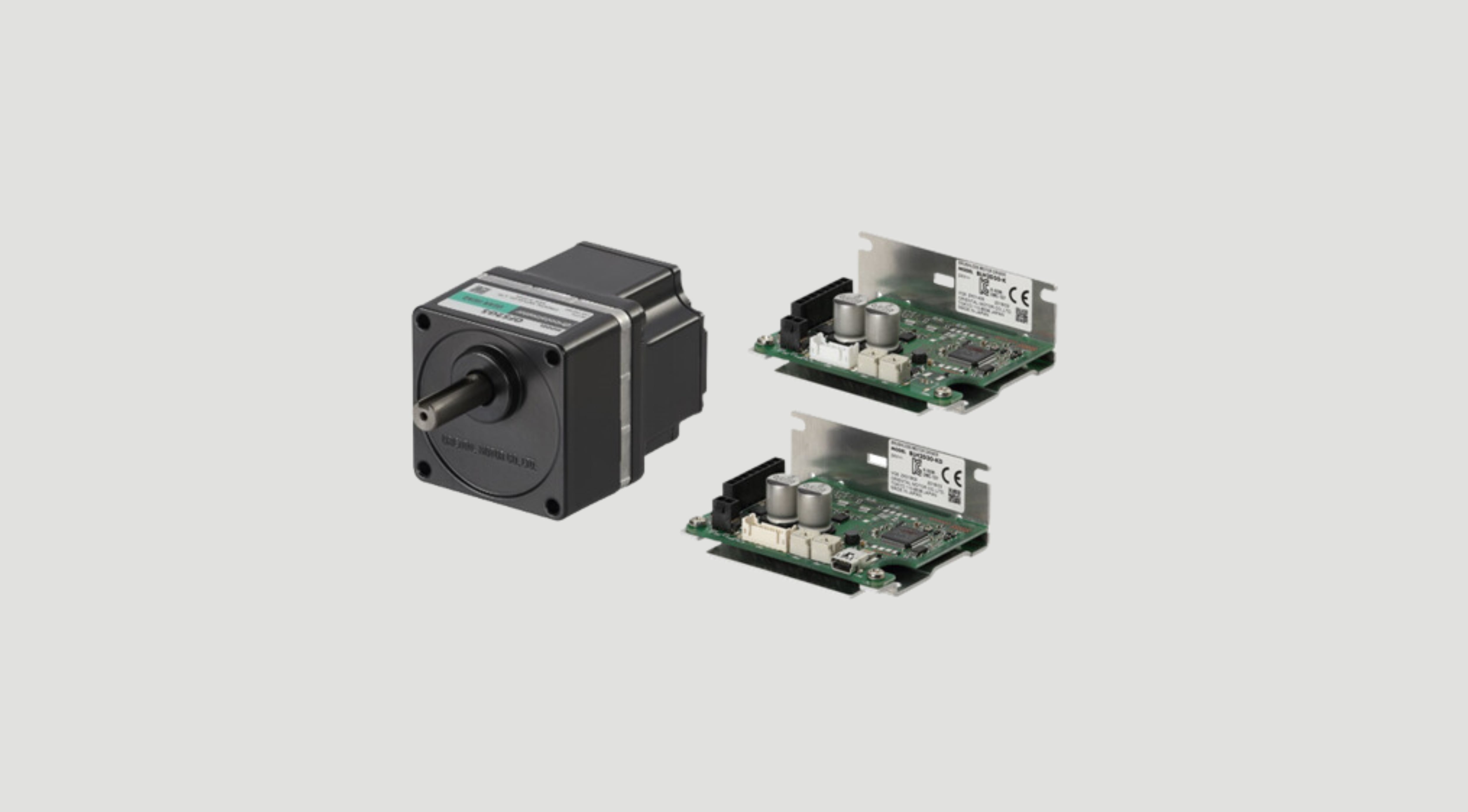

This series combines an optimum slim body, high power brushless motor with a 24 VDC board type driver to meet your space-saving needs with equipment.
The speed control range is 100 to 3000 r/min. Choose from a wide variety of outputs of 15W to 100W for your specific application.

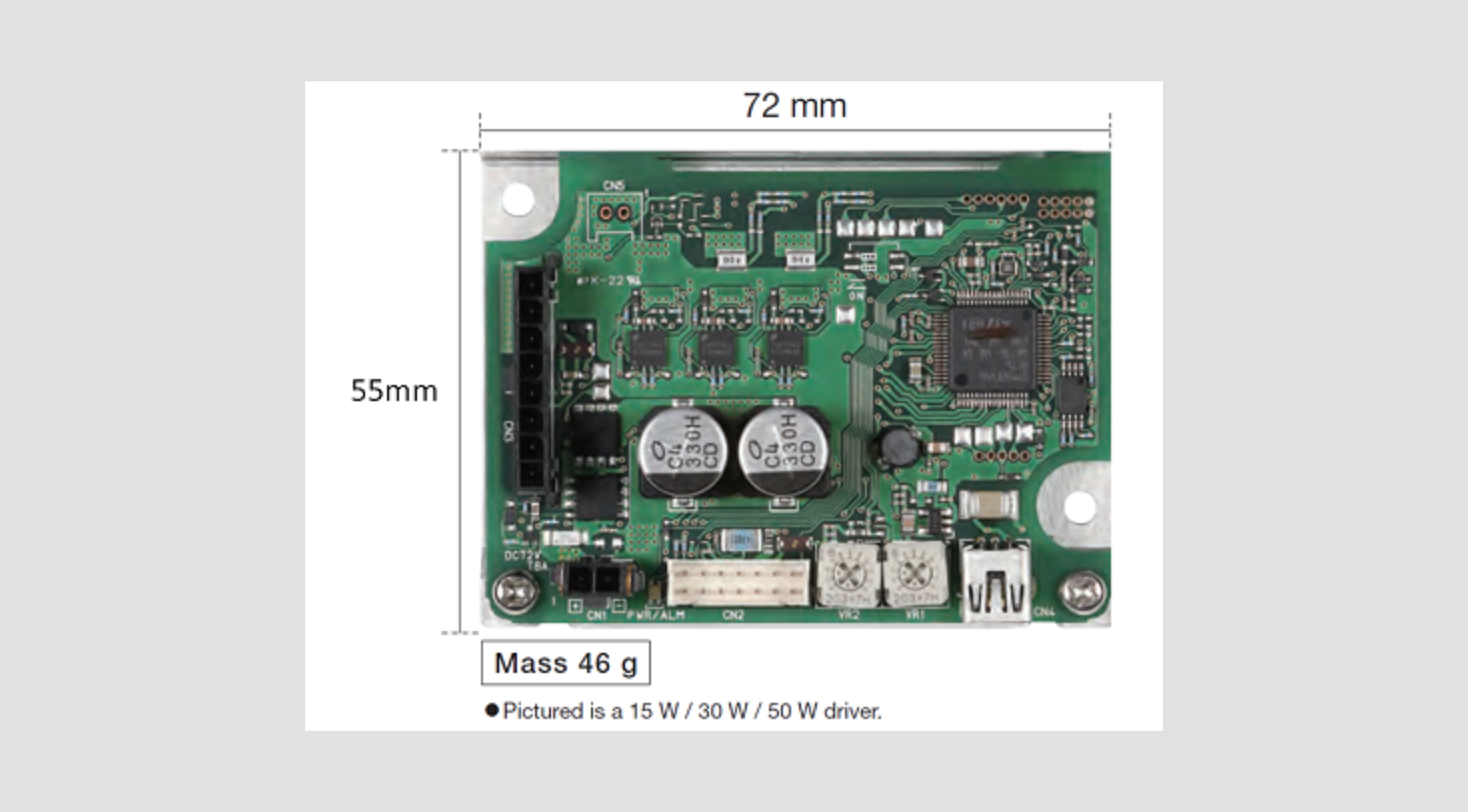

Compact Board Type Driver

The models with outputs of 15 to 50W adopt a compact, board-type driver smaller than the size of a business card. This will certainly help for the downsizing of your equipment.

Expanded Driver Functions

Analog Setting Type: These compact models are packed with a full range of functions.

• Instantaneous Stop
• Speed Control by Potentiometer
• Speed Control by DC Voltage
• Acceleration Time/Deceleration Time
• Alarm Output

Digital Setting Type:

• Adopts improved usability on top of the Analog Setting Type driver.

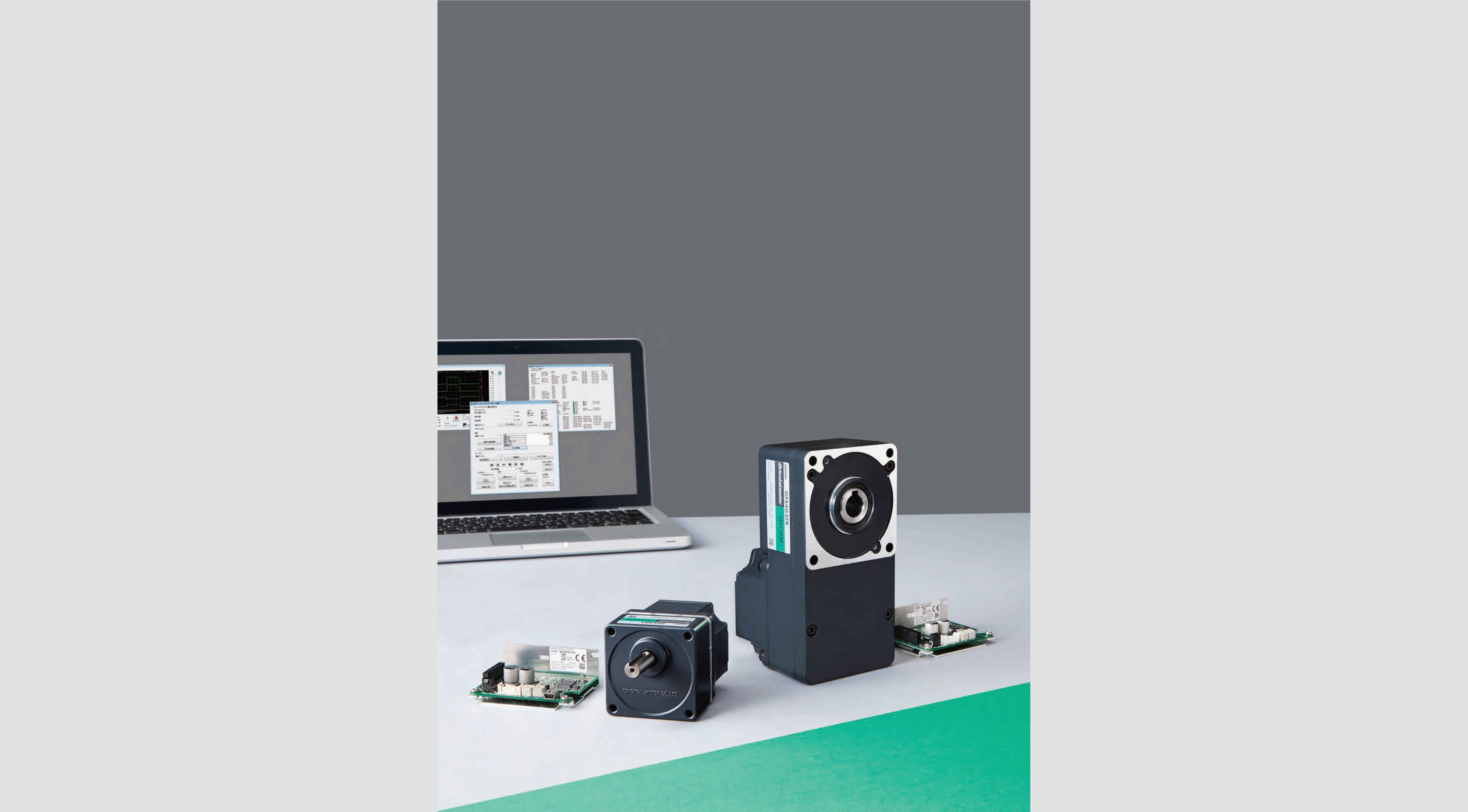

• Extended setting of operating data and parameter setting are available by using the MEXE02 Support Software.
• Added PWM input for external speed control
• Up to 8-speed setting available
• Protection Function: more alarms signal
• Torque limiting function　

Excellent Speed Stability

Excellent speed stability characteristics with very little speed fluctuation are achieved as speed regulation with respect to the load is ±0.5% or less. Even if the load fluctuates, there is almost no speed fluctuation due to the load like with inverters.

Types and Features of Gearheads

Gearheads are used to reduce speed and increase the torque output of the motor. We have two different types of gearheads available for selection.

• Parallel Shaft Gearhead
• Hollow Shaft Flat Gearhead
