The USB 2 uEye ML industrial cameras are fitted with successful e2v CMOS sensors and are available in monochrome, color, and NIR versions, delivering outstanding performance in the near infrared range. The cameras offer a host of sensor features, including line scan mode (UI-1240ML, UI-1250ML), log mode, and four freely-selectable shutter modes, making them suitable for a wide range of applications while ensuring outstanding image quality.

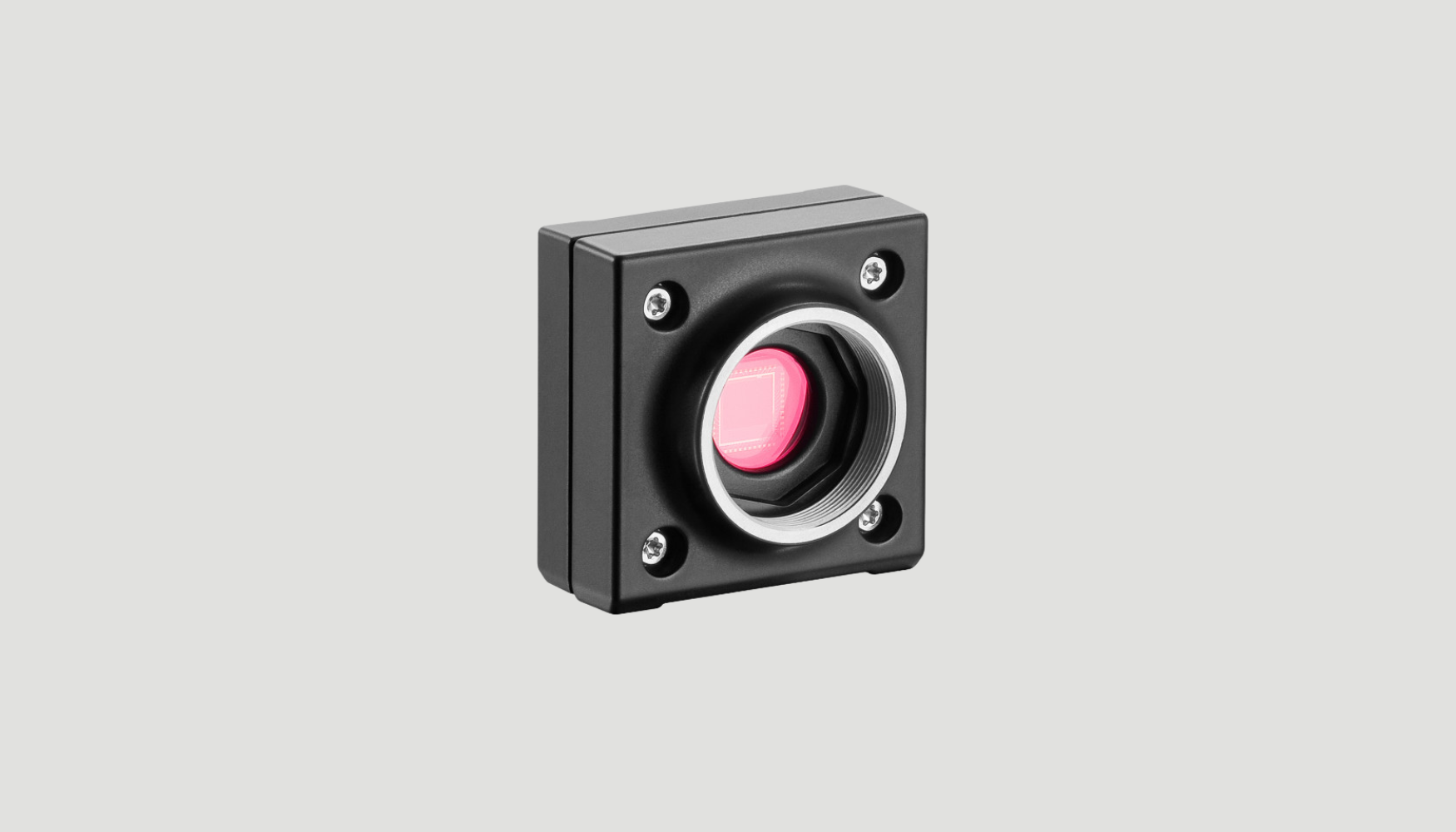

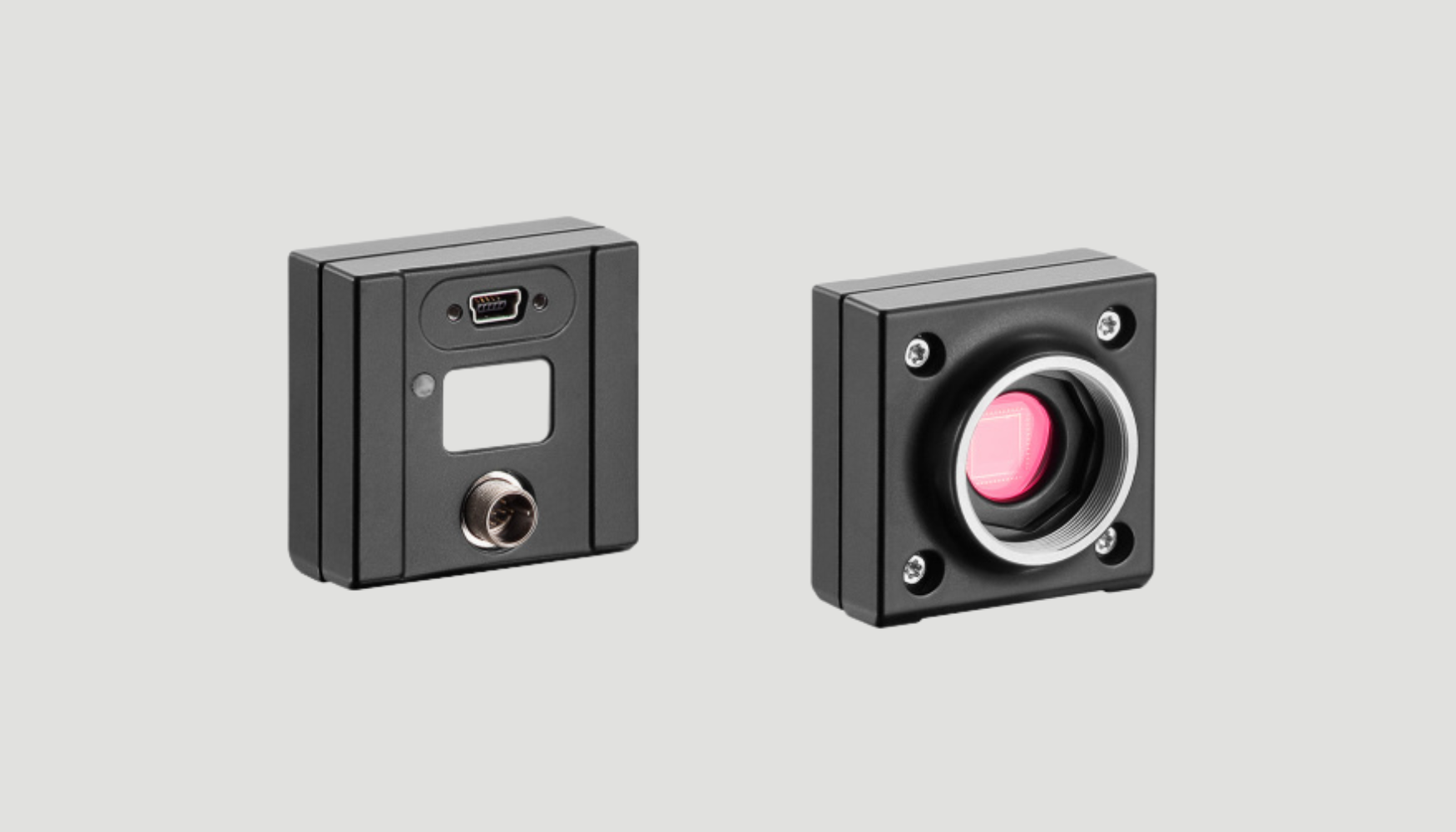

With dimensions of only 40 x 40 x 18 millimetres and a weight of around 37 grams, the cameras are ideal for space-critical applications.
The cameras are automatically detected in the system and are immediately ready for use. Buy a camera, connect it, receive an image - it couldn't be easier!

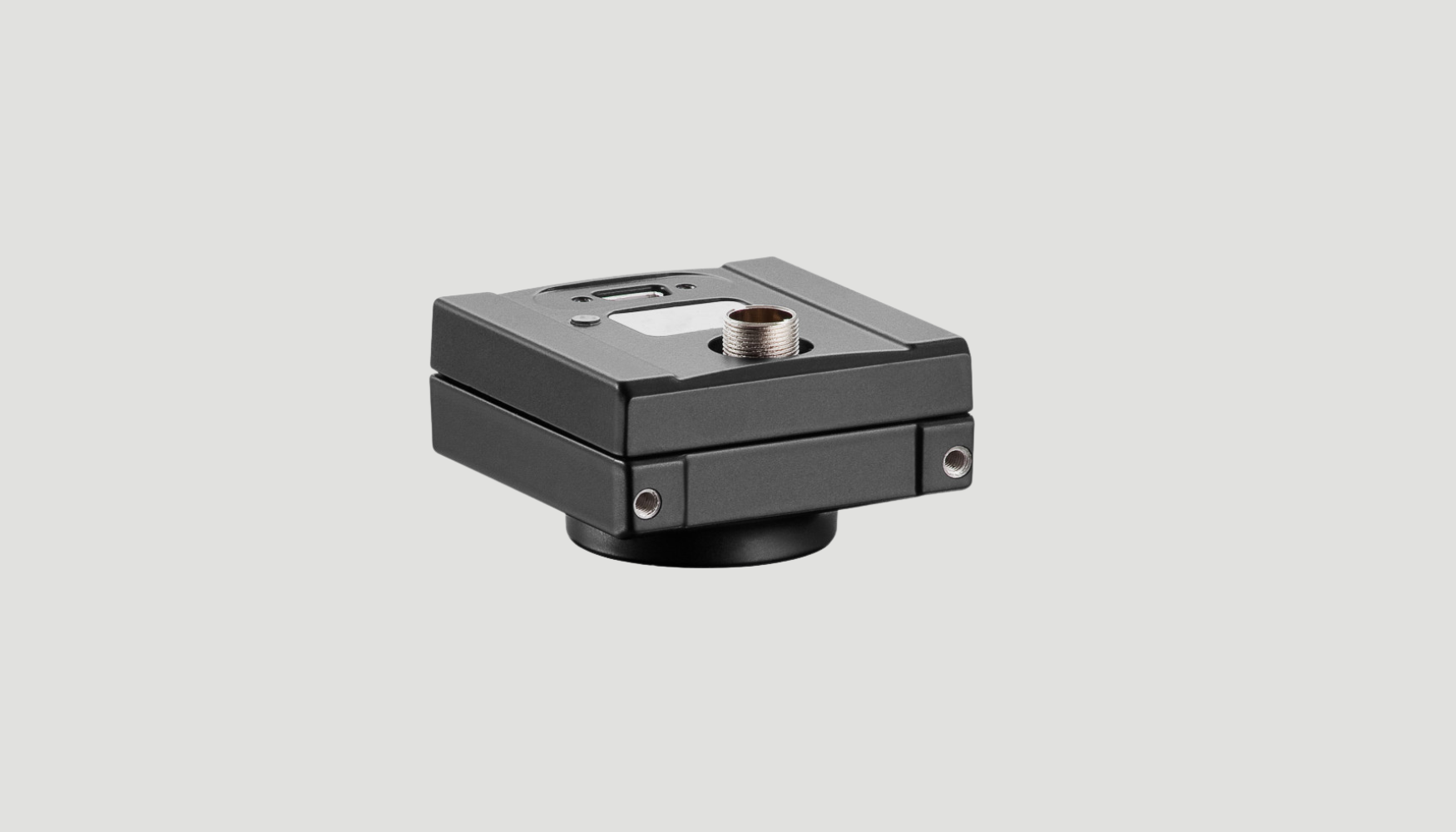

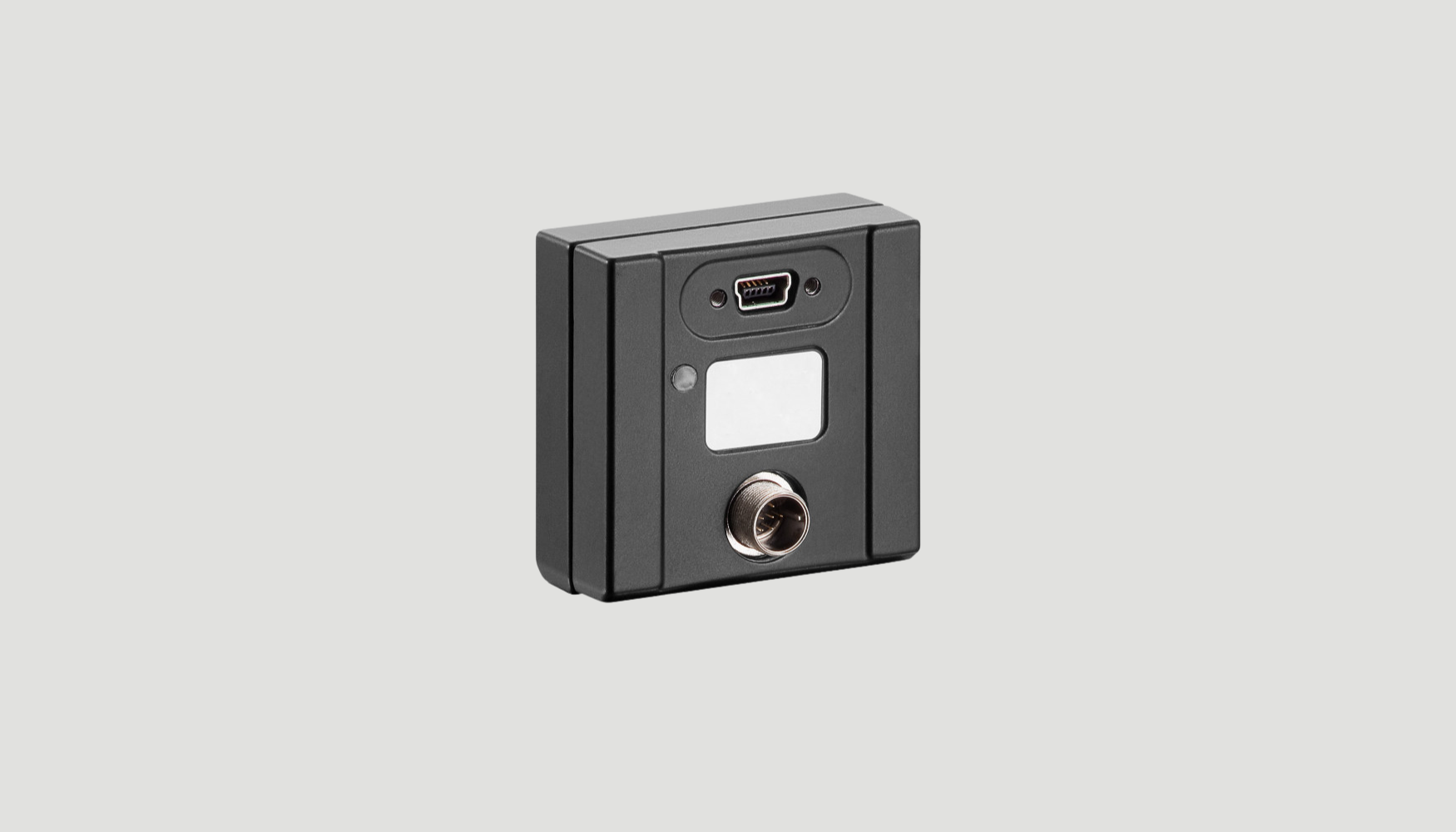

The 8-pin Hirose connector highlights the versatility of the camera by providing two general-purpose I/Os as well as optically decoupled trigger inputs and flash outputs.
The cameras provide a convenient single cable solution for data transfer and power supply. This makes them ideal for many applications, e.g. in robotics and microscopy.
| Model | UI-1240ML | UI-1250ML |
| Interface | USB 2 | USB 2 |
| Interface-Speed | 0.47 Gbps | |
| Optical class | 1/1.8'' | |
| Sensor manufacturer | e2v | |
| Resolution | 1.31 MPix | 1.92 MPix |
| Sensor type | CMOS | |
| Frame rate @ resolution max. | 25.8 fps | 17.6 fps |
| Sensor model | EV76C560 | EV76C570 |
| Resolution (h x v) | 1280 x 1024 | 1600 x 1200 |
| Pixel size | 5.30 µm | 4.50 µm |
