The industry's smallest housed camera with C-mount
Model: U3-38L0XCP, U3-38J0XCP, U3-3680XCP-NIR, U3-3680XCP, U3-3560XCP, U3-33F0XCP

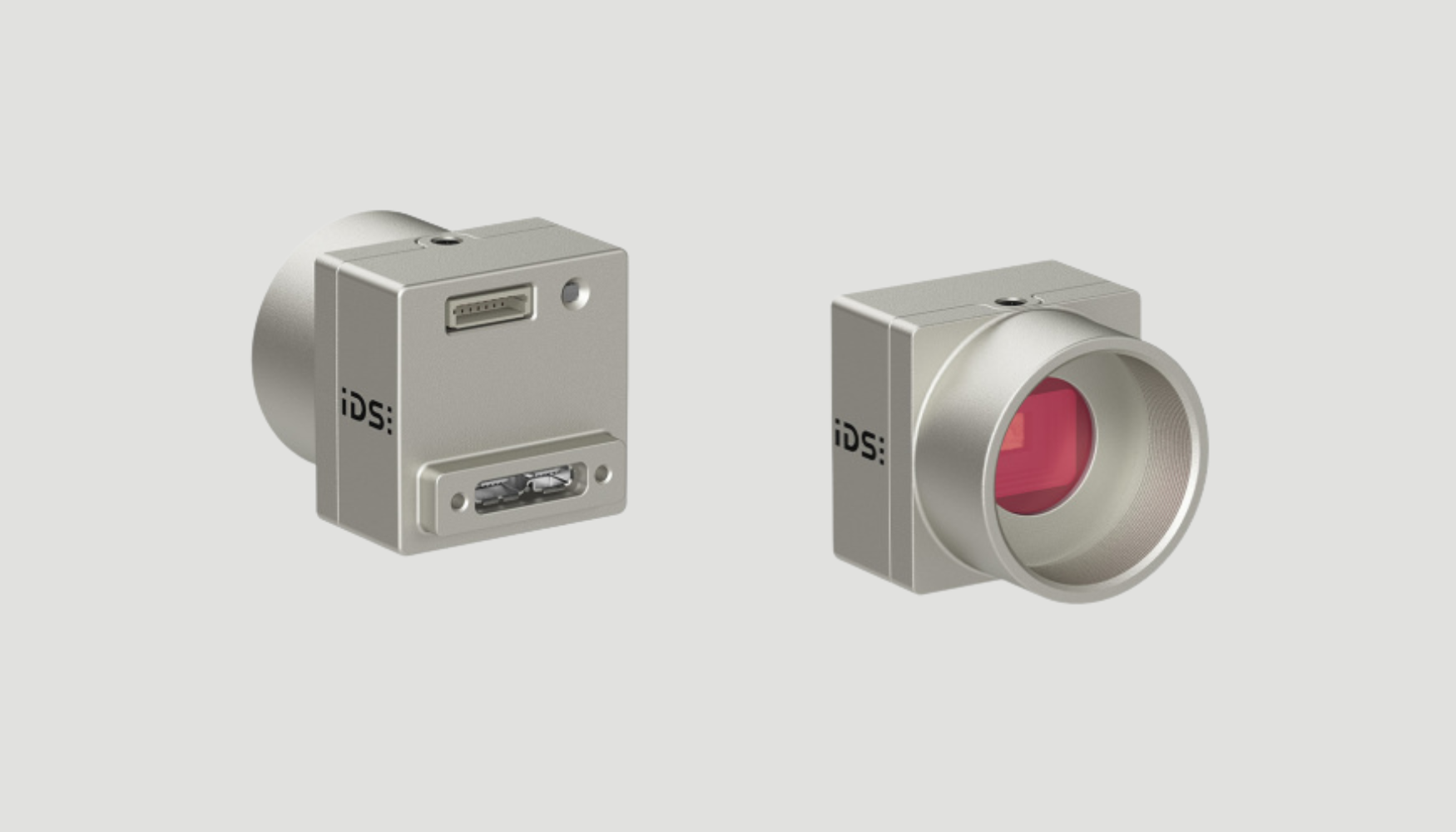

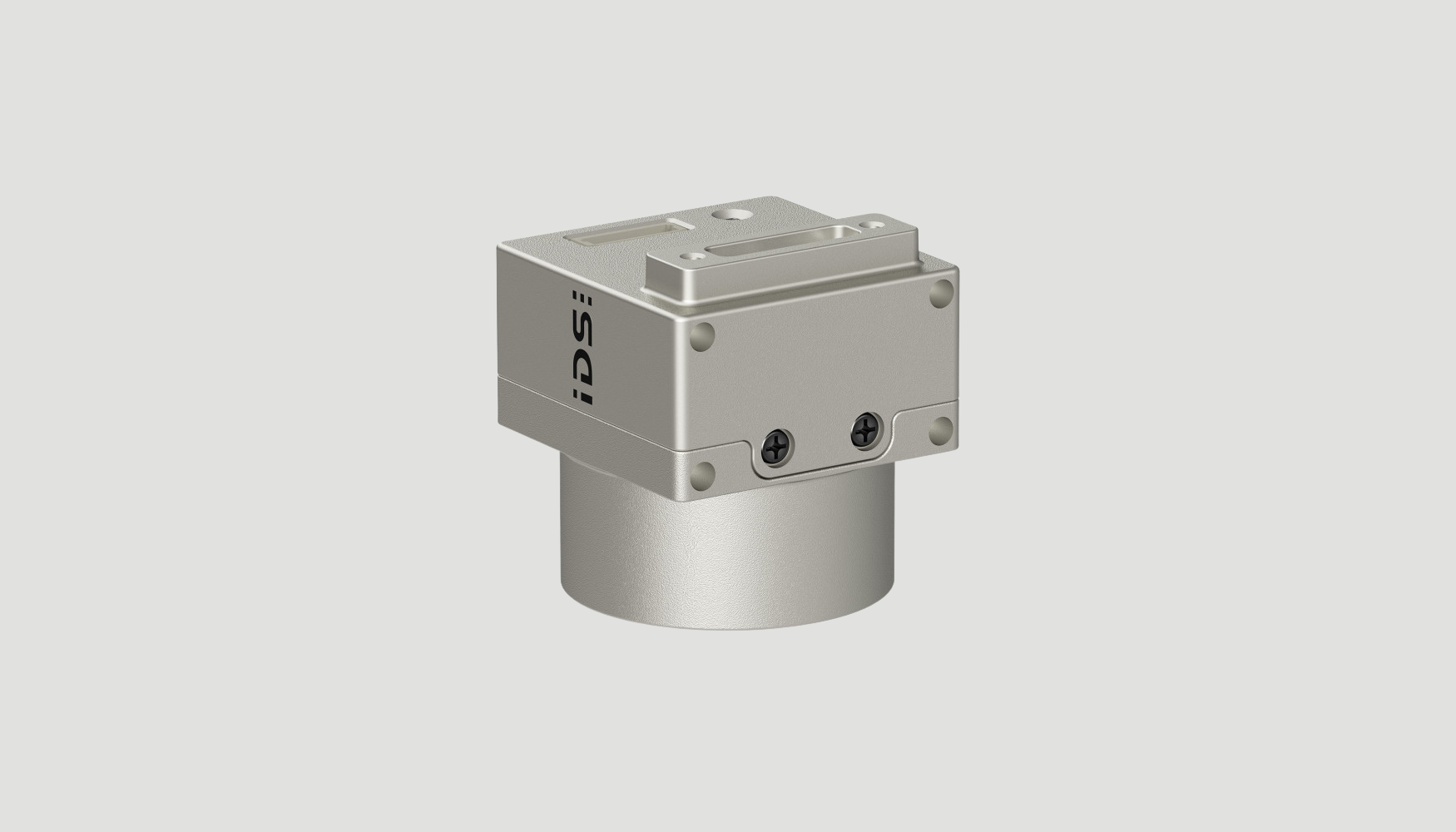

The industrial cameras measures only 29 x 29 x 17 mm (W/H/L) and can be used in a variety of applications in both industrial and non-industrial areas thanks to their fully enclosed zinc die-cast housing and screwable USB Micro-B connector. They are available both as models with filter glass (IP30) and without filter glass. Small, convenient, common lens size - these cameras open up a wide range of applications.

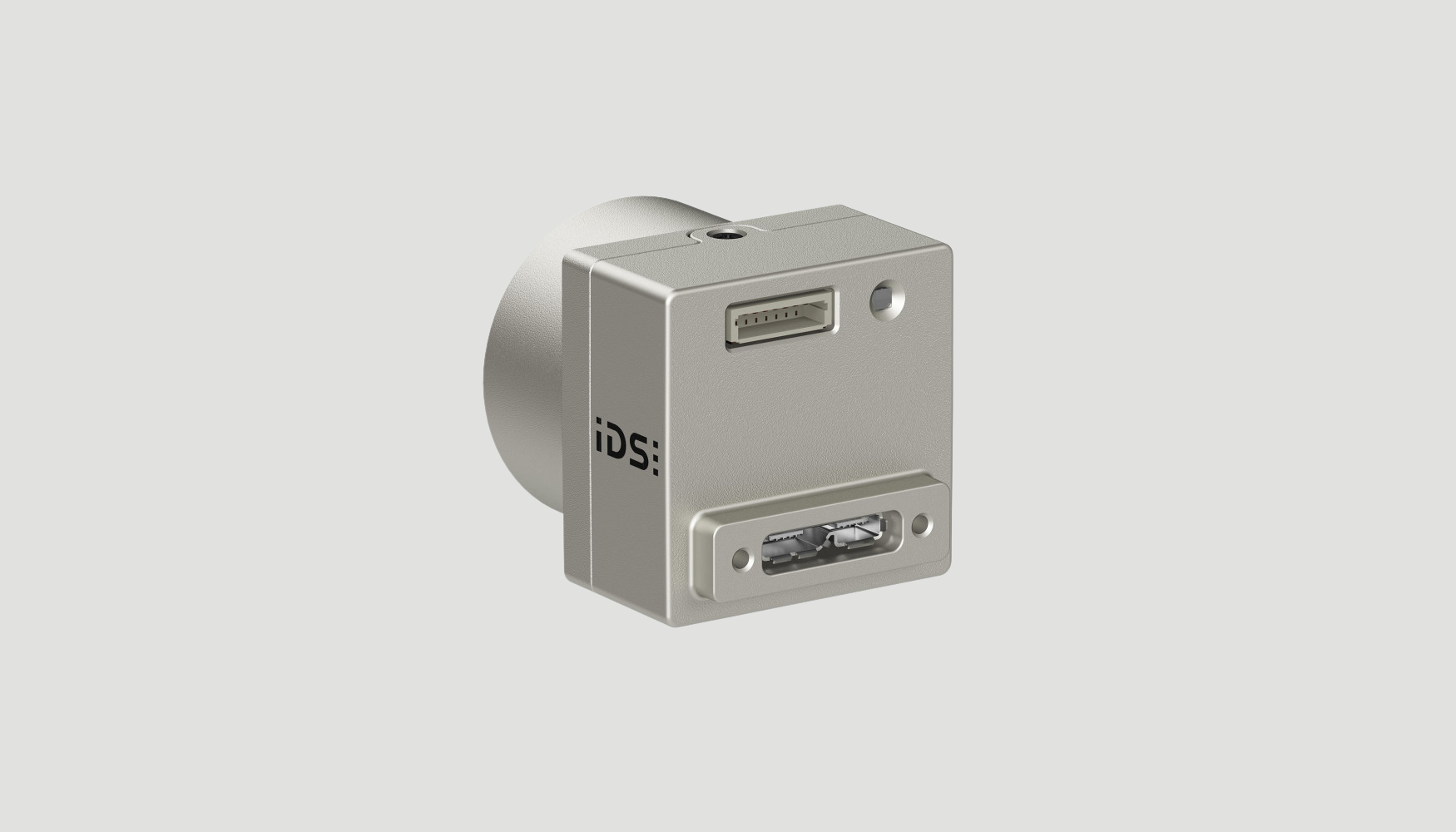

Thanks to a screwable USB3 port (SuperSpeed USB, 5 Gpbs) and Vision Standard compatibility (U3V / GenICam compliment), the cameras can be easily integrated into any image processing system. In principle, the cameras can be used with any software, but are particularly easy to operate with IDS peak.

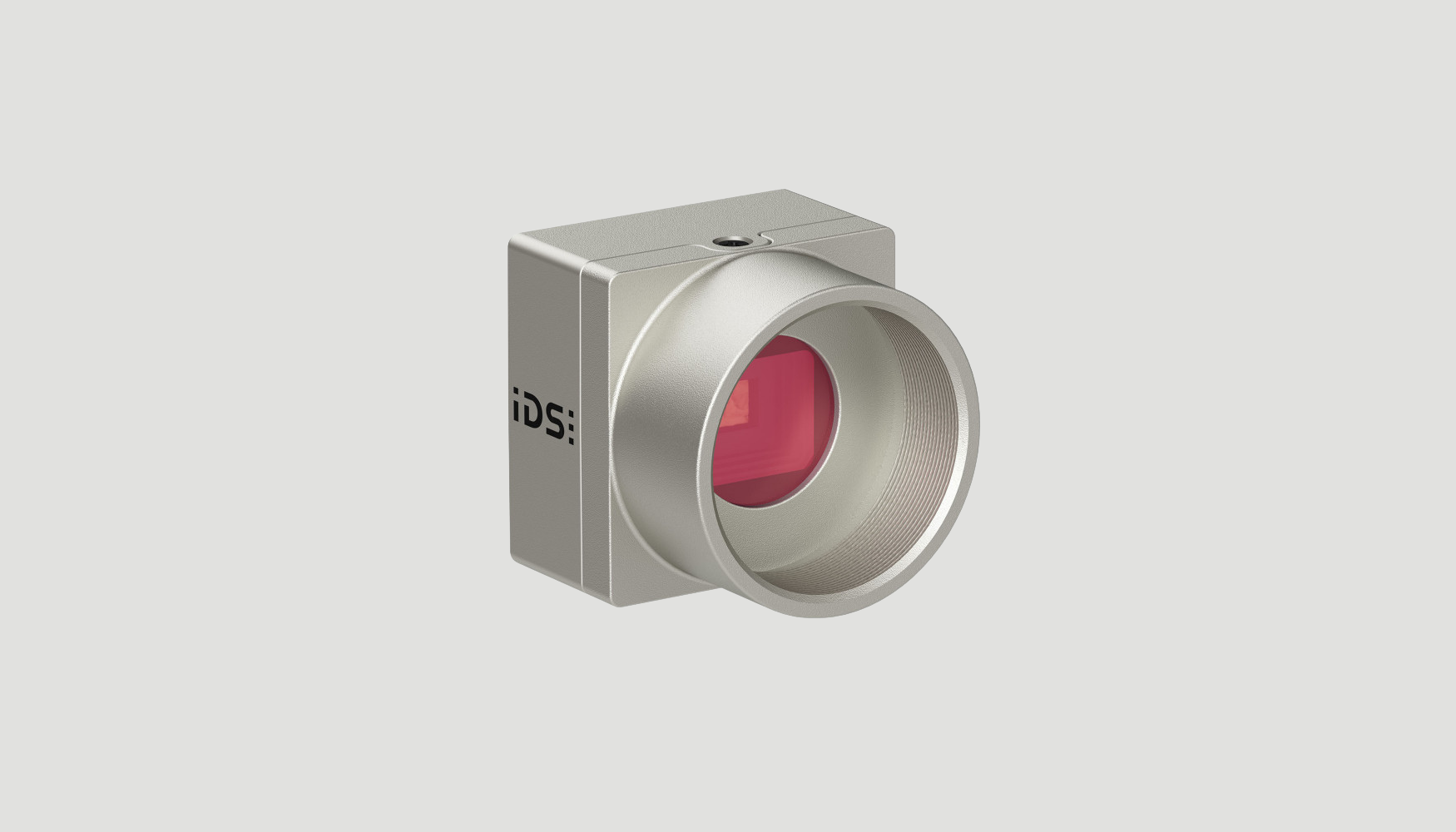

The XCP camera family of the uEye+ product range combines industrial quality with an economic system price. uEye XCP cameras are not only compact lightweights with low power consumption but also feature a cost-optimized electronic design. The C-mount lens holder also allows the use of standard lenses - enabling a favorable system price.
This makes them perfect for price-sensitive applications where simple camera requirements are needed. The cameras are used, for example, for analysis tasks in laboratories, as eyes in autonomously navigating vehicles in production or for visual support of robots in the field of automation.
Model | U3-38L0XCP | U3-38J0XCP | U3-3680XCP-NIR | U3-3680XCP | U3-3560XCP | U3-33F0XCP |
Interface | USB 3 | |||||
Interface-Speed | 5.0 Gbps | |||||
Optical Class | 1/2'' | 1/3'' | 1/2.5'' | 1/2.5'' | 1/3'' | 1/1.8'' |
Sensor | CMOS | |||||
Sensor manufacturer | Sony | Sony | onsemi | onsemi | onsemi | Sony |
Resolution | 12.33 MPix | 8.41 MPix | 5.04 MPix | 5.04 MPix | 2.30 MPix | 5.01 MPix |
Frame rate @ resolution max | 18.0 fps | 25.1 fps | 48.0 fps | 48.0 fps | 102.0 fps | 49.0 fps |
Sensor model | IMX412 | IMX415 | AR0522 | AR0521 | AR0234 | IMX568 |
Resolution (h x v) | 4056 x3040 | 3864 x 2176 | 2592 x 1944 | 2592 x 1944 | 1920 x 1200 | 2448 x 2048 |
