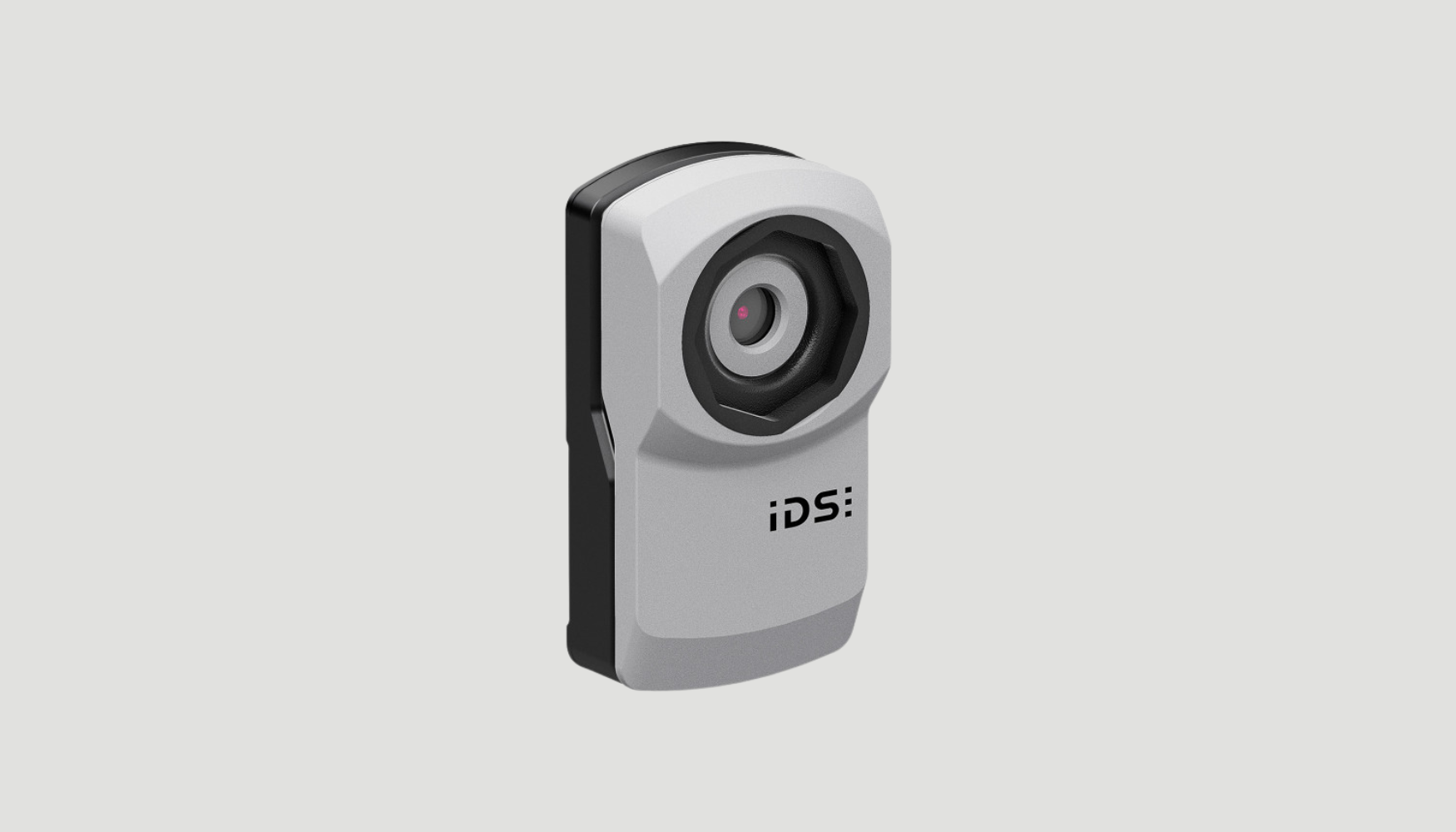

The uEye XC is an industrial camera with the simplicity of a webcam. Setting up and operating the camera requires only one cable connection. The 13 MP autofocus camera immediately delivers high-resolution, detailed images and videos.
Unlike consumer webcams, the uEye XC camera is specially designed for industrial requirements. This includes its robust housing, the screwable USB micro B connector and electronic components with long-term availability.

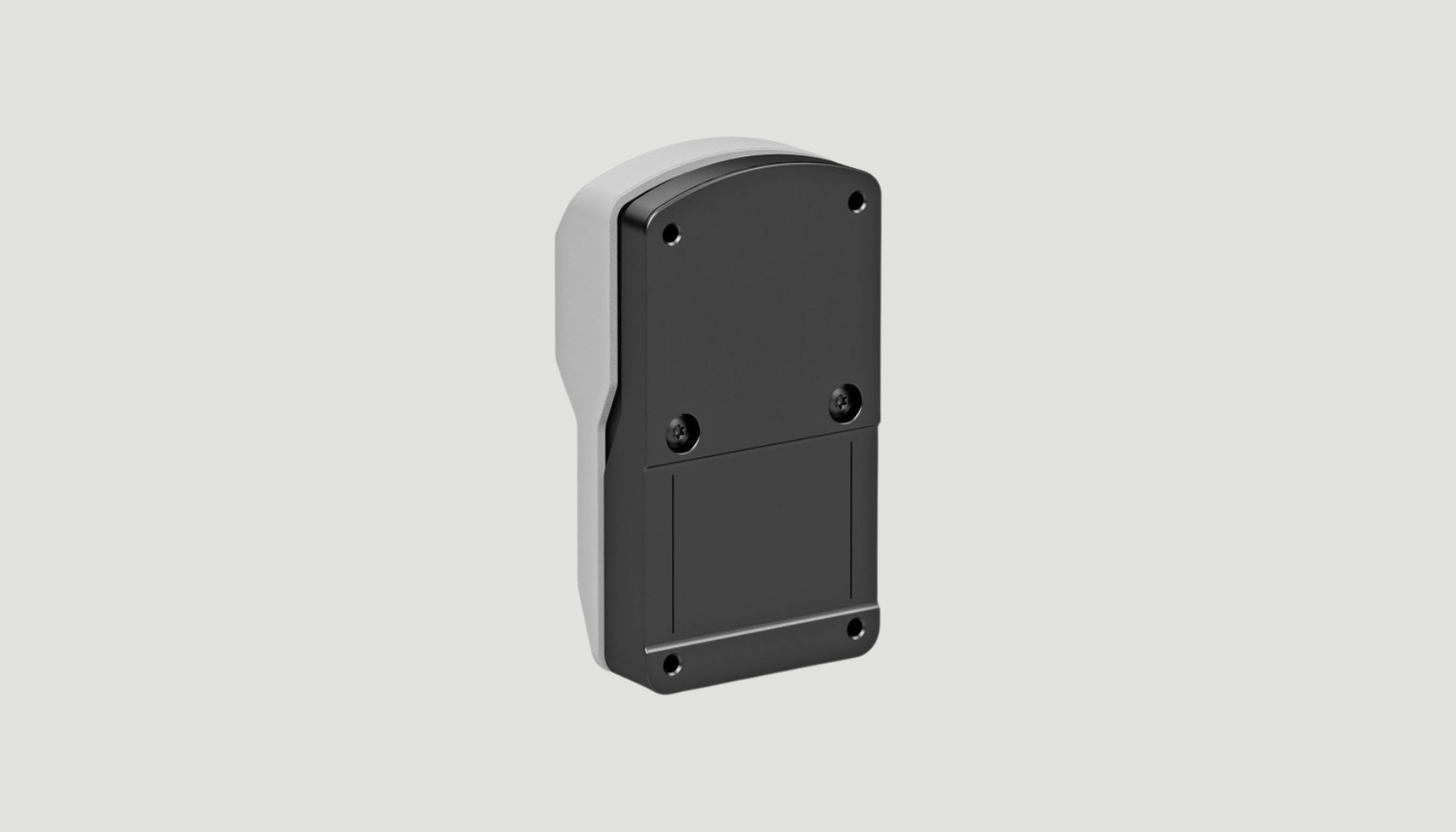

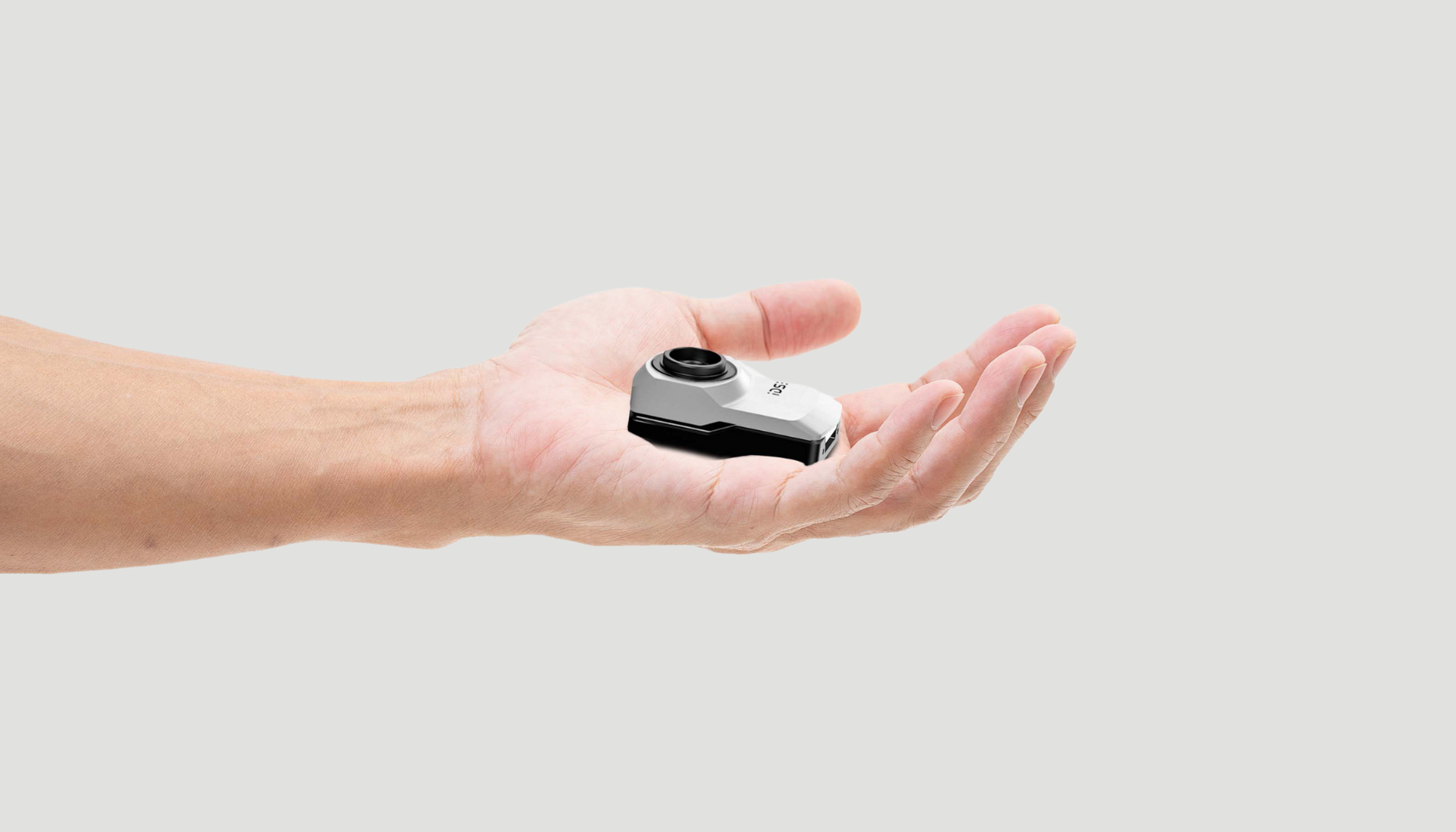

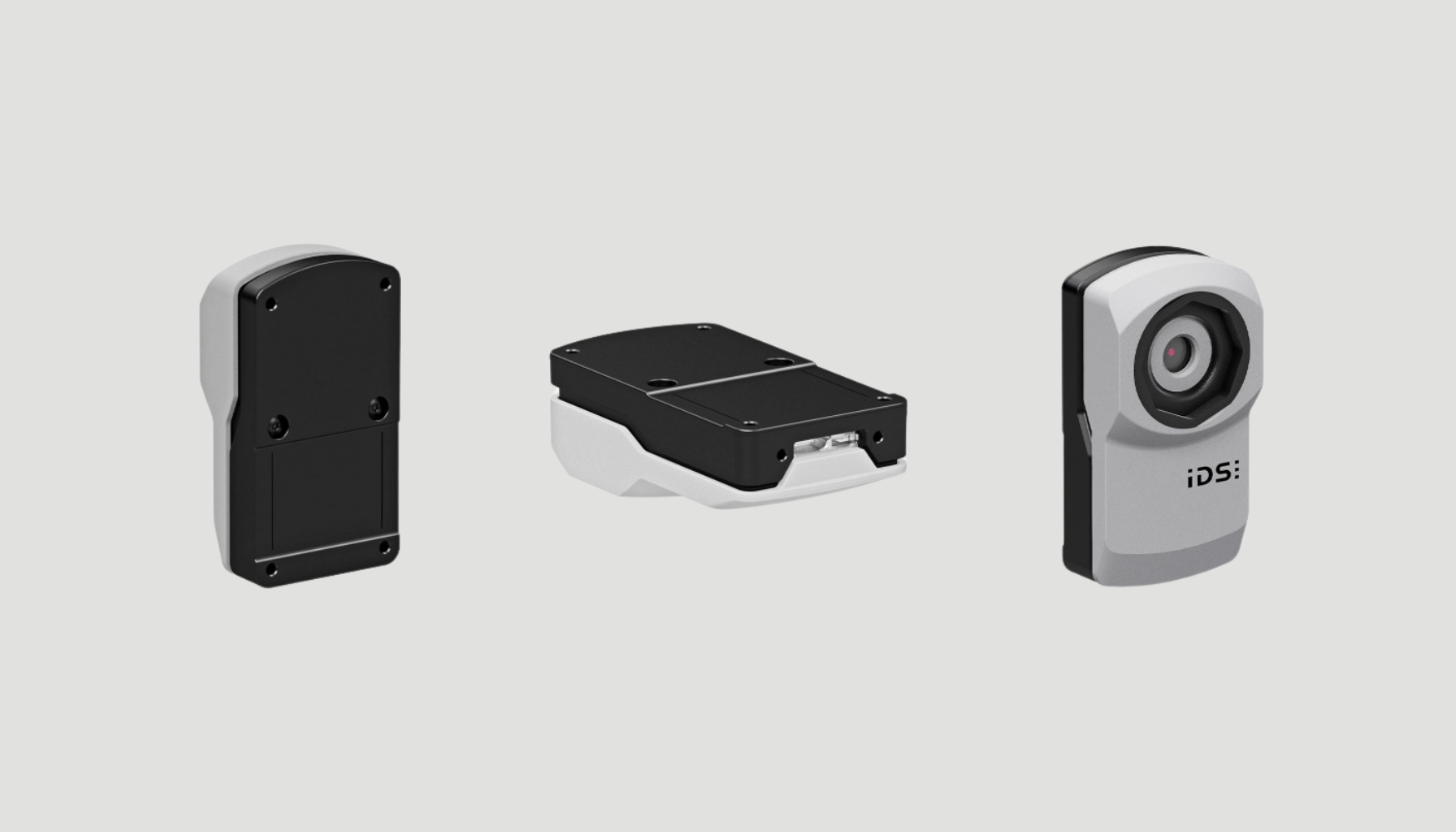

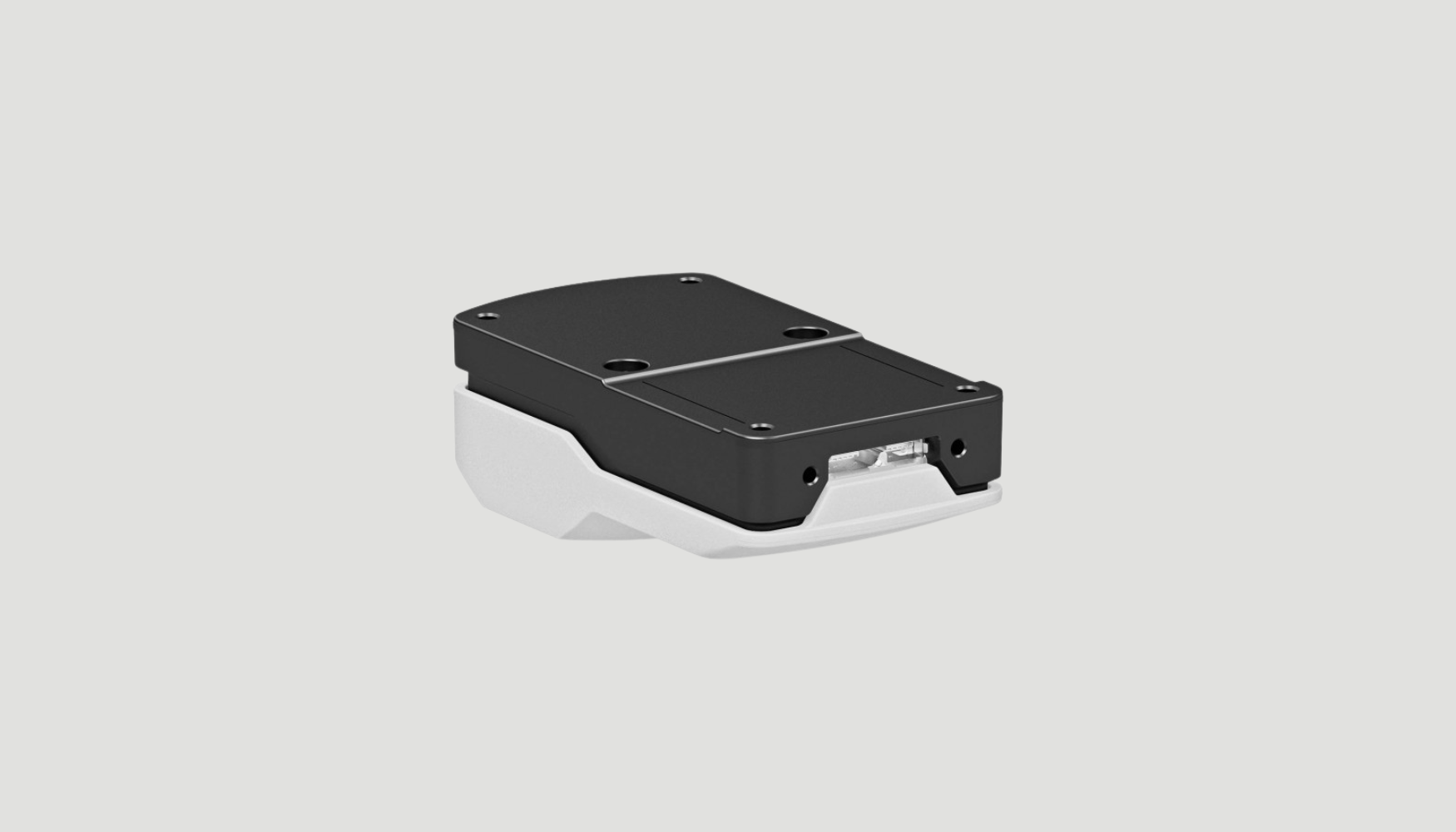

The USB3 uEye XC is also characterised by its elegant and lightweight magnesium housing. With dimensions of only 32 x 61 x 19 mm (W x H x D), it is compact, robust and absolutely suitable for industrial use.
Connect the camera, focus automatically, get a perfectly sharp image or video - this is especially useful when object distances change frequently. Webcams are therefore used in many kiosk and robotics applications. However, they are usually designed for the consumer market. The uEye XC is different: it closes the market gap between industrial camera and webcam. Depending on preference, customers can choose between variants with USB3 Vision (programmable) and UVC protocol (plug&play) for the autofocus camera. From kiosk systems to logistics and robotics - the uEye XC shows what counts.
| Model | UV-36L0XC | U3-36L0XC |
| Interface | USB 3 | |
| Interface-speed | 5.00 Gbps | |
| Sensor type | CMOS | |
| Sensor manufacturer | onsemi | |
| Optical class | 1/3.2'' | |
| Frame rate @ resolution max. | - | 20.0 fps |
| Resolution (h x v) | - | 4200 x 3120 |
| Resolution | - | 13.10 MPix |
| Pixel size | 1.10 µm | |
