HỆ BĂNG TẢI ĐIỀU KHIỂN VỊ TRÍ CHÍNH XÁC CAO LS LINK - WEISS

LS Link Precision Link Conveyor System - Fast, flexible & reliable with reduced system complexity

thông tin kỹ thuật

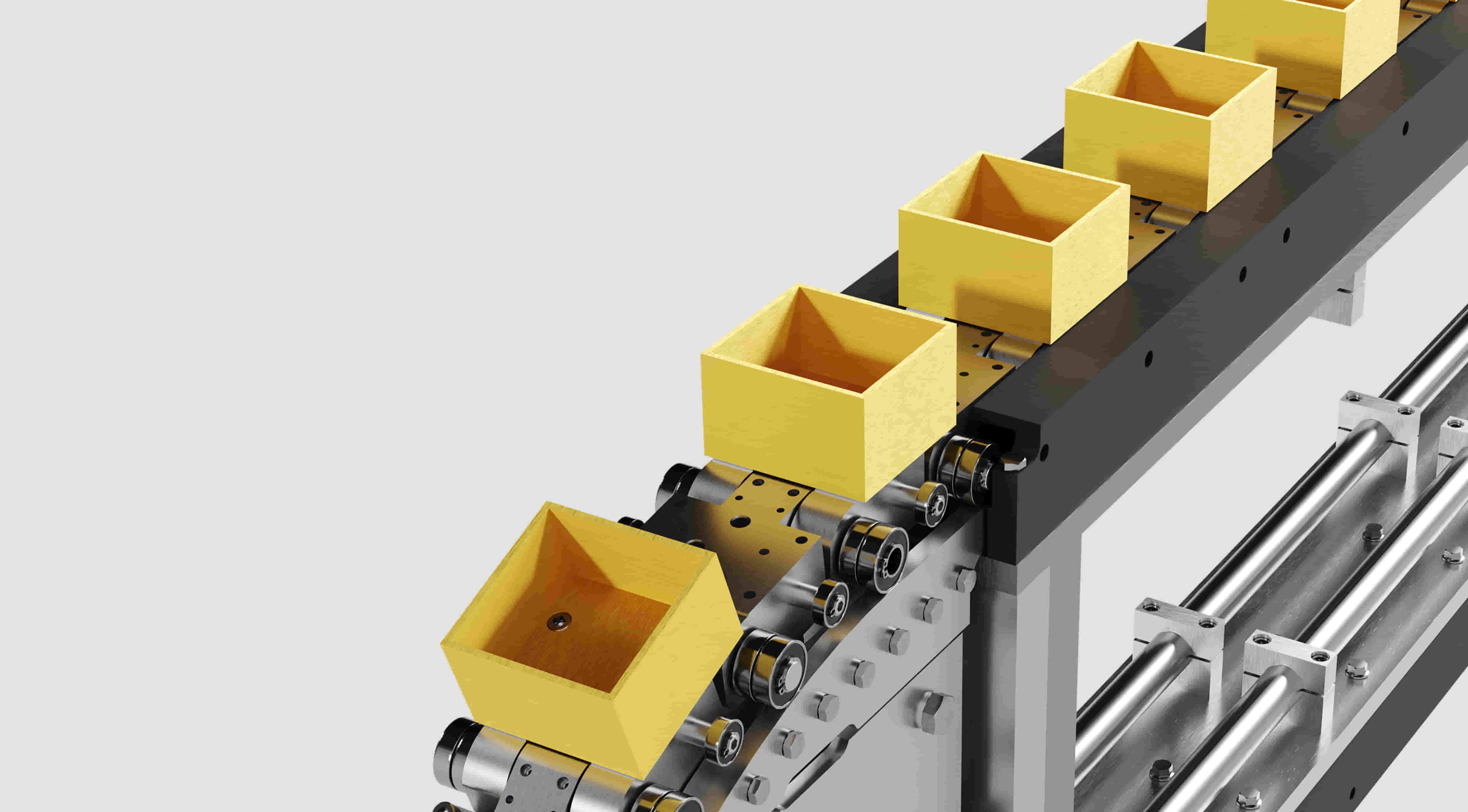

LS Link, the precision link conveyor system, is designed to transport workpieces in automated assembly and packaging lines. Thanks to its drive concept, it is winning over users wherever the application demands precision and short transport times. The reduced complexity of the system and high reliability ensure high productivity and economic efficiency.

TECHNICAL FEATURES

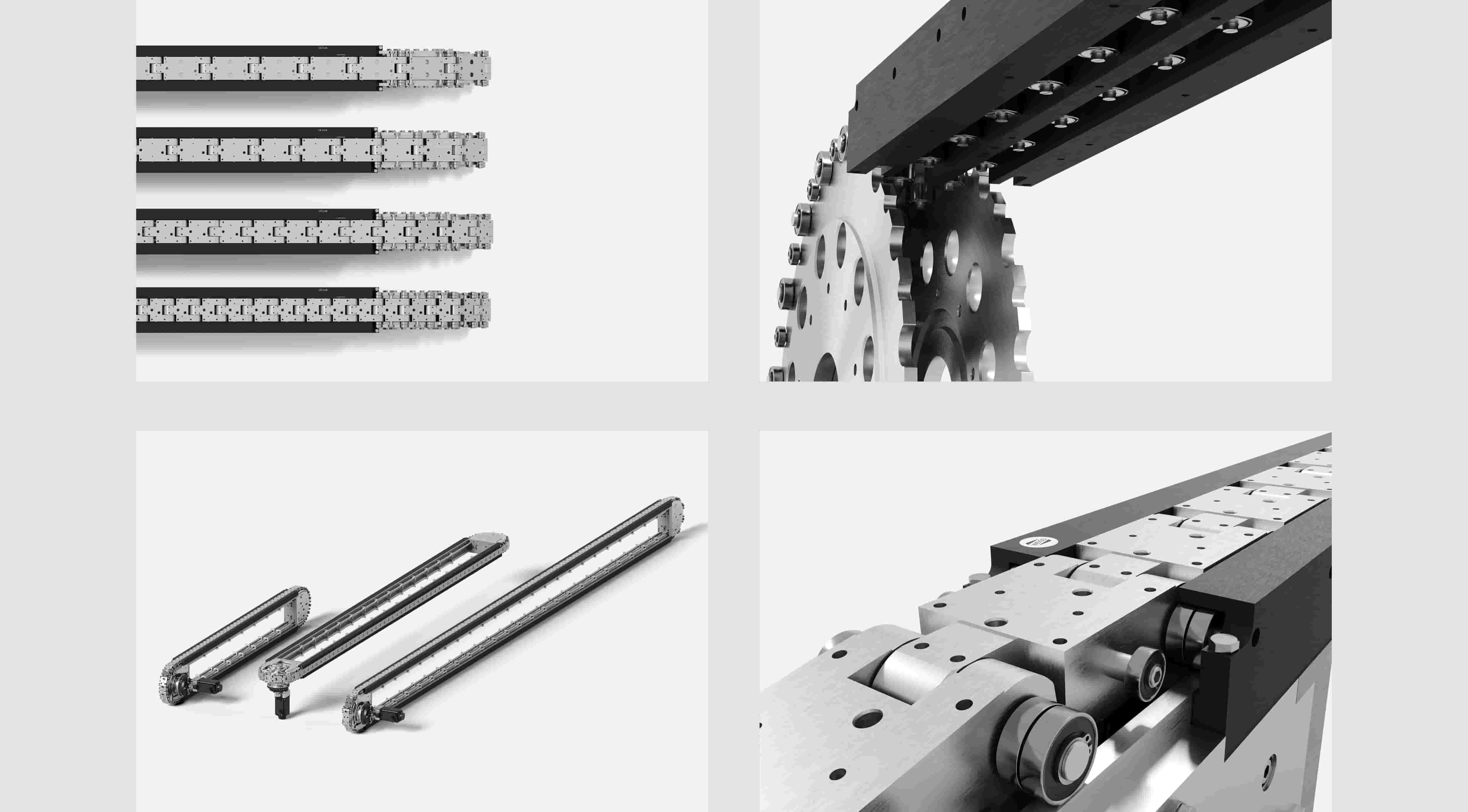

  • High-quality drive technology combined with innovative guide concept

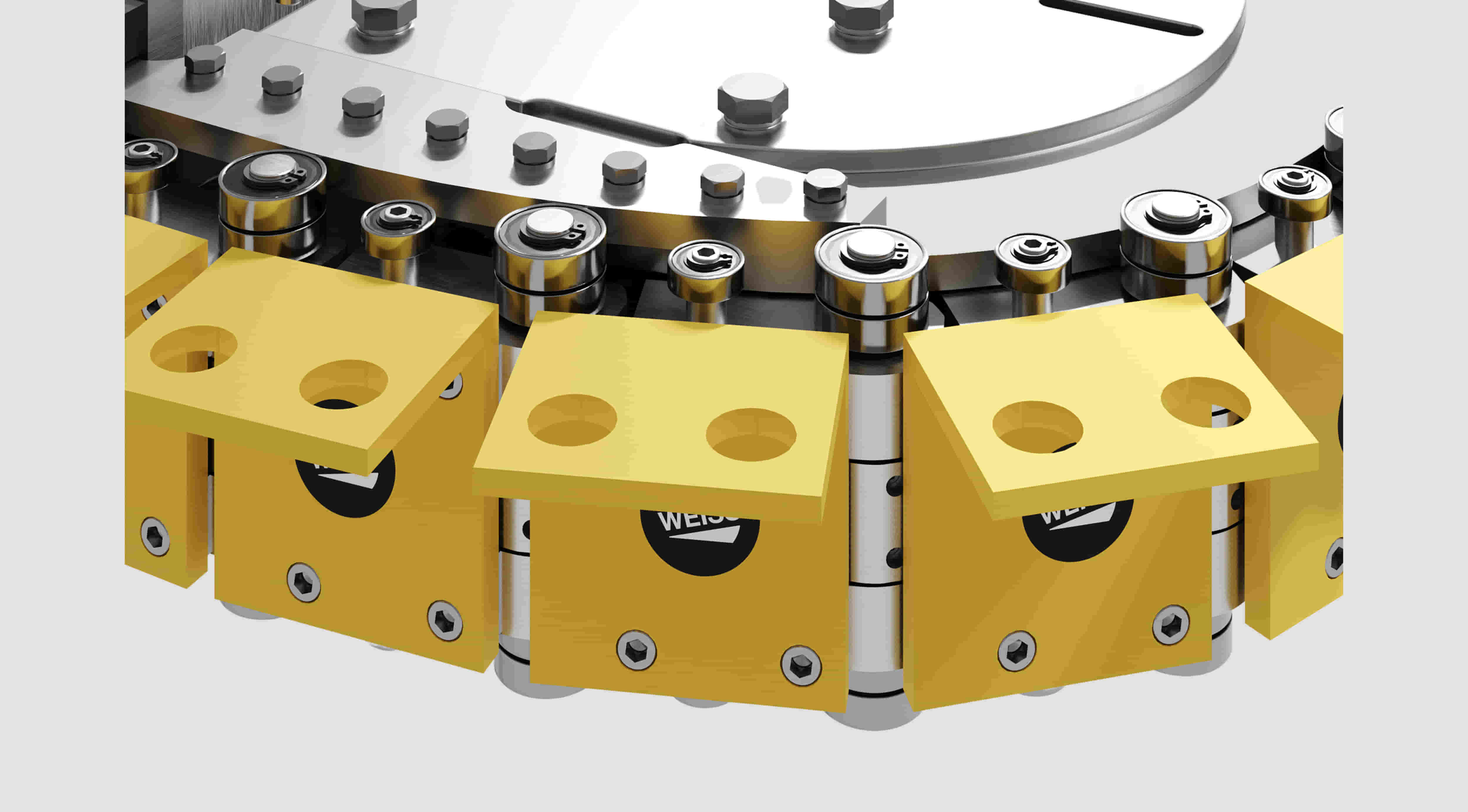

  • Guided chain links in drive and deflection as an option
  • Approx. 60 parts per minute, depending on stroke and process time
  • Wide range of parts due to loading of up to 50 kg per chain link
  • Installation position horizontal as well as vertical
  • Direction of motion CCW (counterclockwise) and CW (clockwise)

TECHNICAL DATA

Specifications LS Link
Max. load vertical mounting position 50 kg per chain link
Max. load horizontal mounting position 20 kg per chain link
Process forces (without support) approx. 1000 N
Mounting Position horizontal & vertical

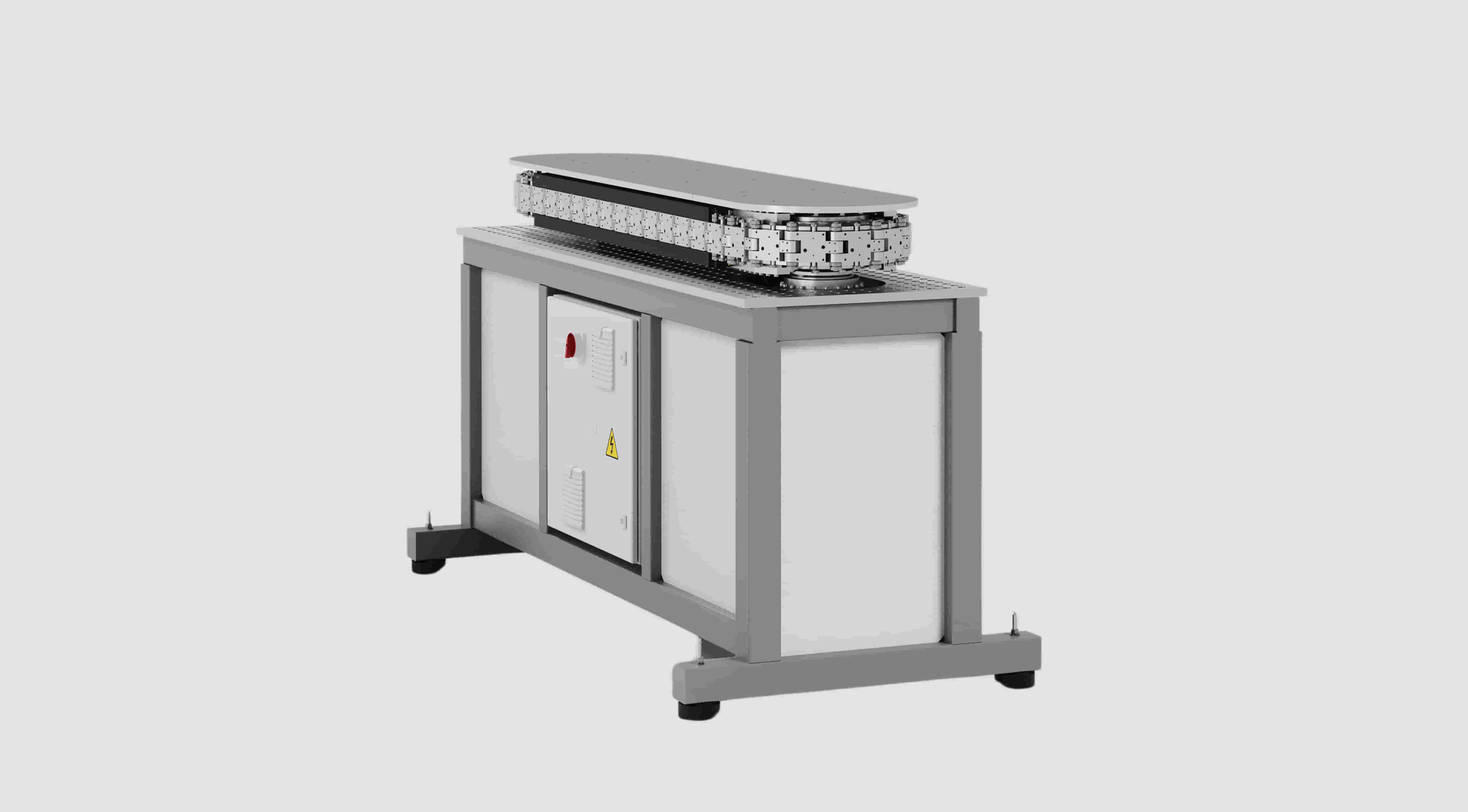

Structure Oval with 180° corner
Direction of movement Counterclockwise (CCW), clockwise (CW)
Chain link length 80, 100, 125, 150 mm
Power supply 200-480V, 50-60Hz
