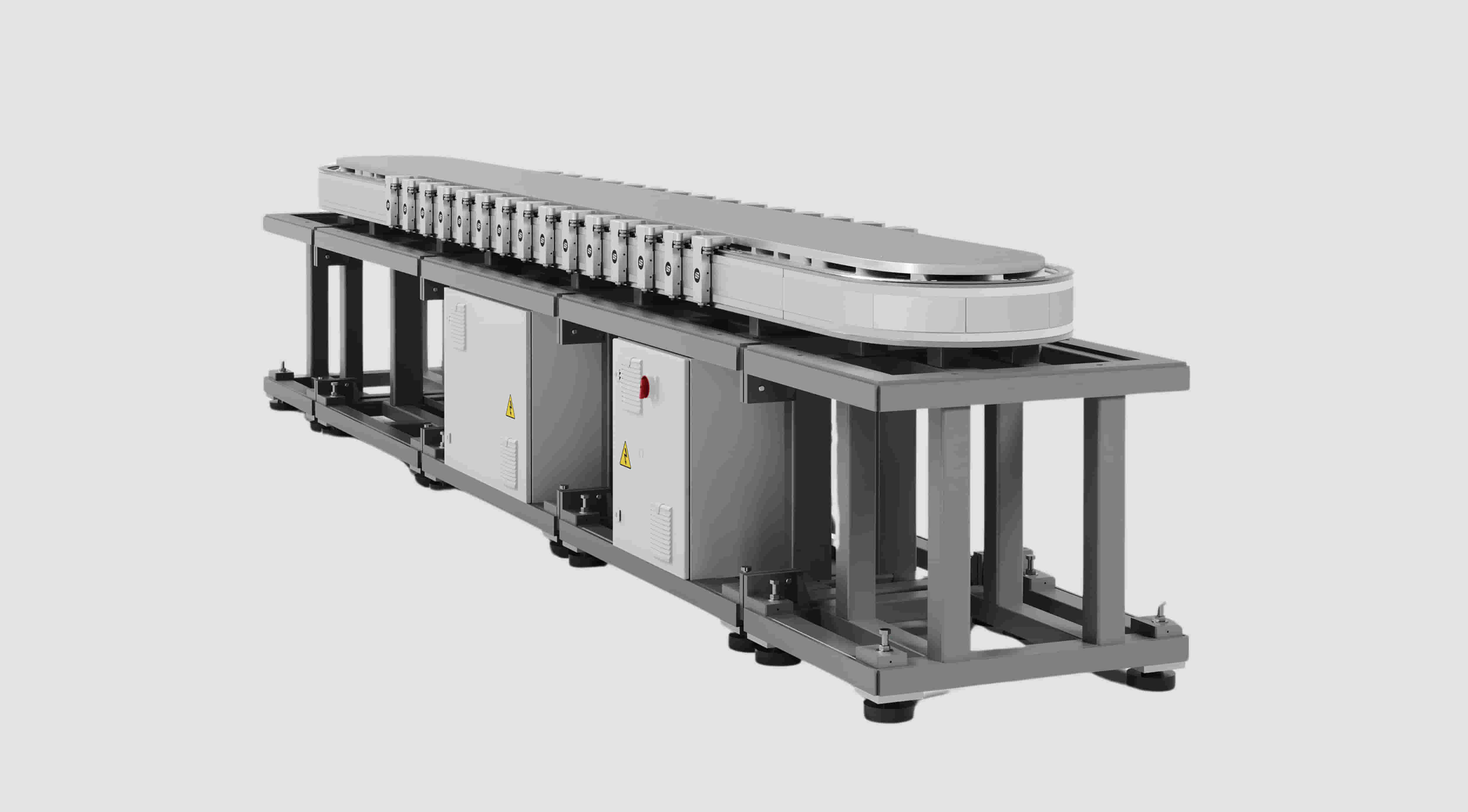

With LS One, users rely on a subsystem based on the plug & work motto. It is flexibly configured, pre-configured and easy to start up. Thanks to the linear motor module, the movements of each workpiece carrier can be programmed independently and freely. For certain types of processing, the linear motor module replaces an additional process axis.

TECHNICAL FEATURES

  • Modular system for high level of flexibility
  • Direct drive with minimum installation effort
  • Easy system reconfiguration via software
  • High precision thanks to direct drive and guiding system
  • Prepared, pre-commissioned system

TECHNICAL DATA

Specifications LS ONE
Linear motor module 1320 WxHxD 1320 x 170 x 632 mm
Linear motor module 660 WxHxD 660 x 170 x 632 mm
Redirection module WxHxD 638,5 x 170 x 632 mm

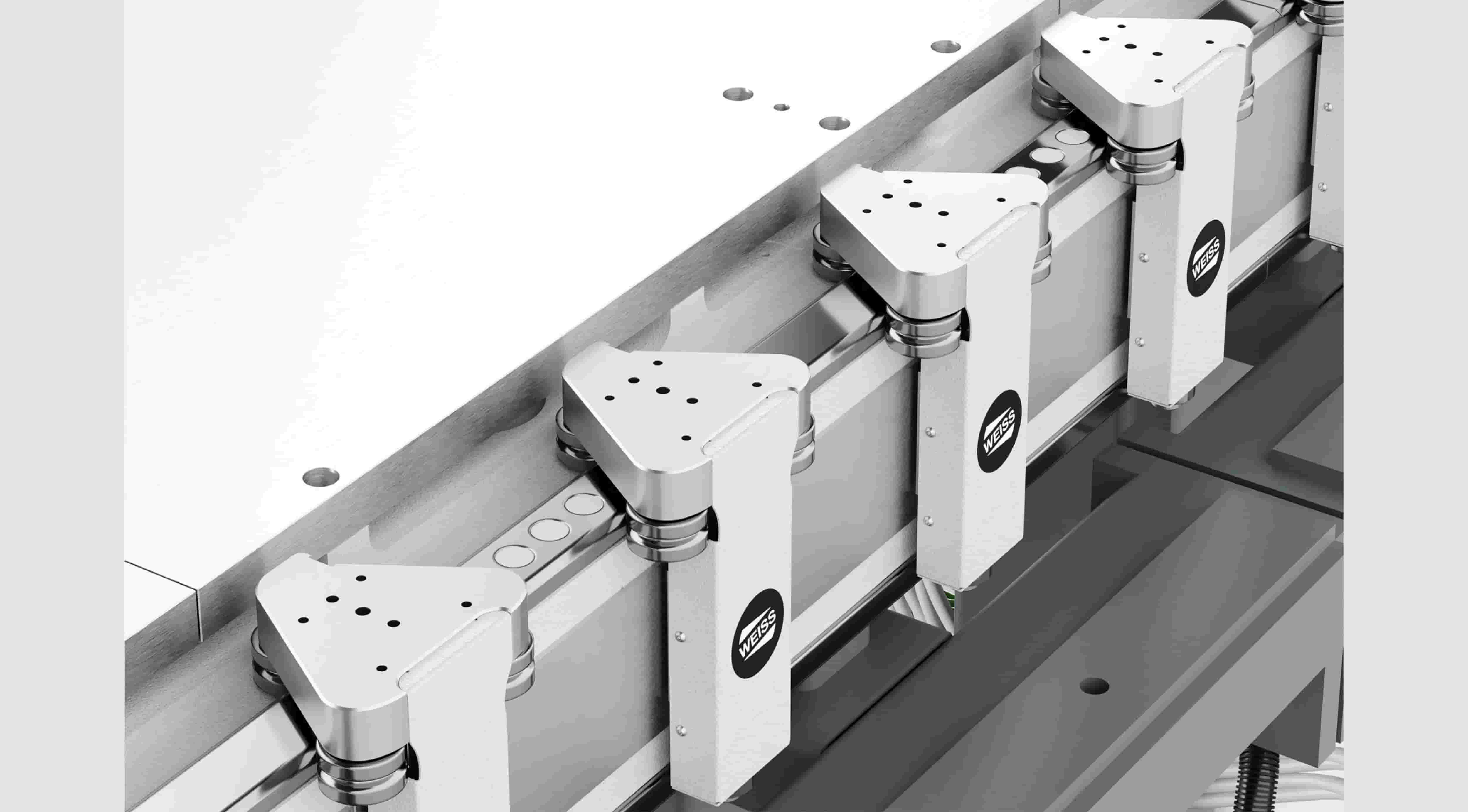

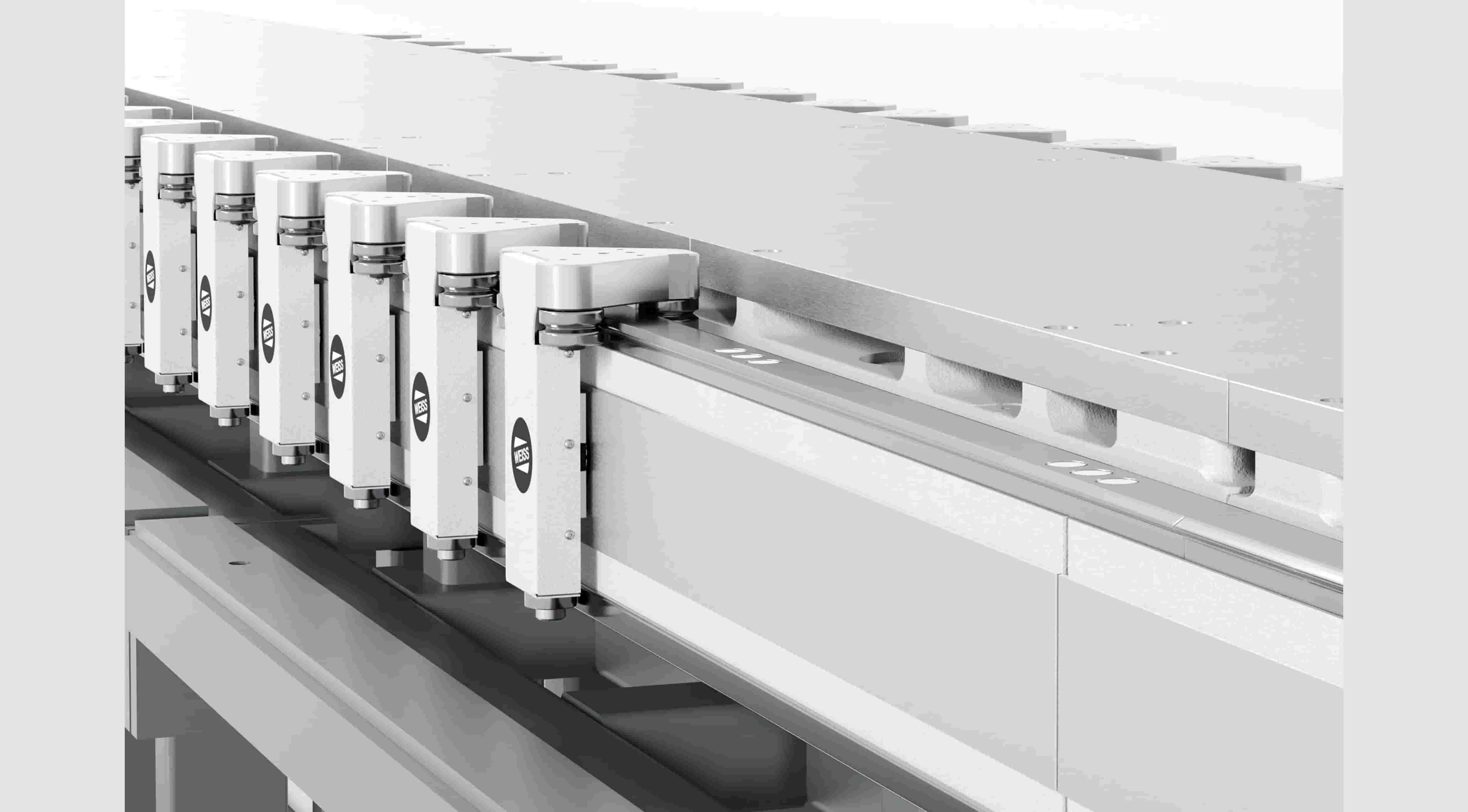

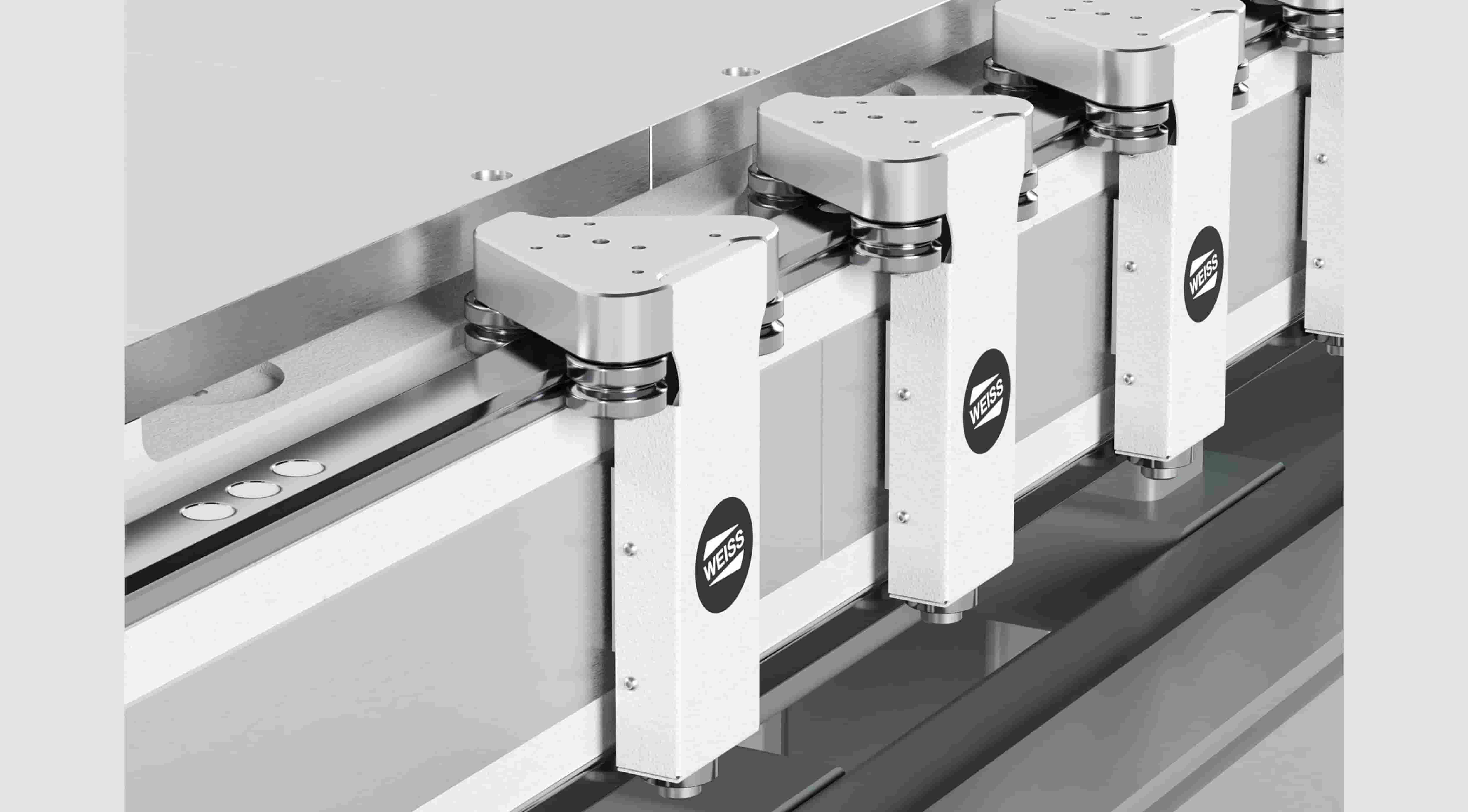

Workpiece carrier (WC) plate length Min. 114 mm (multiple nests possible)
Max. loading Up to 5 kg
Installation pos.  Horizontal
Structure Oval mit 180°-Ecke
Direction of movement Counterclockwise (CCW), clockwise (CW)
Linear motor module positioning accuracy ± 0.03 mm (x, y and z directions)
Redirection module positioning accuracy ± 0.03 mm (x, y and z directions)
Power supply 200-480V, 50-60Hz

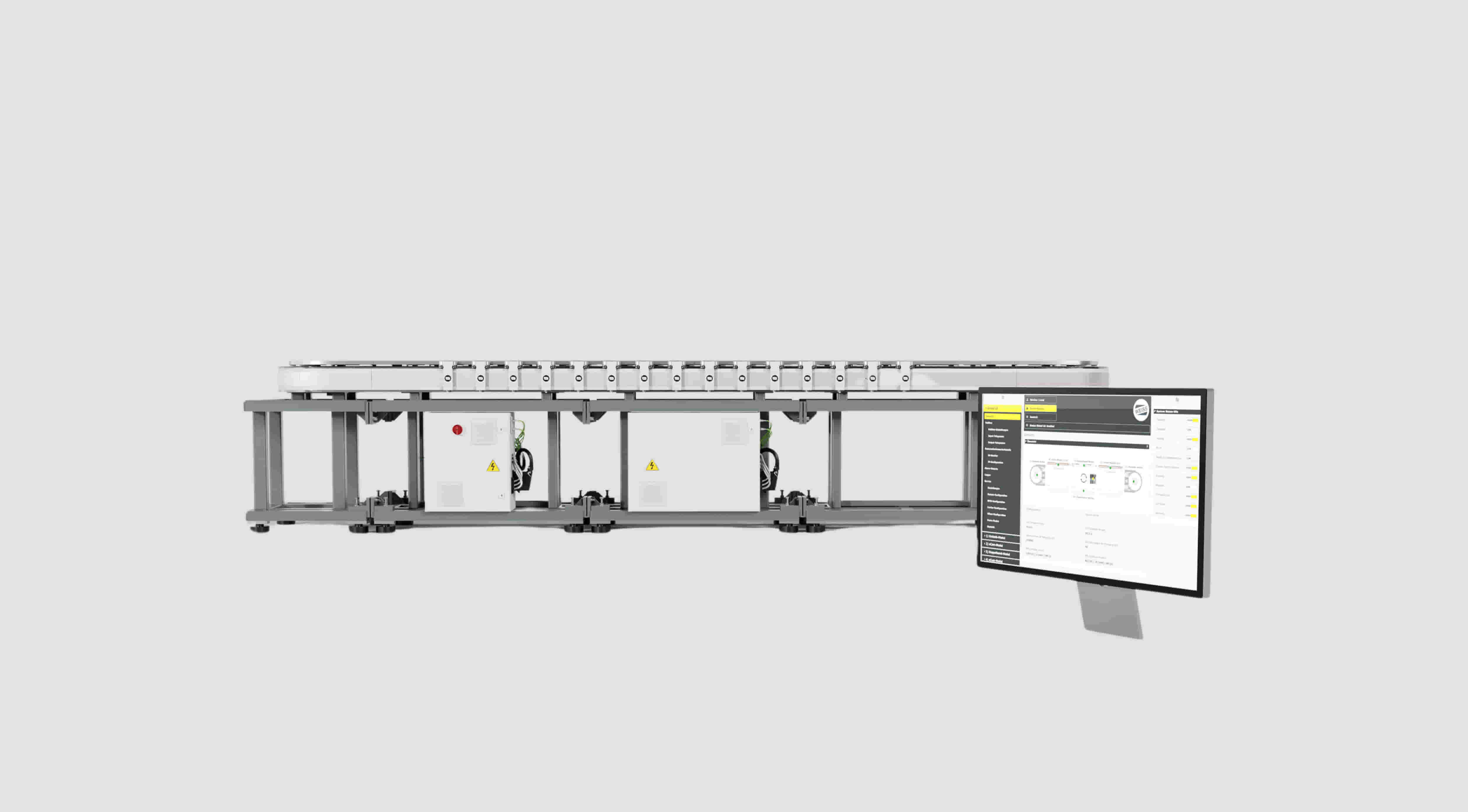

Software W.A.S. (WEISS Application Software)
