FLEXIBLE PART FEEDER - THE MOST ADVANCED AUTOMATIC PART FEEDER

Are you looking for an automatic part feeder solution suitable for changing models constantly? Simple, fast installation and no extra cost per change?

20 Aug 2021
Kiều Đình Sinh
1 minutes read
FLEXIBLE PART FEEDER - THE MOST ADVANCED AUTOMATIC PART FEEDER

Flexible Part Feeder solution with 3D vibration technology combined with Robot and Vision camera will satisfy all your needs in setting up an automatic production line following the industry 4.0 trend.

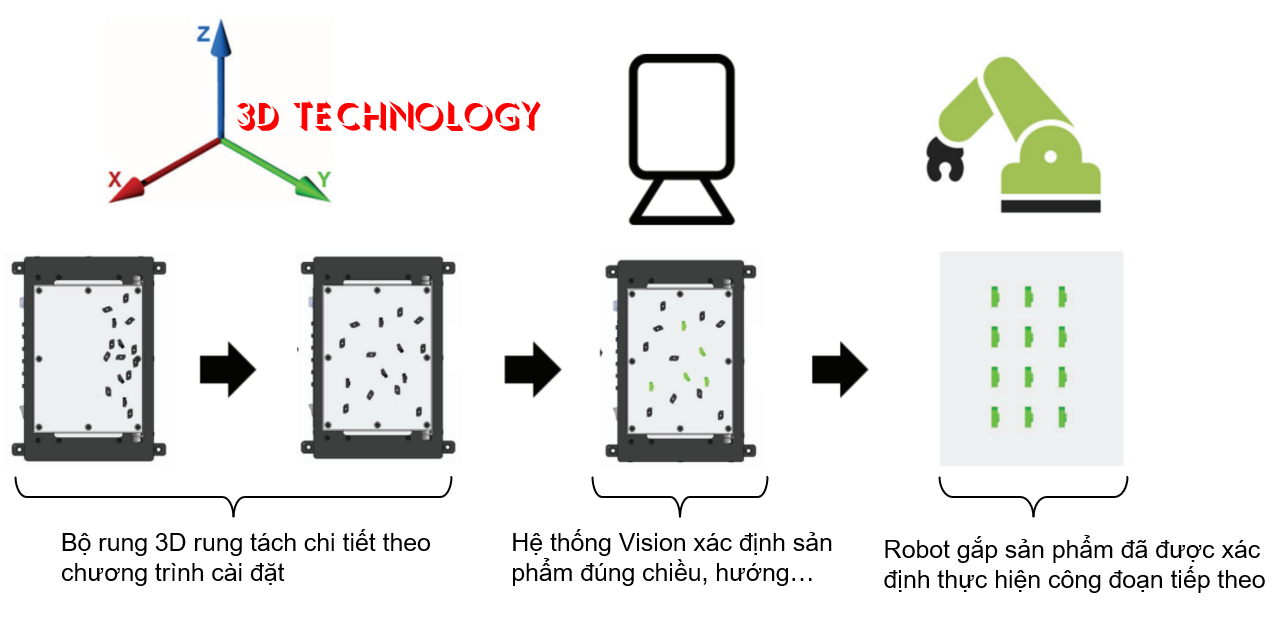

Process

Integrated between Techman Collaborative Robot and Flexible Part Feeder

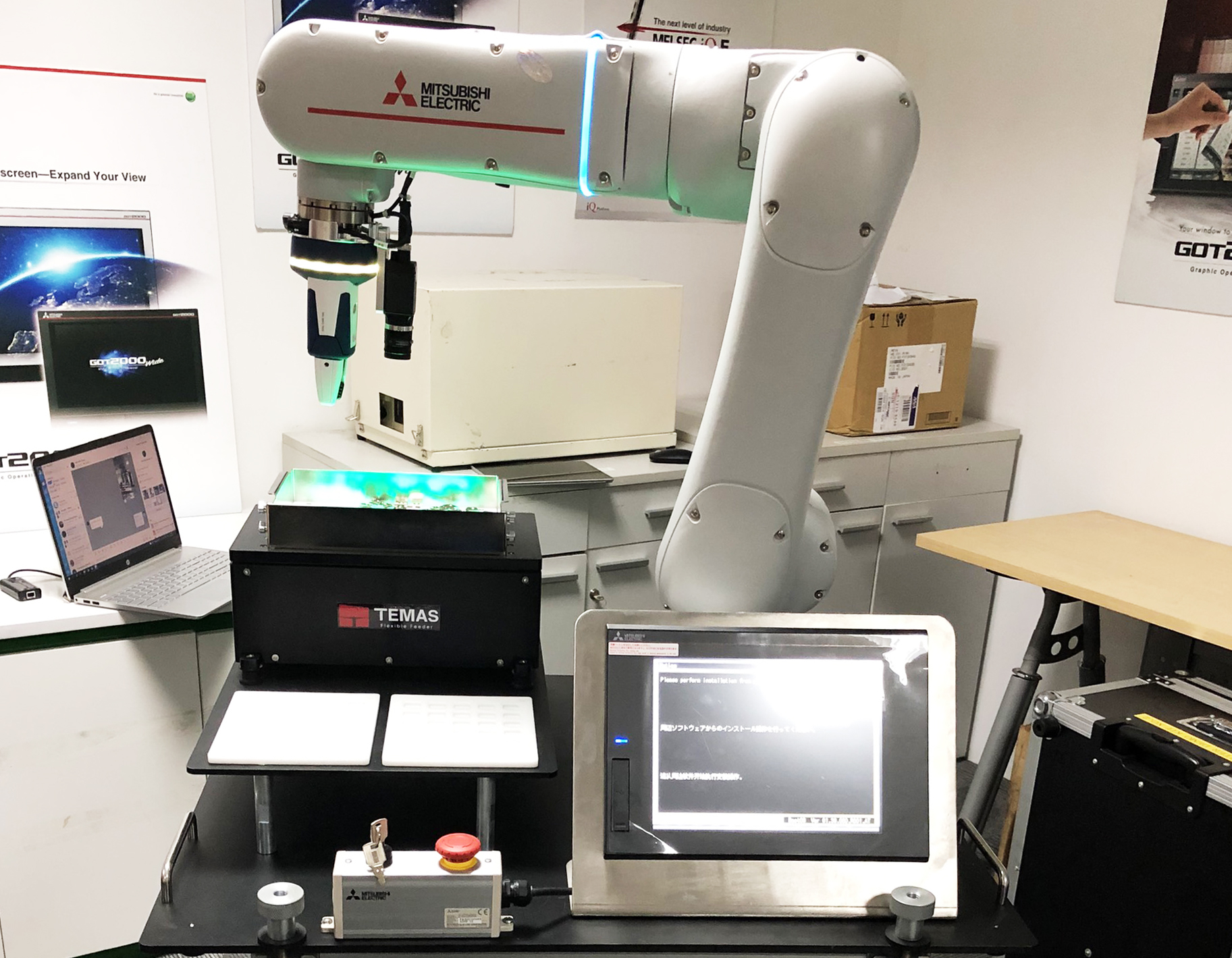

Integrated between Mitsubishi Collaborative Robot-ASSISTANT and Flexible Part Feeder

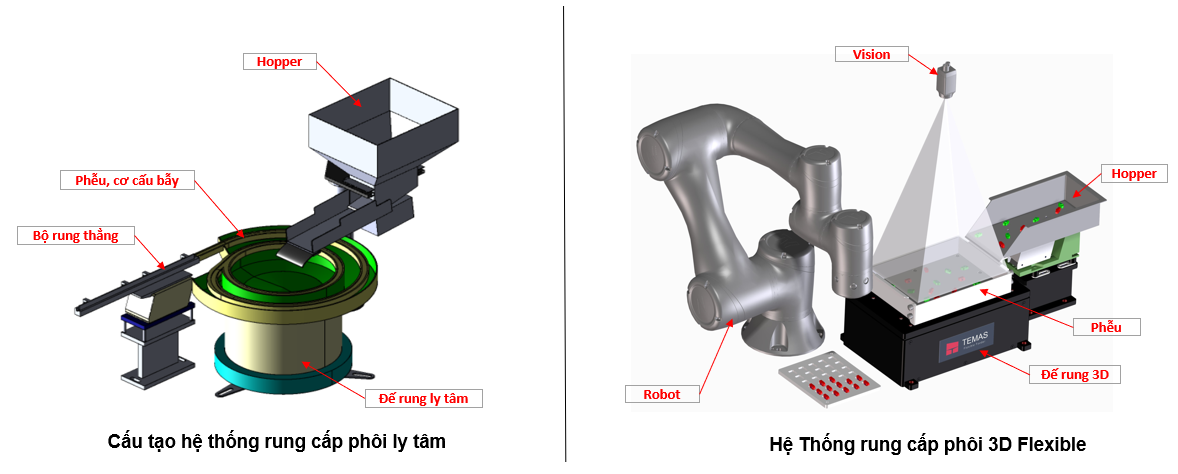

Compare Traditional Part Feeder and Flexible Part Feeder



Category Traditional Part Feeder Flexible Part Feeder
Technology * *  * * * * *
Piezo piezoelectric buzzer, high frequency, low amplitude Special 3D vibration technology with high frequency and amplitude
Difficult communication with peripherals Communicate easily with Vision systems, Robots via IO, or via popular industry communication standards
Stability * * * * *
Depends on the crafting process. Components and accessories are manufactured according to mass standards, ensuring uniformity and high stability.
Accuracy * *  * * * * *
Depends on the crafting process. Vision system accurately identifies components, just install the Vision system to identify the correct product, with high accuracy.
Flexibility * * * * *
When replacing the product, change the Hopper, Straight Vibrator, or Whole. Replacing and aligning take a lot of time and effort. When replacing the product, just select the program installed for that product before, no need to interfere with the mechanical part, edit, or change.
Each vibrating hopper is only compatible with one product Each vibrating hopper can be used for many different  shaped products
Application  * * * * * * *
Suitable for large sizes, with simple contours, low accuracy, fixed product model, little change
Suitable for different sizes, shapes from simple to complex, product designs change a lot in the production process, fastly change time, easy system integration, and smart factory orientation.
Price  * *  * * *
The investment cost is not too high, but it is almost difficult to take advantage of switching purposes with other products.
The solution combines Vision and Robot, so the initial investment cost is relatively high. However, it is easy to take advantage of switching uses.

Watch video
