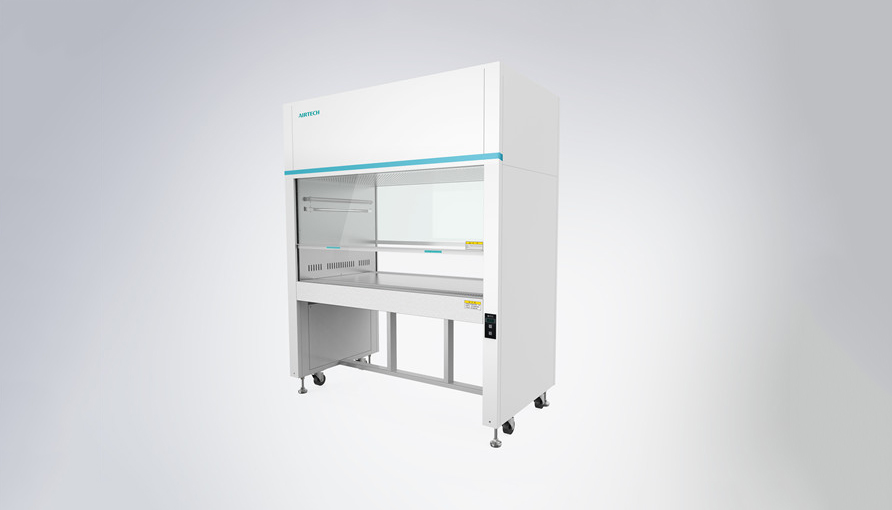

| Model/Item | BCM-1000A | BCM-1300A | BCM-1600A |
| Cleanliness | ISO CLASS 5 | ||
| Air Velocity | ≥0.3 m/s (59.1fpm) (adjustable) | ||
| Noise | ≤62 dB(A) | ||
| Illumination | ≥300 Lx | ||
| Power Supply | AC220V, 1φ, 50Hz | ||
| Consumption※ | 500 w | ||
| Weight | 220 kg | 250 kg | 270 kg |
| Work Dimension(W1XD1XH1) | 1000 x 700 x 620 mm(39.4'' x 27.6'' x 24.4'') | 1300 x 700 x 620 mm(51.2'' x 27.6'' x 24.4'') | 1600 x 700 x 620 mm(63.0'' x 27.6'' x 24.4'') |
| Overall Dimension(WXDXH) | 1160 x 760 x 1805 mm(45.7'' x 29.9'' x 71.1'') | 1460 x 760 x 1805 mm(57.5'' x 29.9'' x 71.1'') | 1760 x 760 x 1805 mm(69.3'' x 29.9'' x 71.1'') |
| Size & No.ofHEPA Filter (Supply) | 915 x 610 x 50 x 1 set(36.0'' x 24.0'' x 2.0'' x 1 set) | 1220 x 610 x 69 x 1 set(48.0'' x 24.0'' x 2.7'' x 1 set) | 760 x 610 x 69 x 2 sets(29.9'' x 24.0'' x 2.7'' x 2 sets) |
| Size & No.ofHEPA Filter (Exhaust) | 480 x 90 x 50 x 1 set(18.9'' x 3.5'' x 2.0'' x 1 set) | 480 x 150 x 50 x 1 set(18.9'' x 5.8'' x 2.0'' x 1 set) | 480 x 200 x 50 x 1 set(18.9'' x 7.9'' x 2.0'' x 1 set) |
| Light | 18 w x 2 pcs | 18 w x 2 pcs | 18 w x 2 pcs |
| UV Light | 18 w x 2 pcs | 18 w x 2 pcs | 18 w x 2 pcs |
| No.of Colony | ≤0.5cfu/Dish*0.5h | ||
| Materials | Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory. | ||
| Mode of Operation | single people/double side | single people/double side | single people/double side |
※ not include spare socket, the capacity of each unit is 3A.
