Technical Information

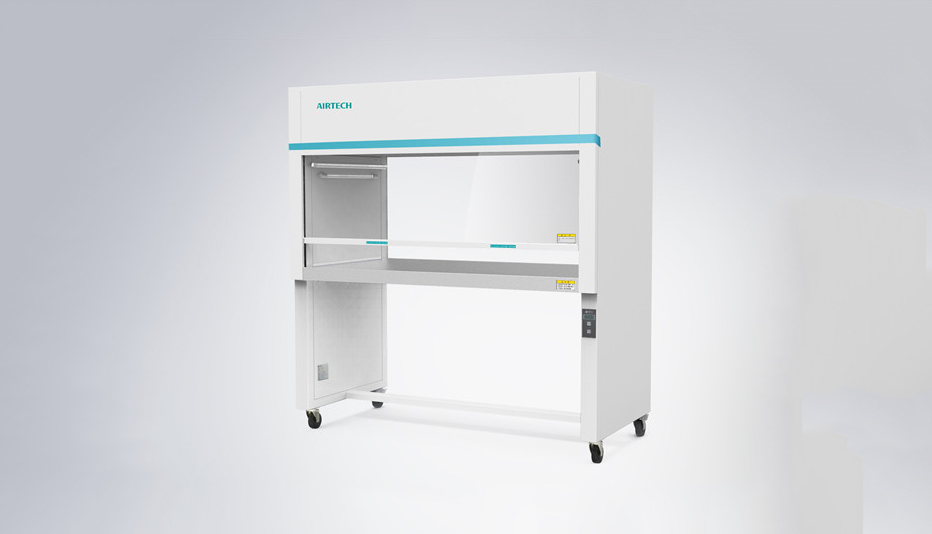

Model/Item SW-CJ-1F SW-CJ-2F SW-CJ-1FD SW-CJ-2FD
Cleanliness ISO CLASS 5
Air Velocity  ≥0.3 m/s (59.1fpm) (adjustable)
Noise ≤62 dB(A)
Illumination ≥300 Lx
Power Sypply AC220V, 1φ, 50Hz
Consumpation※ 250 w 500 w 250 w 500 w
Weight 130 kg 170 kg 130 kg 170 kg
Work Dimension(W1XD1XH1) 870 x 690 x 520 mm(34.3'' x 27.2'' x 20.5'') 1360 x 690 x 520 mm(53.5'' x 27.2'' x 20.5'') 870 x 690 x 520 mm(34.3'' x 27.2'' x 20.5'') 1360 x 690 x 520 mm(53.5'' x 27.2'' x 20.5'')
Overall Dimension(WXDXH) 1010 x 750 x 1600 mm(39.8'' x 29.5'' x 63.0'') 1500 x 750 x 1600 mm(59.1'' x 29.5'' x 63.0'') 1010 x 730 x 1600 mm(39.8'' x 28.7'' x 63.0'') 1500 x 730 x 1600 mm(59.1'' x 28.7'' x 63.0'')
Size & No.ofHEPA Filter 820 x 600 x 50 x 1 set(32.3'' x 23.6'' x 2.0'' x 1 set) 610 x 610 x 50 x 2 sets(24.0'' x 24.0'' x 2.0'' x 2 sets) 820 x 600 x 50 x 1 set(32.3'' x 23.6'' x 2.0'' x 1 set) 610 x 610 x 50 x 2 sets(24.0'' x 24.0'' x 2.0'' x 2 sets)
Light 7 w x 1 pc 7 w x 2 pcs 7 w x 1 pc 7 w x 2 pcs
UV Light (optional) 8 w x 1 pc 8 w x 2 pcs 8 w x 1 pc 8 w x 2 pcs
No.of Colony ≤0.5cfu/Dish*0.5h
Materials Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory.
Mode of Operation single people/double side double people /double side single people/single side double people/single side
※ not include spare socket, the capacity of each unit is 3A.
