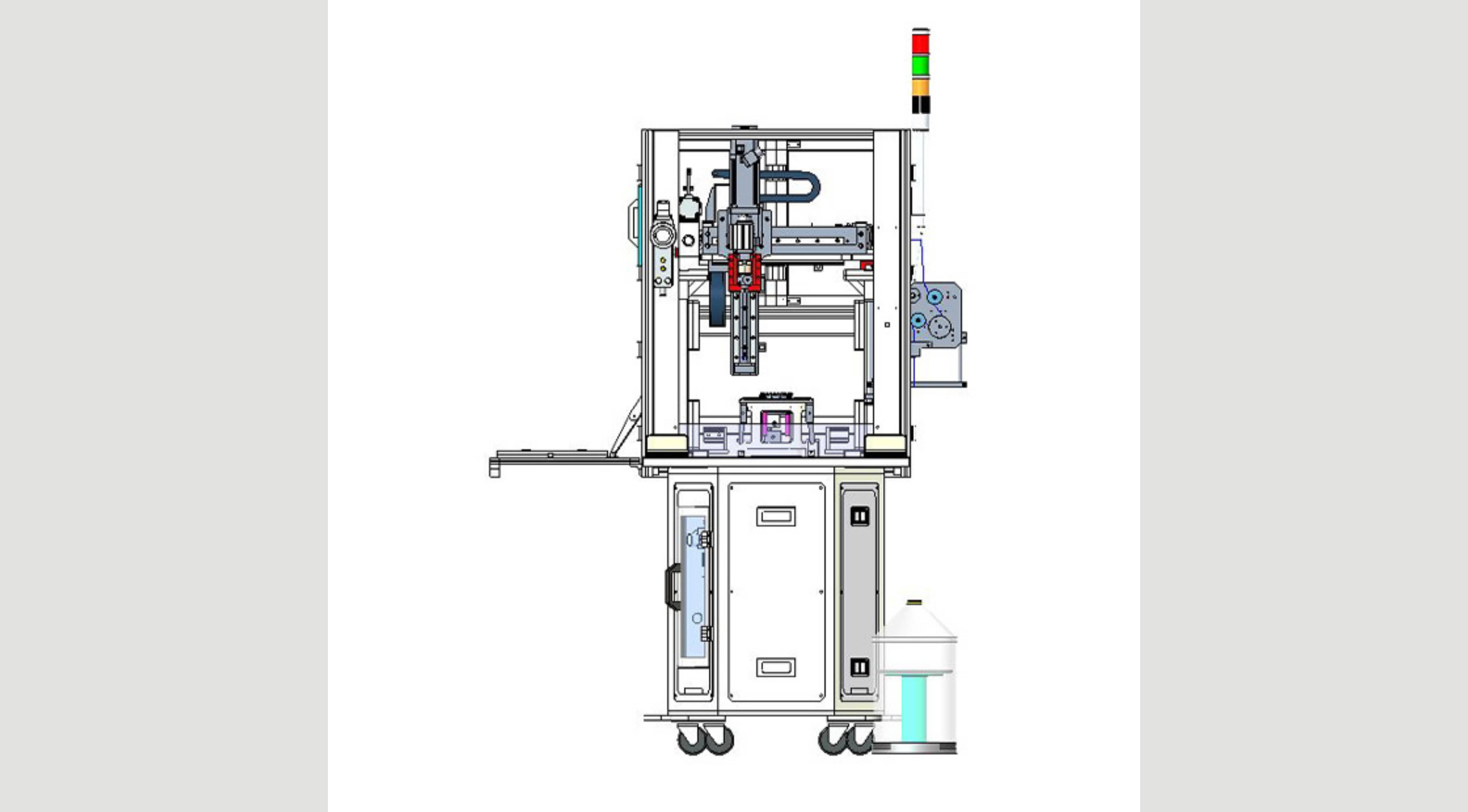

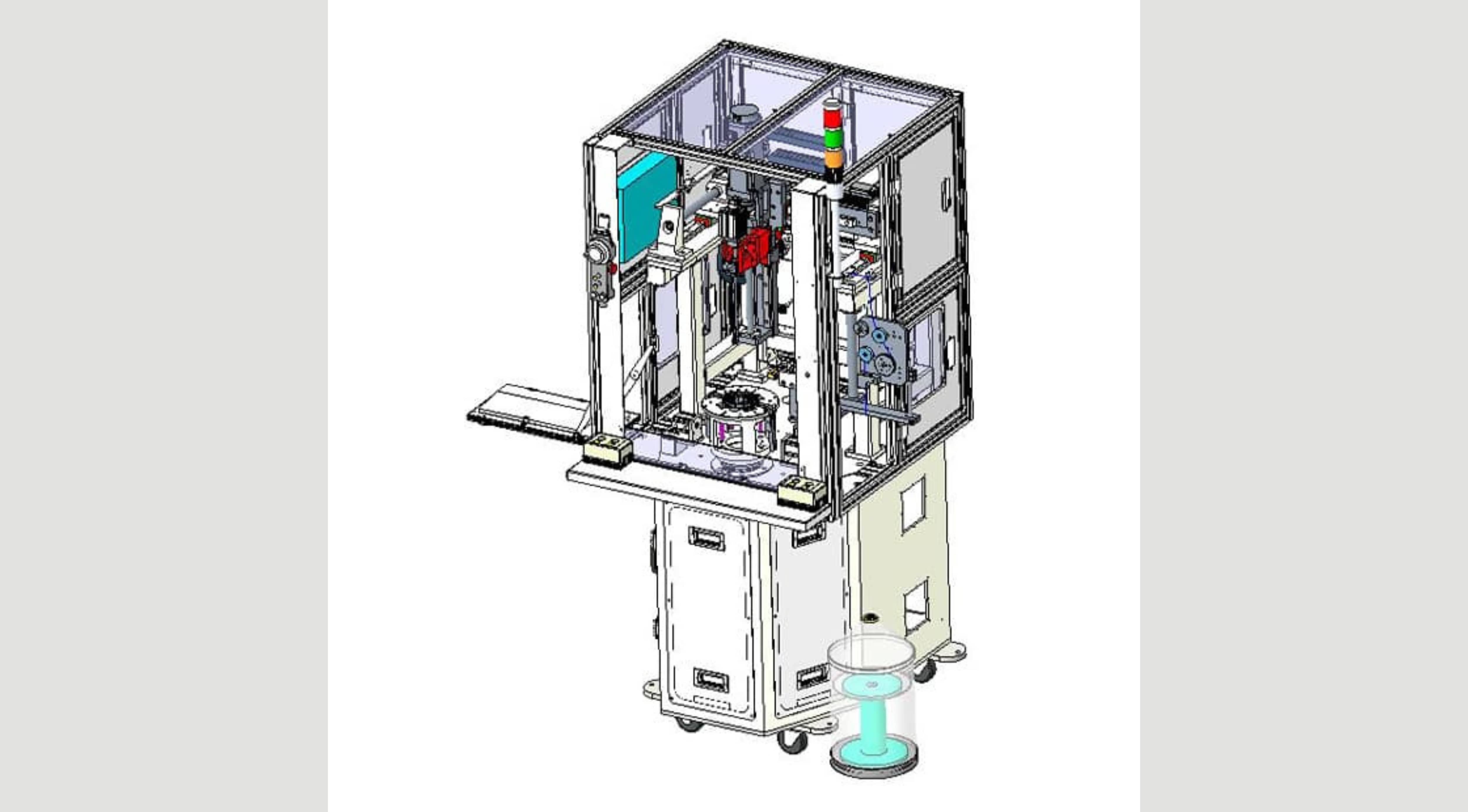

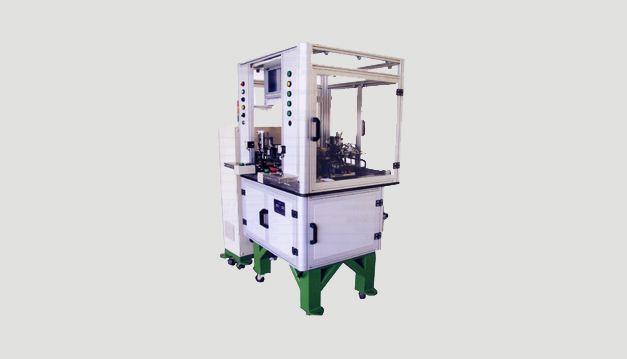

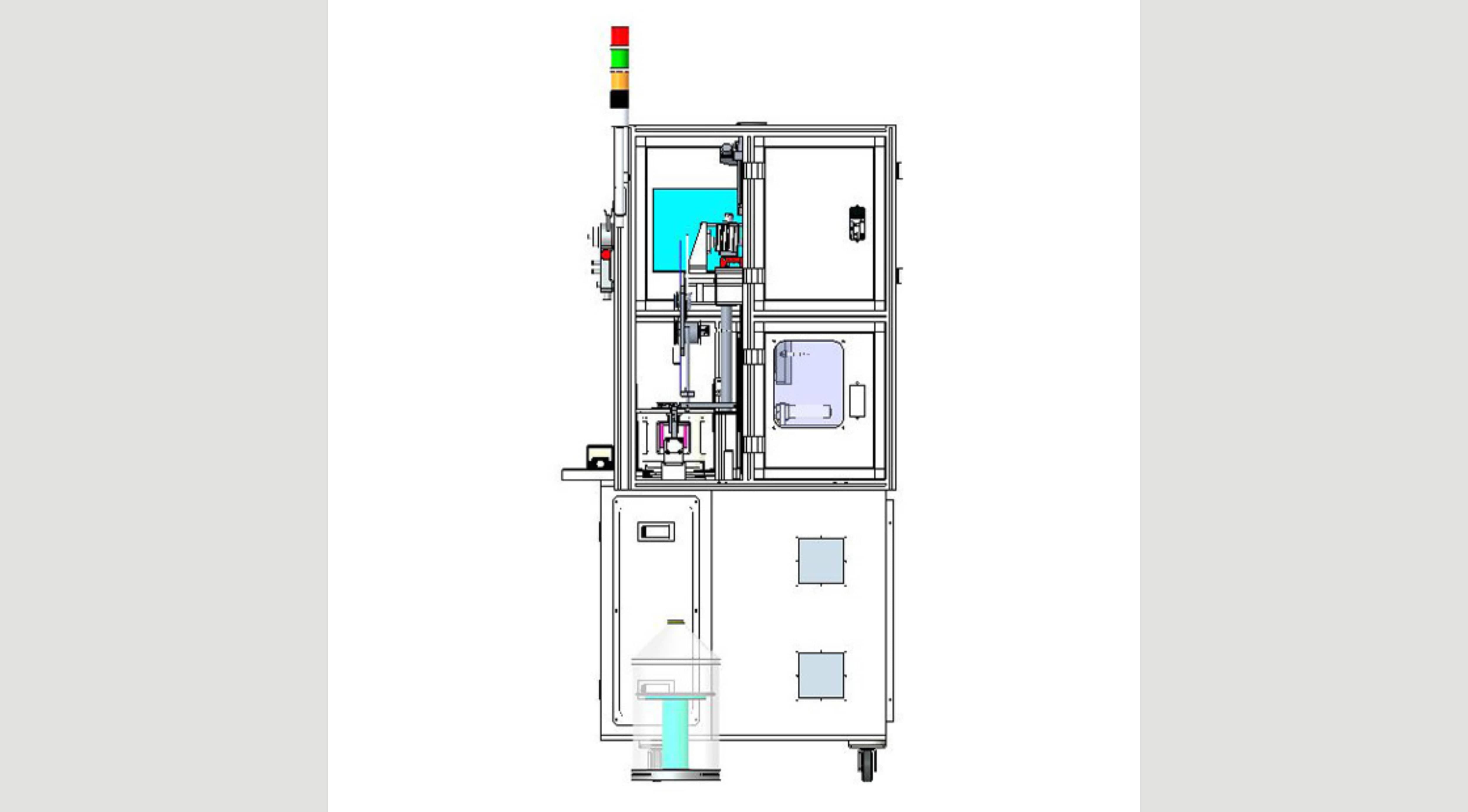

CNC STATOR IN-SLOT WINDER GMW SW-7B

MODEL: GMWSW-7B

Gmwsw-7b is an in-slot winder with hi-tech ipc control which operates very precisely, rapidly adjustable, easy maintenance, and high flexibility.
Gmwsw-7b is available for servomotor, step motor, induction- motor, regency-motor..& so on.
Operation, setting & control: hmi panel, 4-axis servo motor drive, fully-digital data setting & touch lcd monitor.
Distributing winding & tension unit: precise square winding route with accurate distribution, automatic procedure, magnetic tension control & fully enclosed sensor cap.
Inner-tooling layering design is excellent for winding wire alignment installing, adjusting and maintaining.

STATOR INSIDE DIA.	23 mm Min
STATOR OUTSIDE DIA	127 mm Max.
STATOR STACK HEIGHT	80 mm Max.
NUMBER OF SLOTS	4 – 24 Slots
WIRE DIA.	0.25 – 1.0 mm
SPEED	500rpm(max) (DEPENDING UPON WIRE SIZE, STACK AND NO. OF SLOT)
POWER SUPPLY	Air Pressure 4 – 6 kg/cm2,AC 220V/380V, 3 PHASE 50/60HZ
DRIVE MOTOR	AC 7.5KW Servo-Motor AC750W Servo-Motor AC400W Servo-Motor X2
DIMENSION	120(L)75(W)175(H)cm
WEIGHT	about 800kgs
NOZZLE NUMBER	1
