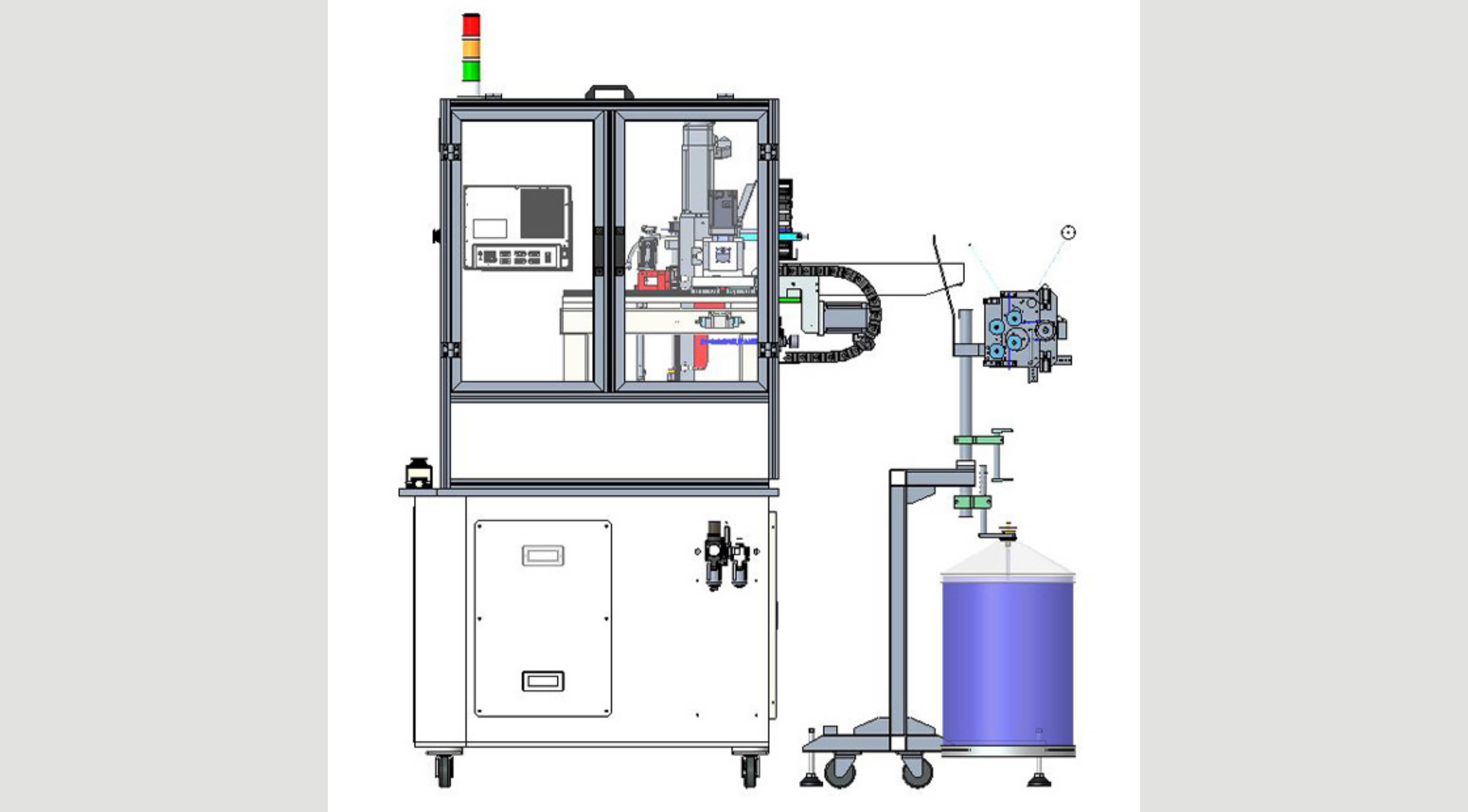

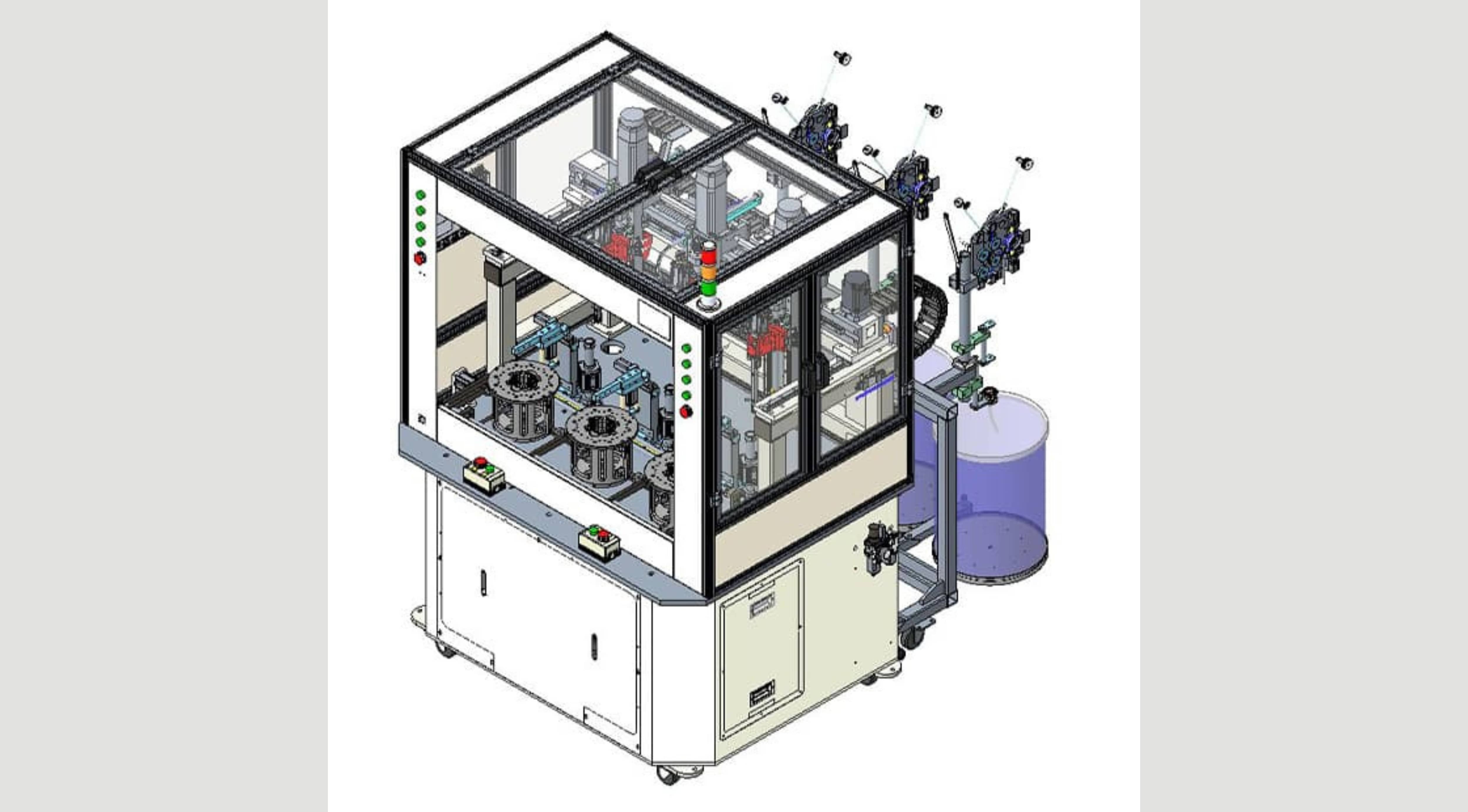

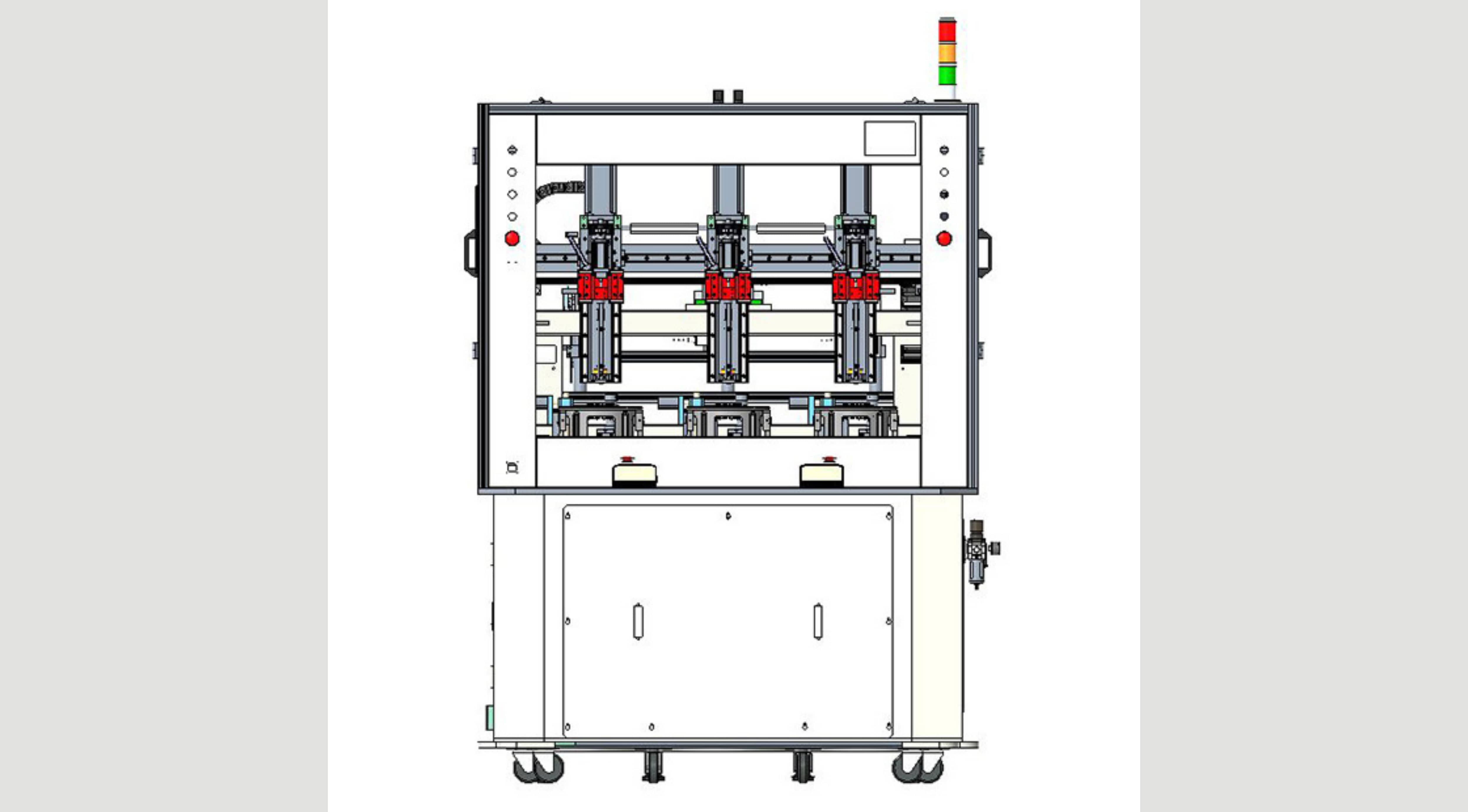

GMW SW-7C STATOR IN SLOT WINDER WITH 3 WINDING HEAD

Model: GMWSW-7C

Technical Information



Specification GMW SW-7C
Lacing Thread Dia. (mm) Ø0.25 - Ø1.0
Stator OD/ID Limit (mm)

IDØ50 - 100

ODØ127 max
Stator Core Length Limit (mm) 20-80
Cycle Time (sec) Vary per winding turns/core length/ wire size
Floor Area (W*L*H) (cm)  160*220*230
Machine Weight (Kg) 1800 kg
Main Operation Power Source (KW) 15
Max. Power Consumption (KW) 17
Pneumatic Source (Kg/cm²) 4-7
Use voltage Can be customized according to the voltage used in each country
