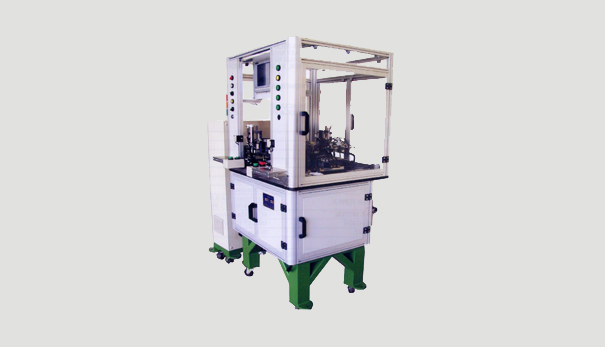

STATOR IN-SLOT WINDER GMW SW-7A

MODEL: GMWSW-7A

Gmwsw-7a is an in-slot winder with hi-tech ipc control which operates very precisely, rapidly adjustable, easy maintenance, and high flexibility.
Gmwsw-7a is available for servomotor, step motor, induction- motor, regency-motor..& so on.
Operation, setting & control: industrial pc, hmi panel, 3-axes servomotor drive, fully-digital data setting & touch lcd monitor.
Distributing winding & tension unit: precise square winding route with accurate distribution, automatic procedure, magnetic tension control & fully enclosed sensor cap.
Inner-tooling layering design is excellent for winding wire alignment installing, adjusting and maintaining.

STATOR INSIDE DIA.	50 – 120 mm
STATOR STACK HEIGHT	330 mm Max.
NUMBER OF SLOTS	6 – 24 Slots
WIRE DIA.	0.3 – 1.0 mm
SPEED	800rpm(max)
POWER SUPPLY	Air Pressure 5-8 BAR,AC 220V/380V, 3 PHASE 50/60HZ
DRIVE MOTOR	AC 7.5KW Servo-Motor
DIMENSION	150(L)150(W)220(H)cm
WEIGHT	700Kgs
