Double end lacing machine l-2b

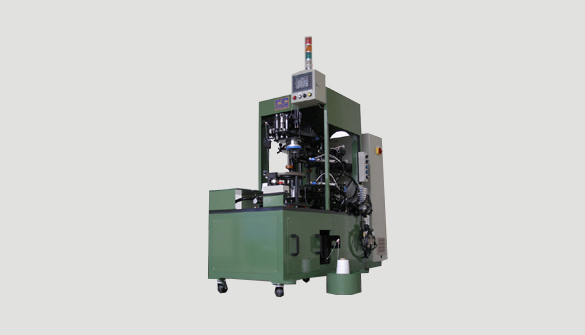

DOUBLE END LACING MACHINE L-2B

MODEL: GMWL-2A

Technical Information

STATOR OUTSIDE DIA.	140 mm（Max）
STATOR INSIDE DIA.	40 mm（Min）
STATOR STACK HEIGHT	15~150 mm
NUMBER OF SLOTS	6 ~ 36
HEIGHT OF END COILS	40mm (Max)/td>
SPEED OF LACING	180 slots/ min (Max)
POWER	220V/ 380V , 3 PHASE 50/60HZ
DRIVE MOTOR	0.75KW AC Motor
OPERATION	Pneumatic 4 –7 kgs/cm²
DIMENSION	1040(L)640(W)1580(H)mm
WEIGHT	700Kgs

download Request a quotation
