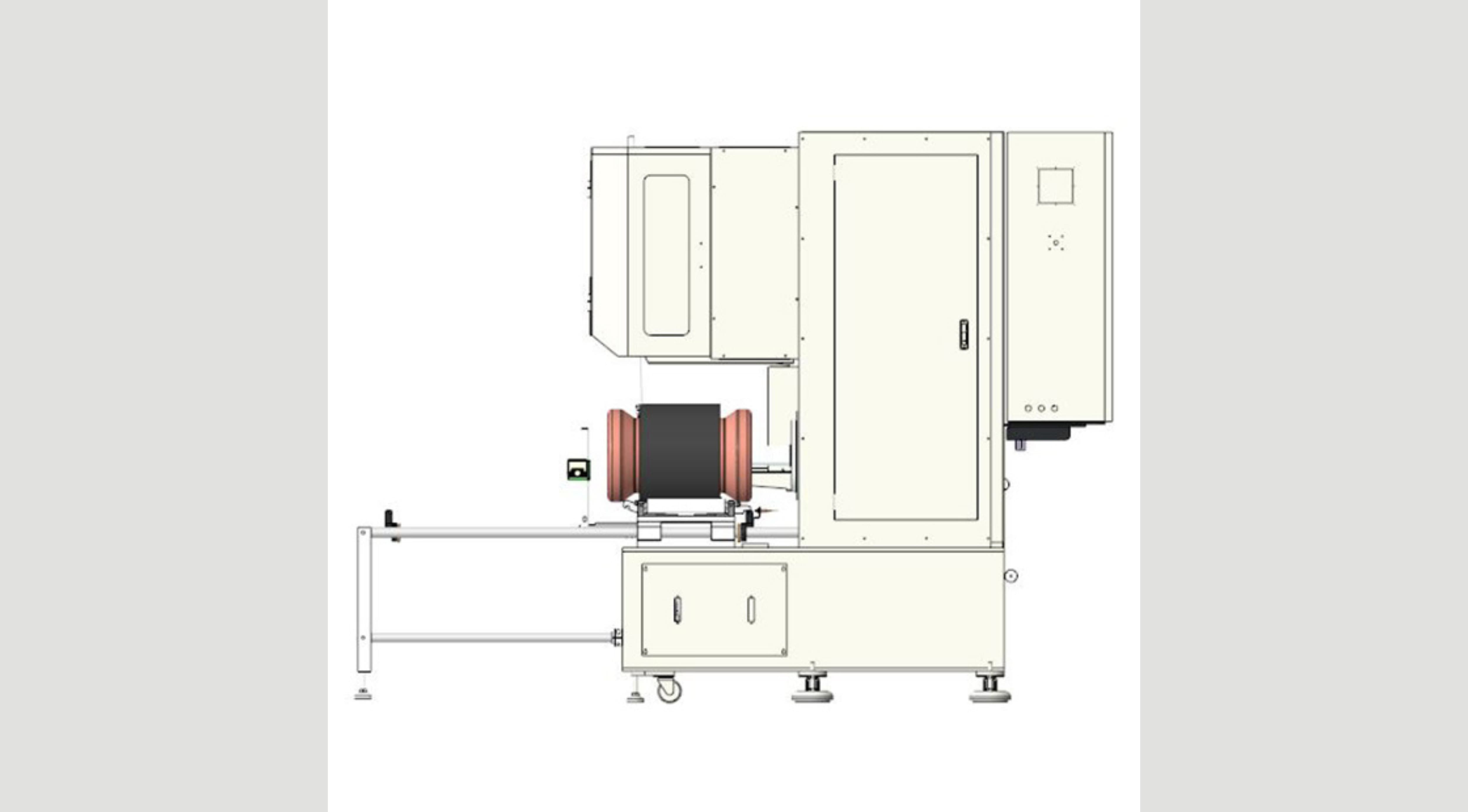

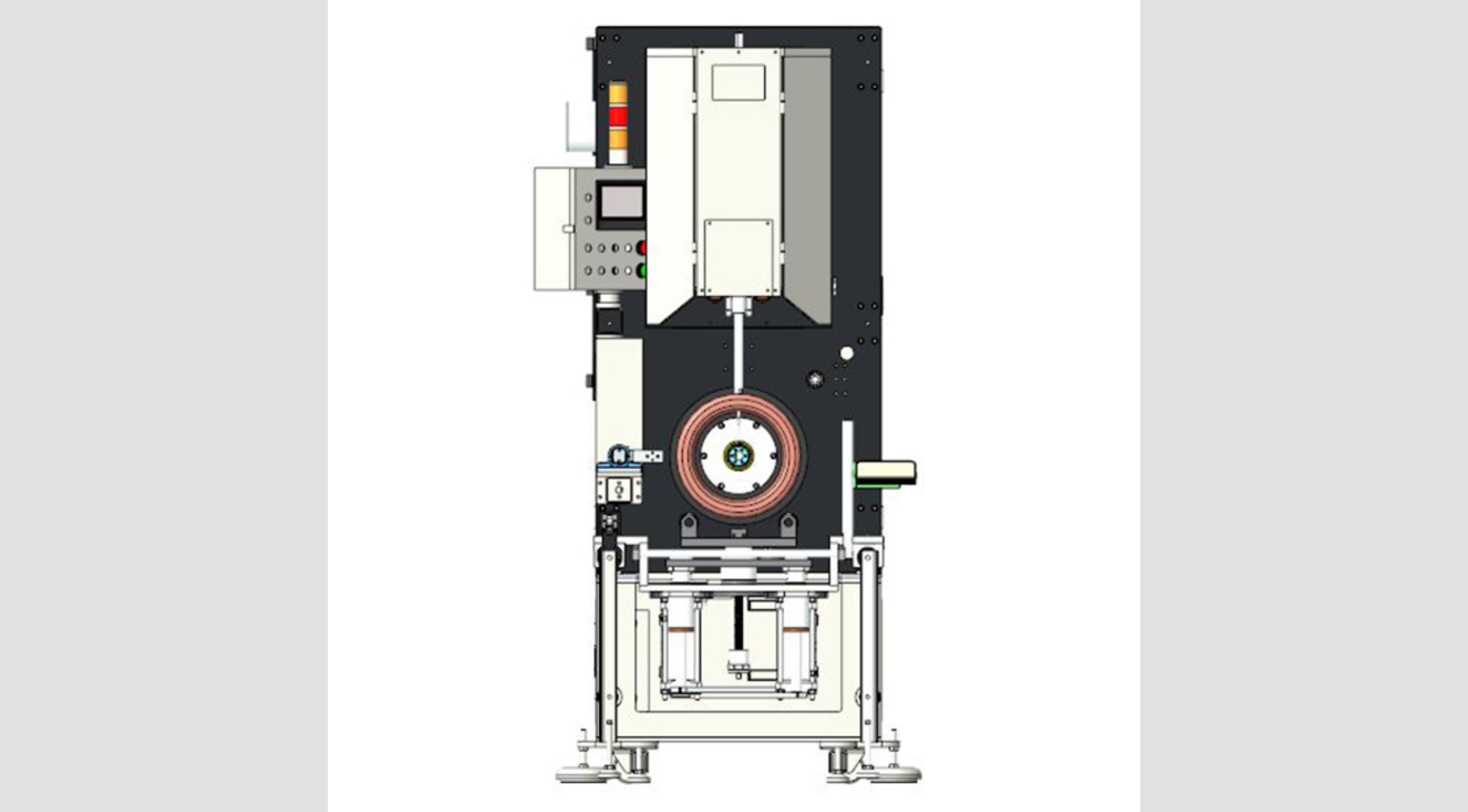

GMW L-7B HORIZONTAL STATOR COIL LACING MACHINE

Model: GMWL-7B

Technical Information



Specification GMW L-7B
Lacing Thread Dia. (mm) max Ø1.2
Stator OD/ID Limit (mm)

IDØ120 - 300

ODØ400 max
Stator Core Length Limit (mm) 50 - 380
Cycle Time (sec) <2 sec/time
Floor Area (W*L*H) (cm)  90*290*220
Machine Weight (Kg) 2300 kg
Main Operation Power Source (KW) 0.5
Max. Power Consumption (KW) 12.0
Pneumatic Source (Kg/cm²) 4-7
Use voltage Can be customized according to the voltage used in each country
