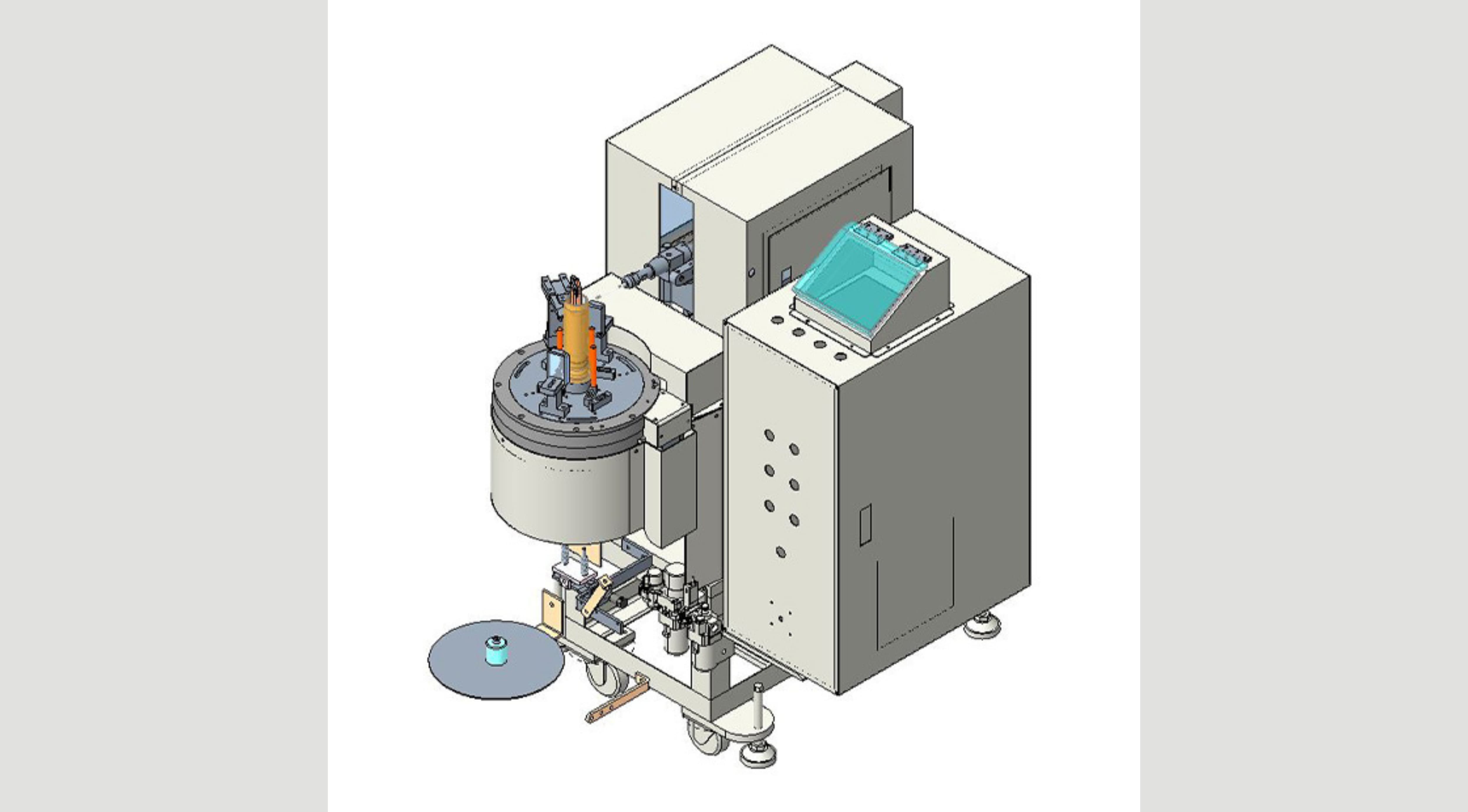

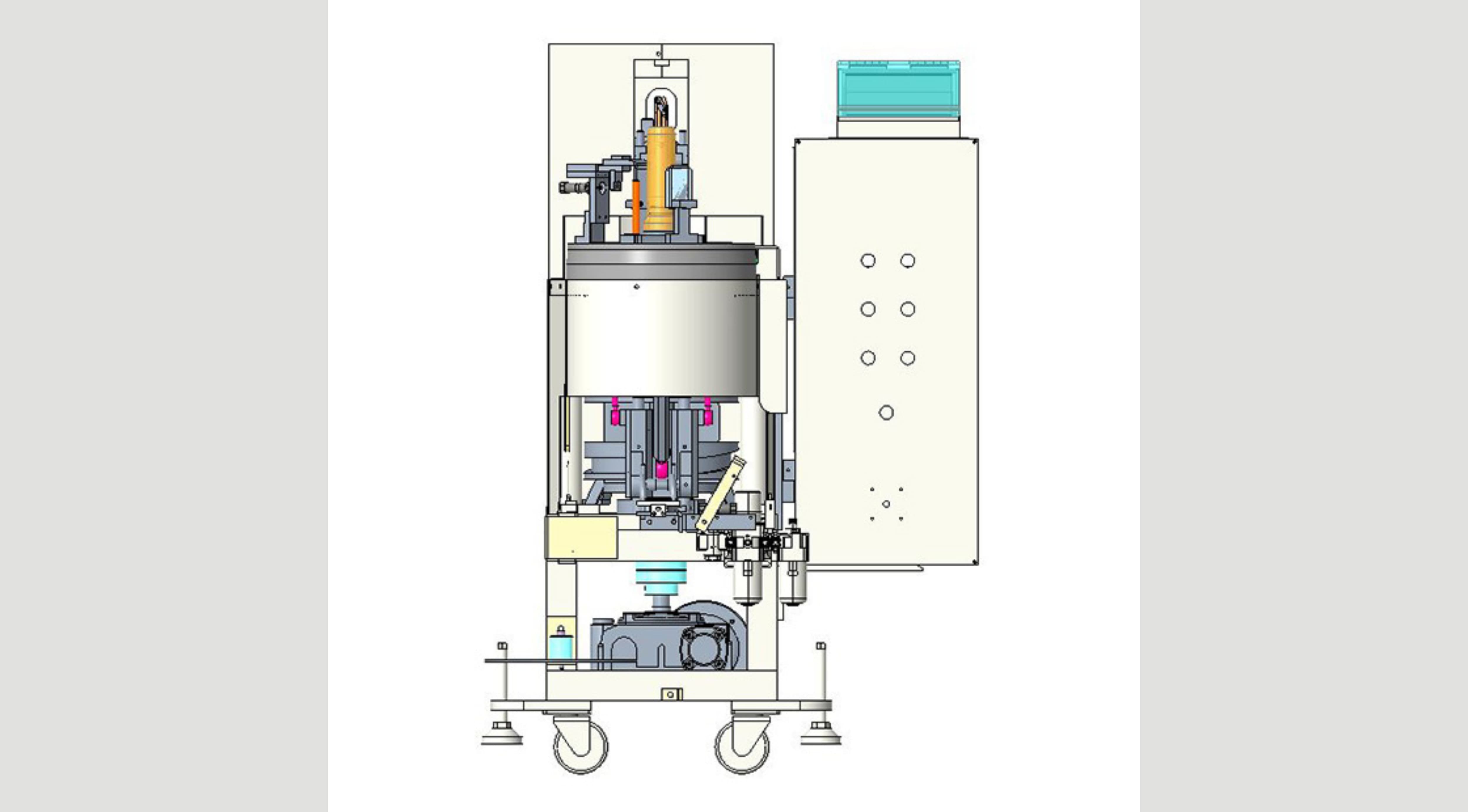

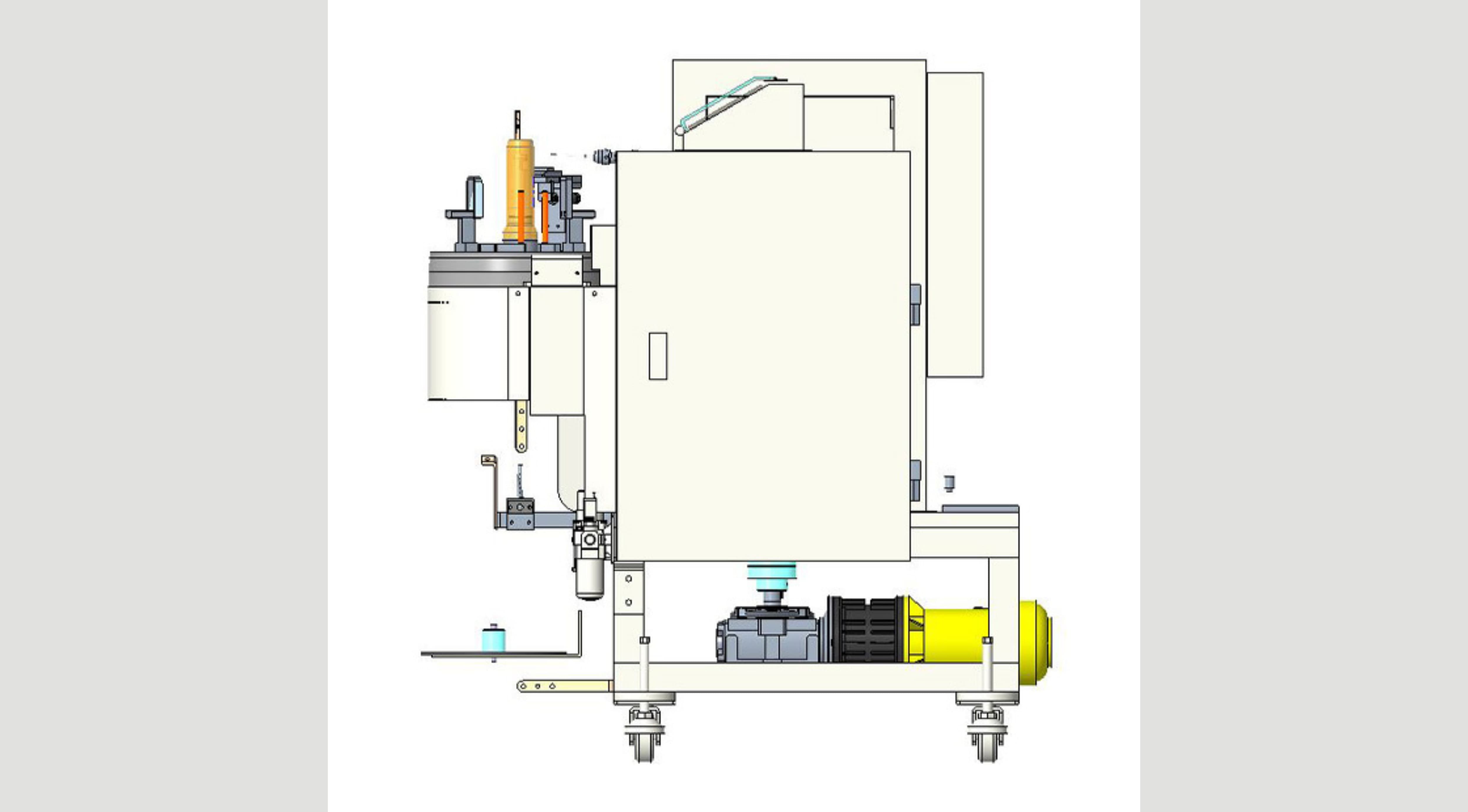

GMW L-1H SINGLE END LACING MACHINE

Model: GMWL-1H

Technical Information



Specification GMW L-1H
Lacing Thread Dia. (mm) max Ø1.2
Stator OD/ID Limit (mm)

IDØ35-140

ODØ200 max
Stator Core Length Limit (mm) 20-175
Cycle Time (sec) <0.7 sec/time
Floor Area (W*L*H) (cm)  85*120*130
Machine Weight (Kg) 480 kg
Main Operation Power Source (KW) 0.4
Max. Power Consumption (KW) 1.4
Pneumatic Source (Kg/cm²) 4-7
Use voltage Can be customized according to the voltage used in each country
