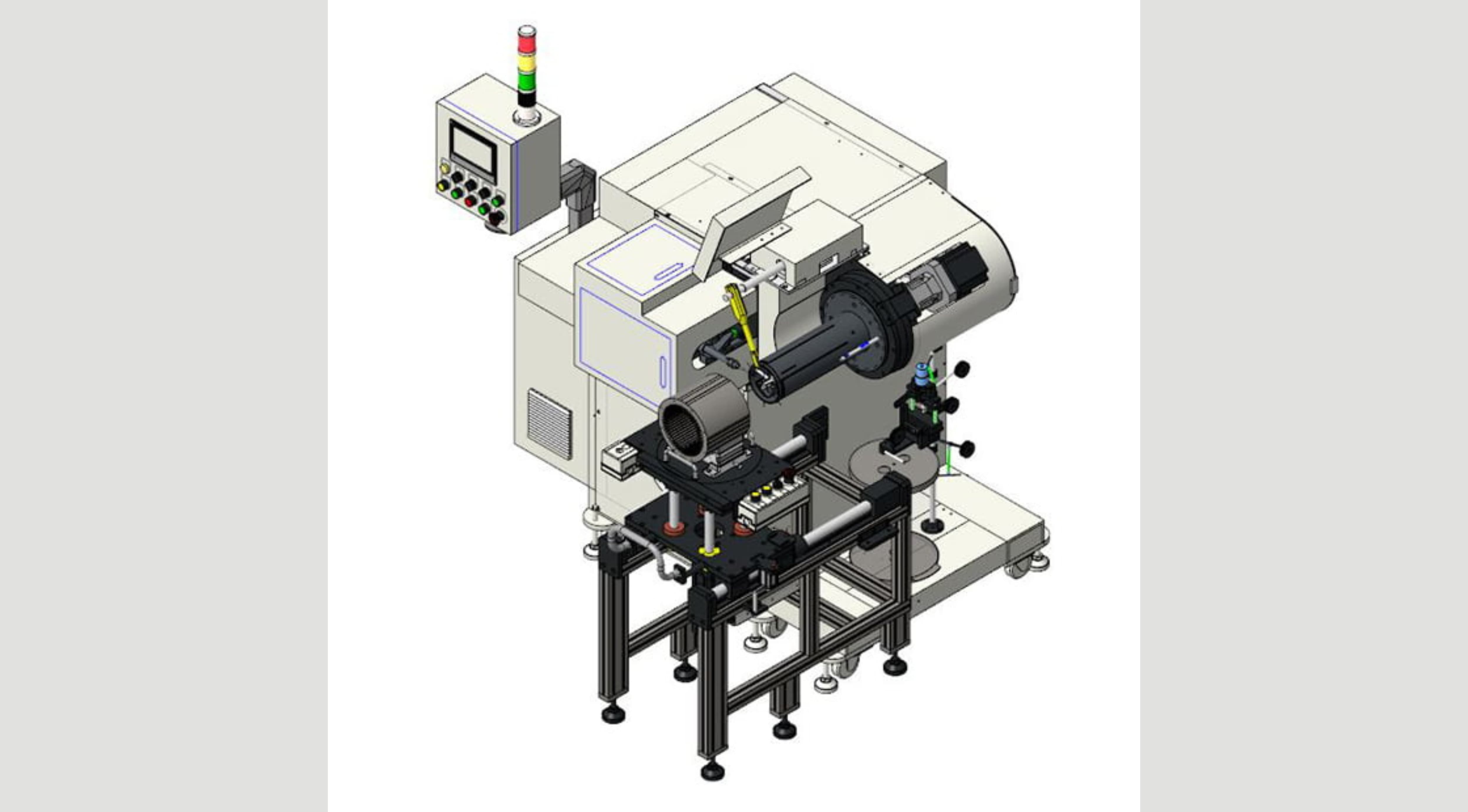

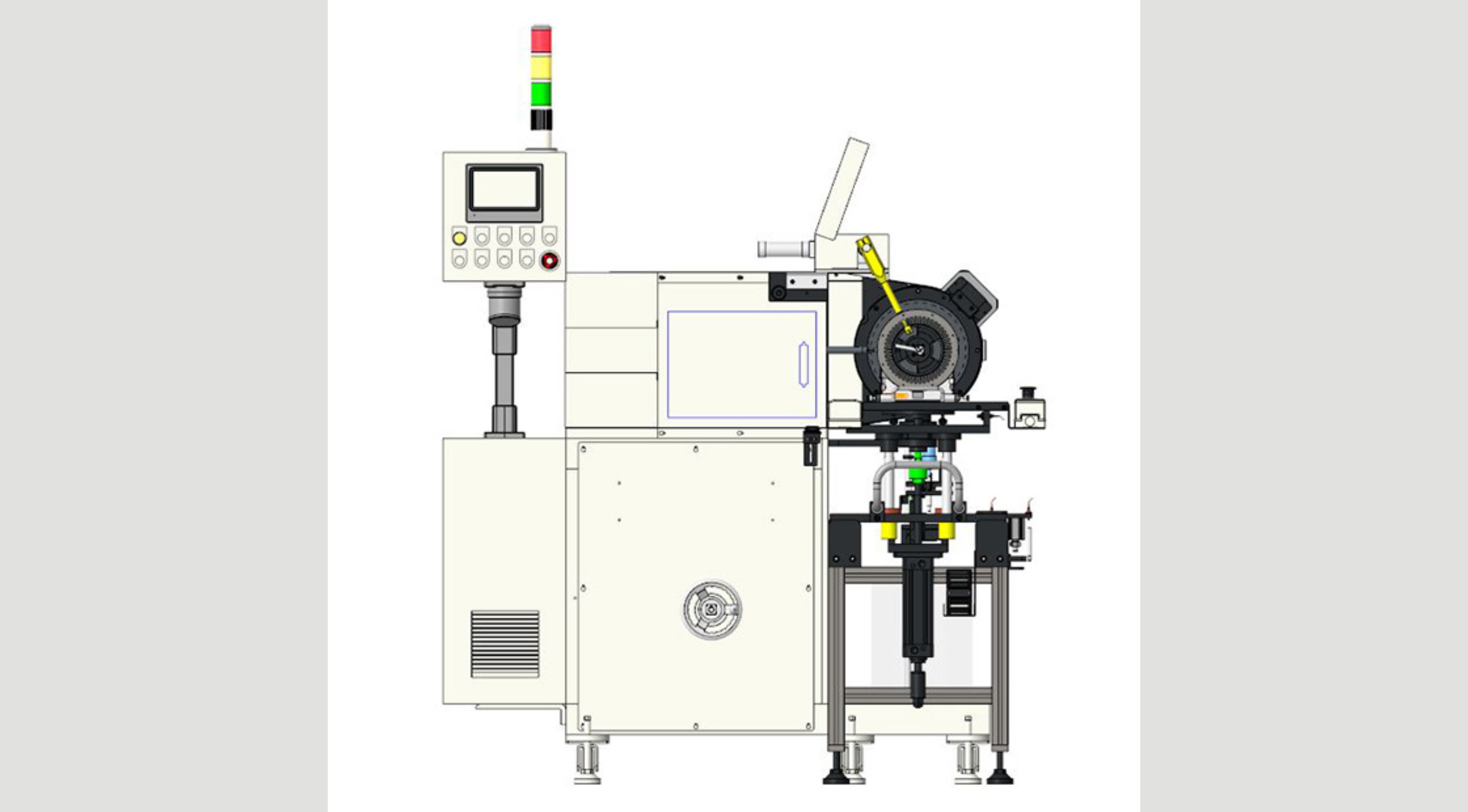

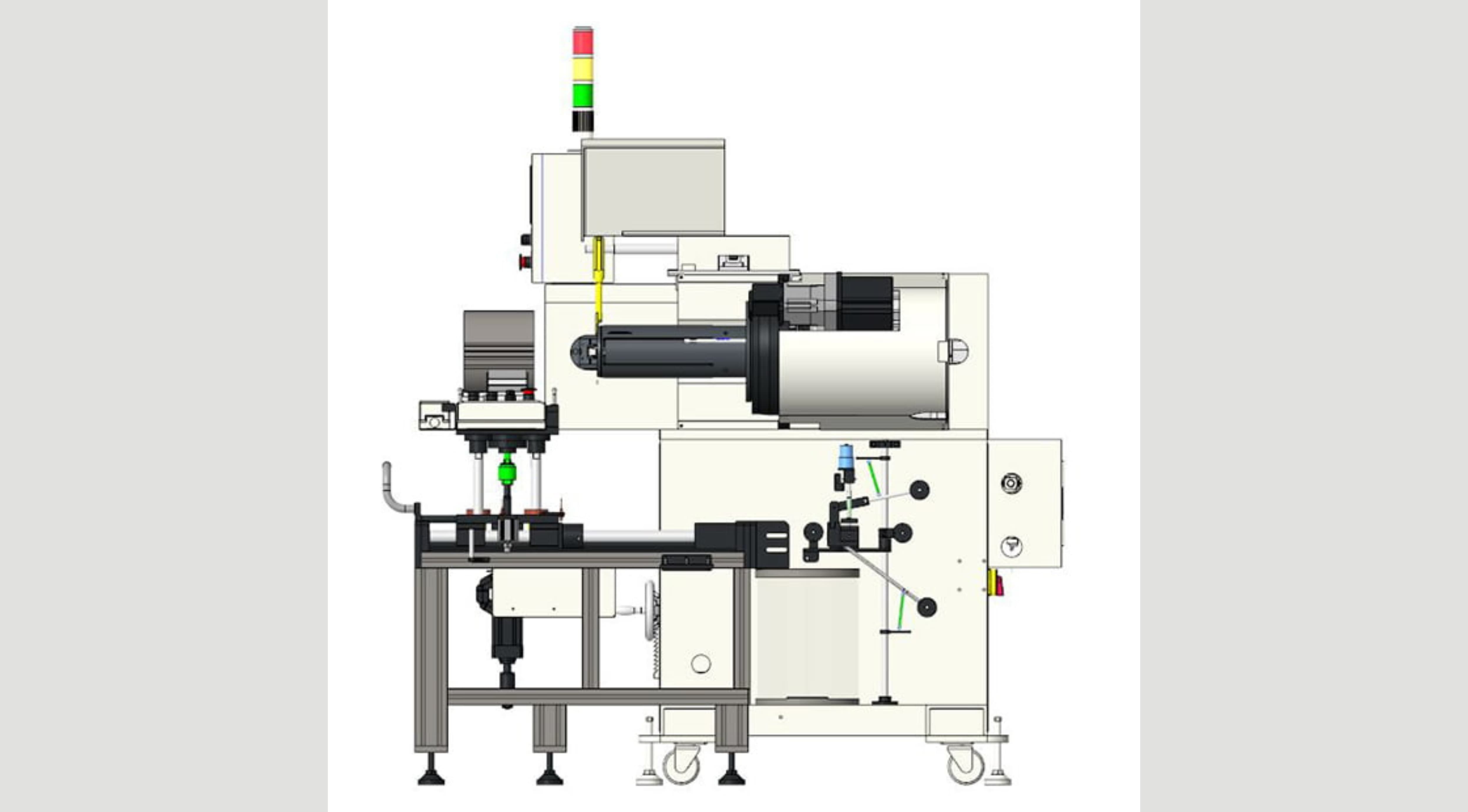

GMW L-6E HORIZONTAL STATOR COIL LACING MACHINE

Model: GMWL-6E

Technical Information



Specification GMW L-6E
Lacing Thread Dia. (mm) max Ø1.2
Stator OD/ID Limit (mm)

IDØ50-200

ODØ270 max
Stator Core Length Limit (mm) 50-250
Cycle Time (sec) <1.2 sec/time
Floor Area (W*L*H) (cm)  100*220*220
Machine Weight (Kg) 2200 kg
Main Operation Power Source (KW) 1.5
Max. Power Consumption (KW) 2.6
Pneumatic Source (Kg/cm²) 4-7
Use voltage Can be customized according to the voltage used in each country
