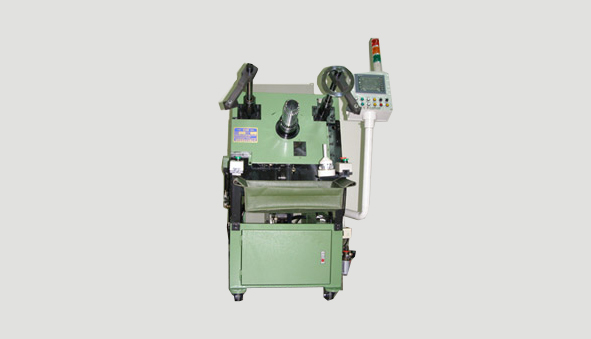

ELECTRICAL STATOR COIL & WEDGE INSERTER GMW CI-3D

MODEL: GMWCI-3D

Technical Information

It only takes 10-15 minutes to complete tool changing. All mechanisms (except clamp arms) are adjusted. Automatically by AC motors when stack height adjustment requires. Wedge magazine index is driven by AC servo motor, too. At the same time, the push force of tripper can be set digitally by user.

STATOR INSIDE DIA. 120 mm Max, 30mm Min
STATOR STACK HEIGHT 120 mm Max, 10mm Min
WEDGE LENGTH 135 mm Max
POWER SUPPLY 220/380V 3Ø. 50/60 HZ
OPERATION & CONTROL MICROPROCESSOR CONTROL & HMI INTERFACE
DRIVE MOTOR 3.0/ 2.0/ 1.0/ 0.4 KW AC SERVO MOTOR
DIMENSION 200(L) * 110(W) * 178(H) cm
WEIGHT 1300Kgs
