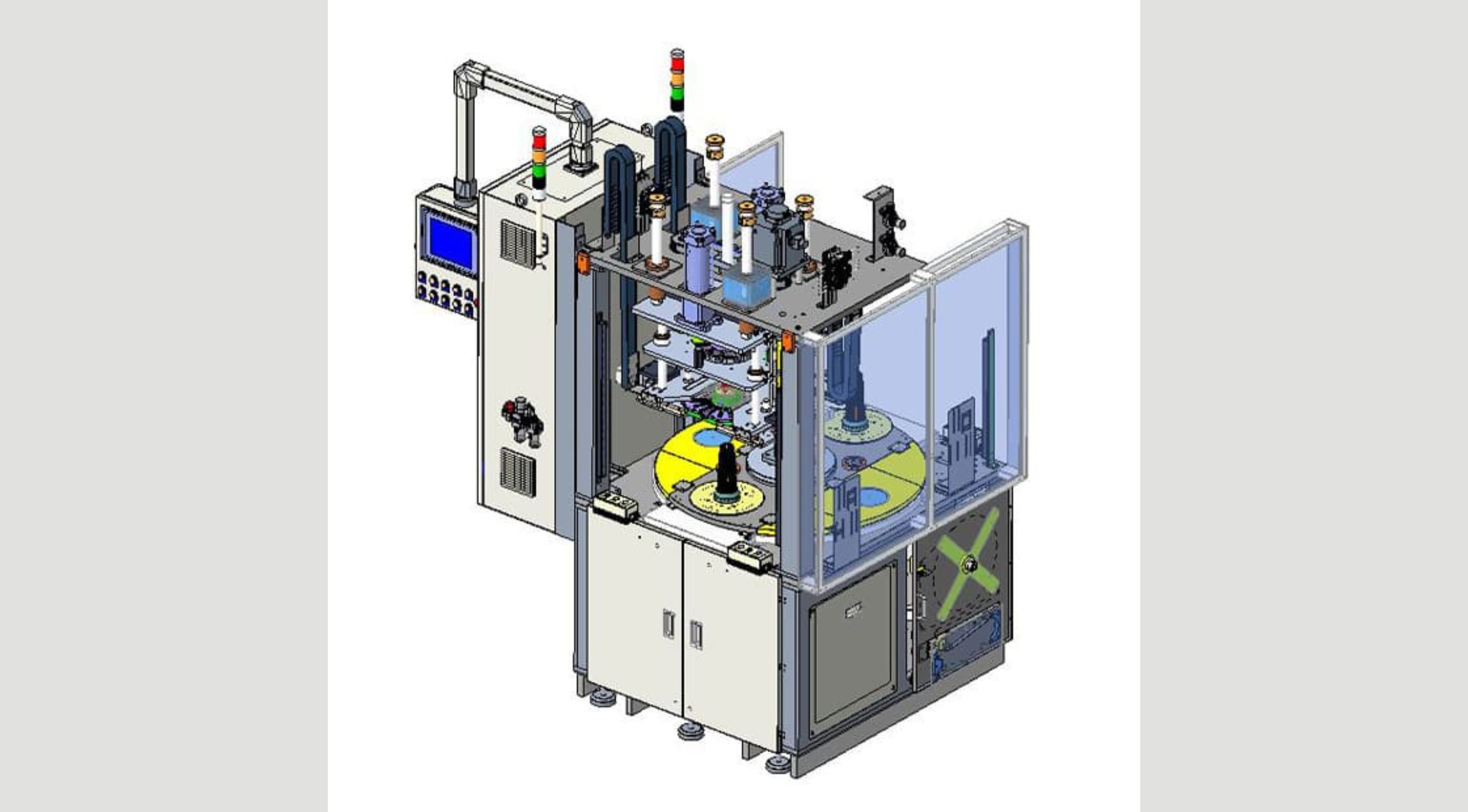

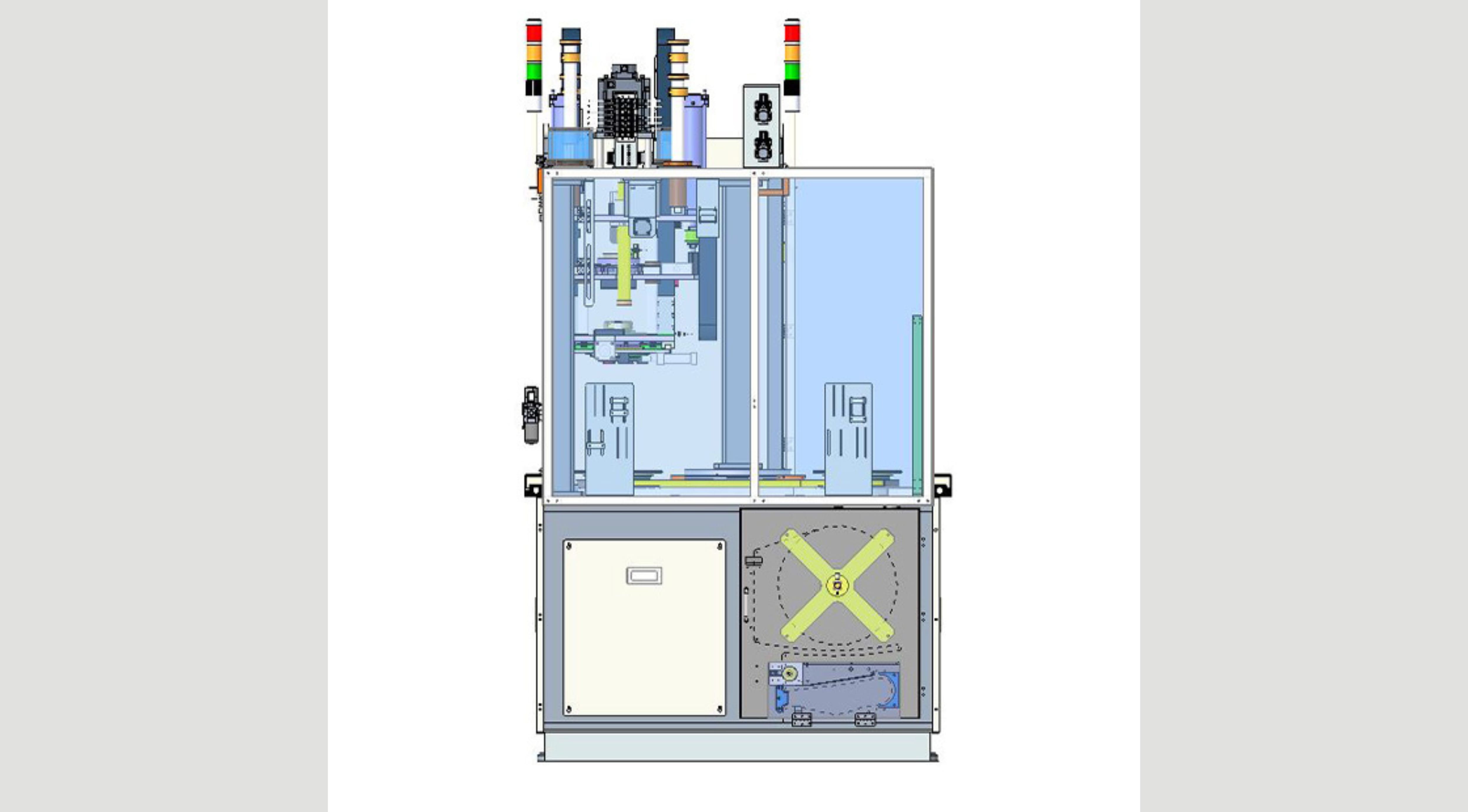

Introducing the Turn Table Stator Coil and Wedge Inserter GMW CI-7E, equipped with turn table with twin working stations and precise servo control for maximum efficiency. This machine boasts differential coil insertion technology, allowing for quick and accurate stator coil insertion. The blade set quick switch design ensures a smooth transition between various blade types. Get your hands on the Turn Table Stator Coil and Wedge Inserter for fast and precise stator coil insertion in any production line.
| Specification | GMW CI-7E |
| Stator OD/ID Limit (mm) | Ø50-90 |
| Stator Core Length Limit (mm) | 30-90 |
| Cycle Time (sec) | <30 sec/time |
| Floor Area (W*L*H) (cm) | 210*150*250 |
| Machine Weight (Kg) | 2500 kg |
| Main Operation Power Source (KW) | 5.5 |
| Max. Power Consumption (KW) | 10 |
| Pneumatic Source (Kg/cm²) | 4-7 |
| Use voltage | Can be customized according to the voltage used in each country |
