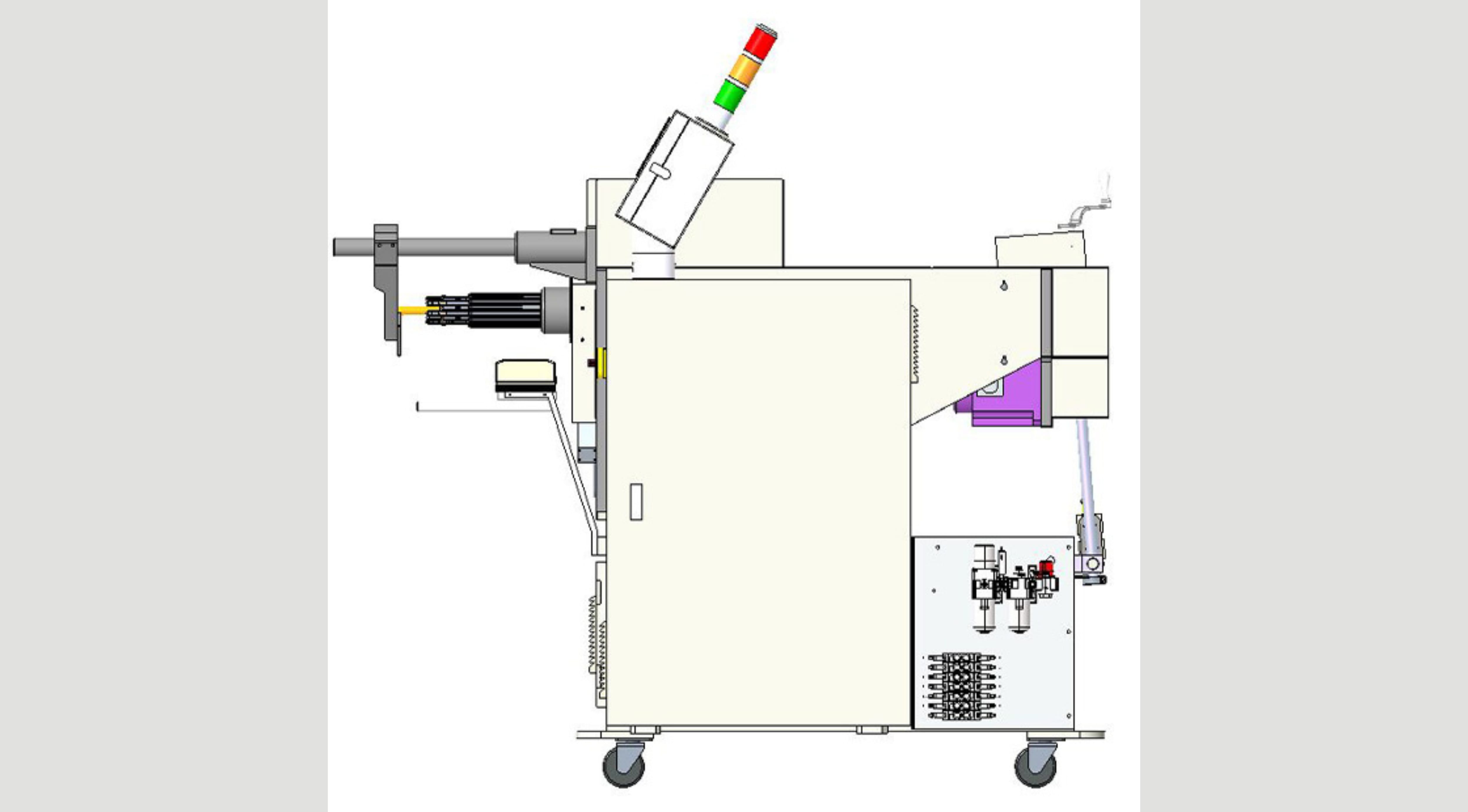

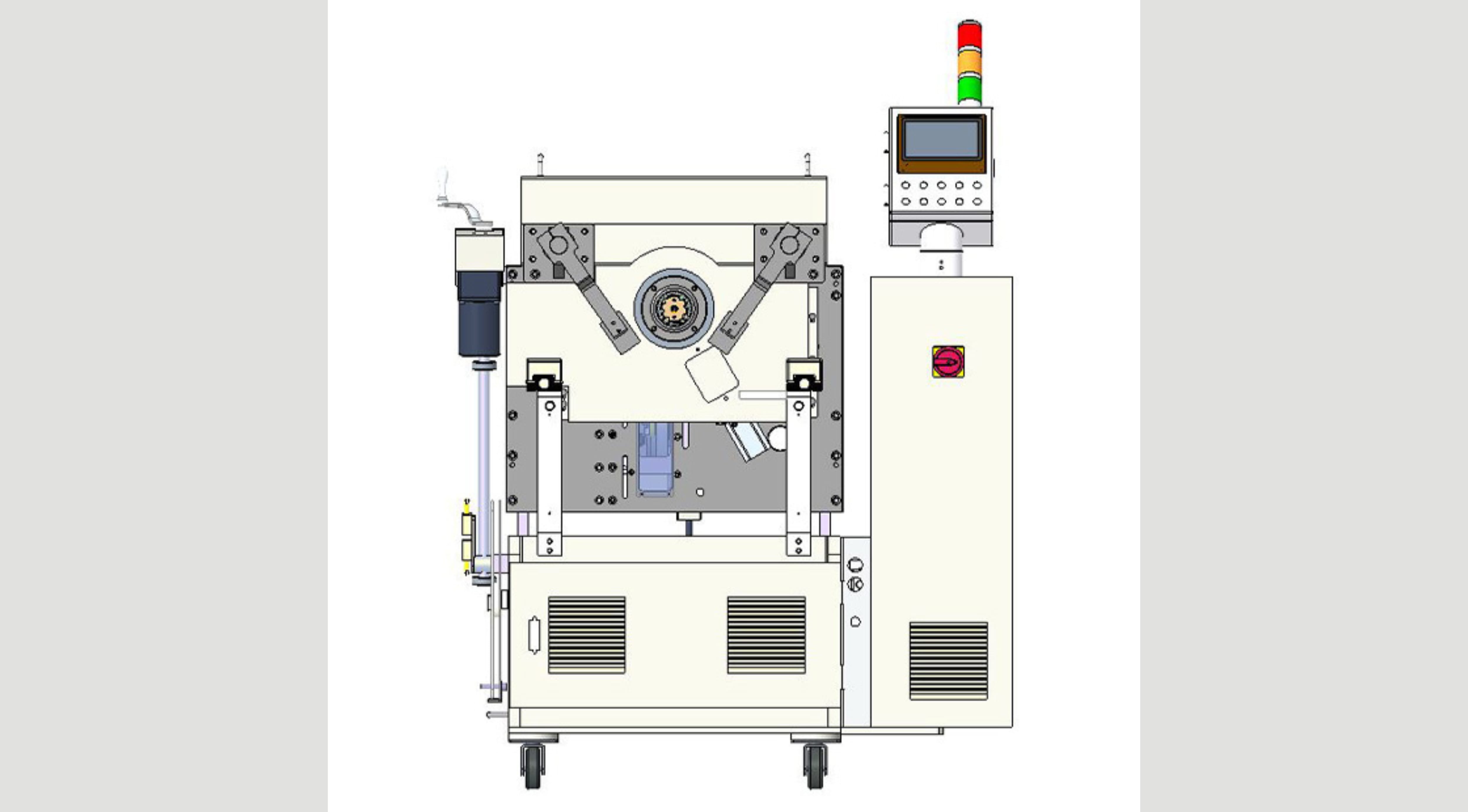

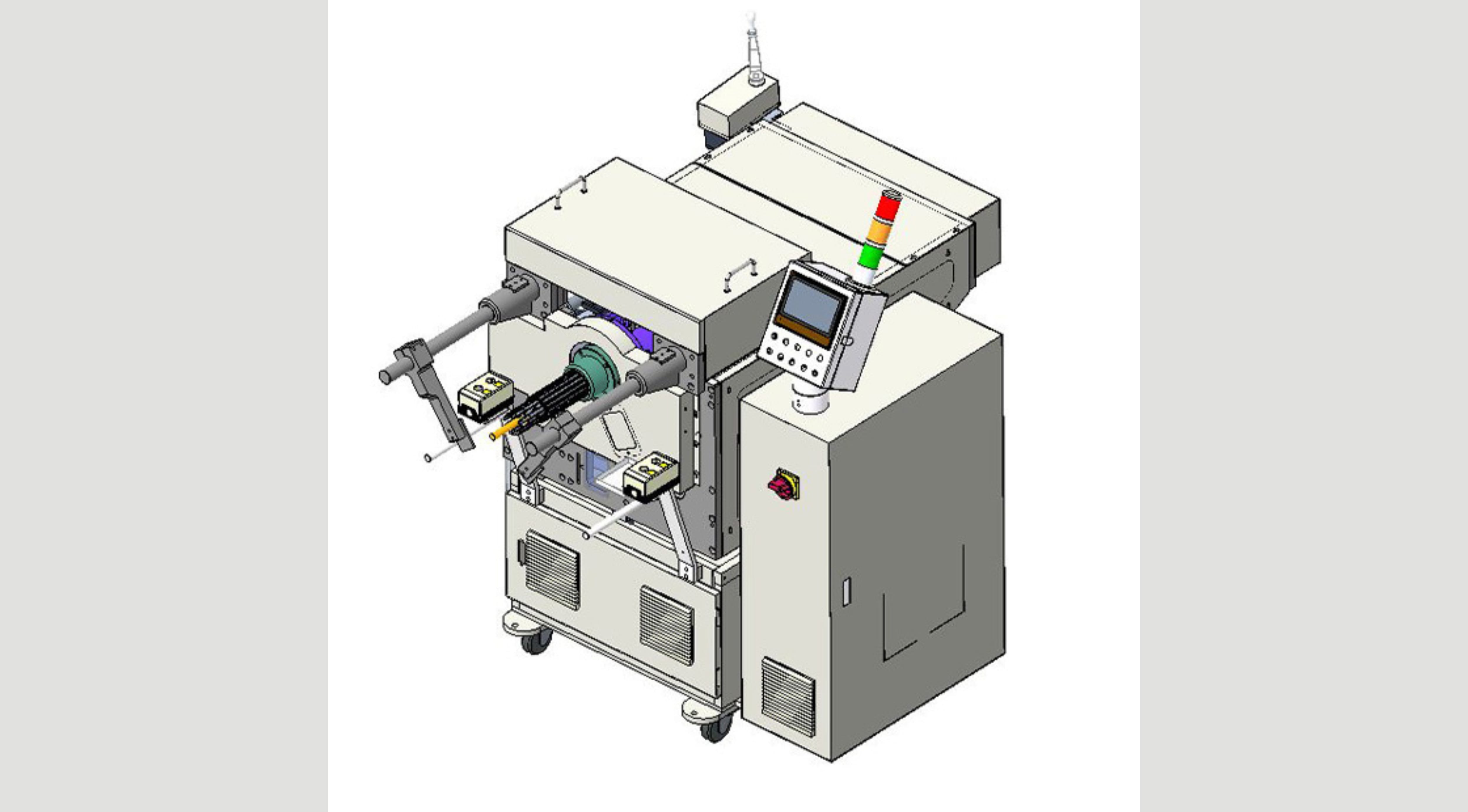

GMW CI-3E ELECTRICAL STATOR COIL AND WEDGE INSERTER

Model: GMWCI-3E

Technical Information

This machine is designed for inserting wound coils & wedges or separators into the stator slots. This machine has a robust construction to minimize the occupying spare.
It only takes 10-15 minutes to complete tool changing.

Specification GMW CI-3E
Stator OD/ID Limit (mm) Ø30-120
Stator Core Length Limit (mm) 10-120
Cycle Time (sec) <30 sec/time
Floor Area (W*L*H) (cm)  125*170*170
Machine Weight (Kg) 1300 kg
Main Operation Power Source (KW) 2.2
Max. Power Consumption (KW) 4
Pneumatic Source (Kg/cm²) 4-7
Use voltage Can be customized according to the voltage used in each country
