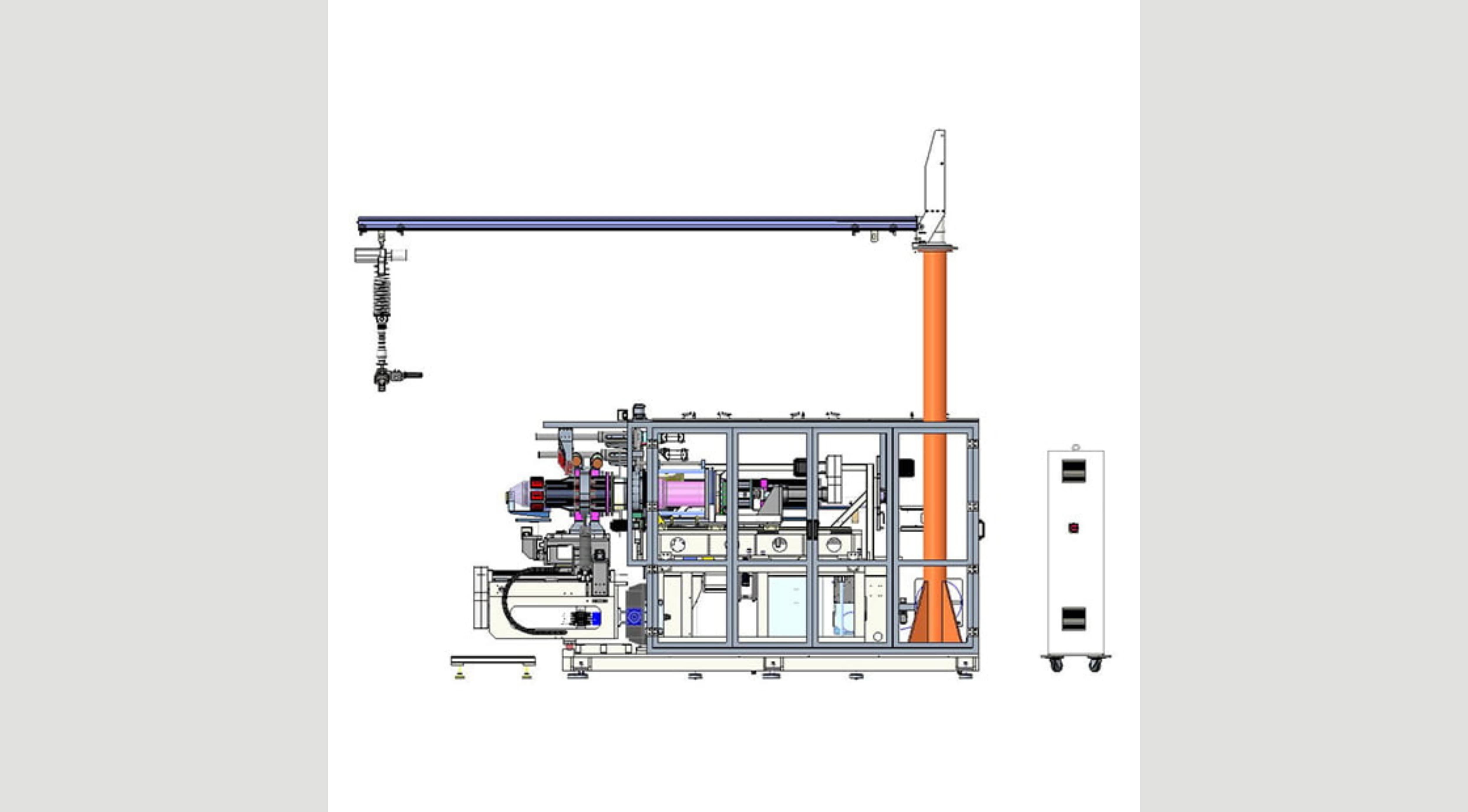

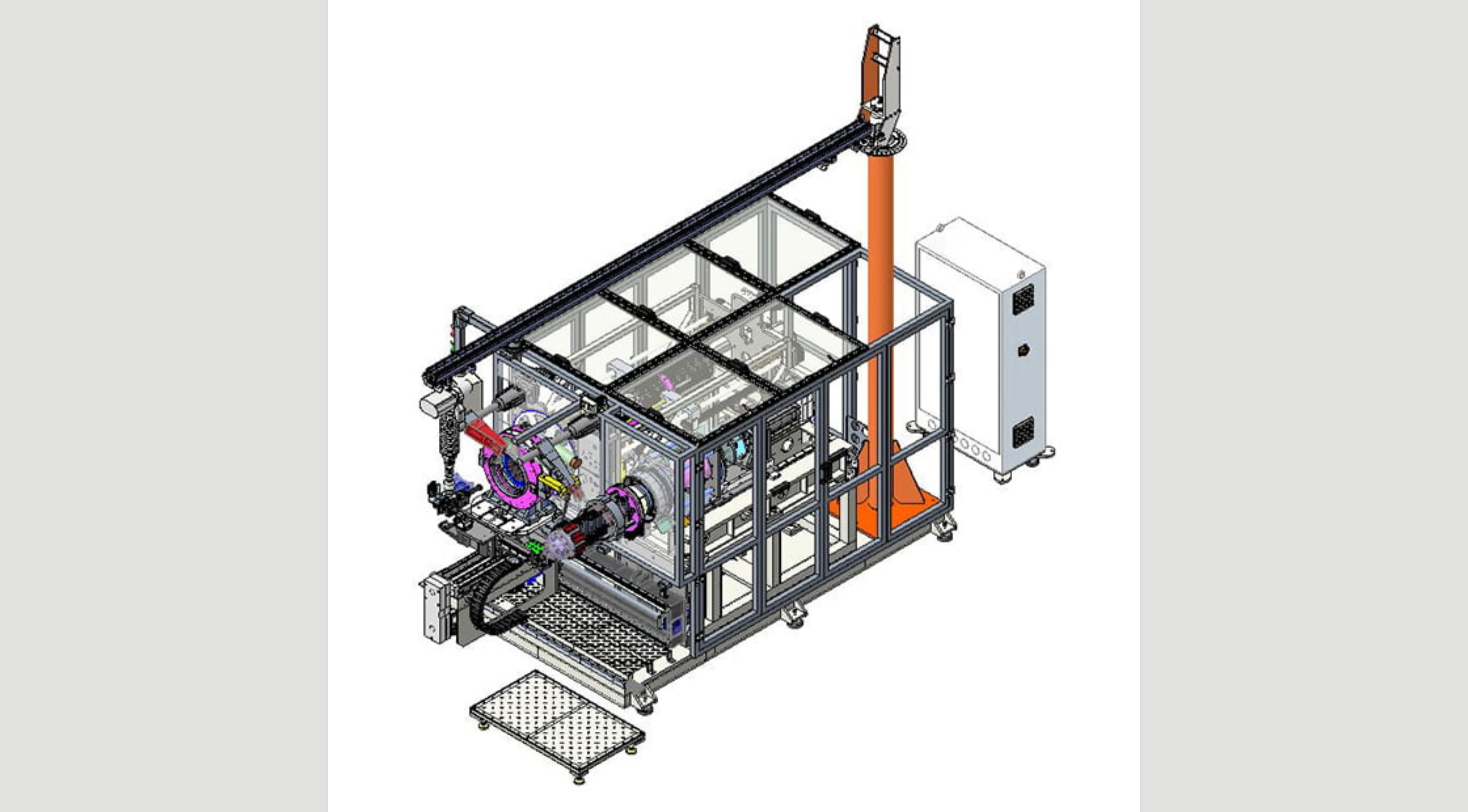

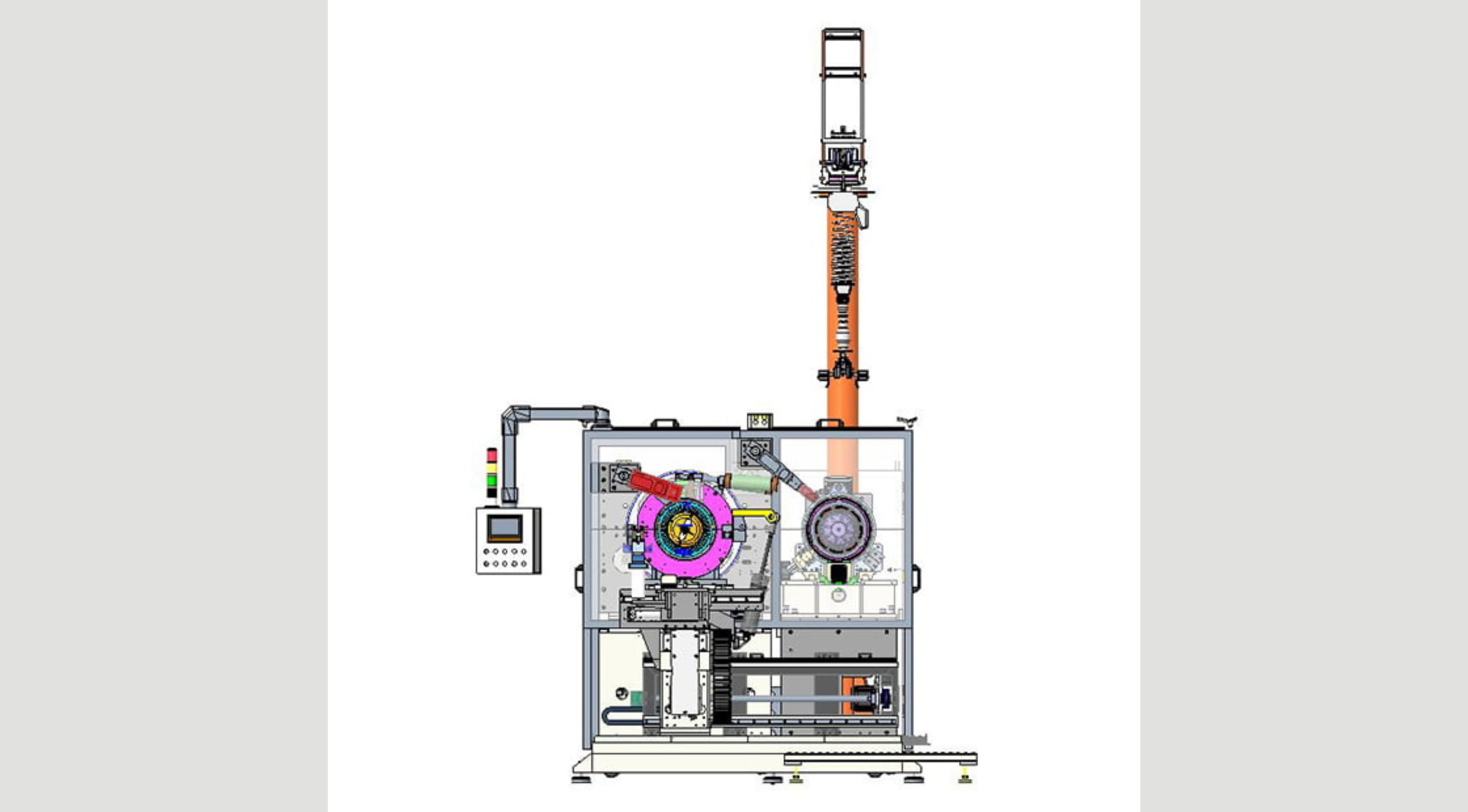

Introducing the Stator Coil & Wedge Insertion & Inter-Phase Forming Integration Machine GMW CIF-4F, featuring an auto stator transfer system and precise servo control. Equipped with differential coil insertion technology and a self-programmable operation process, this machine offers quick and accurate stator coil insertion and inter-phase forming integration. With its advanced features and efficient operation, the Stator Coil & Wedge Insertion & Inter-Phase Forming Integration Machine GMW CIF-4F is the perfect solution for any production line requiring precision and speed.
| Specification | GMW CIF-4F |
| Stator ID Limit (mm) | Ø100-200 |
| Stator Core Length Limit (mm) | 50-200 |
| Cycle Time (sec) | <180 sec/time |
| Floor Area (W*L*H) (cm) | 240*450*400 |
| Machine Weight (Kg) | 4600 kg |
| Main Operation Power Source (KW) | 5.5 |
| Max. Power Consumption (KW) | 10 |
| Pneumatic Source (Kg/cm²) | 4-7 |
| Use voltage | Can be customized according to the voltage used in each country |
