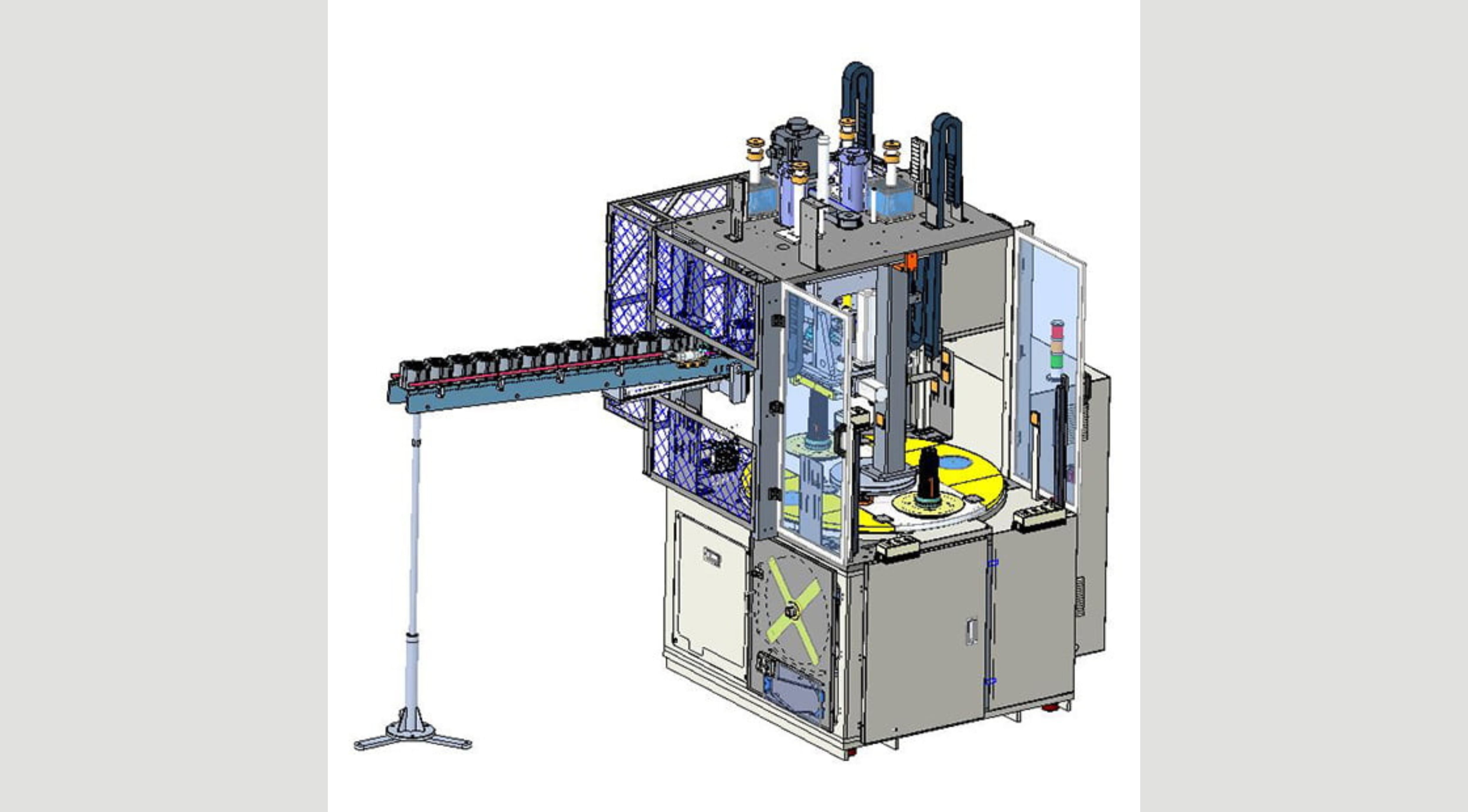

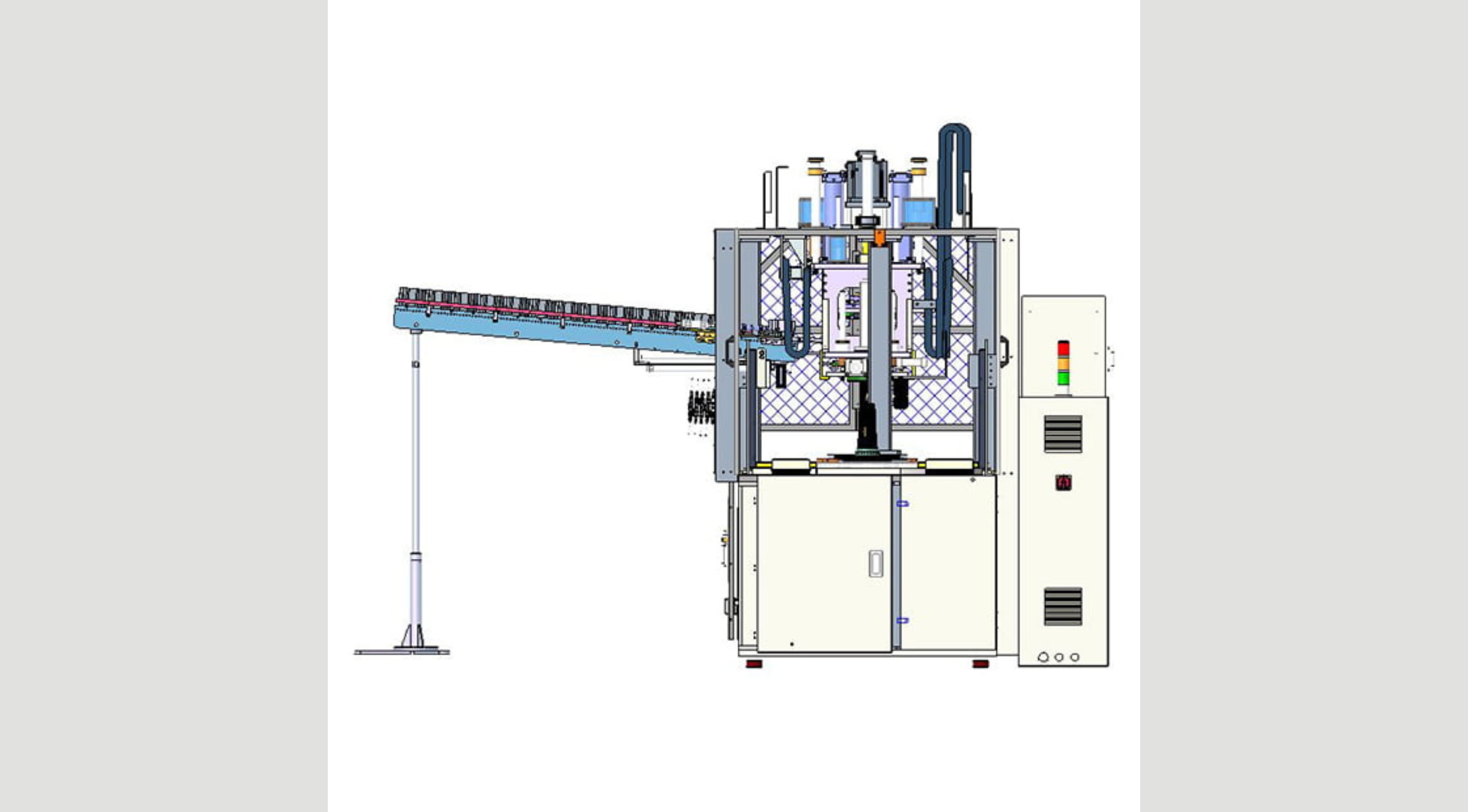

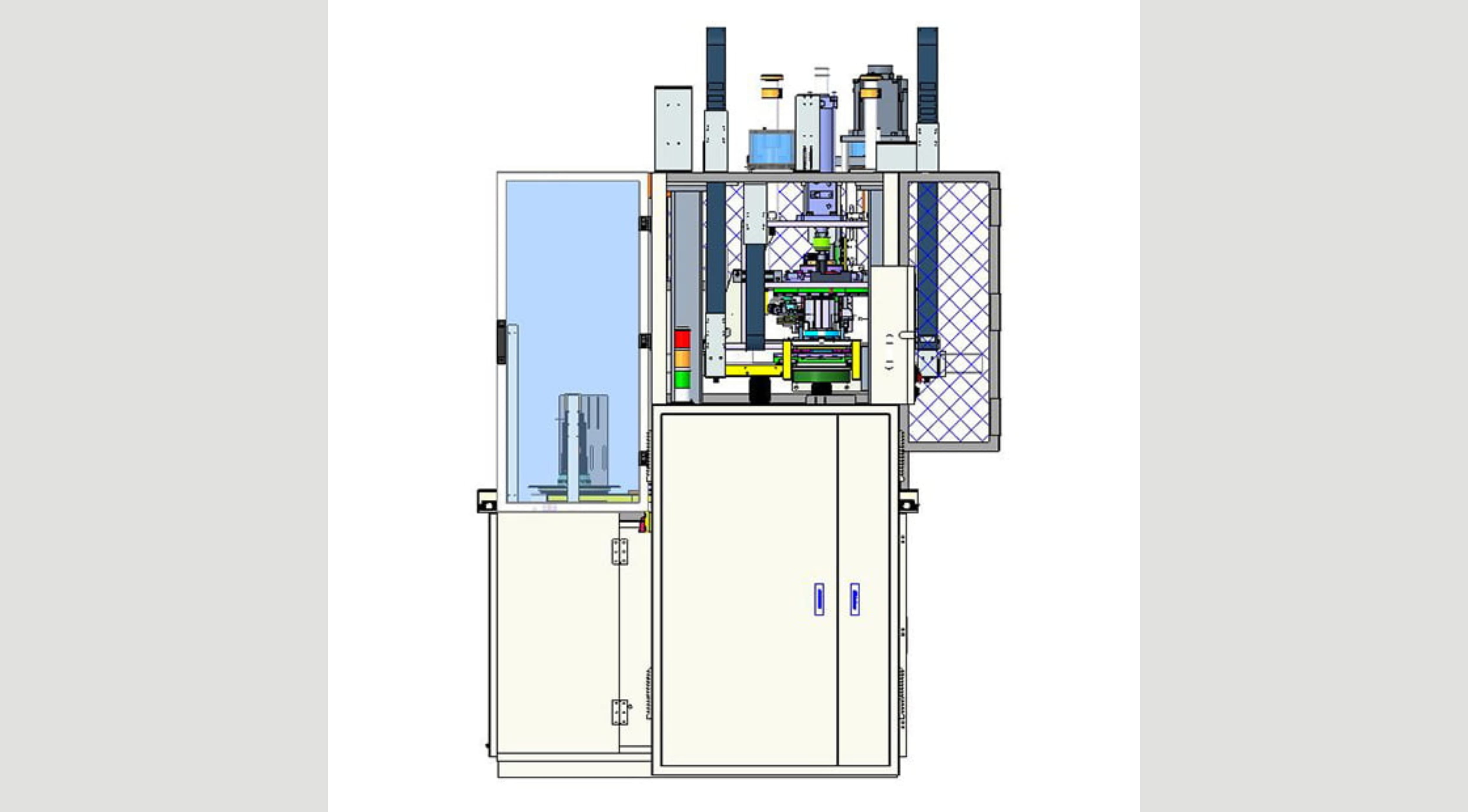

This machine is designed for inserting wound coils and wedges into the stator slots. This machine is microcomputer-controlled. It is convenient to change the performance mold and adjust the parameter and it also provides a rapid work cycle.
The close-loop motor drives the action of inserting; therefore, it can provide an excellent ability to locate precisely. Beside, alignment has on/off molds to choose and is driven by air press. It reduces not only the operation time but also the mistakes might made by operators.
Double working space on the rotation table can both save working time and improve working efficiency.
| Specification | GMW CI-7D |
| Stator ID Limit (mm) | IDØ50-90 |
| Stator Core Length Limit (mm) | 30-90 |
| Cycle Time (sec) | <30 sec/time |
| Floor Area (W*L*H) (cm) | 180*175*290 |
| Machine Weight (Kg) | 2600 kg |
| Main Operation Power Source (KW) | 5.5 |
| Max. Power Consumption (KW) | 10 |
| Pneumatic Source (Kg/cm²) | 4-7 |
| Use voltage | Can be customized according to the voltage used in each country |
