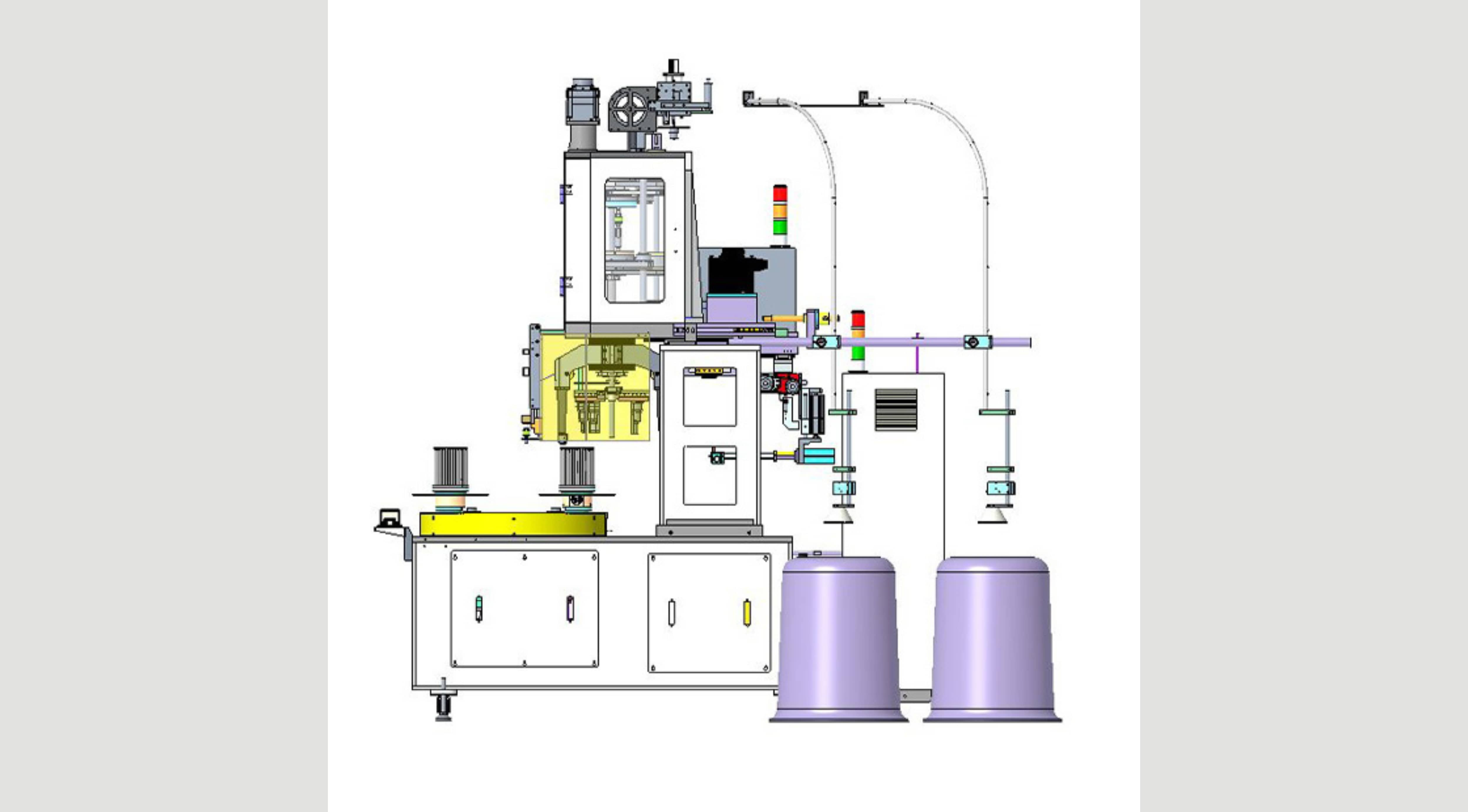

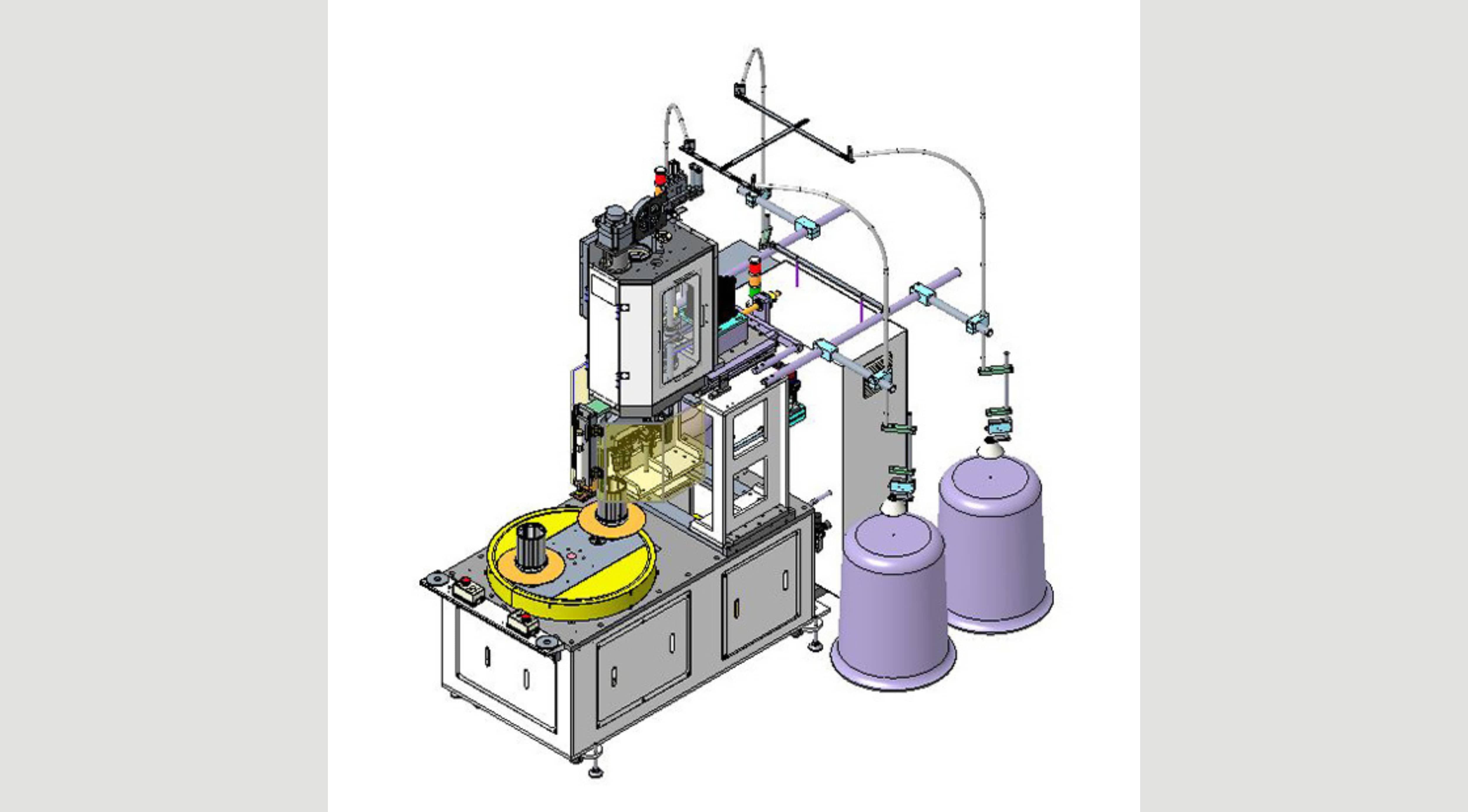

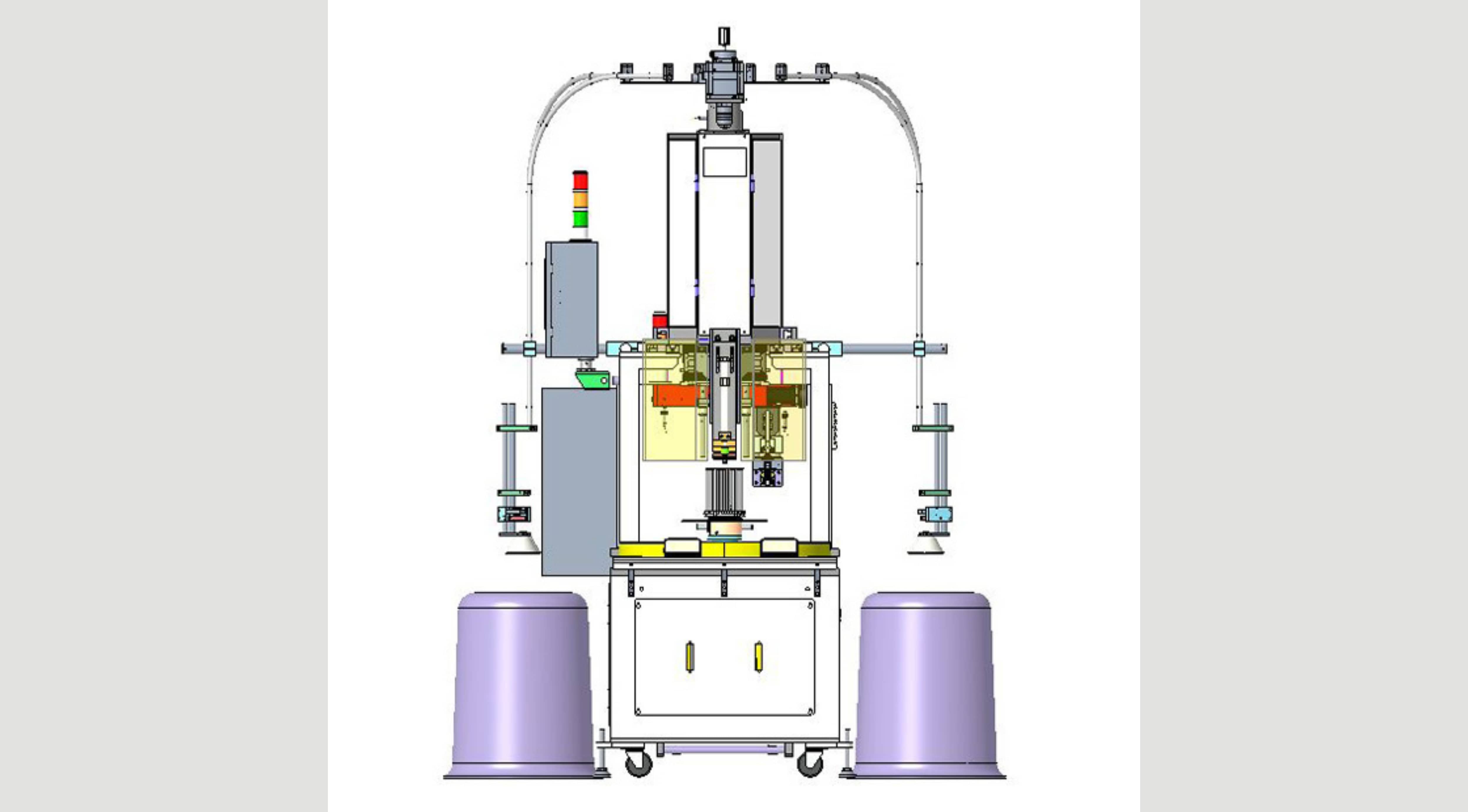

Introducing our high-performance Heavy Loading Vertical Winding Machine GMW C-11GS, equipped with advanced features for precise and efficient winding. The machine features Flyer Winding Heads and Twin Winding Stations, allowing for multiple winding operations simultaneously. With Precise Servo Control, the machine offers exceptional accuracy and control. The machine is capable of winding up to 12 wires in parallel, making it ideal for high-volume production. Our Heavy Loading Vertical Winding Machine GMW C-11GS is a reliable and effective solution for a variety of coil winding applications, making it an essential tool for any coil winding operation.
| Specification | GMW C-11GS |
| Wire Size Limit (mm) | Ø0.3 ~ 1.2 |
| Stator ID Limit (mm) | Ø50-200 (Vary per Stator Core Length) |
| Stator Core Length Limit (mm) | 50-160 (Vary per Stator ID) |
| Winding Flyer Speed (without loading) (rpm) | 500 (Max.) |
| Cycle Time (sec) | Vary per Winding Turns |
| Floor Area (W*L*H) (cm) | 184*342*268 |
| Machine Weight (Kg) | 2300 kg |
| Main Operation Power Source (KW) | 7.5 |
| Max. Power Consumption (KW) | 10.0 |
| Pneumatic Source (Kg/cm²) | 4~7 |
| Use voltage | Can be customized according to the voltage used in each country |
