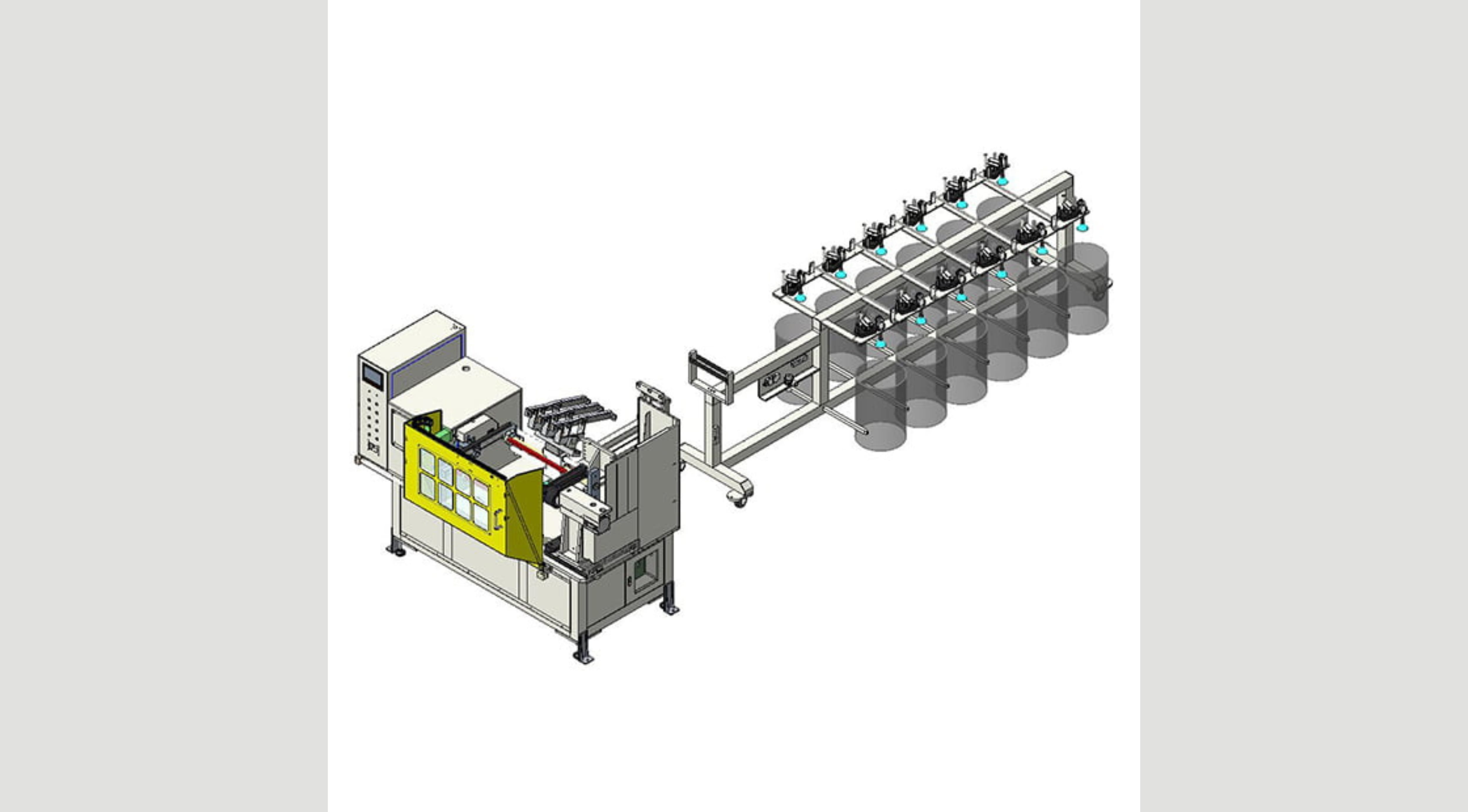

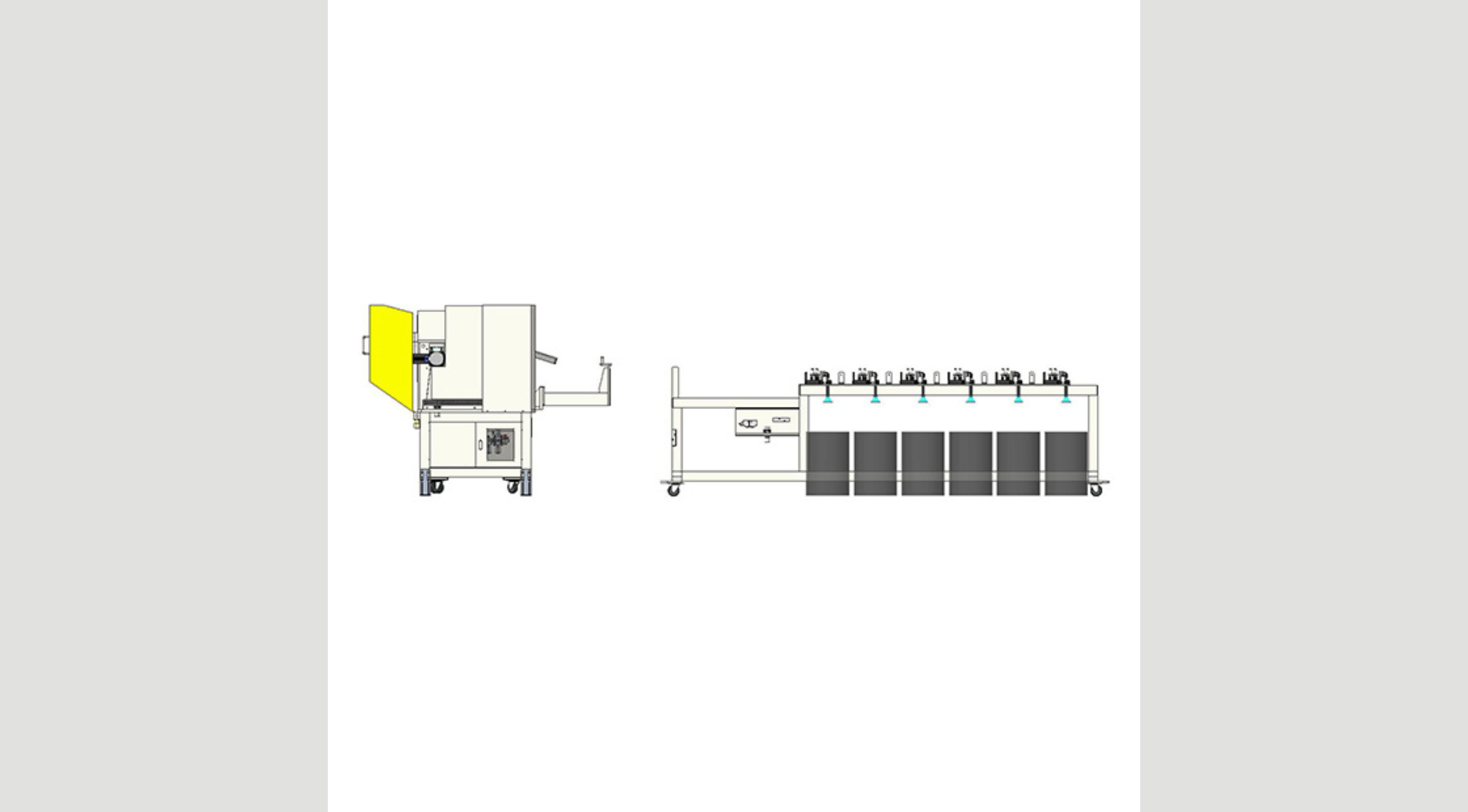

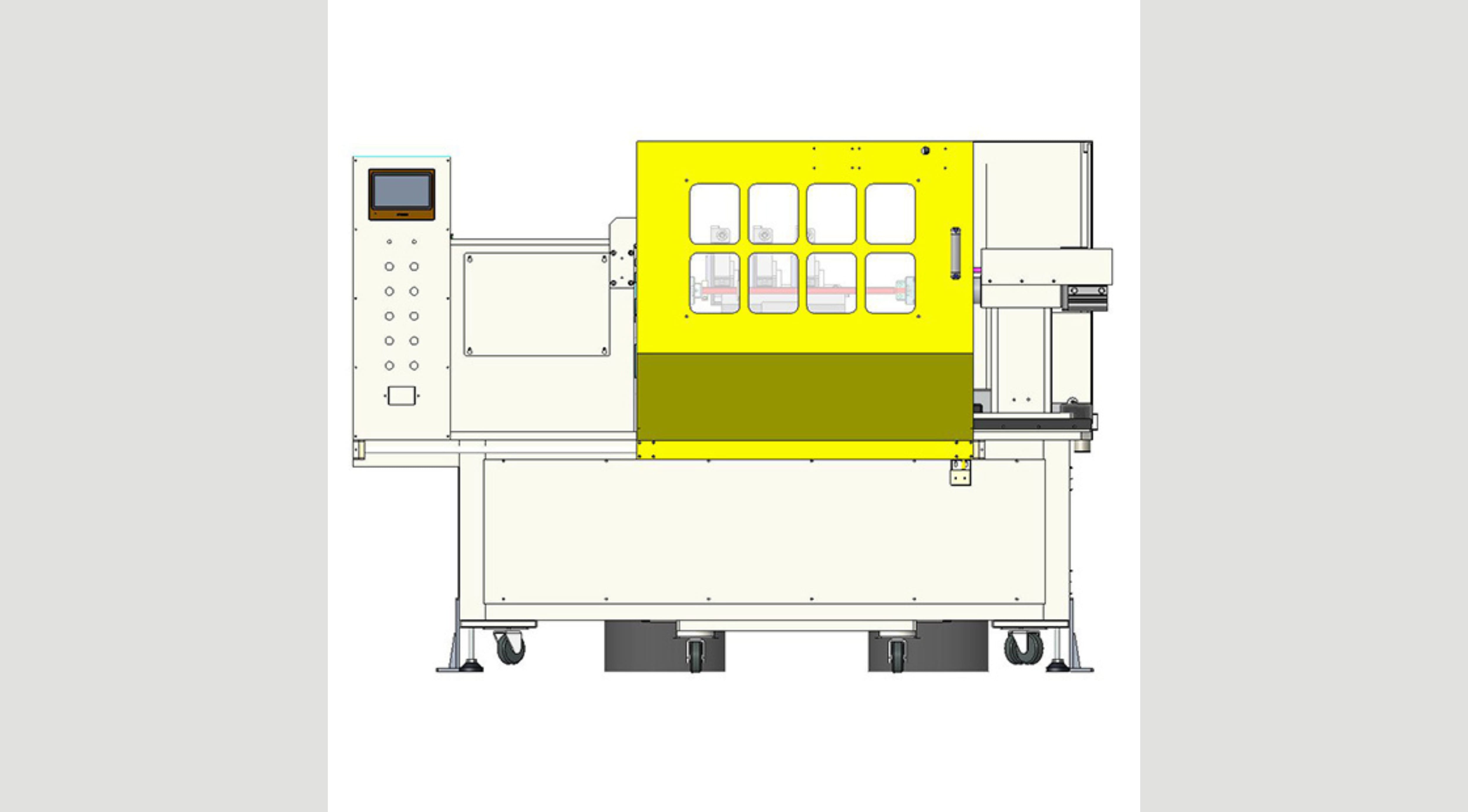

Introducing the high-performance Middle Size Horizontal Winding Machine GMW C-3C, equipped with advanced features for precise and efficient winding. With Precise Servo Control, the machine offers exceptional accuracy and control. The Auto Adjustable Winding Mold ensures compatibility with a wide range of products. An Auto Leadwire Clamping & Cutting System saves time and effort. Our Digitalized Wire Tension Control ensures uniform tension throughout the winding process, ensuring a high-quality finished product. Our Winding Machine GMW C-3C is a reliable and effective solution for various winding applications, making it a must-have for any coil winding operation.
| Specification | GMW C-3C |
| Wire Size Limit (mm) | Ø0.5 ~ 1.6 |
| Stator OD/ID Limit (mm) | ID Ø50~300 (Vary per Stator Core Length) |
| Stator Core Length Limit (mm) | 80-260mm (Vary per Stator ID) |
| Winding Flyer Speed (without loading) (rpm) | 250 (Max.) |
| Cycle Time (sec) | Vary per Winding Turns |
| Floor Area (W*L*H) (cm) | 210*220*150 |
| Machine Weight (Kg) | 1350 kg |
| Main Operation Power Source (KW) | 3 |
| Max. Power Consumption (KW) | 7 |
| Pneumatic Source (Kg/cm²) | 4~7 |
| Use voltage | Can be customized according to the voltage used in each country |
