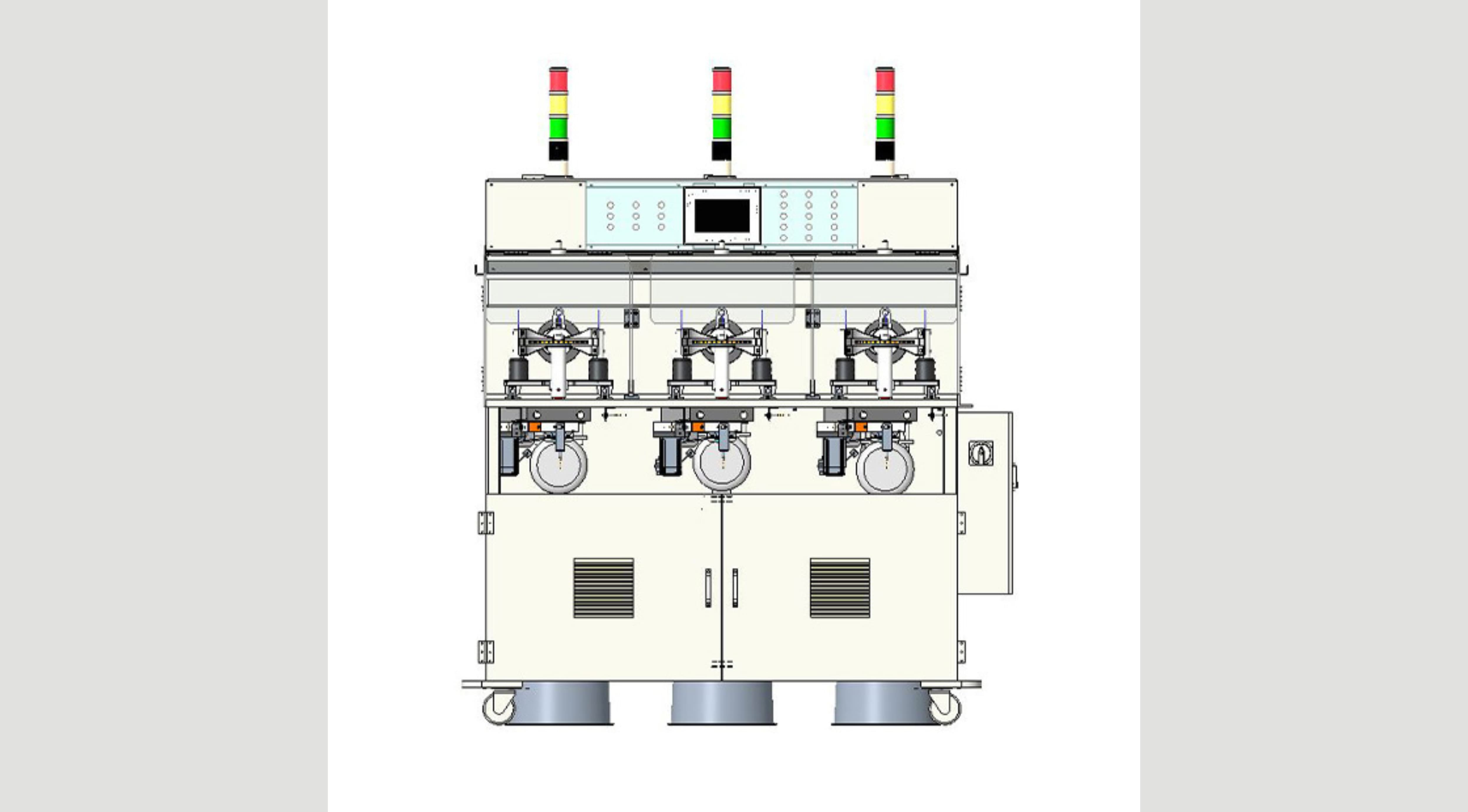

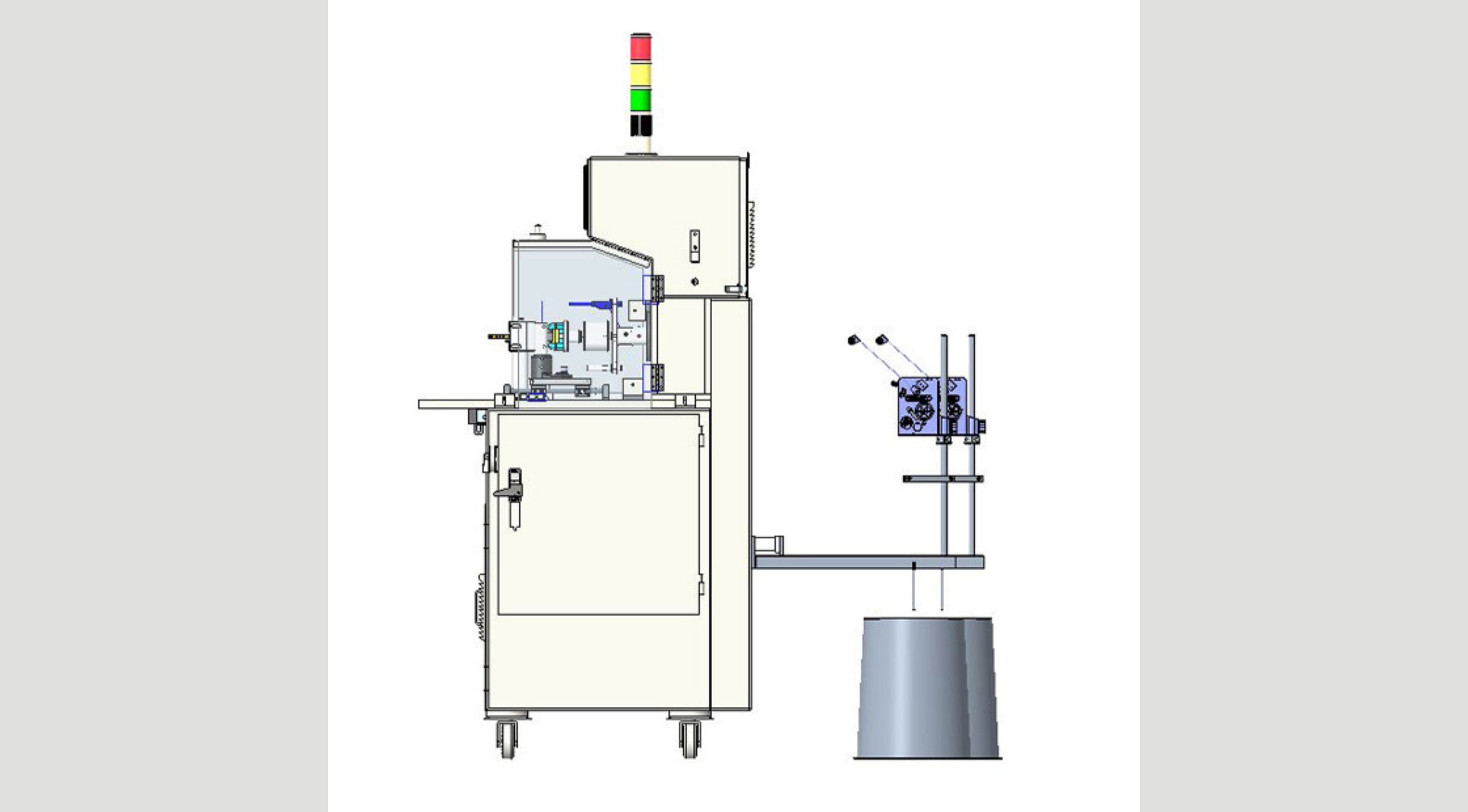

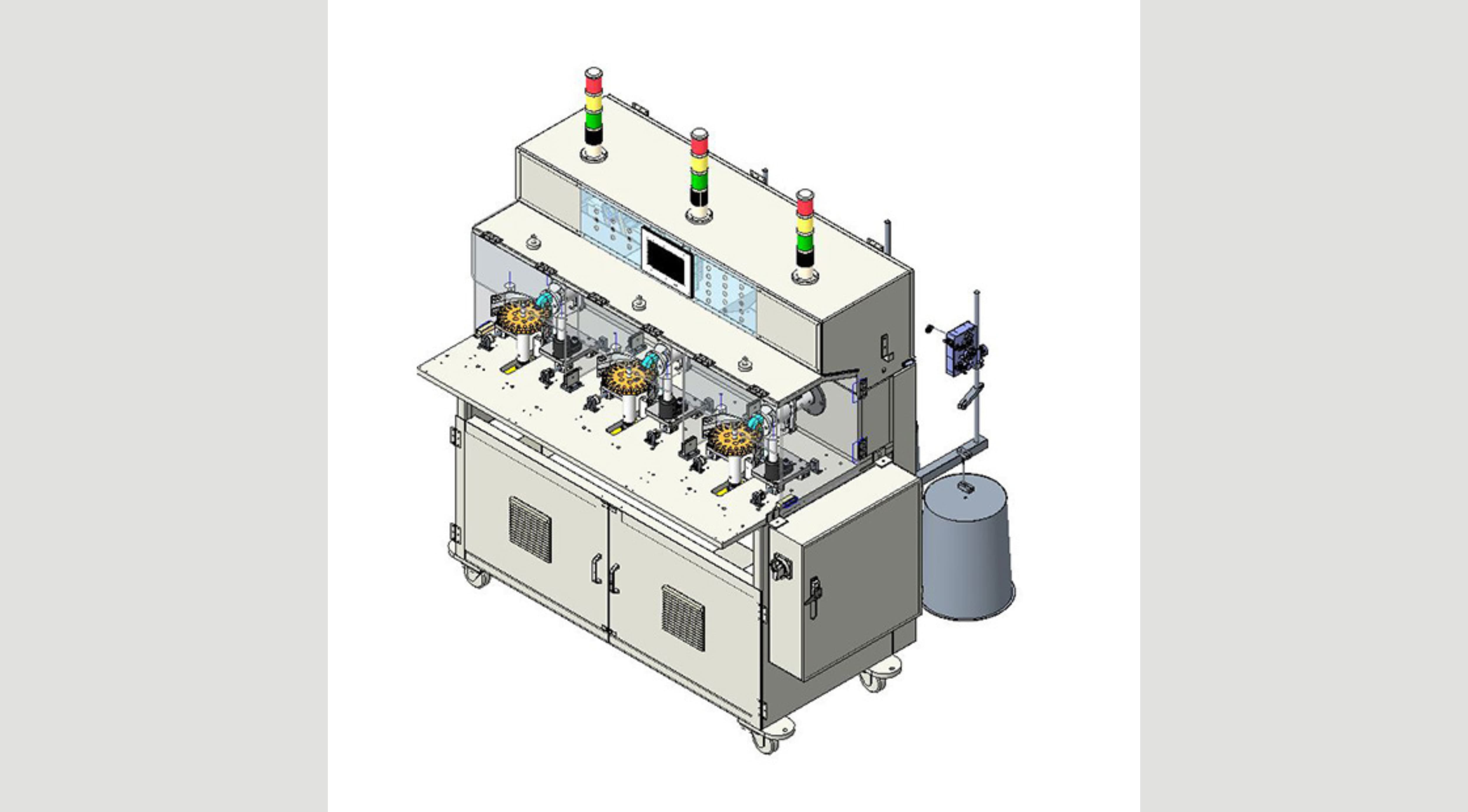

Presenting the Triple-Head Flyer Coil Winding Machine: the cutting-edge solution for efficient coil winding. Powered by servo control technology, this flyer-type winding machine boasts three winding heads, enabling simultaneous winding of multiple coils. With its self-programmable winding laying pattern and Wire Sensor feature, precise and consistent winding is guaranteed. This state-of-the-art machine offers unmatched productivity and accuracy, making it ideal for various industrial applications.
| Wire Size Limit (mm) | Ø0.5 ~ Ø 1.2mm |
| Stator OD/ID Limit (mm) | OD Ø60~180 |
| Stator Core Length Limit (mm) | 10~28mm |
| Winding Flyer Speed (without loading) (rpm) | 4500 Max. |
| Cycle Time (sec) | Vary per Winding Turns |
| Floor Area (W*L*H) (cm) | 130*110*140 |
| Machine Weight (Kg) | 500 |
| Main Operation Power Source (KW) | 2.4 |
| Max. Power Consumption (KW) | 4.2 |
| Pneumatic Source (Kg/cm²) | NA |
| Voltage | Can be customized according to the voltage used in each country |
