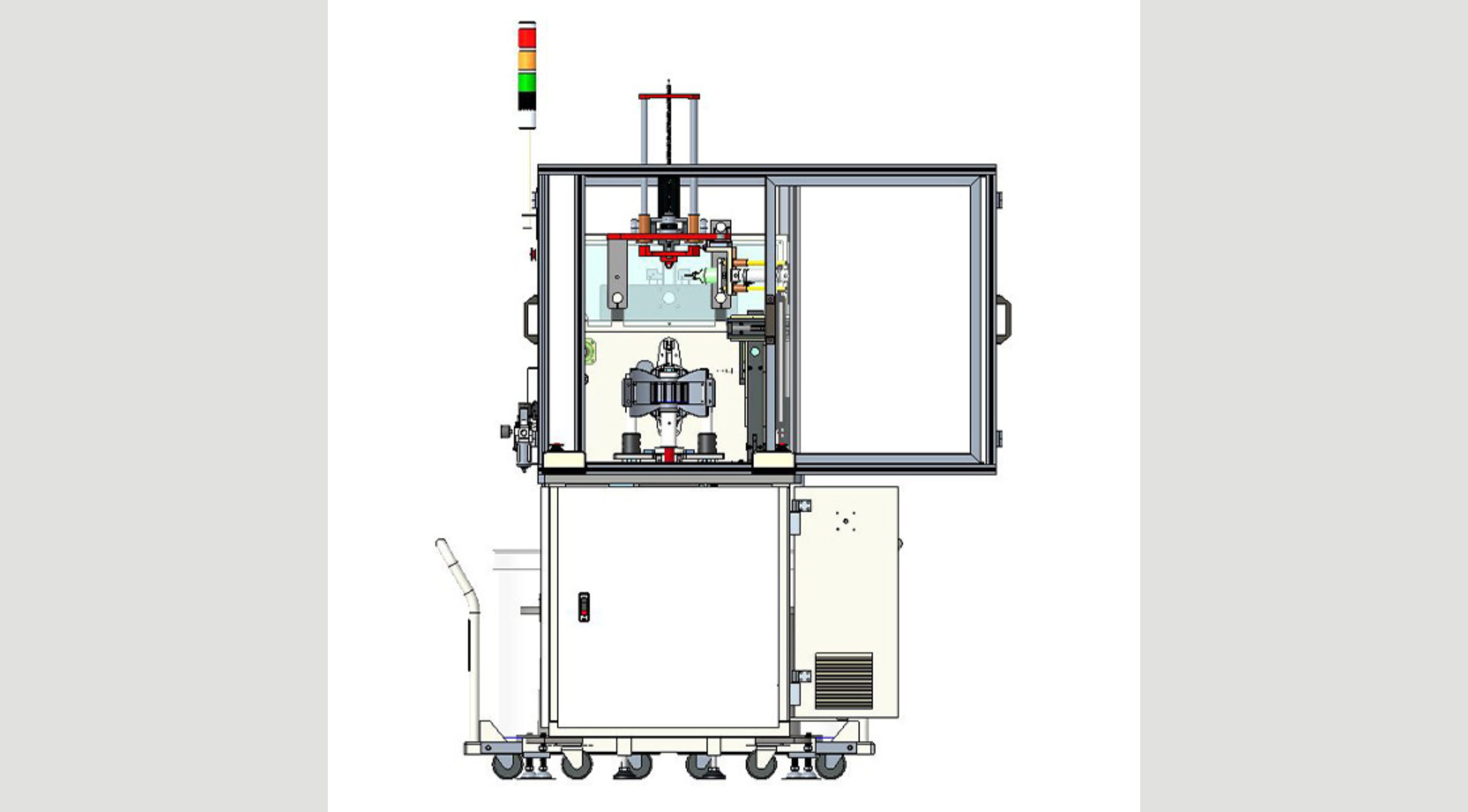

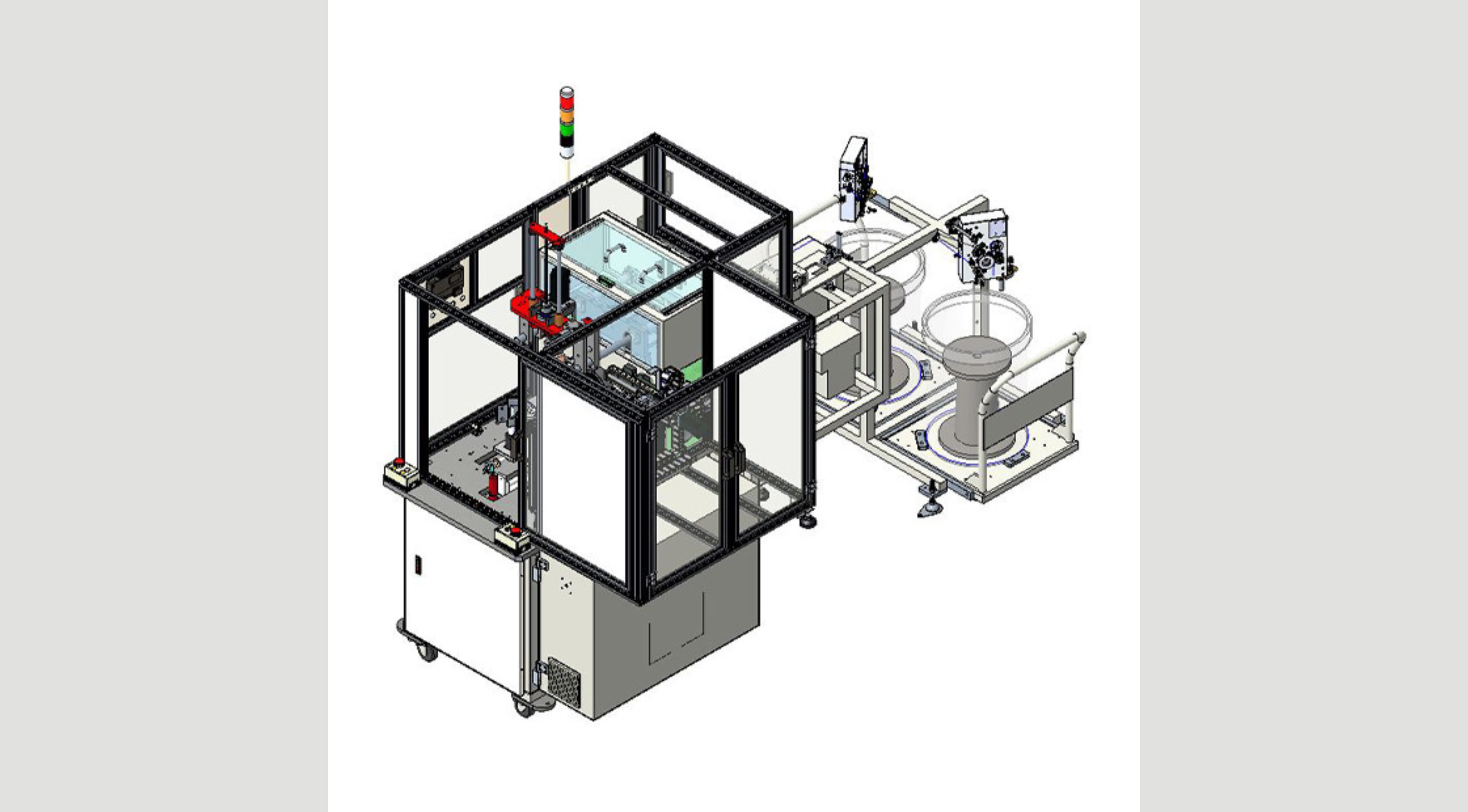

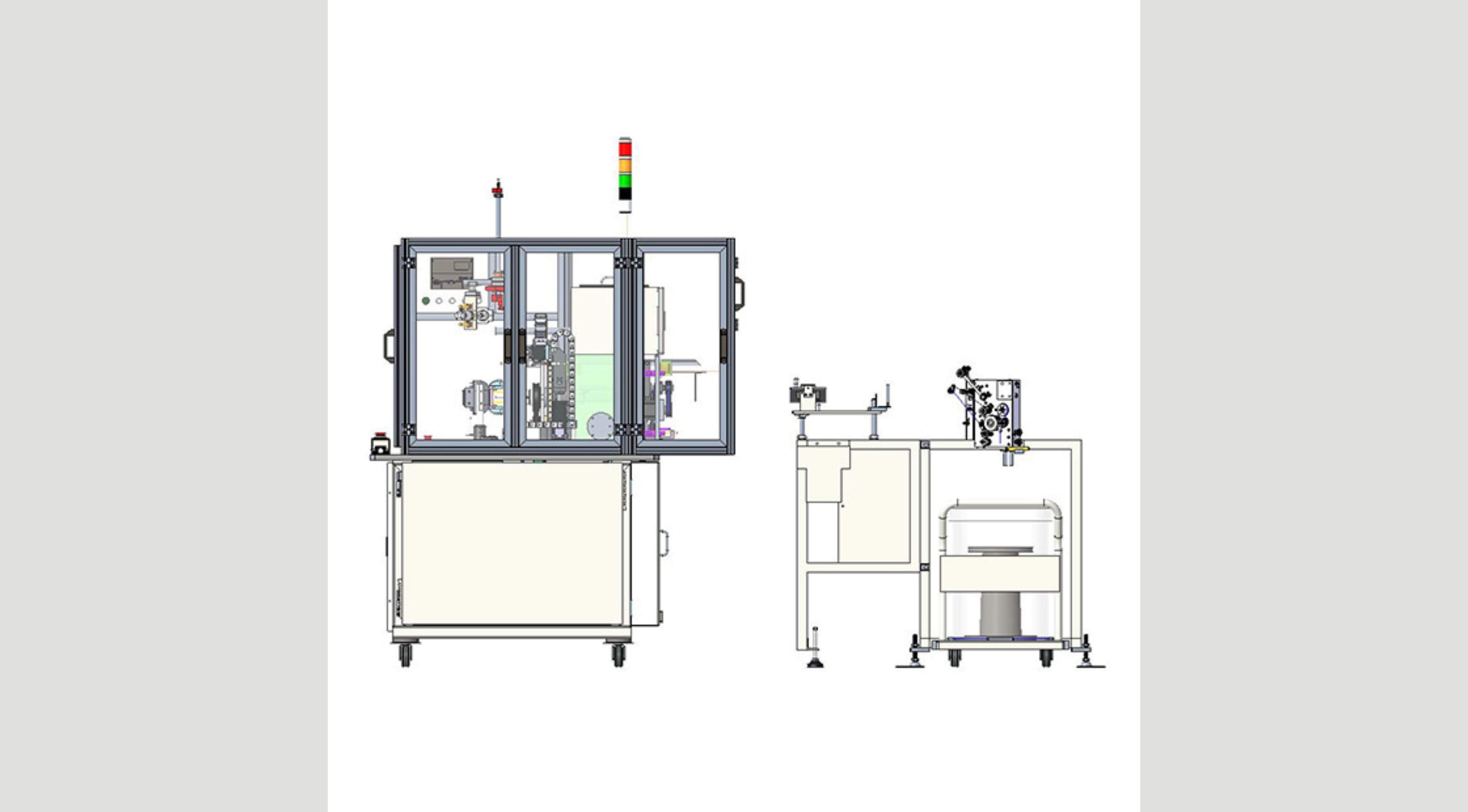

Introducing the Single Flyer Coil Winder Machine GMW C-1H, equipped with Precise Servo Control for efficient and accurate winding. The machine comes with an Auto Leadwire Clamping & Cutting System for ease of use, and an Auto Wire Lubrication System for improved wire handling. Our machine also boasts a Self-Programmable Winding Laying Pattern, allowing for customizable winding configurations. With these advanced features, our Single Flyer Coil Winder Machine GMW C-1H is a must-have for any coil winding operation.
| Specifications | GMW C-1H |
| Wire Size Limit (mm) | Ø0.5 ~ 1.2 |
| Stator OD/ID Limit (mm) | OD195 (Max.) |
| Stator Core Length Limit (mm) | 65 (Max.) |
| Winding Flyer Speed (without loading) (rpm) | 200 (Max.) |
| Cycle Time (sec) | Vary per Winding Turns |
| Floor Area (W*L*H) (cm) | 170*310*220 (cm) |
| Machine Weight (Kg) | 600 Kg |
| Main Operation Power Source (KW) | AC Servo Motor 2KW |
| Max. Power Consumption (KW) | 3.5 KW |
| Pneumatic Source (Kg/cm²) | 4~7 Kg/cm² |
| Use voltage | Can be customized according to the voltage used in each country |
