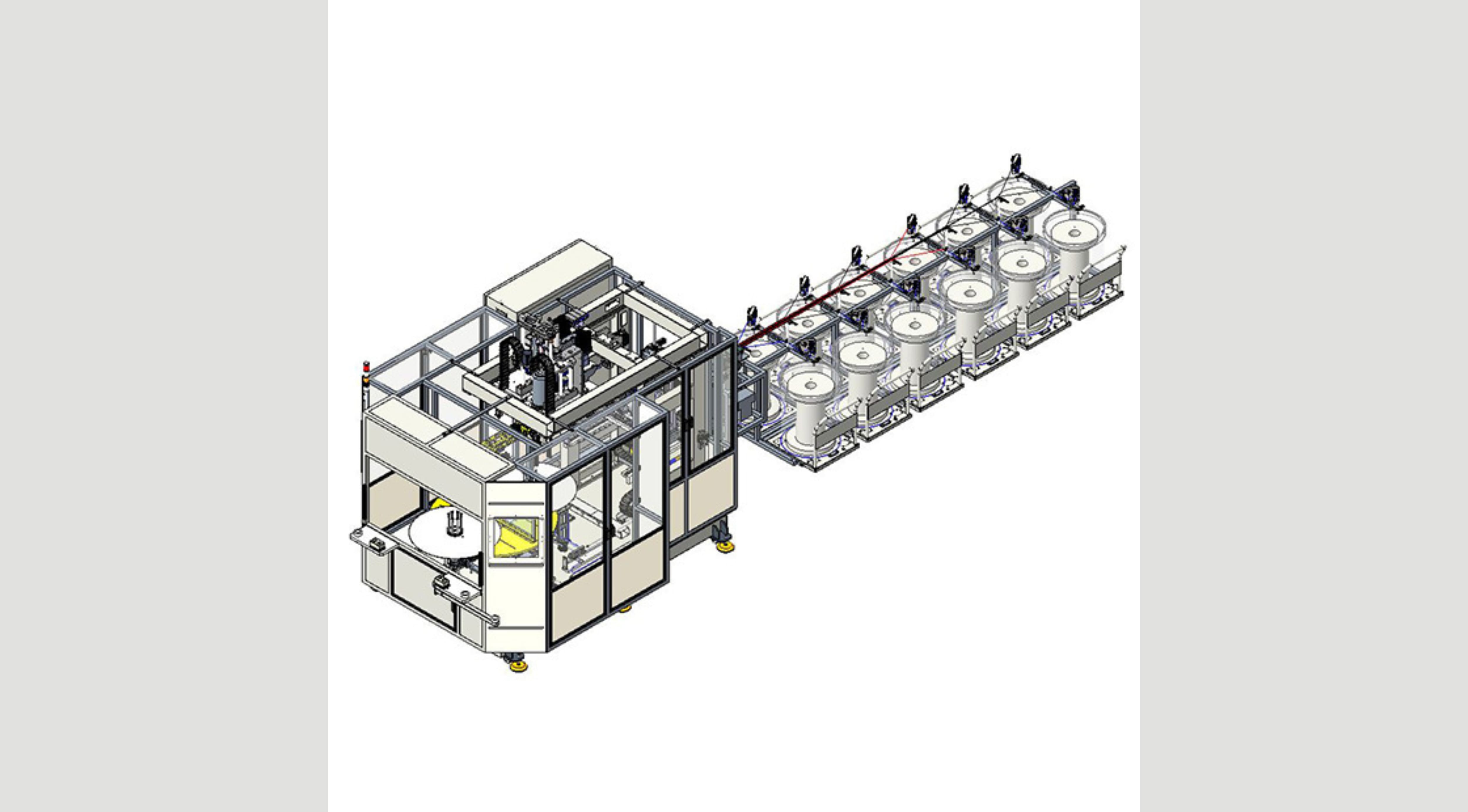

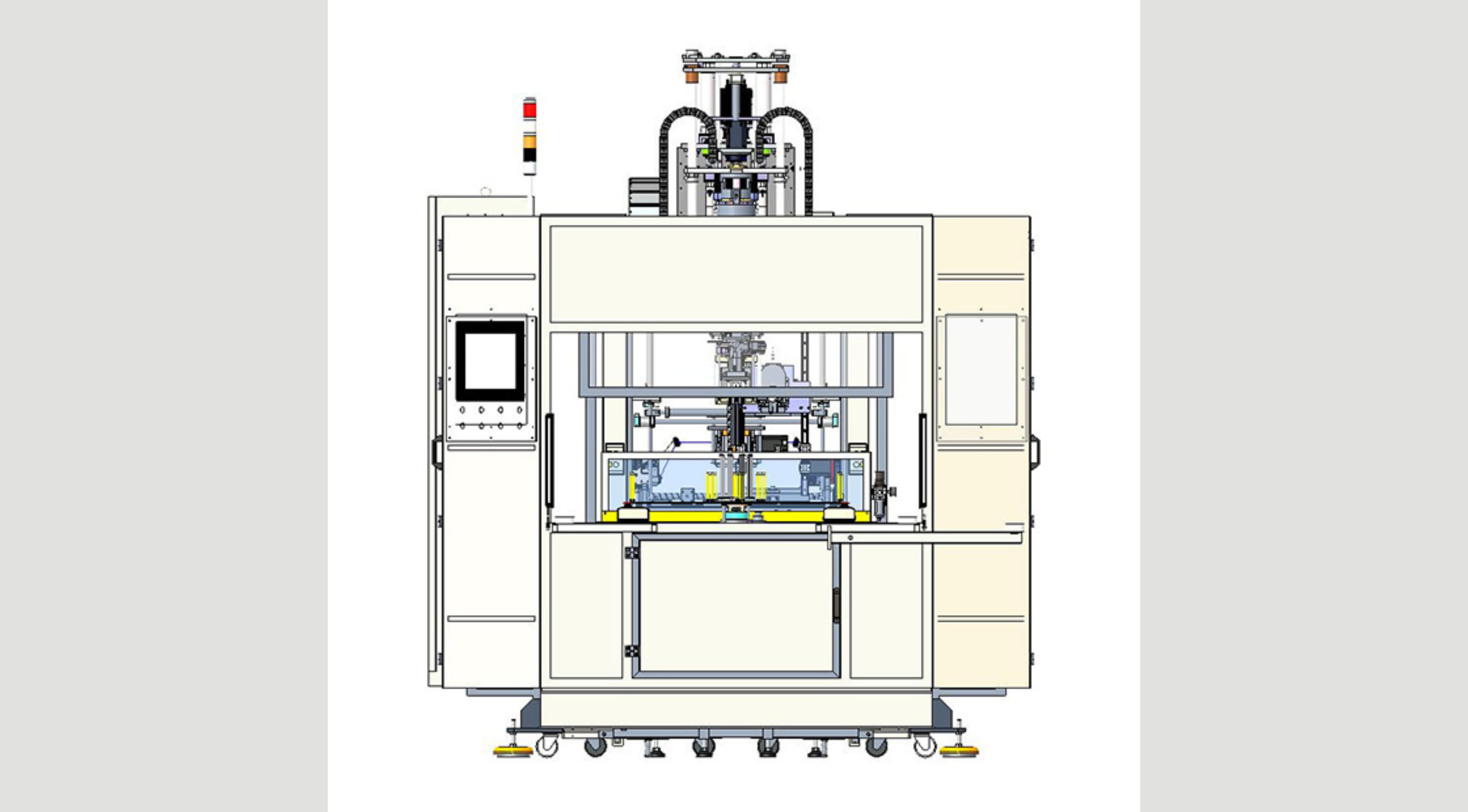

Introducing our advanced Tooling Rotary Vertical Winding Machine GMW C-11H, equipped with Tooling Rotary Winding Heads and Twin Winding Stations for optimal performance. With Precise Servo Control, the machine offers exceptional accuracy and control. The machine is capable of winding up to 12 wires in parallel, making it ideal for high-volume production. Our Vertical Winding Machine GMW C-11H (Jig Rotation) is a reliable and effective solution for various winding applications, making it an essential tool for any coil winding operation. Its advanced features make it an ideal choice for high-speed, high-volume winding of coils with multiple wires.
| Specification | GMW C-11H |
| Wire Size Limit (mm) | Ø0.4 ~ 1.2 |
| Stator ID Limit (mm) | Ø50-200 (Vary per Stator Core Length) |
| Stator Core Length Limit (mm) | 50-160 (Vary per Stator ID) |
| Winding Flyer Speed (without loading) (rpm) | 120 (Max.) |
| Cycle Time (sec) | Vary per Winding Turns |
| Floor Area (W*L*H) (cm) | 265*355*290 |
| Machine Weight (Kg) | 3000 kg |
| Main Operation Power Source (KW) | 7.5 |
| Max. Power Consumption (KW) | 15 |
| Pneumatic Source (Kg/cm²) | 4~7 |
| Use voltage | Can be customized according to the voltage used in each country |
