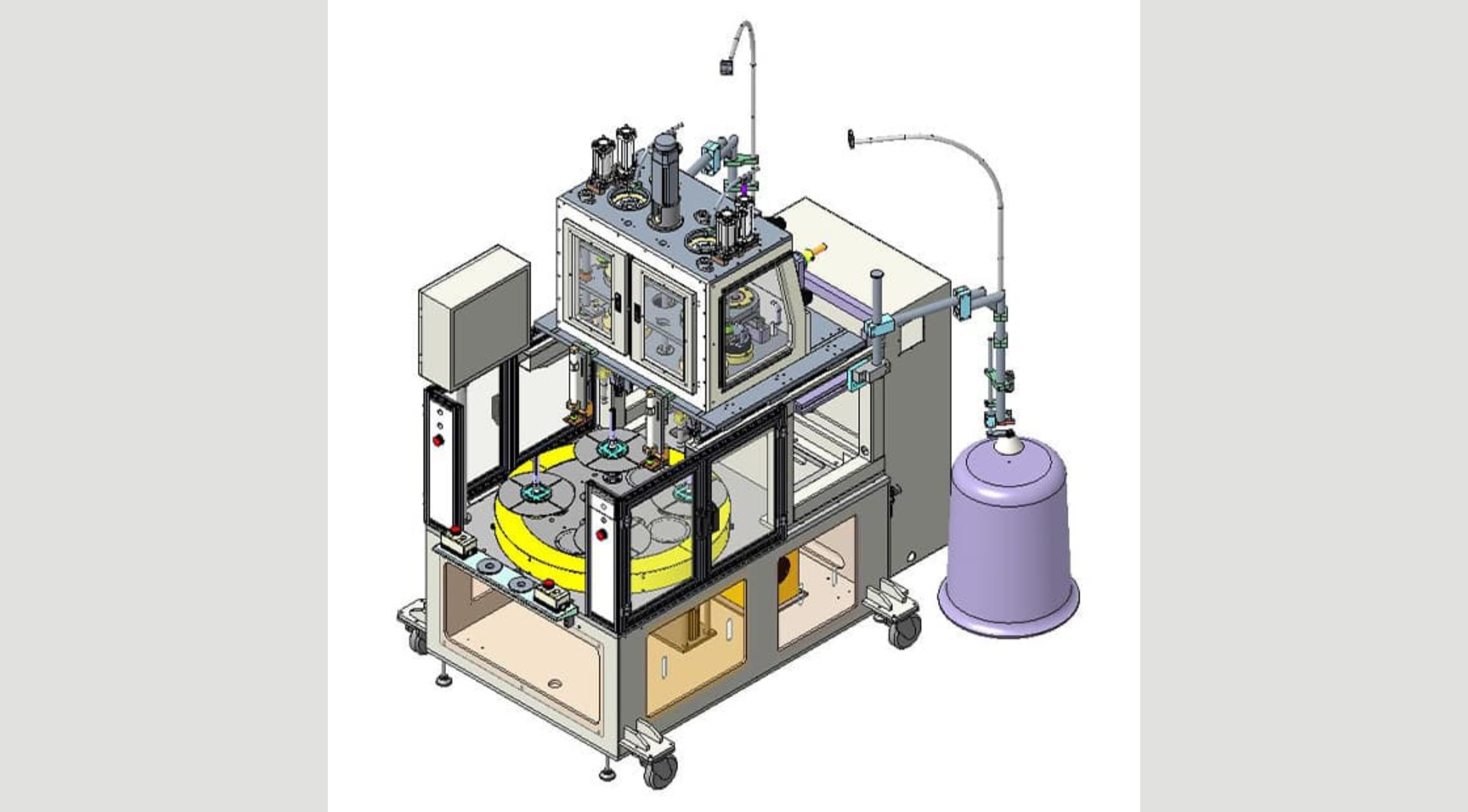

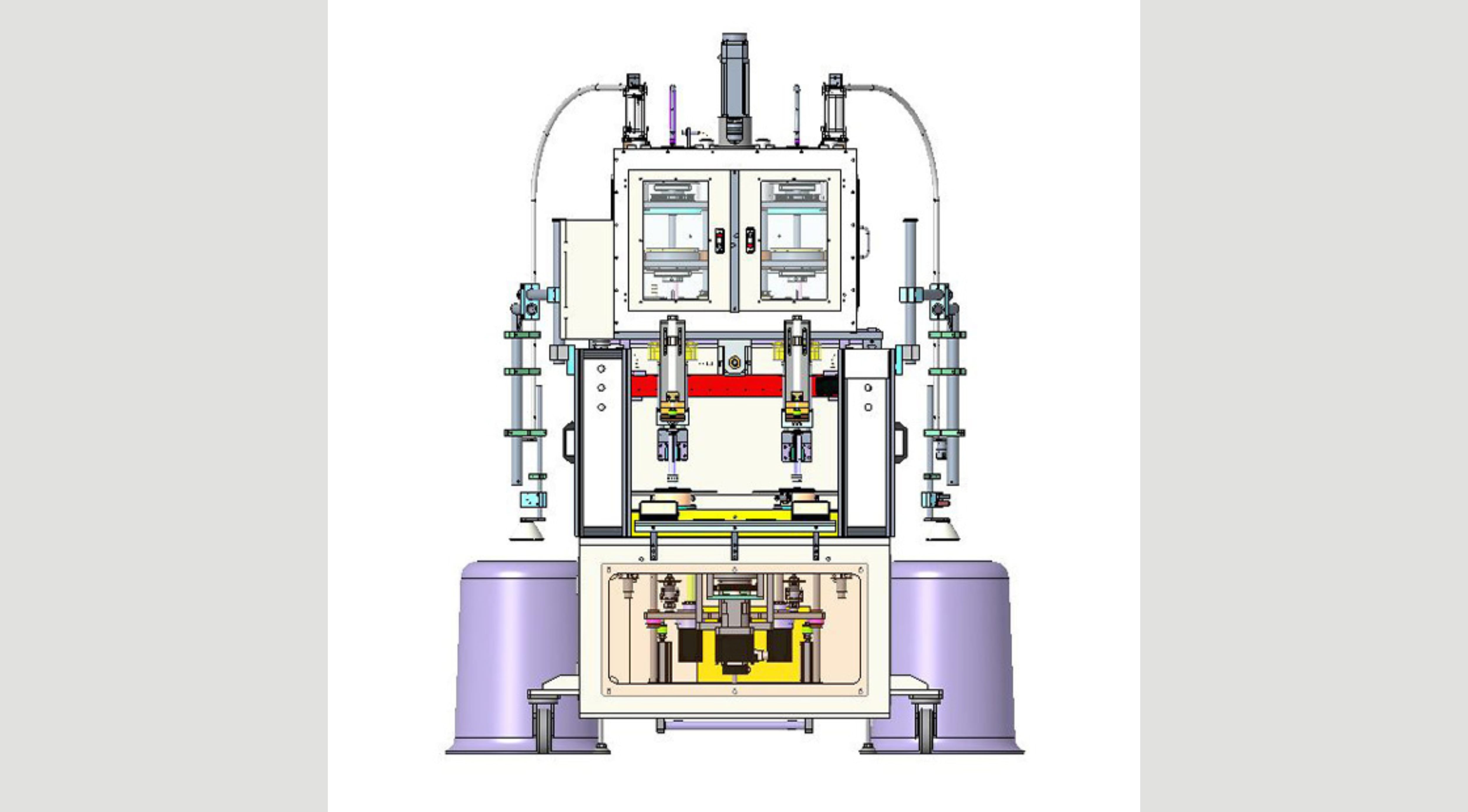

Introducing our versatile Vertical Winding Machine GMW C-21F, featuring Twin Flyer Winding Heads and Four Winding Stations for increased productivity. With Precise Servo Control, the machine offers exceptional accuracy and control. The Double Control System ensures reliable and efficient operation, while the multiple winding stations allow for simultaneous winding operations. Our Vertical Winding Machine GMW C-21F is a reliable and effective solution for a variety of winding applications, making it an essential tool for any coil winding operation. Its advanced features make it an ideal choice for high-speed, high-volume winding of coils with multiple wires.
| Specification | GMW C-21F |
| Wire Size Limit (mm) | Ø0.2 ~ 1.0 |
| Stator ID Limit (mm) | Ø20-90 (Vary per Stator Core Length) |
| Stator Core Length Limit (mm) | 30-90 (Vary per Stator ID) |
| Winding Flyer Speed (without loading) (rpm) | 2000 (Max.) |
| Cycle Time (sec) | Vary per Winding Turns |
| Floor Area (W*L*H) (cm) | 120*230*250 |
| Machine Weight (Kg) | 2500 kg |
| Main Operation Power Source (KW) | 7.5 |
| Max. Power Consumption (KW) | 15 |
| Pneumatic Source (Kg/cm²) | 4~7 |
| Use voltage | Can be customized according to the voltage used in each country |
