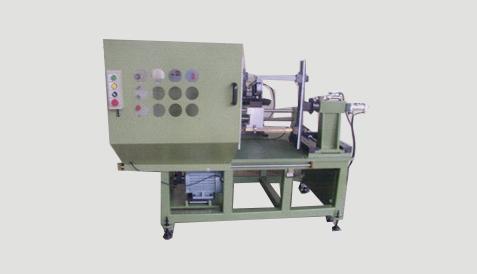

At this machine equipped with stepping motor, and ball crew, it can wind uniform coils and extend the limit of machine. It also equipped A.C. motor and frequence inverter to control spindle, it can be suitable for more items as well as develop its starting torque and operating under low-speed operation. Long arms with two shafts design make customers can use stack- adjustable winding formers.
| WIRE DIAMETER | 0.5 ~ 1.6mm * 18 WIRES PARALLEL MAX. |
| WINDING WIDTH | 99mm |
| DIAMETER OF COIL BODY | MAX : 750mm |
| CONTROL | Microprocessor Control & Frequency Inverter |
| WINDING STEPS | 999 Steps |
| POWER SUPPLY | 220V/380V , 3Ø , 50/60HZ |
| PNEUMATIC POWER SUPPLY | 5 kg/ｃ㎡ |
| DRIVE MOTOR | 3 Phase 5HP 4P AC Motor with 1/5gear reducer |
| DIMENSION | 220(L) * 210(W) * 150(H) cm |
| WEIGHT | 1350 KGS |
| LENGTH OF WINDING ARM | 700mm |
