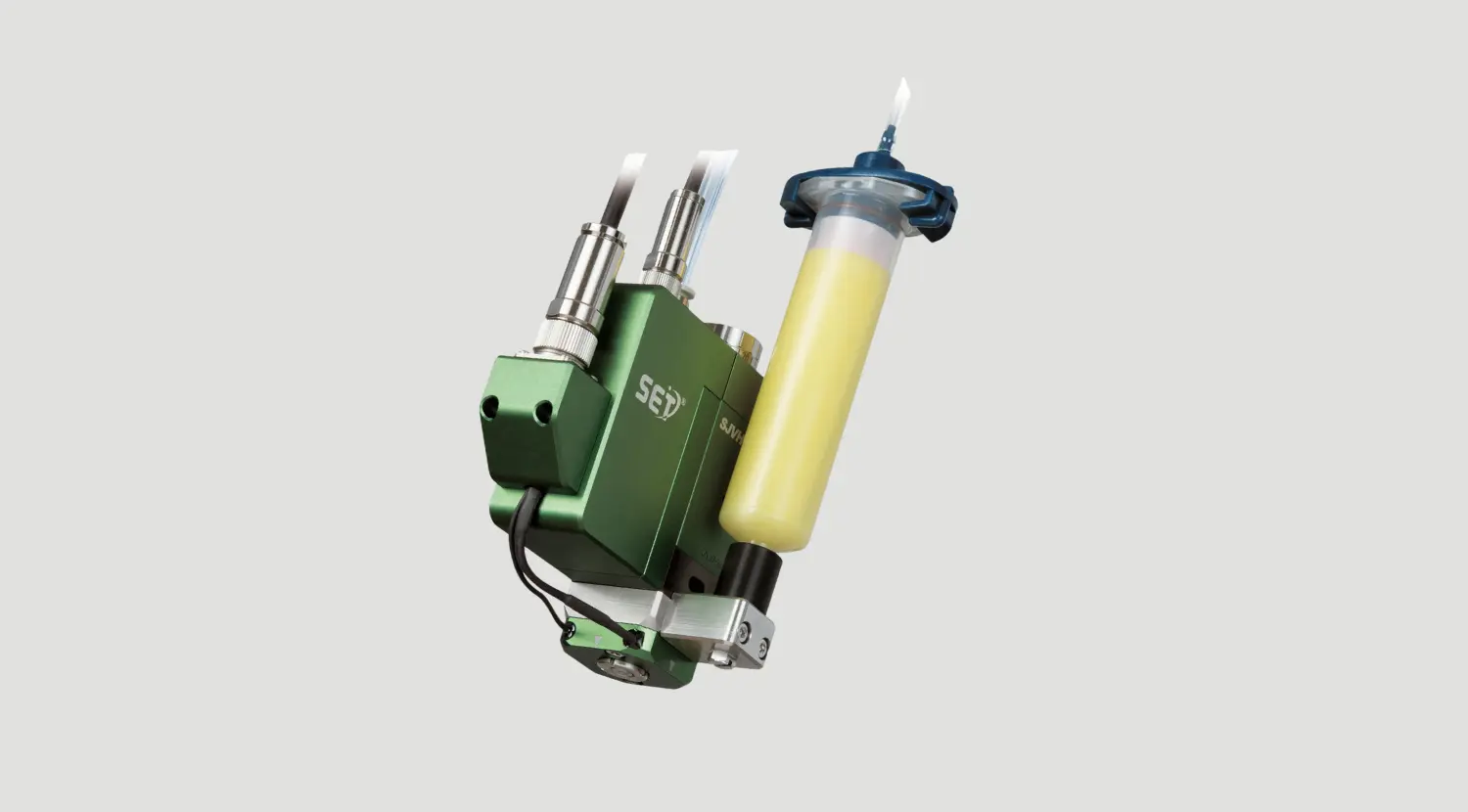

BEATRUM / BEATRUM-H - JET DISPENSER SAN-EI-TECH

High-precision, high-speed non-contact jet dispensers capable of dispensing low to ultra-high viscosity fluids with stable performance up to 250 Hz from San-Ei Tech.

Model: BEATRUM, BEATRUM-H

BEATRUM / BEATRUM-H - JET DISPENSER SAN-EI-TECH

Non-contact jet dispensing for high-speed and precise application.
Handles a wide viscosity range — from low-viscosity coatings to ultra-high viscosity materials (up to 300,000 mPa·s).
Fast and accurate jetting with consistent volume and minimal bubbles.
Few wetted parts, ensuring easy cleaning and low maintenance.
Various nozzle and sheet options to suit different applications.
Stable operation up to 250 Hz for reliable, high-frequency dispensing.

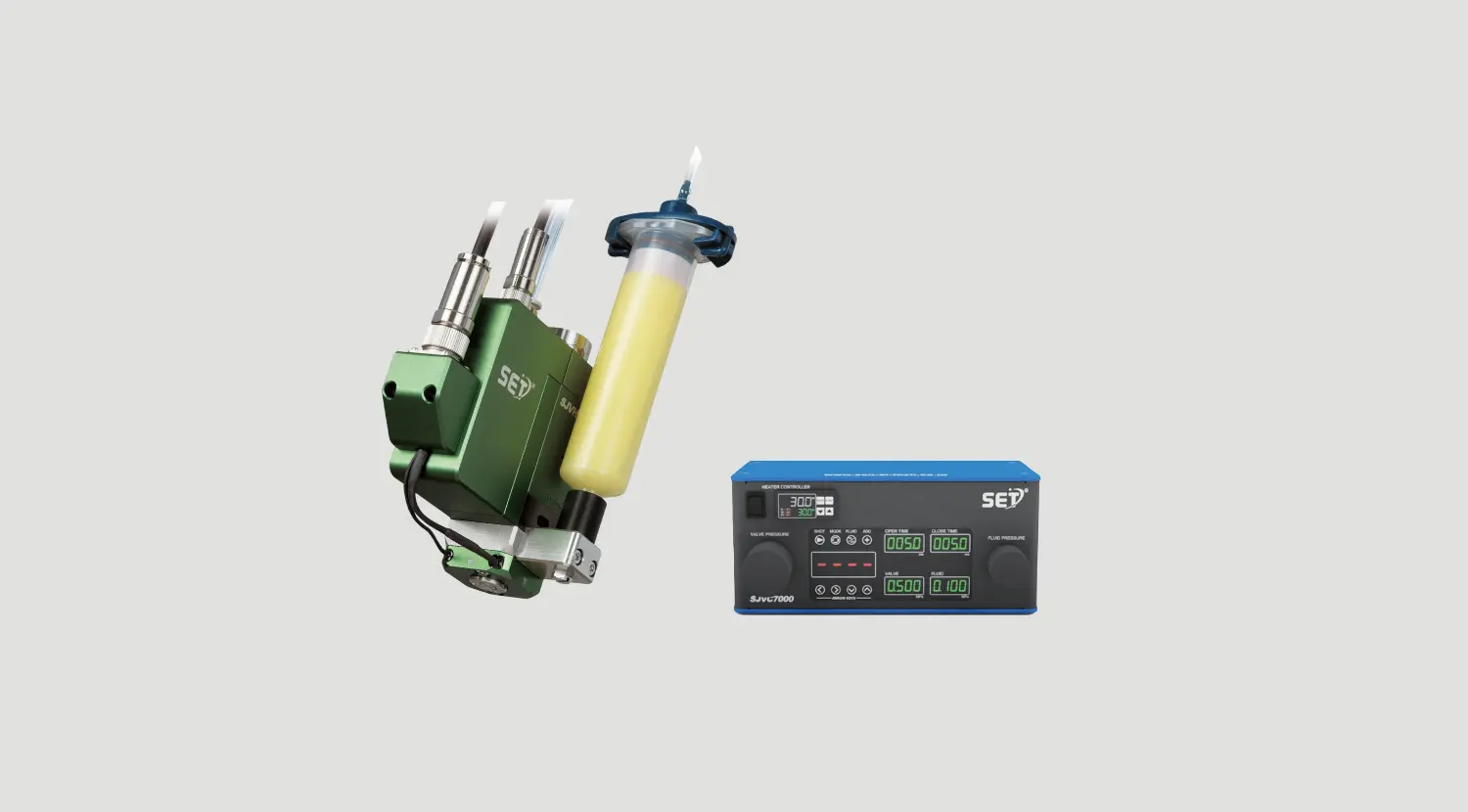

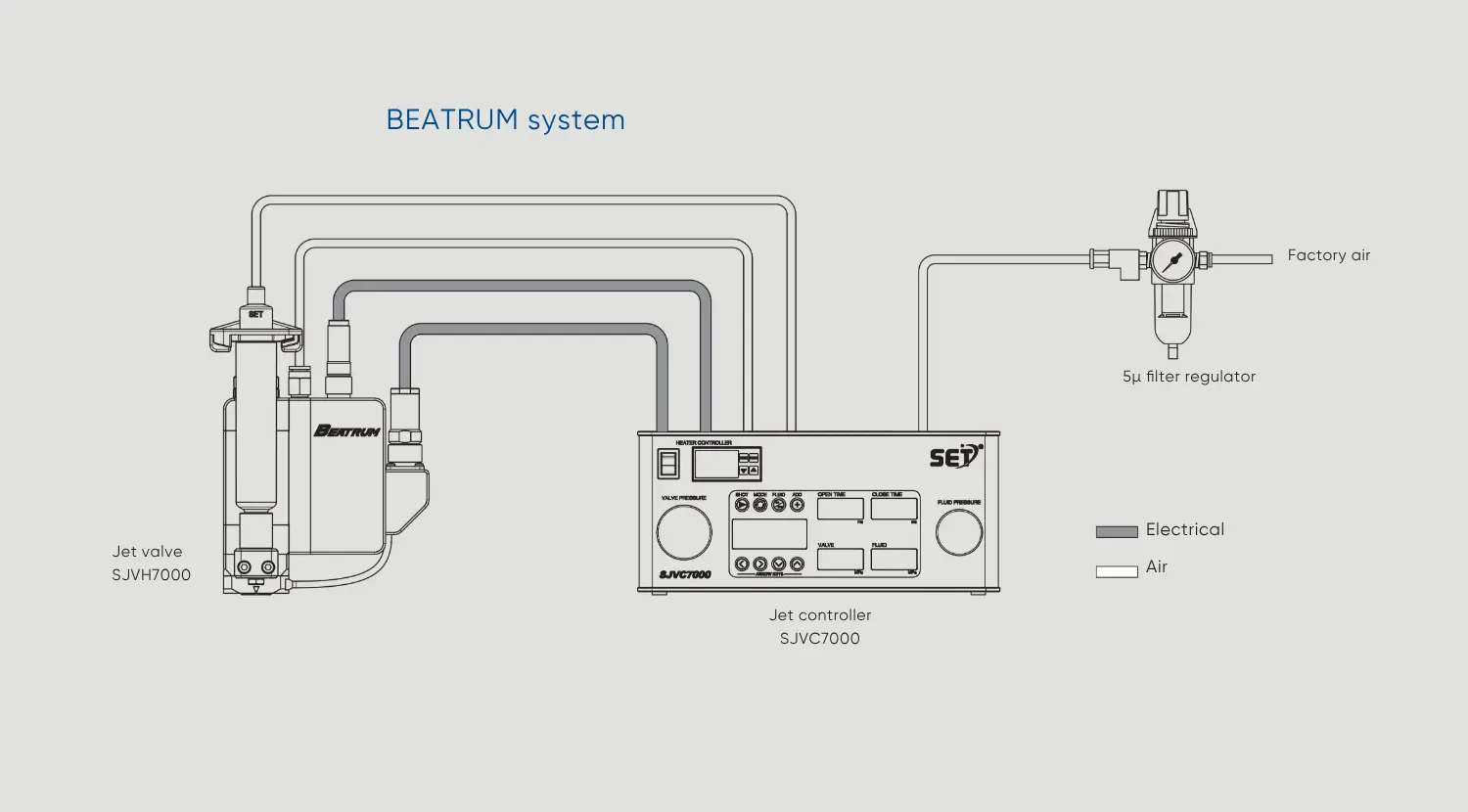

Dedicated controller SJVC7000 with shot timer, recipe memory, external control, and heating function.
Ideal for materials such as underfill, UV adhesive, grease, oil, silver paste, ink, and coatings.

download Request a quotation

Technical Information

Model		BEATRUM	BEATRUM-H	Dispense Controller
		SJVH7000	SJVH7000-H	SJVC7000
Size	W	53 mm		250 mm
	H	95 mm		113 mm
	D	106 mm		188 mm
Weight		650g		1800g
Dispensing cycle		Up to 250Hz
Compatible viscosity		50,000mPa・s	~300,000mPa・s
Minimum coating diameter		φ0.3mm
Power supply		DC24V (AC100~240V adapter)
Applications		Underfill, dam & fill, moisture-proof coating material, UV adhesive, grease, oil, silver paste, paint, ink, primer, solvent, etc.
