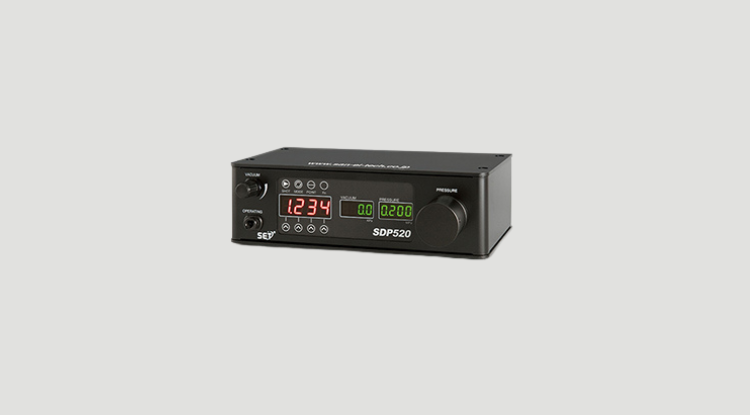

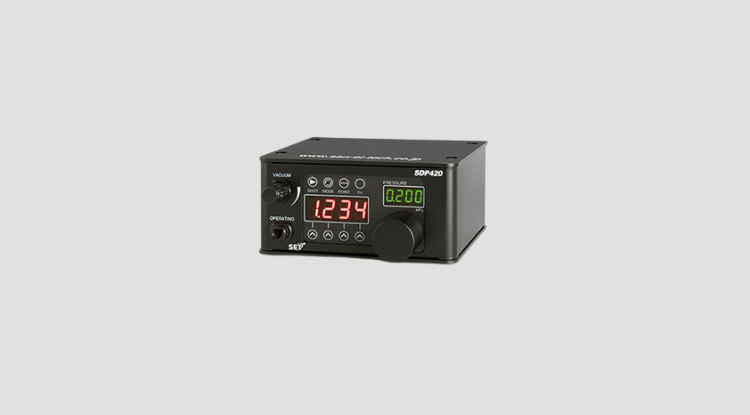

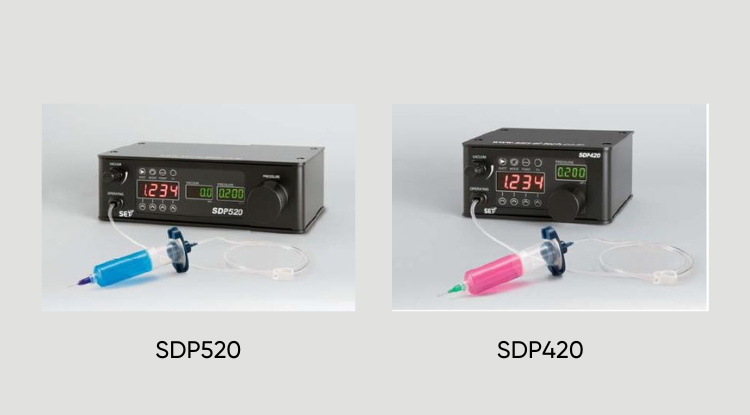

| SDP520 | SDP420 | |
| Way | Air pulse type | - |
| Dispensing mode | Time mode, steady mode, teaching |
|
| Power | VDC24 (VAC100-240 adapter) | |
| Power Consumption | 18W | |
| Air Input Requirement |
0.7MPa Maximun Note: Clean, dry filtered factory air or five micron filter regulator is required. |
|
| Pressure setting range | 0～0.60MPa | 0～0.50MPa |
| Vacuum pressure range | 0～-20kPa |
|
| Time setting range | 0.005～999.9sec | |
| Start input | Foot pedal, Band switch, signal for VDC5-24 (I/O) | |
| Input signal | vomit | |
| Output signal | Discharge signal | |
| Discharge start input | Foot pedal, band switch, DC5~24V signal (I/O) | |
| I/O | D-sub 9 pin connector | |
| Storage condition | 5℃-40℃（non-condensing) | |
| External dimensions ( ) including protruding portion |
W250×D139(187)×H76(78) | W160×D139(176)×H76(78) |
| Weight | 1.6 kg | 1.0 kg |
| Accessories | AC adapter, Foot pedal switch | |
| Features | ||
| Regulator type | Precise | |
| Vacuum function | Yes | |
| Display - dispense timing | Digital | |
| Display - air pressure | Digital | |
| Display - vacuum pressure | Digital | Analog |
| Teaching function | Yes | |
| Internal air pressure circuit | x | - |
