LUBEMATE - PRECISION PROCESSING OIL SPRAY COATING SYSTEM SAN-EI TECH

Micro-volume, low-pressure spray system for uniform, clean, and efficient application of machining oil from San-Ei Tech.

Model: LUBEMATE, LM87, LM87-WF, LM62

LUBEMATE - PRECISION PROCESSING OIL SPRAY COATING SYSTEM SAN-EI TECH

Uses micro-volume, low-pressure spray to apply a uniform and dense thin oil film.
No overspray, mist, or splashing, ideal for press and punching operations.
Equipped with ultra-compact spray valve LM87, suitable for most press machines.
Precise micro-coating control for high-speed and precision presses.
Adjustable during operation, supports continuous or intermittent coating.
Modular system — one controller manages up to four valves; scalable for material widths up to 165 mm (LM87-WF).
Easy setup, low maintenance, and reduced running cost.
Compatible with tanks, pumps, and centralized lubrication systems; supports two types of oil simultaneously.

download Request a quotation

Technical Information

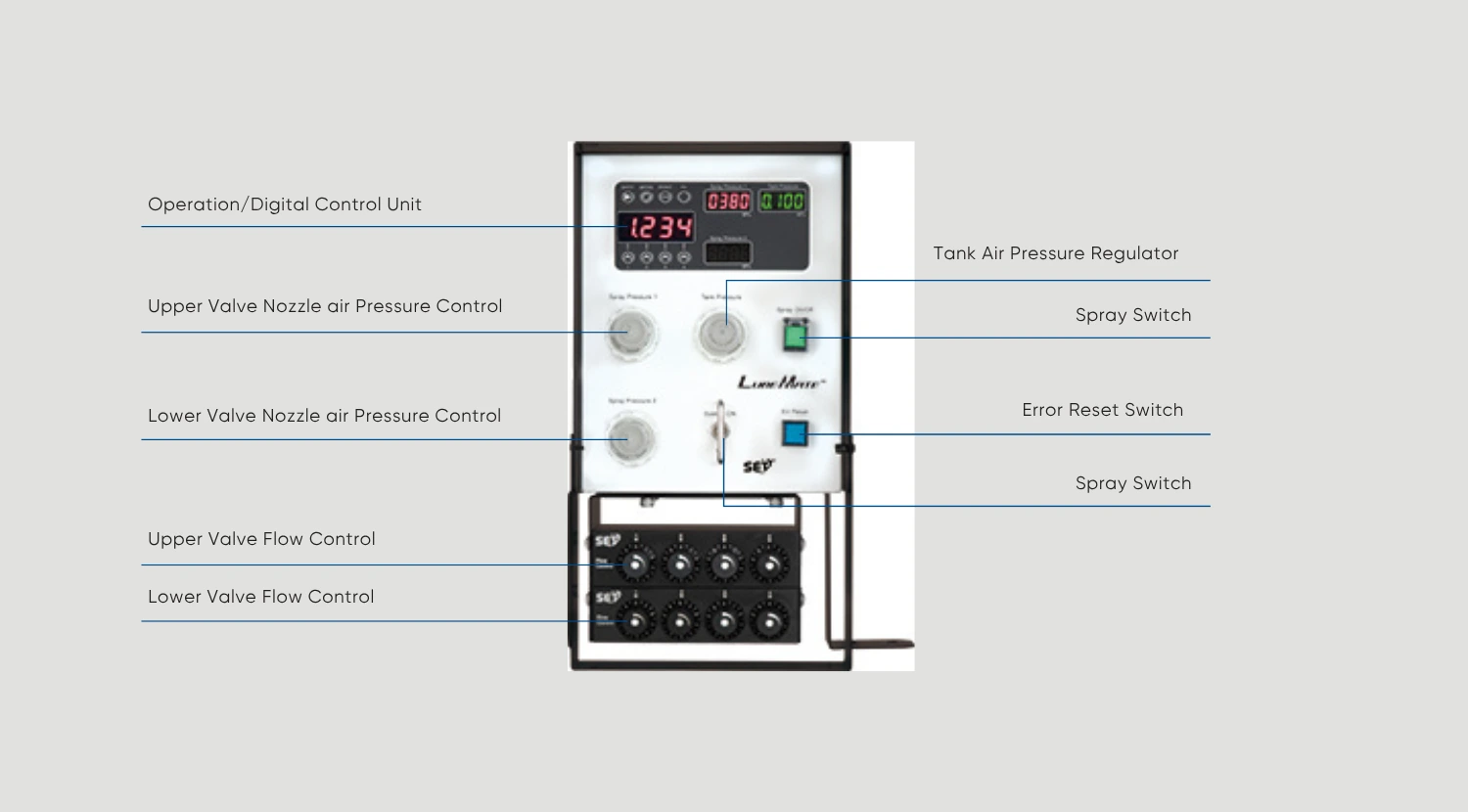

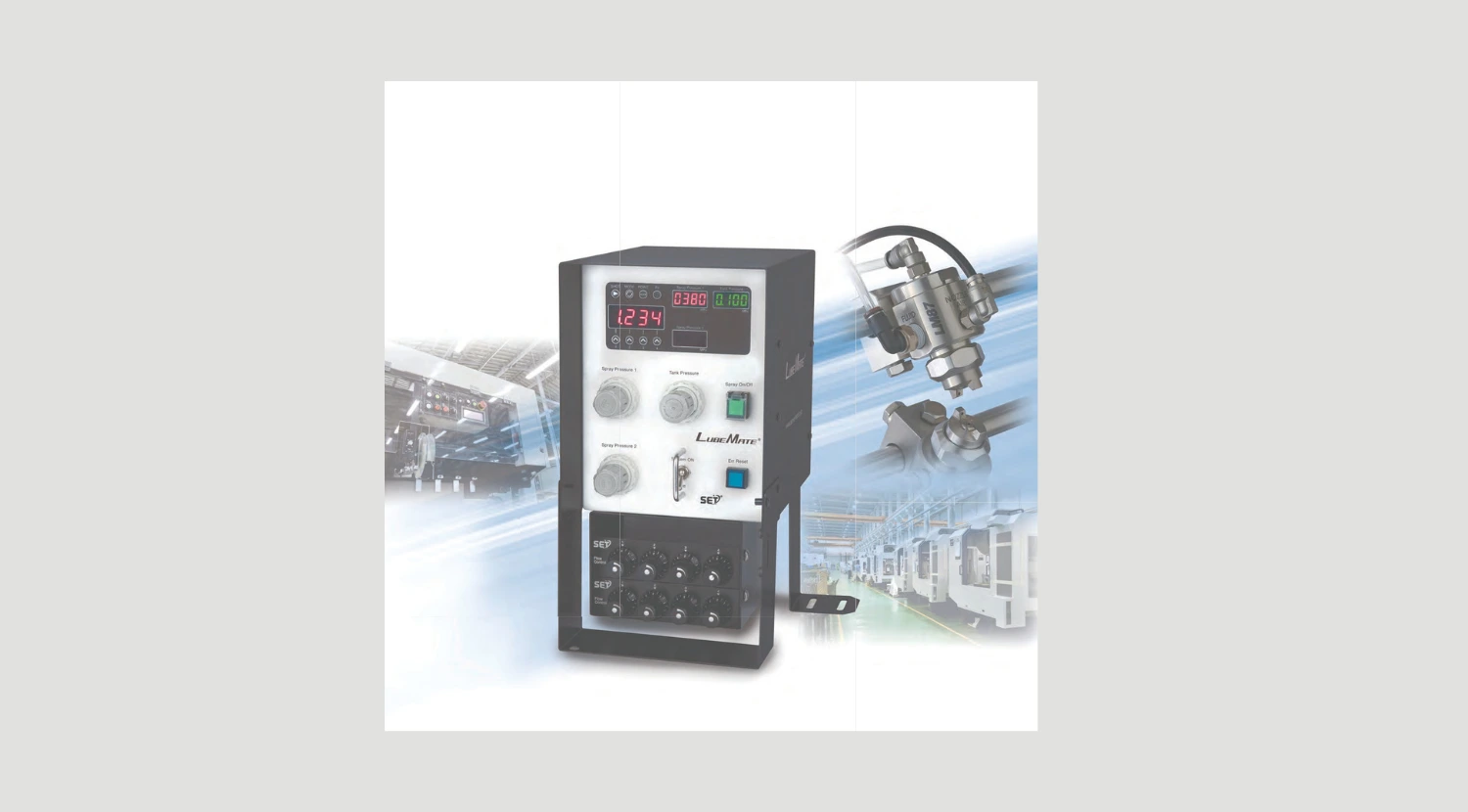

LUBEMATE System Controller LMC380D digitally controls the volume of coating fluids, especially high-density-film lubrication oils.

LUBEMATE System Controller LMC380 widely controls the volume of coating fluids from minute to large. The dispensed volume can be adjusted even while the system is running, which is especially advantageous for an intermittent dispensing process. One controller is capable of driving up to eight valves.

LUBEMATE System Controller LMC380 pressurizes a tank to control dispensing volume using Flow Control. When a metal stamping machine starts to run, the inner solenoid opens the valves, which allows nozzle air for creating fine films of droplets. The nozzle air pressure can also be controlled by the valves mounted above and below the feedstock independently.

Examples of compatible applications (precision press parts)

Recore
Can end pull tab
Battery parts
Heat exchanger: fin molding
Auto parts
Watch parts
Mobile device parts

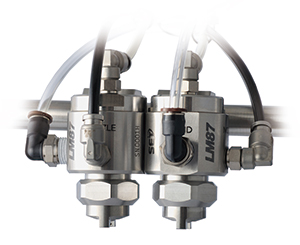

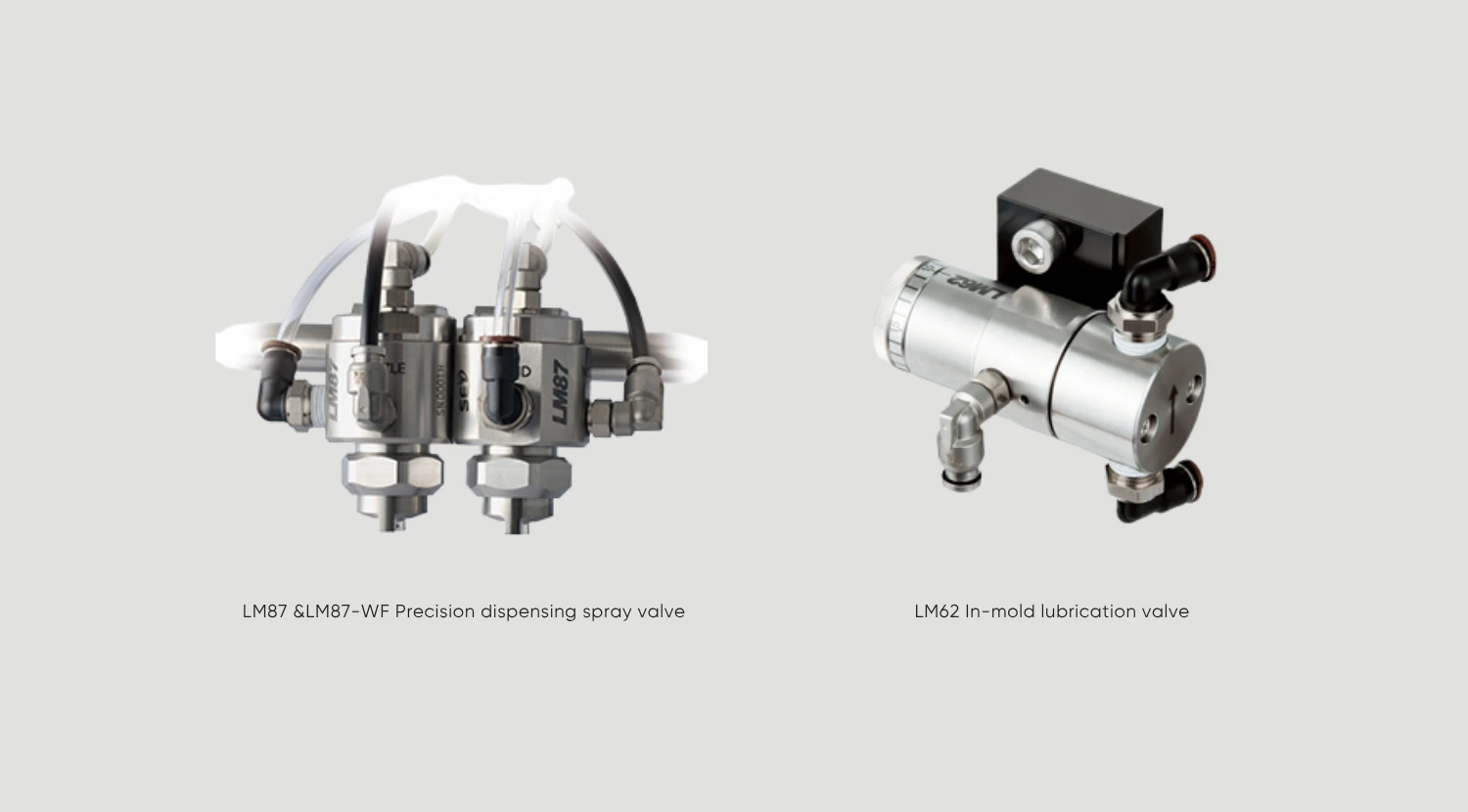

LM87 & LM87-WF Precision dispensing spray valve

Size	65.8mm(H) x 46.2mm(W)
Weight	263g
Fluid chamber	SUS303
Needle, nozzle	SUS303
Air cap	SUS303
Diaphragm	PTFE, FKM
Liquid supply port	1/8NPT female
Mounting holes	M6 tap hole

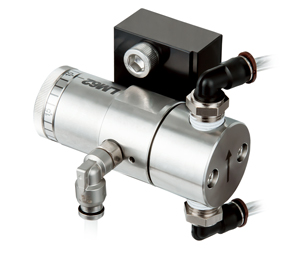

LM62 In-mold lubrication valve

Size	φ26.9mm (liquid chamber part) x 62.8mm length
Weight	265g
Fluid body	SUS303
Diaphragm	UHMW
Fluid inlet	1/8NPT female
Fluid outlet	1/8NPT female
Mounting hole	Valve mount +M6, 2 pieces (included)

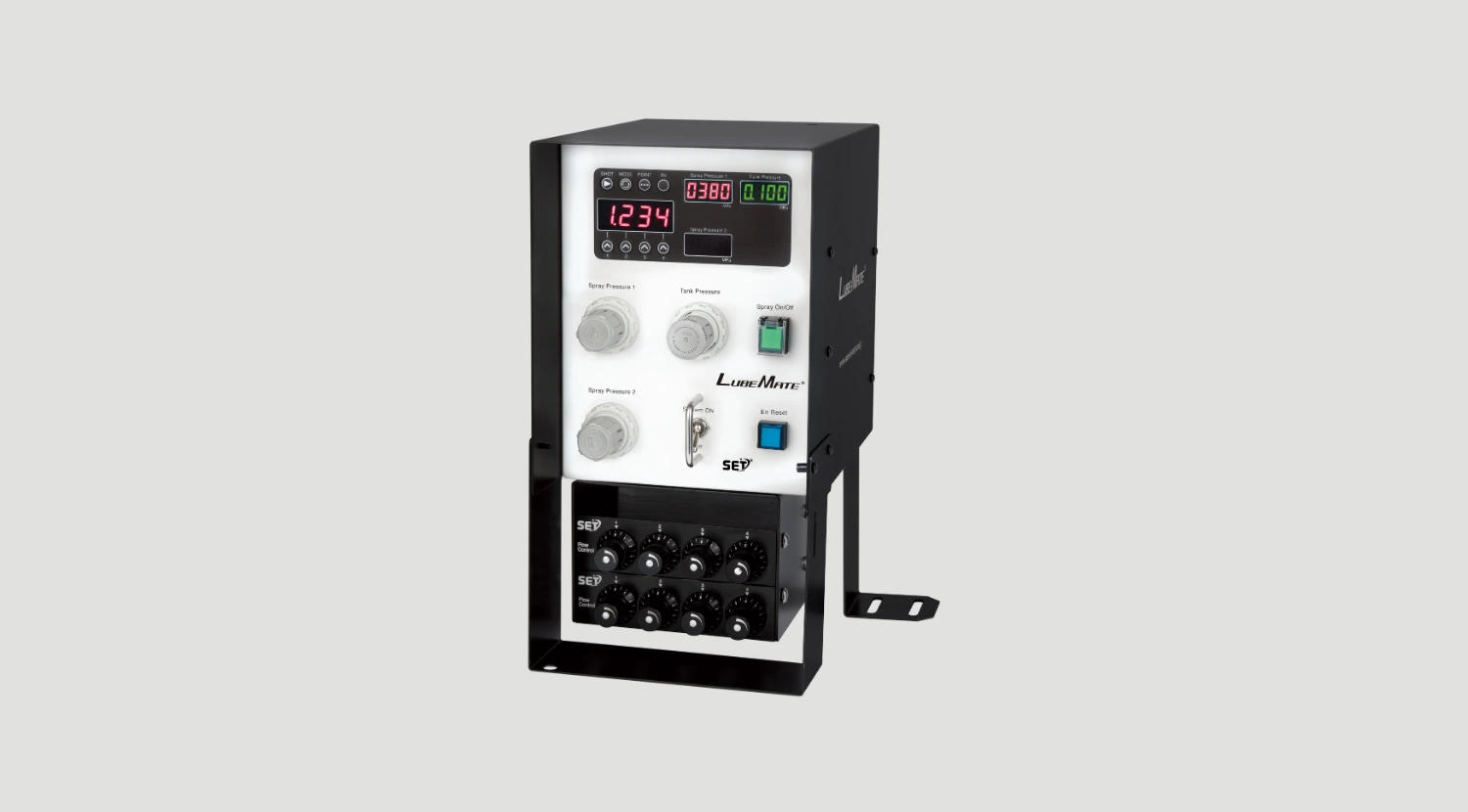

LMC380D Lubemate System Controller

Size	183(W) x 255(D) x 345(H)mm Excluding protrusions *Controller only
Weight	Approximately 6.5kg Controller only
Supply air pressure	0.4～0.6MPa
Tank pressure	0.12～0.5MPa
Atomization pressure adjustment range	0～0.5MPa
