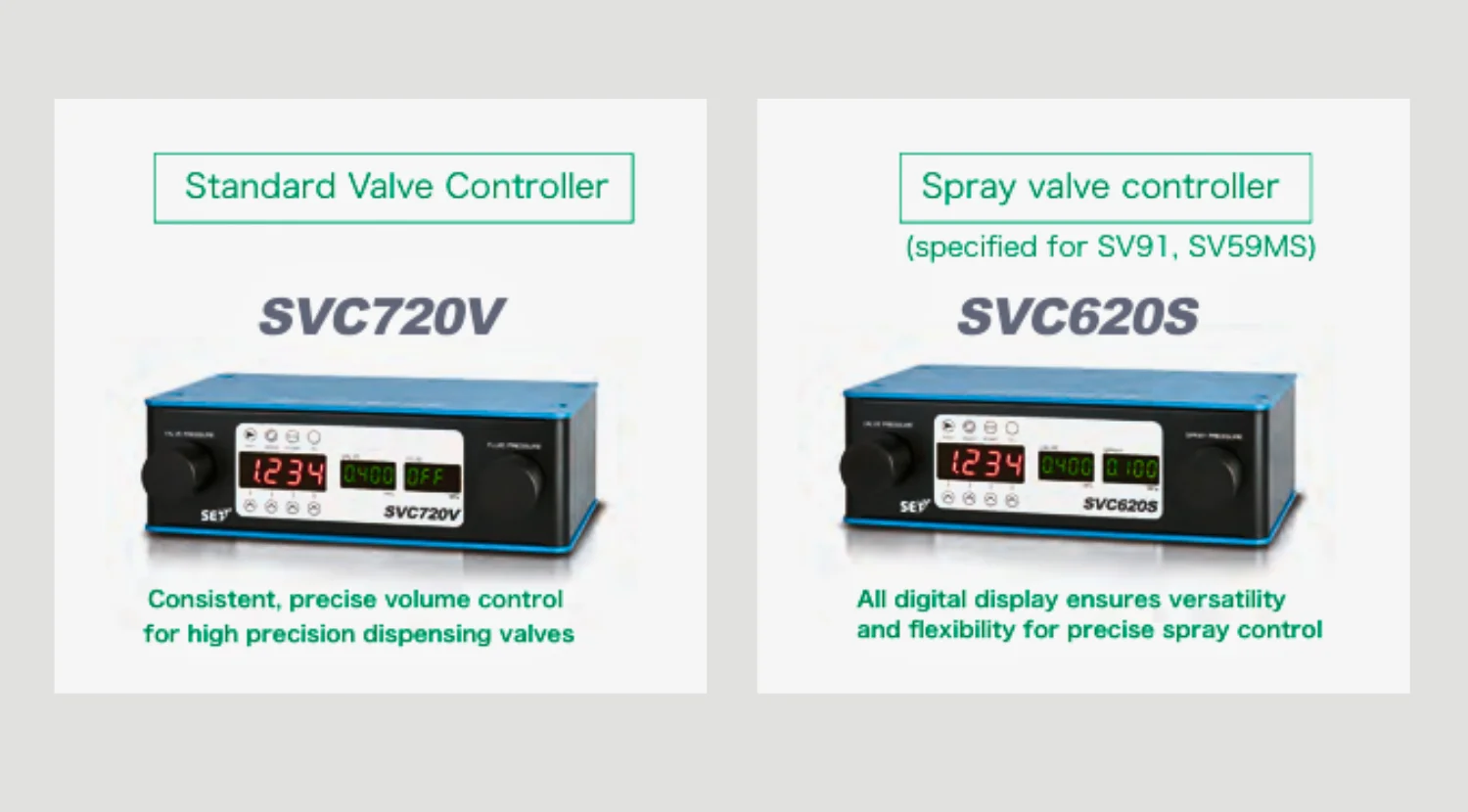

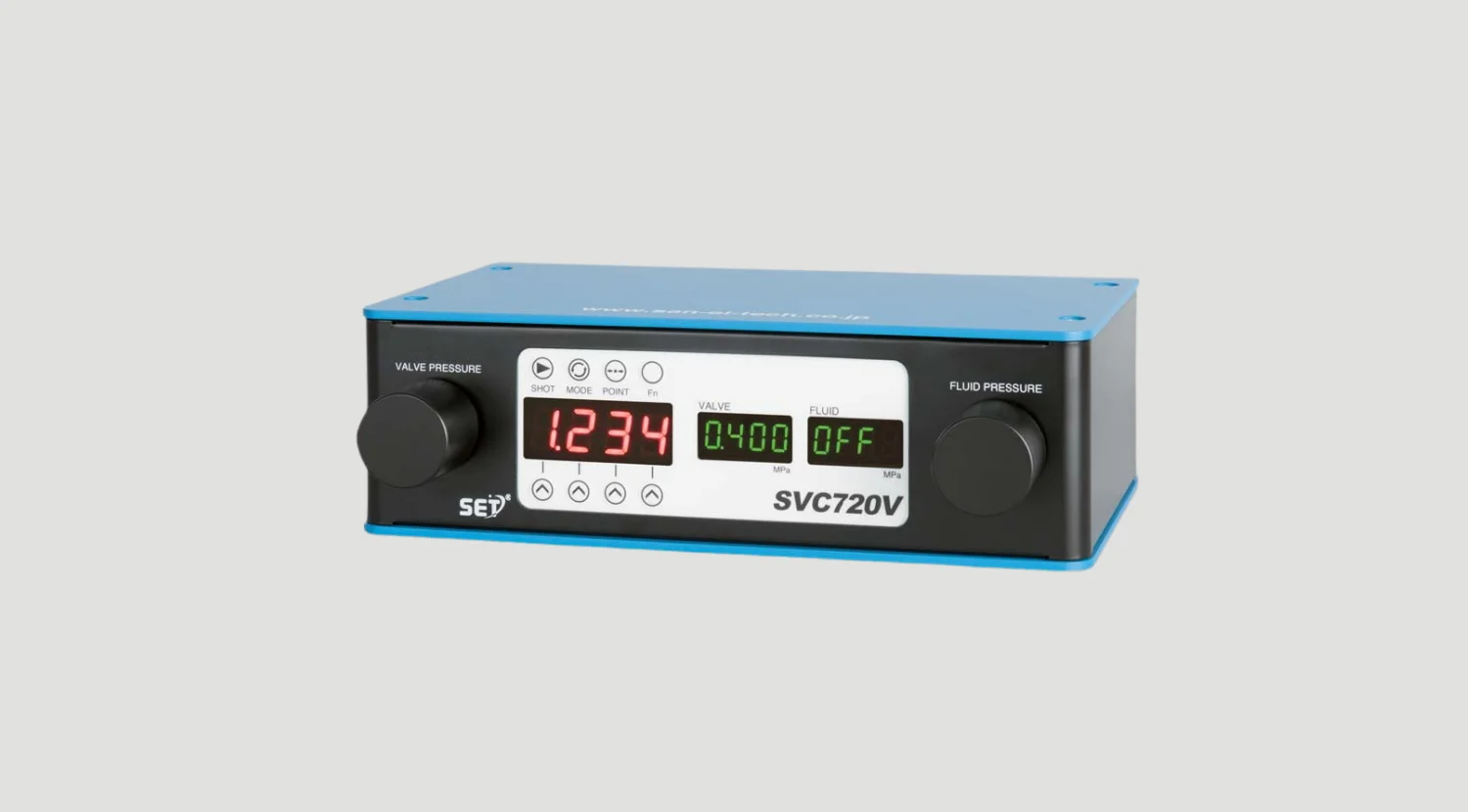

SVC720V - Standard valve controller

High-precision valve controller for accurate and stable liquid dispensing.

Product Description:

• Dedicated controller for dispense valves with programmable discharge contro

• Built-in precision regulator for syringe and tank pressurization, ensuring stable flow.

• Digital settings enable detailed and repeatable adjustments

• Improved discharge response speed by 1% compared with previous models.

• 10% power consumption reduction for energy efficiency.

• Provides more accurate and stable continuous dispensing.

SVC620S - Spray valve controller

Digital spray valve controller for precise atomization and clean spray application.

Product Description:

• All-digital display for easy operation and monitoring of pressure and settings

• Controls nozzle air pressure and valve opening time for accurate spray volume.

• Supplies micro-pressure air (up to 0.5MPa) for uniform atomization without scattering.

• Improved response speed by 10% over previous models.

• Equipped with precision regulator for stable output.

• Delay function before and after atomization for clean spray start/stop.

• 10% power saving design.

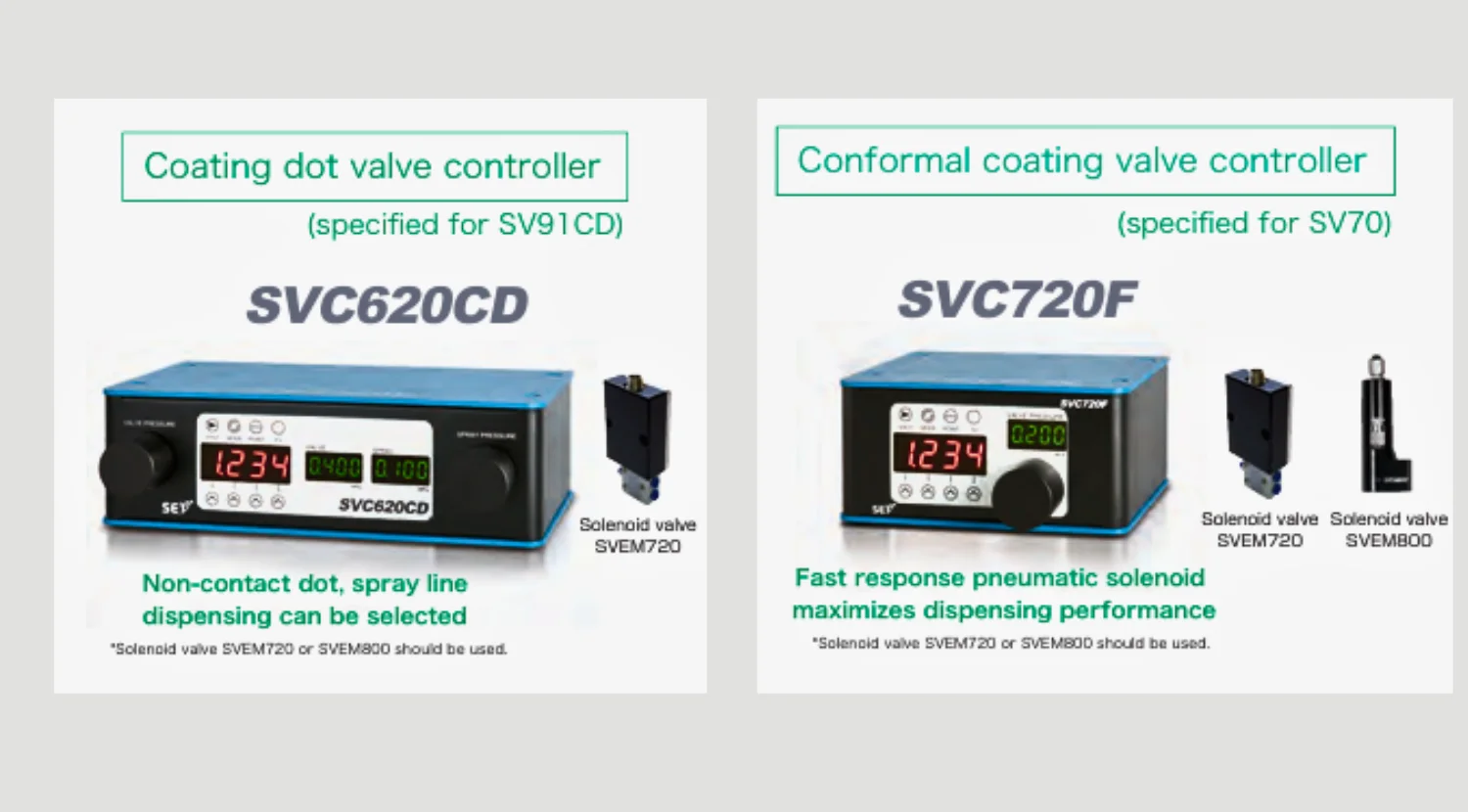

SVC620CD - Coating dot valve controller (specified for SV91CD)

All-digital controller for coating dot valve SV91CD, supporting multiple coating modes.

Product Description:

• Dedicated for SV91CD valve, supports dot, line, and spray coating through I/O switching.

• Flat, compact design for easy equipment integration.

• Back switch (I/O control) enables atomizing air adjustment.

• Atomizing air tiller function ensures excellent liquid drainage and clean finish.

SVC720F - Conformal coating valve controller (specified for SV70)

High-speed controller for conformal coating valves, ensuring stable moisture-proof coating.

Product Description:

• Dedicated for conformal coating valves such as SV7 series.

• Controls solenoid valve near the coating head for fast response and precise dispensing.

• Flat design allows easy equipment mounting.

• Achieves high-speed, high-quality coating performance with stable control.

SPECIFICATIONS
