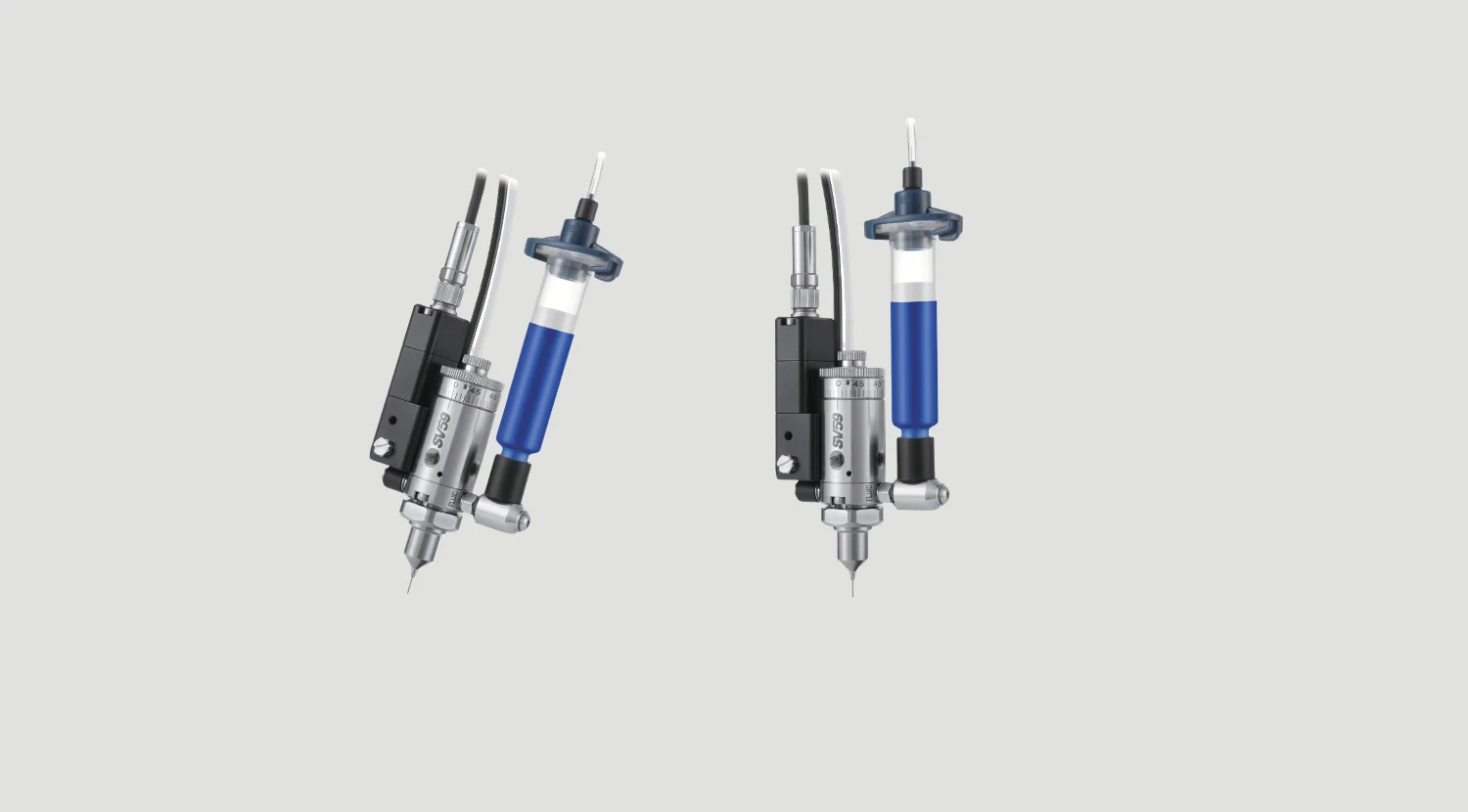

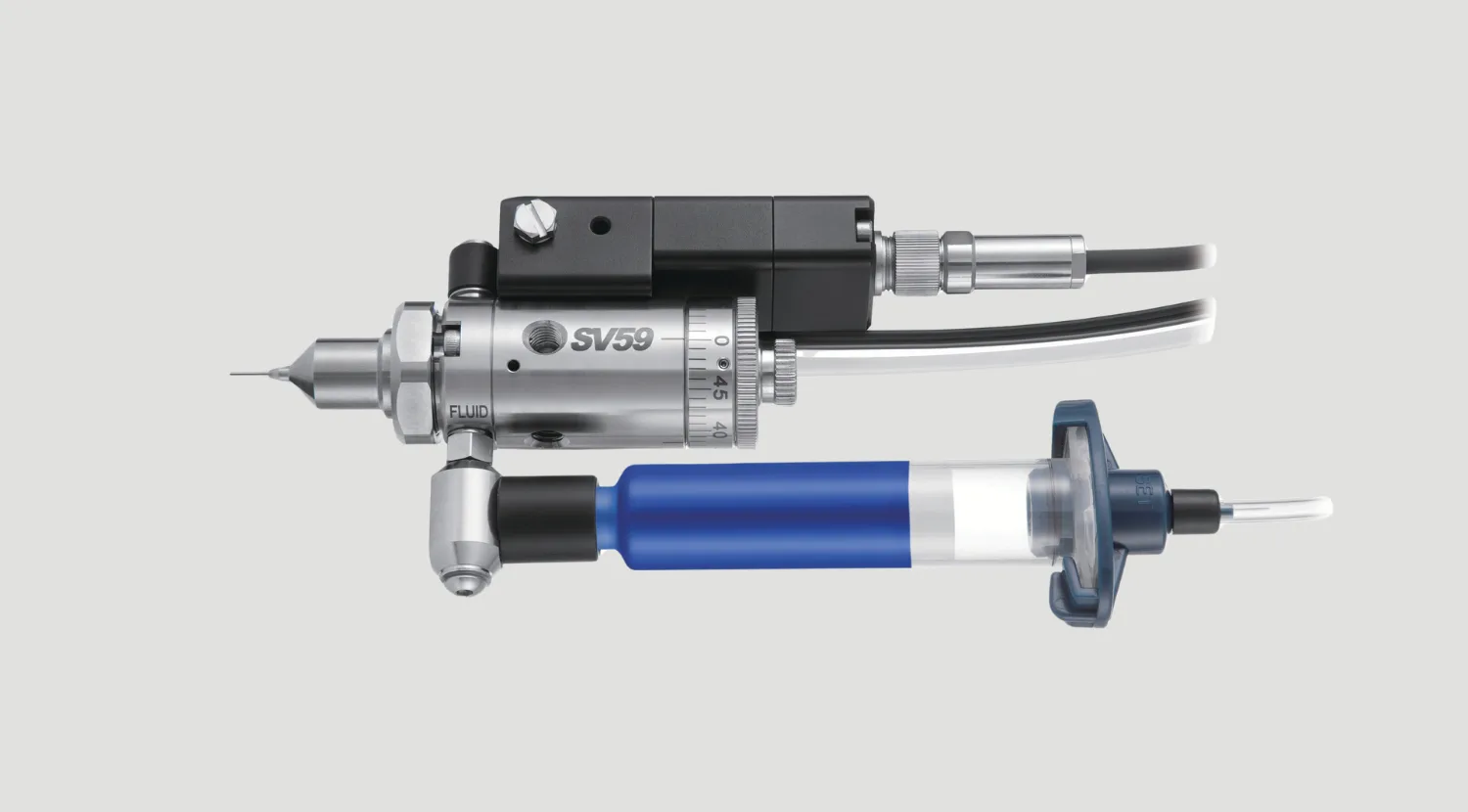

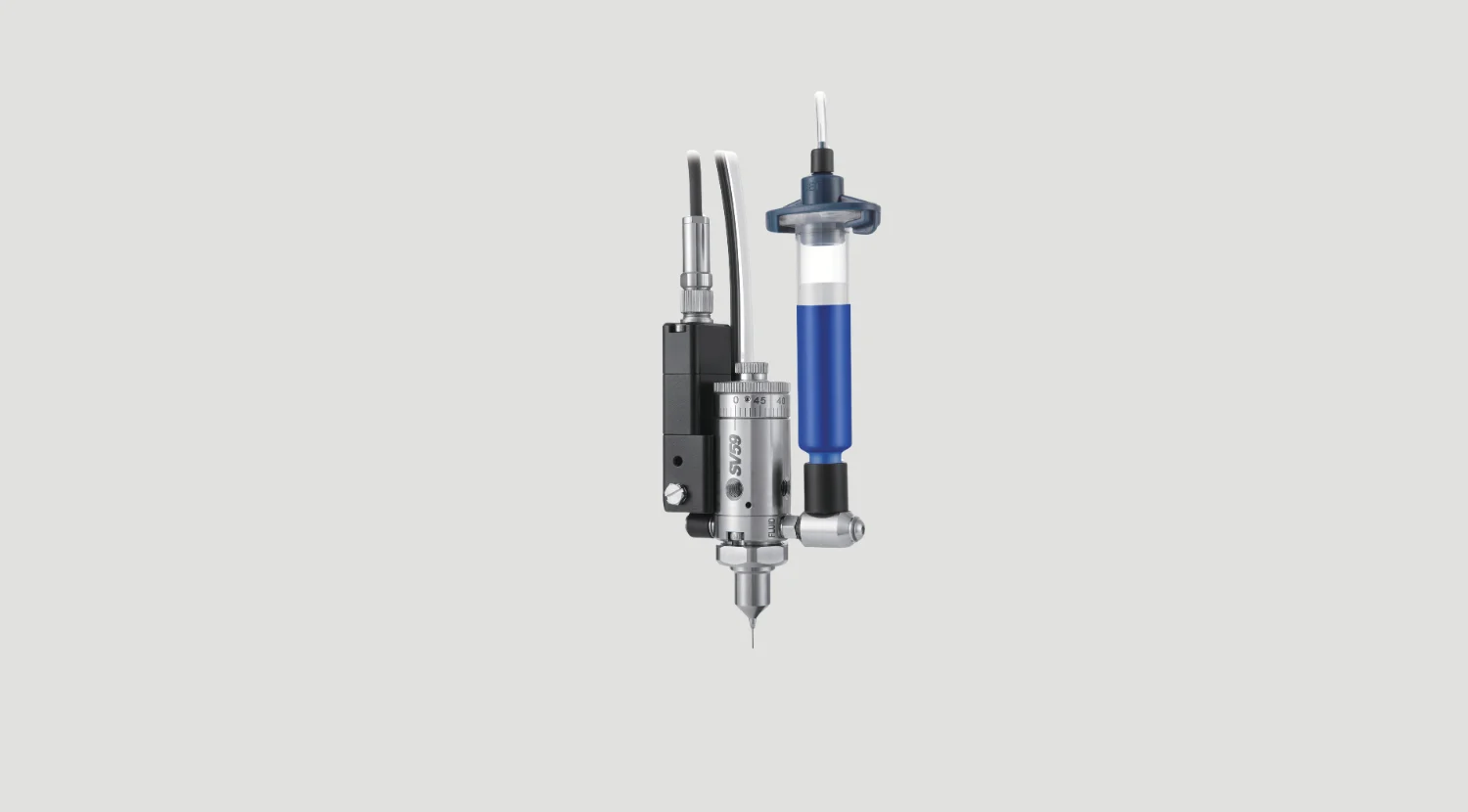

Ultra-fine spray valve for non-contact thin-film coating with minimal scattering from San-Ei Tech.
Model: SV59MS
| Model | SV59MS |
| Size | H91mm x φ27mm |
| Weight | 280g (with solenoid valve: 362g) |
| Air cylinder | SUS303 |
| Needle | SUS303 |
| Needle packing | PTFE, FKM |
| Fluid chamber | SUS303, PTFE |
| Syringe fitting | SUS303, FKM, PP |
| Fluid inlet thread | M5 |
| Valve operating air inlet thread | M6 |
| Valve operating air pressure | 0.4~0.62Mpa |
| Maximum fluid pressure | 0.7Mpa |
| Dispensing tip | GP Needle tip 23G (ID:φ0.33mm)~33G (ID:φ0.11mm) |
