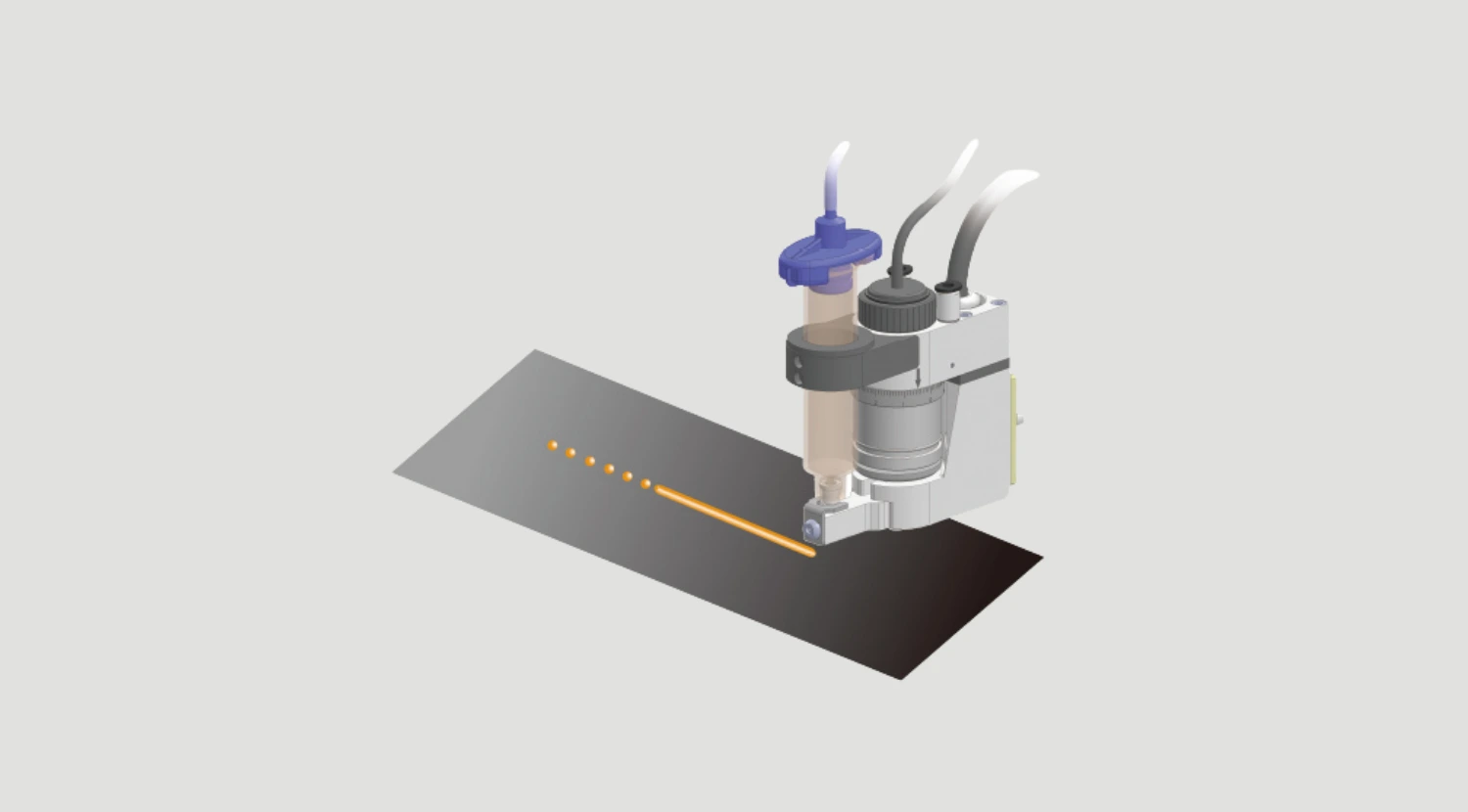

High-speed jet with a minimum ejection time of 0.7 mm/sec enables micro ejection with a dot size of 200μ or less.

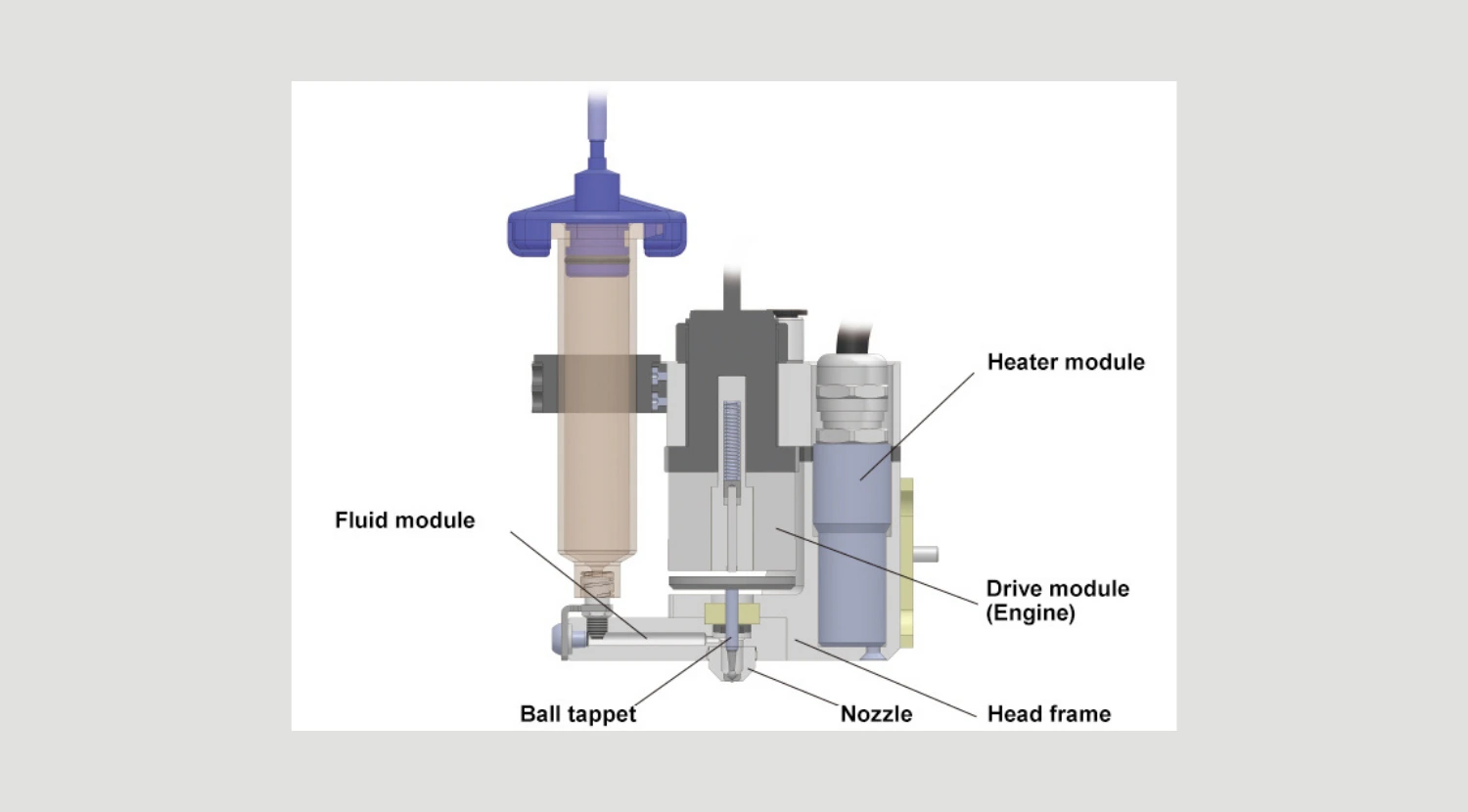

Modularization of major jet functions. Maintenance can be done within minutes with a minimum number of parts.
The tip shape of the tappet can be selected from tapered type, conical type, ball type, etc., and supports a variety of viscosity ranges from low to high viscosity.
| Liquid agent | Applications |
| Epoxy/UV adhesive | Electronic components, semiconductors, FPD |
| Pitch resin | Battery cap sticker |
| Flux | Boards, electronic parts |
| Ink | Bad marking of parts |
| Moisture-proof insulation | Boards, electronic parts |
| Lubricant | Gears/sliding parts |
| Electrolyte | Condensers |

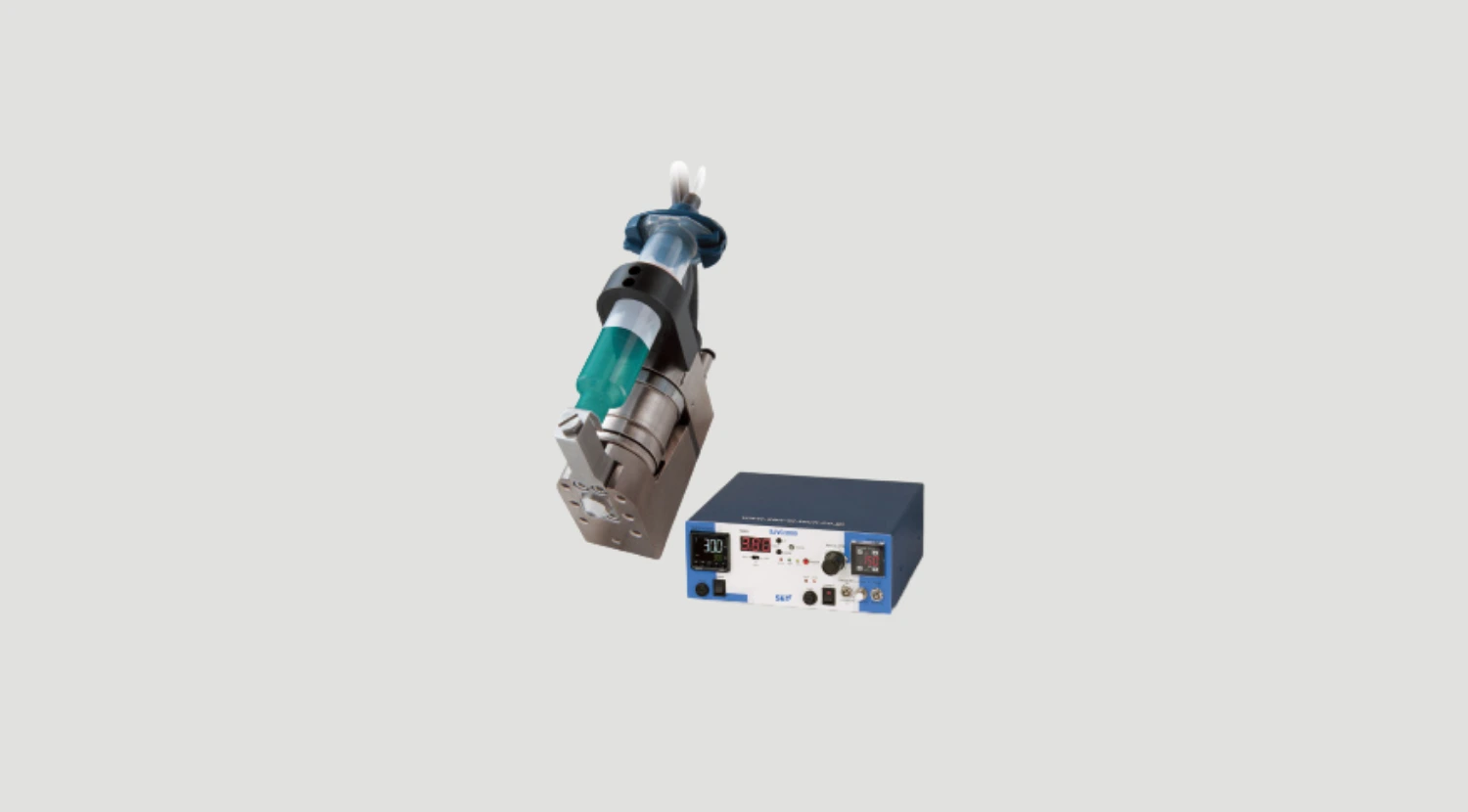

| Dispense valve | Dispense controller | |
|---|---|---|
| Dimensions mm (W x D x H) | 31 x 92.5 x 92 (excluding nozzle part) | 250 x 220 x 107 |
| Weight | 364g | 5700g |
| Power supply | AC100V to AC240V 3A (50/60Hz) | |
| Current consumption | 3A/AC100V | |
| Supply air pressure | Maximum 0.6Mpa | |
| Dispensing cycle | Maximum 100Hz (300Hz for optional engine) | |
| Nozzle heater | up to 70℃ | |
| Installation environment | 5°C to 40°C (no condensation) | |

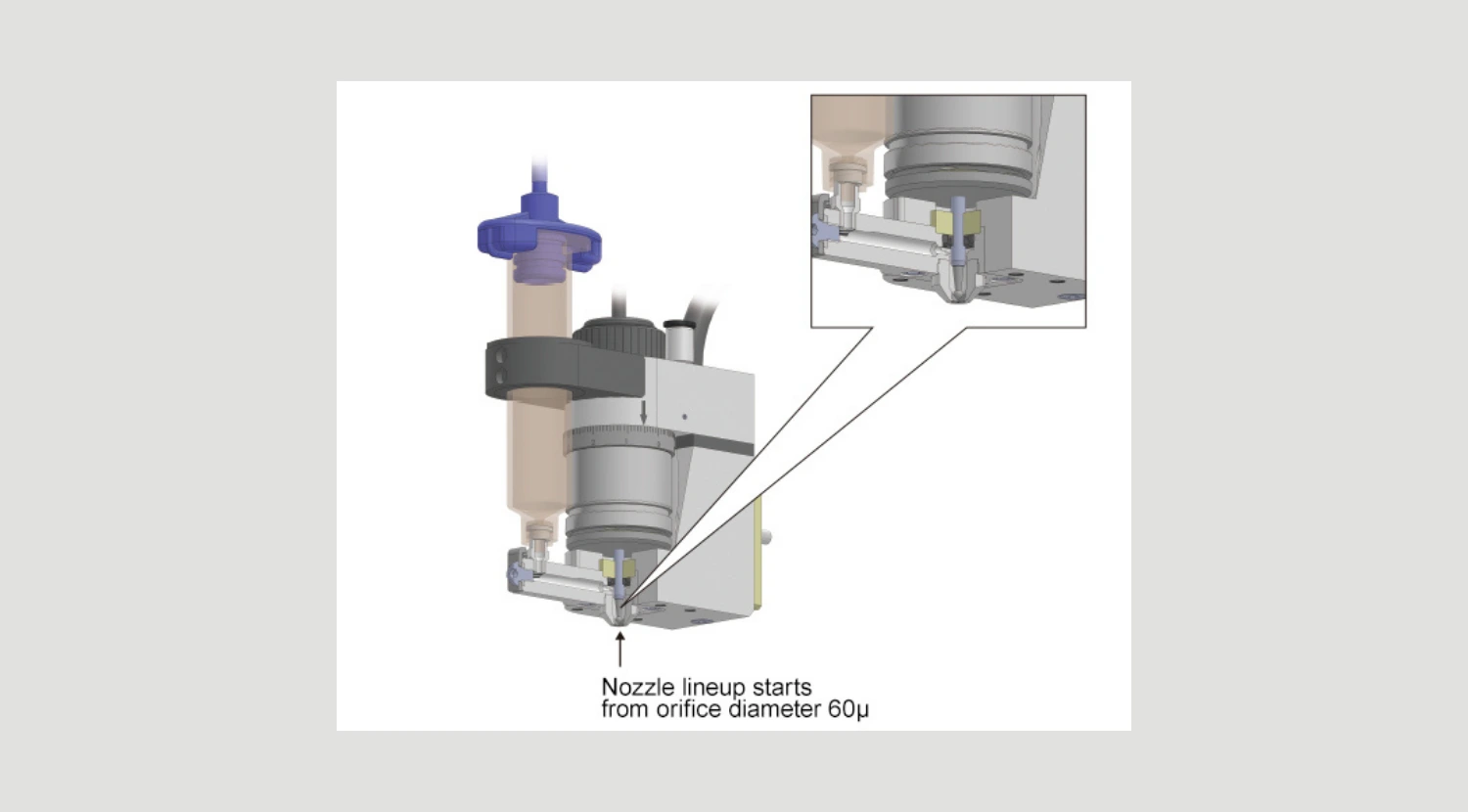

| Discharge nozzle diameter (dedicated) | Minimum 60μ (carbide nozzle) | |
| Liquid syringe | 5,10,30,55 cc | |
| I / O | Dsub15 pin connector (Dsub25 pin connector/external time control) | |
