NOVADOT - ELECTROMAGNETIC NON-CONTACT DISPENSER SAN-EI TECH

High-speed, high-precision electromagnetic jet dispenser for stable micro-amount dispensing without contact from San-Ei Tech.

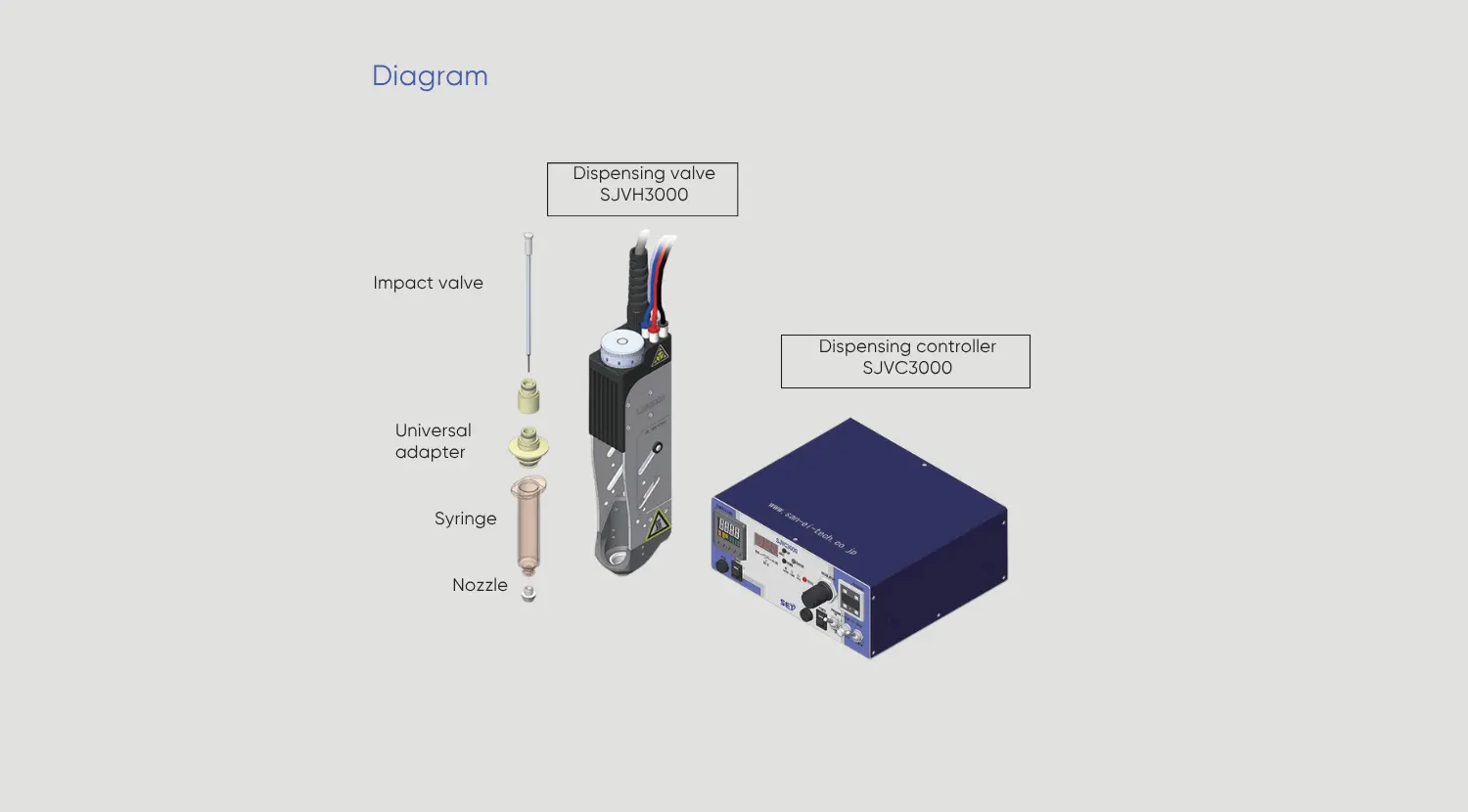

Model: SJVH3000, SJVC3000

Electromagnetic actuation enables ultra-fast, non-contact dispensing with high accuracy.

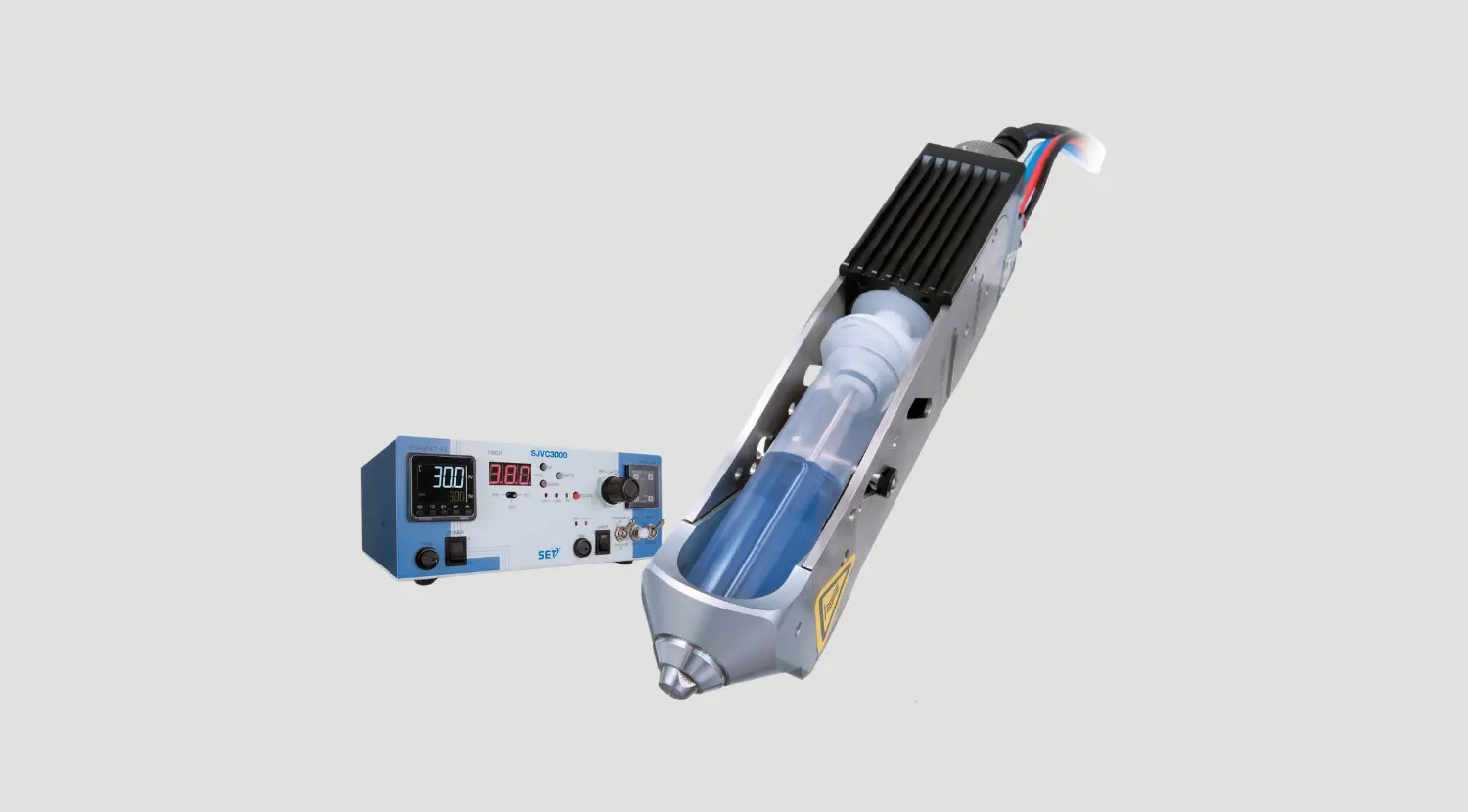

Combines a high-output controller and rigid dispensing head for enhanced precision and speed.
Stable micro-volume dispensing with ultra-high-speed takt time.

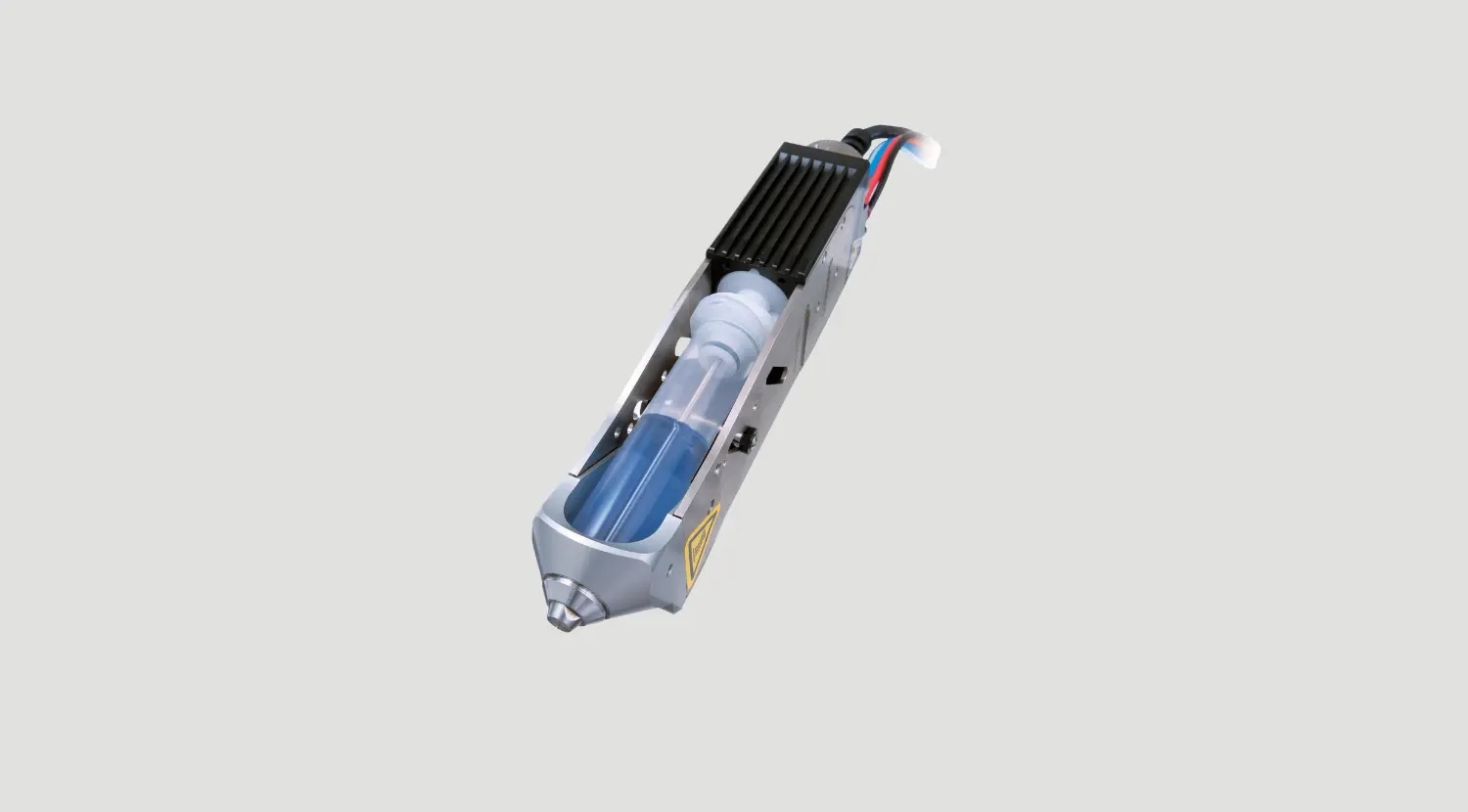

Built-in air cooling system maintains temperature stability during continuous operation.
Integrated nozzle heater improves temperature control efficiency.
Easy setup and high repeatability, even after syringe replacement.
External control socket available for flexible integration.
Ideal for applications requiring precise, high-speed dot or line dispensing.

Model		Dispense valve SJVH3000	Dispense controller SJVC3000
Size	W	40.0 mm	250.0 mm
	D	244.0 mm	107.0 mm
	H	61.0 mm	220.0 mm
Weight		720g	5700g
Power supply		100VAC, 50/60Hz
Current consumption		3A/AC100V
Supply air pressure		Maximum 0.6Mpa
Viscosity range		1-50Pa・s (50kcps)
Dispensing cycle		Maximum 100Hz (300Hz for optional engine)
Nozzle heater		Can be heated up to 100℃
Installation environment		5°C to 40°C (no condensation)
Discharge nozzle diameter (dedicated)		0.11mm ~0.91mm
Liquid syringe		5, 10, 30cc (55cc option)
I/O		Dsub15 pin connector (Dsub25 pin connector/external time control)
