NOVADOT-HM - HOT MELT JET DISPENSER SAN-EI TECH

High-speed electromagnetic non-contact dispenser for hot melt materials with precise temperature control up to 200 ℃, from San-Ei Tech.

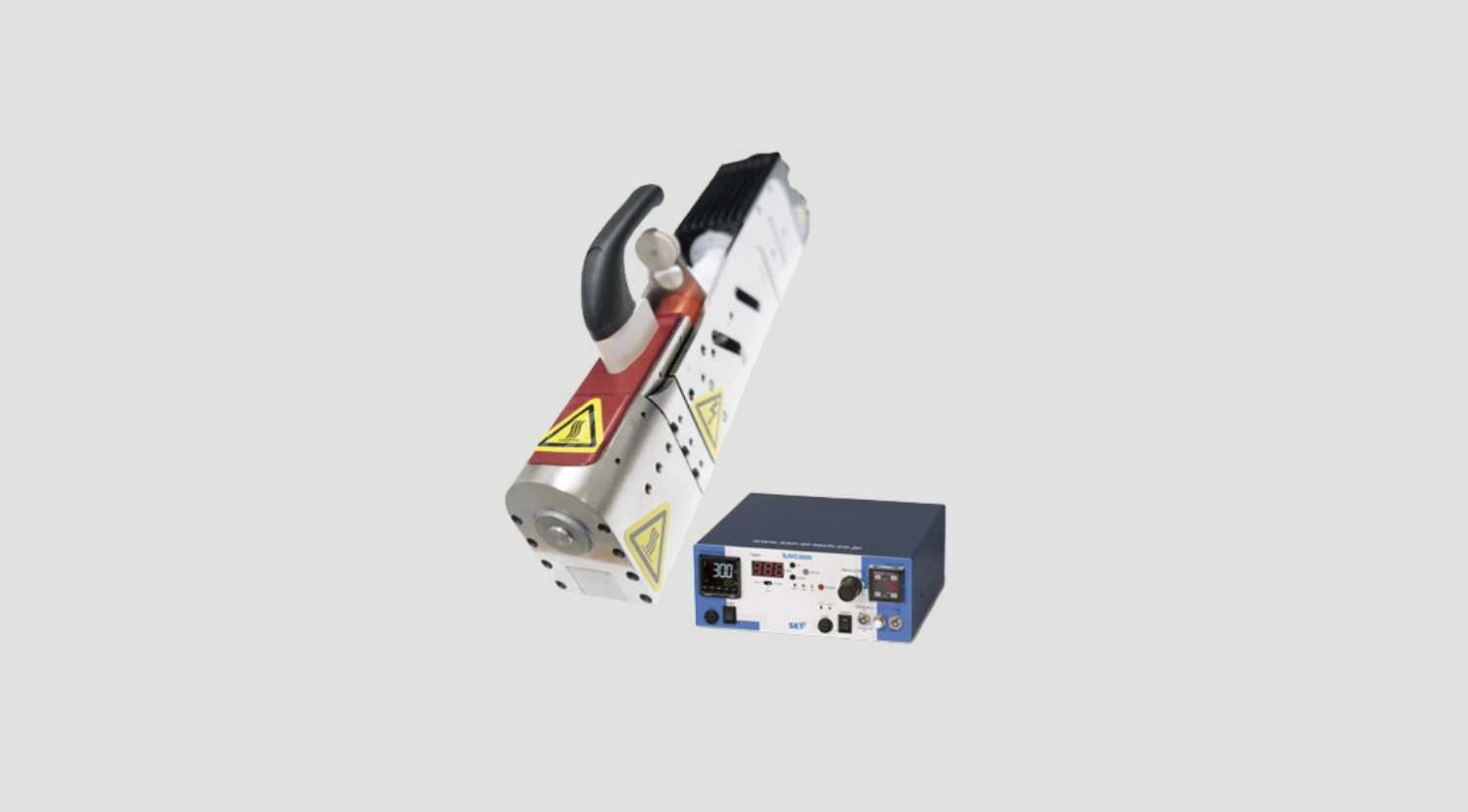

Model: SJVH3000-HM

Non-contact jetting for dot and line applications of hot melt materials.
Electromagnetic drive system ensures fast response and precise dispensing.
Temperature control up to 200 ℃, compatible with various hot melt adhesives.
Seal-less structure for easy cleaning and reduced maintenance.
Dedicated controller SJVC3000-F provides:
- Enhanced engine response with a new output board.
- Higher accuracy in temperature settings via upgraded controller.
- External PLC control for flexible dispensing timing.
- Integrated high-precision regulator for stable operation.

Model		SJVH3000-HM
Size	W	53 mm
	H	278.5 mm
	H	102.5 mm
Weight		1,400g
Drive system		Electromagnetic direct valve drive
Engine cooling method		Air cooling (air consumption 30L/min)
Temperature control range		80~200℃ *When head is air cooled
Heater module	Japanese domestic specifications	100V, 250W
	Overseas specifications	240V, 250W
Syringe size that can be installed		Heat resistant type 30cc
Attachable nozzle		PJ needle, short needle, super short nozzle
Syringe air pressure range		0 to 0.6Mpa (However, it may depend on the syringe heat resistance temperature)
