Peltier-type syringe temperature control system san-ei tech

PELTIER-TYPE SYRINGE TEMPERATURE CONTROL SYSTEM SAN-EI TECH

High-precision syringe temperature controller that maintains constant liquid viscosity for stable dispensing from San-Ei Tech.

Power supply	SPC100 / SPB-10 SPB-30
Temperature setting range	20 to 60℃ (at ambient temperature of 20 to 25℃)
Temperature accuracy	±0.1℃*
Heat dissipation method	Heat sink + fan type
Compatible syringe	Our 10cc/30cc syringe
Compatible nozzle	Our standard needle nozzle 20~32G (needle length: 6.4mm~) *Please contact us separately when using precision nozzles/metal nozzles.
Power supply	AC100V~AC240V *When using overseas, a separate power cable is required.
Power	10cc: approx. 30W 30cc: approx. 35W
Accessories	Power cable (2m) *For domestic AC100V Relay cable (2m)
Sold separately	Syringe adapter Syringe Piston Nozzle Stand

Model number/name	Weight	External dimensions (include protrusions)

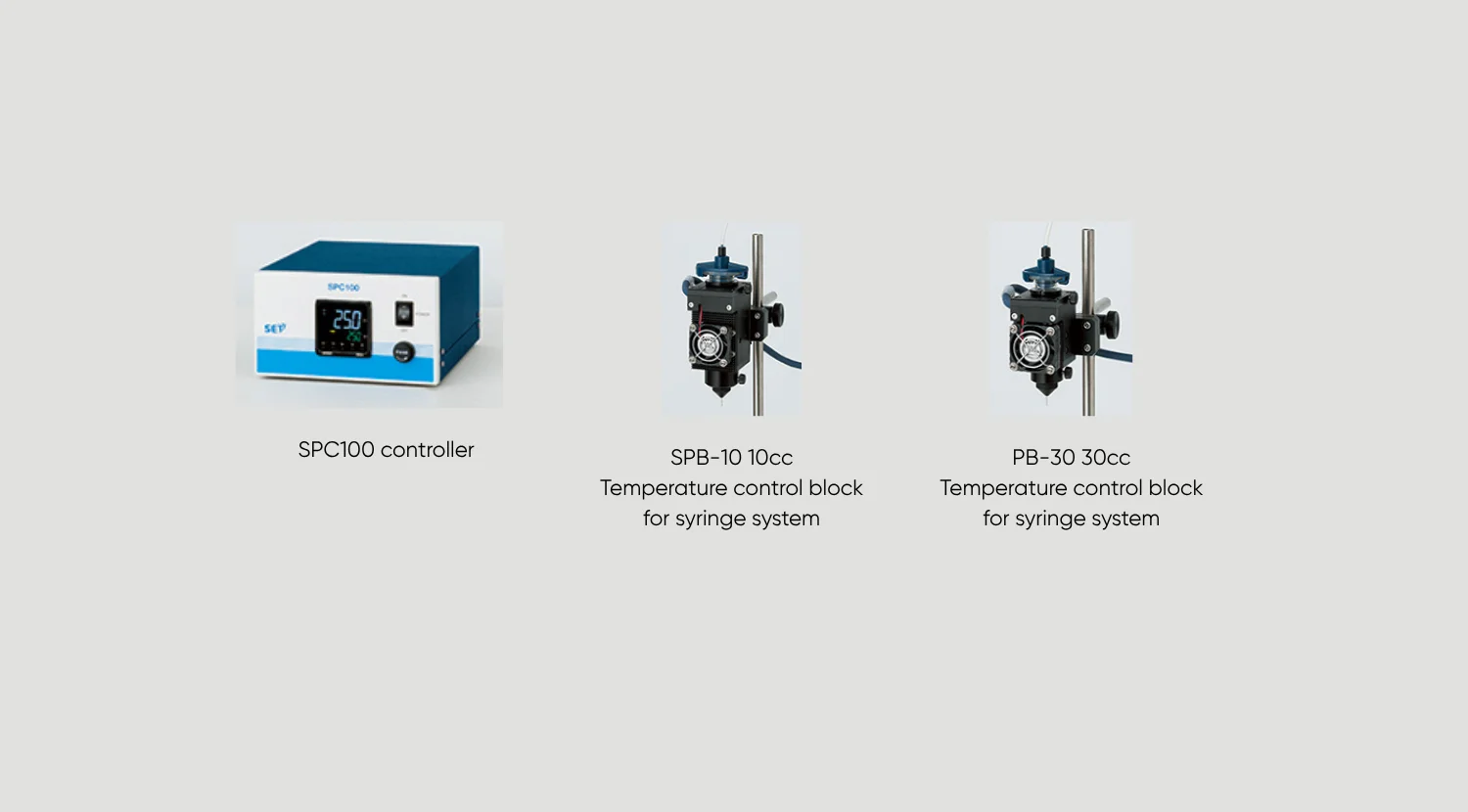

SPC100 controller	2.4kg	W160 (163.3) x D24 (263.5)2 x H90 (94.4) mm
SPB-10 10cc Temperature control block for syringe system	310g	W40 (79) x D68 x H93 mm
PB-30 30cc Temperature control block for syringe system	420g	W46(82) x D76 x H121 mm
