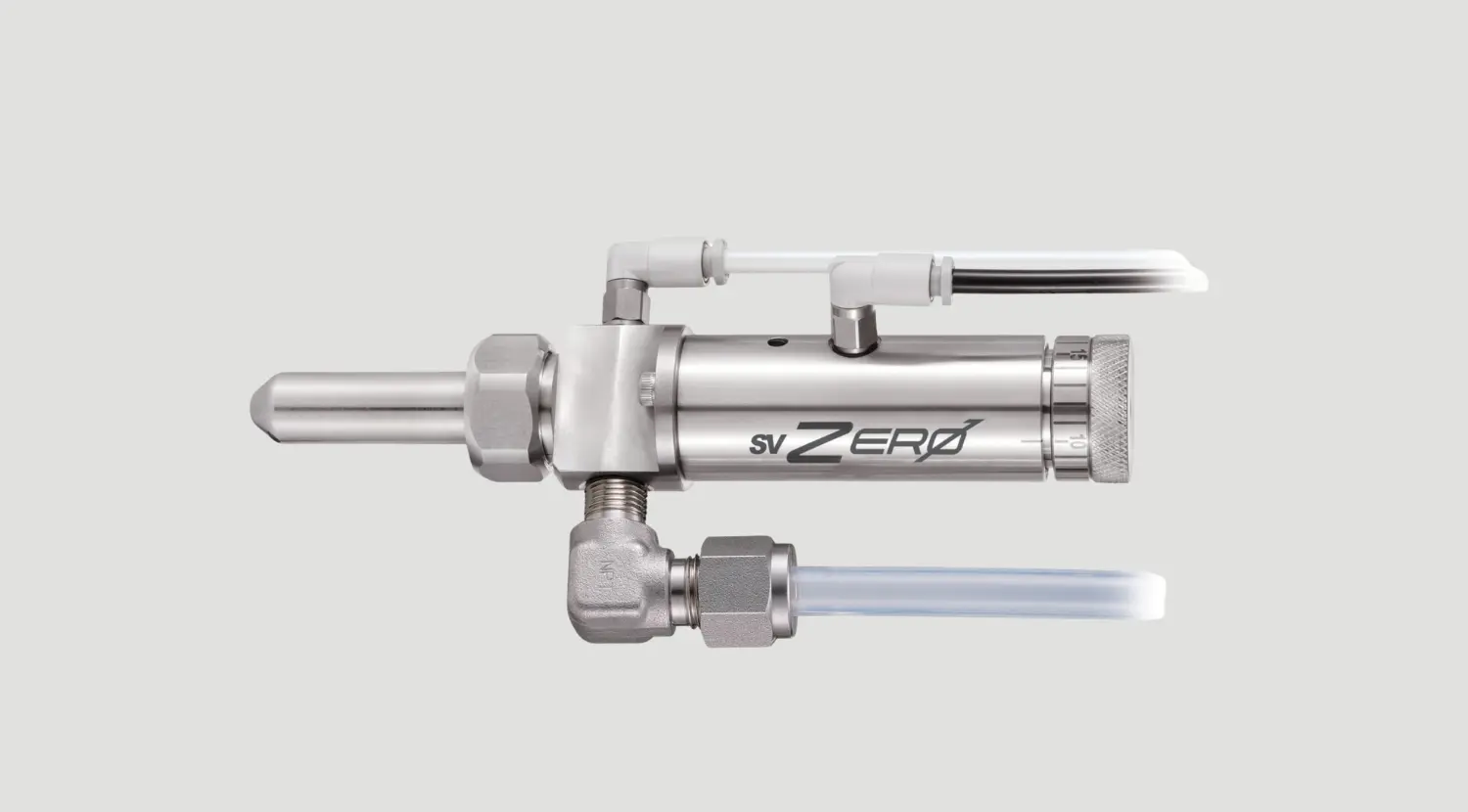

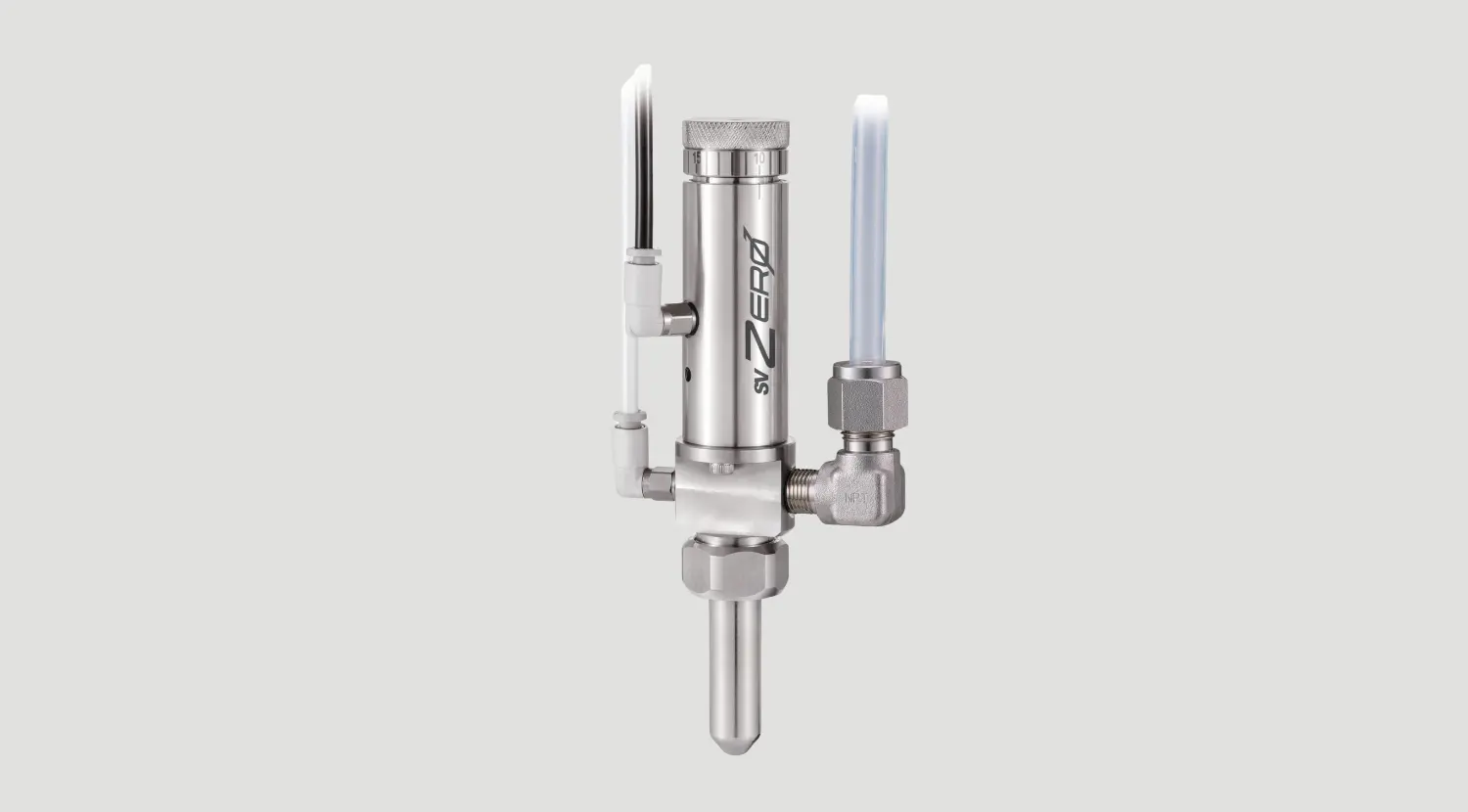

SV01CS – Precision Spray Valve for High-Viscosity Coating Materials from San-ei Tech

Model: SV01CS

SUBSTRATE COATING VALVE SV01CS SAN-EI TECH

The SV01CS spray valve delivers precise, non-contact coating performance for materials with viscosity up to 10,000 mPa·s. It is ideal for VOC-free materials such as UV coatings, silicones, and epoxies.

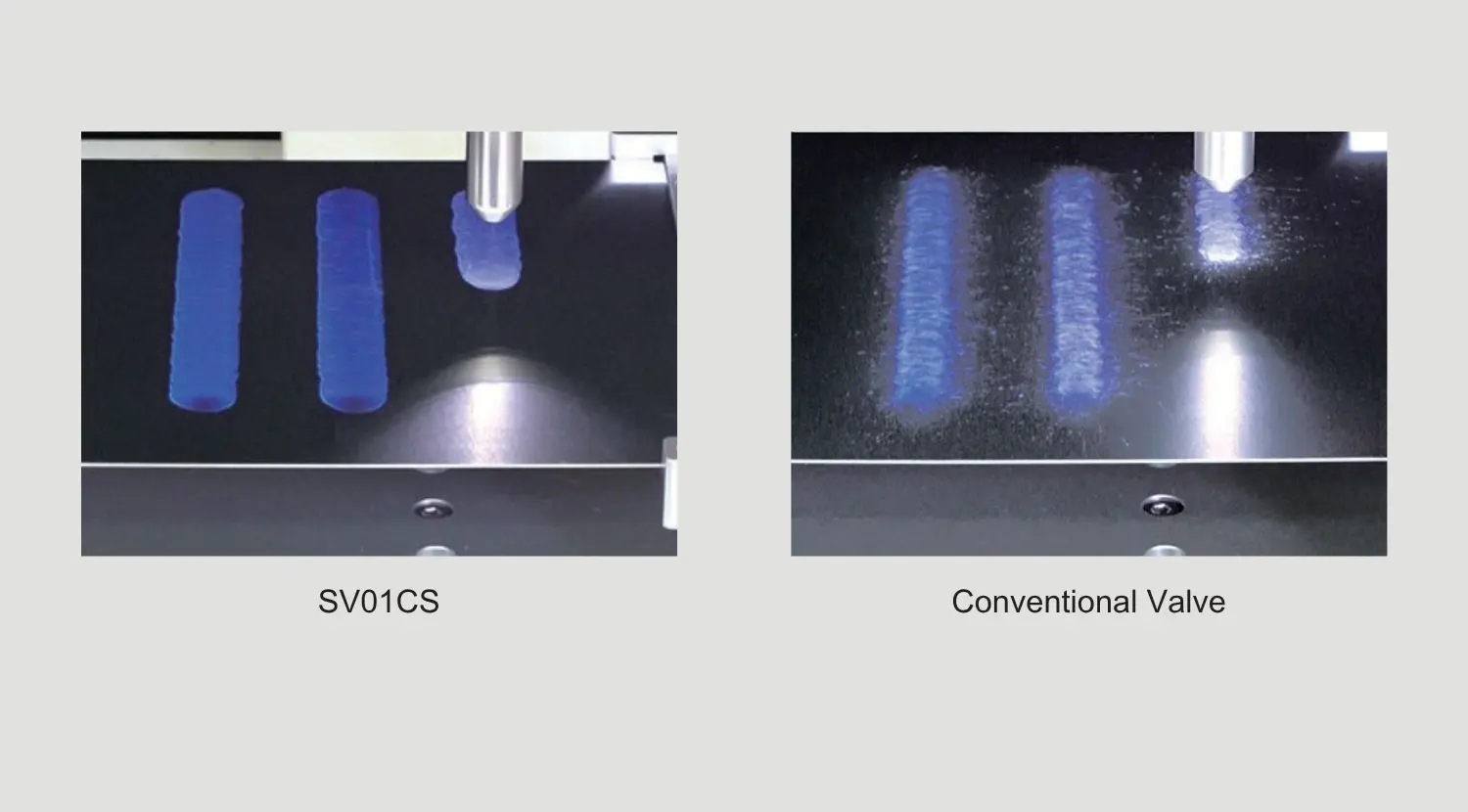

Ensures stable and controlled spraying without splattering.

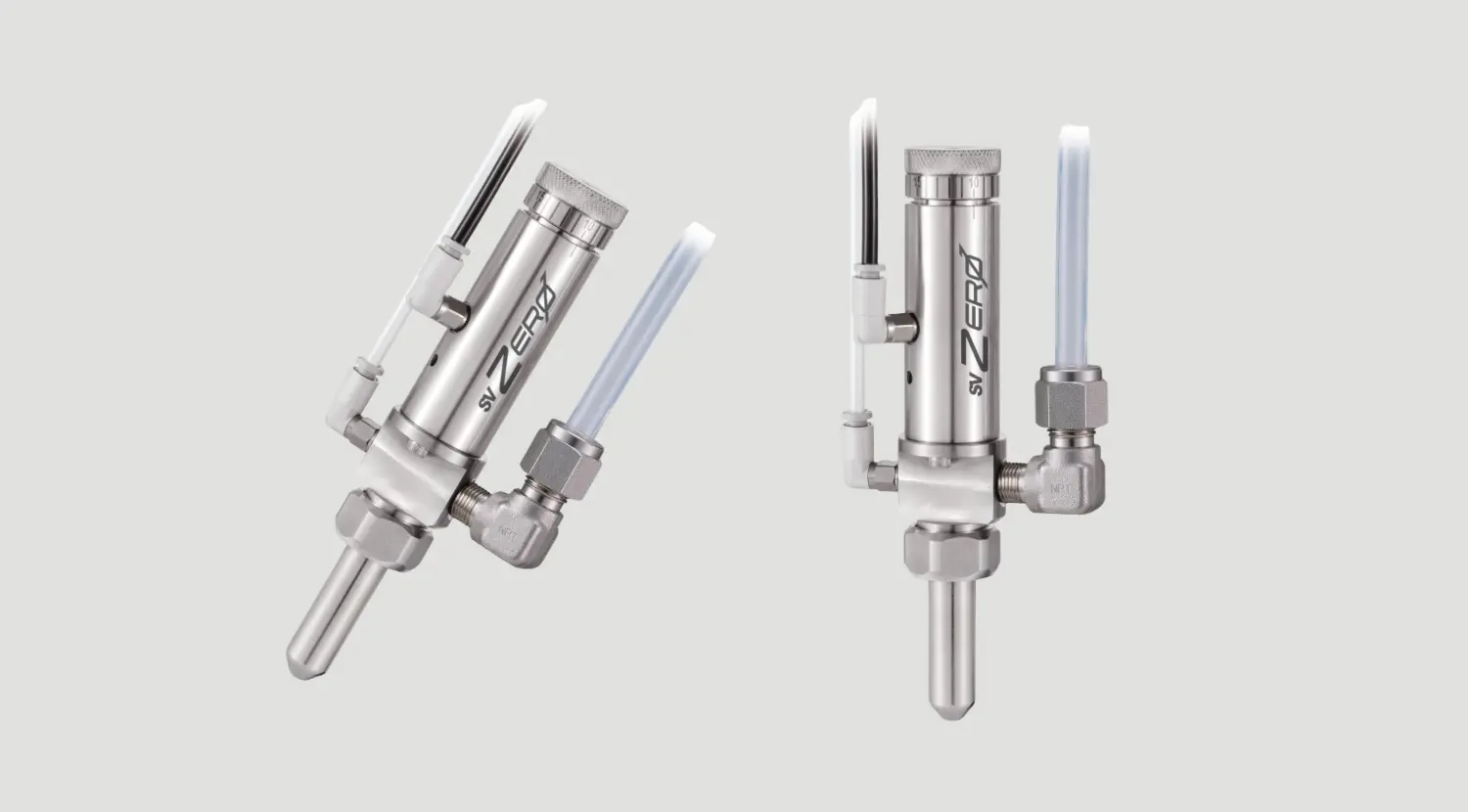

Unique valve tip design allows easy access around high or narrow components.
Enables fine atomization adjustment and high repeatability when used with the SVC620S controller.
Perfect for moisture-proof and protective coating applications on PCBs and electronic substrates.

download Request a quotation

Technical Information

Model	SV01CS
Size	φ26.9 mm (fluid body) ×143 mm length
Weight	312 g
Air cylinder body	SUS303
Piston needle	SUS303
Needle packing	SUS303, Teflon®
Fluid chamber/ extension	SUS303
Nozzle and air cap	SUS303
Fluid inlet thread	1/8NPT Female
Mounting hole	M6 Female
Valve operating air pressure	0.4～0.62MPa
Maximum nozzle air pressure	0.4MPa
Maximum fluid pressure	0.7MPa
Applicable nozzle (dedicated)	#04, #07, #11
Nozzle drying protection cap	Supplied as standard

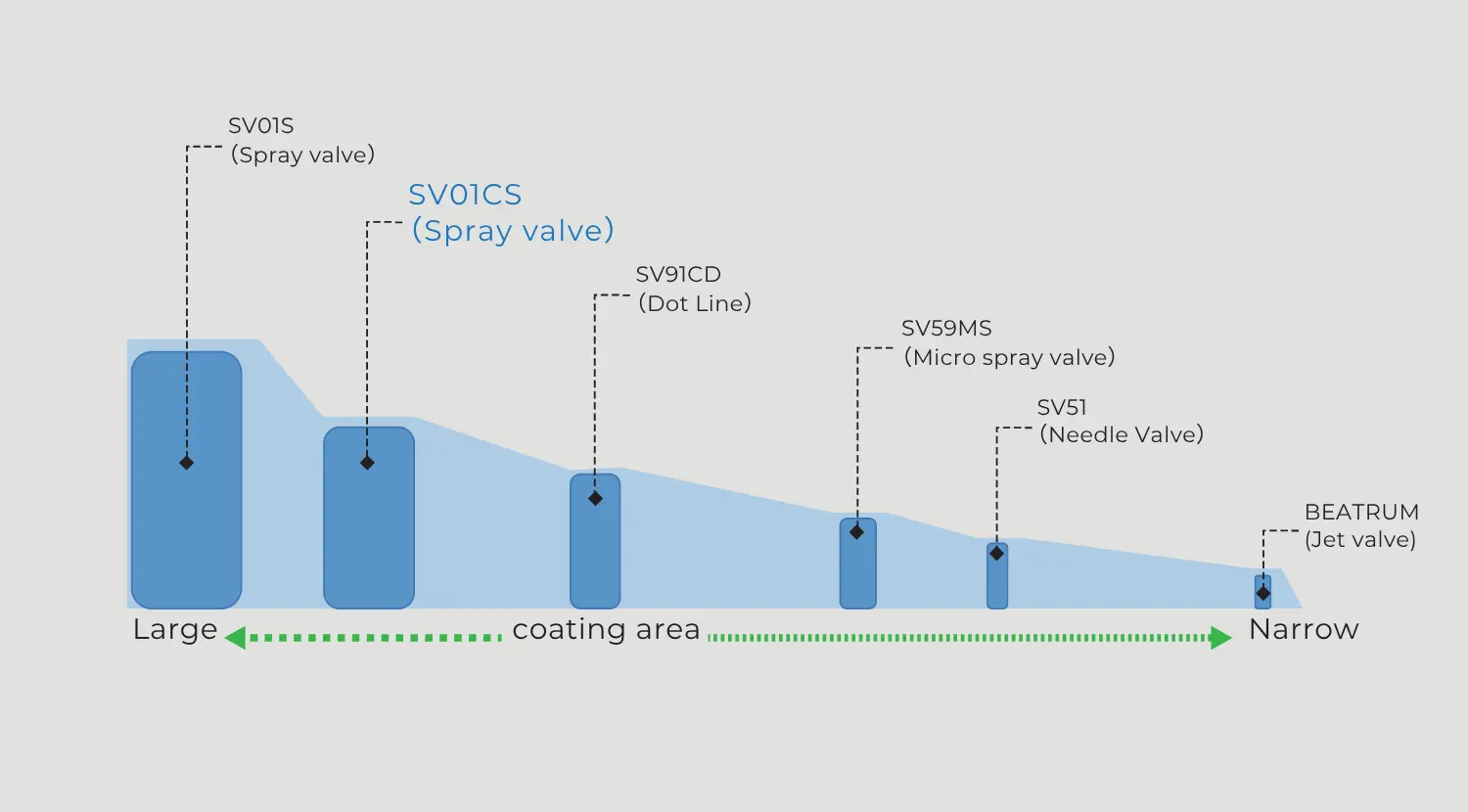

Lineup of coating valves

Valve type	Nozzle diameter	Nozzle type	Air cap type
SV01CS-04	0.4mm	SV0104-04	SV0105-04
SV01CS-07	0.7mm	SV0104-07	SV0105-07
V01CS-07	1.17mm	SV0104-11	SV0105-11
