Syringe valve sv22 san-ei tech

SYRINGE VALVE SV22 SAN-EI TECH

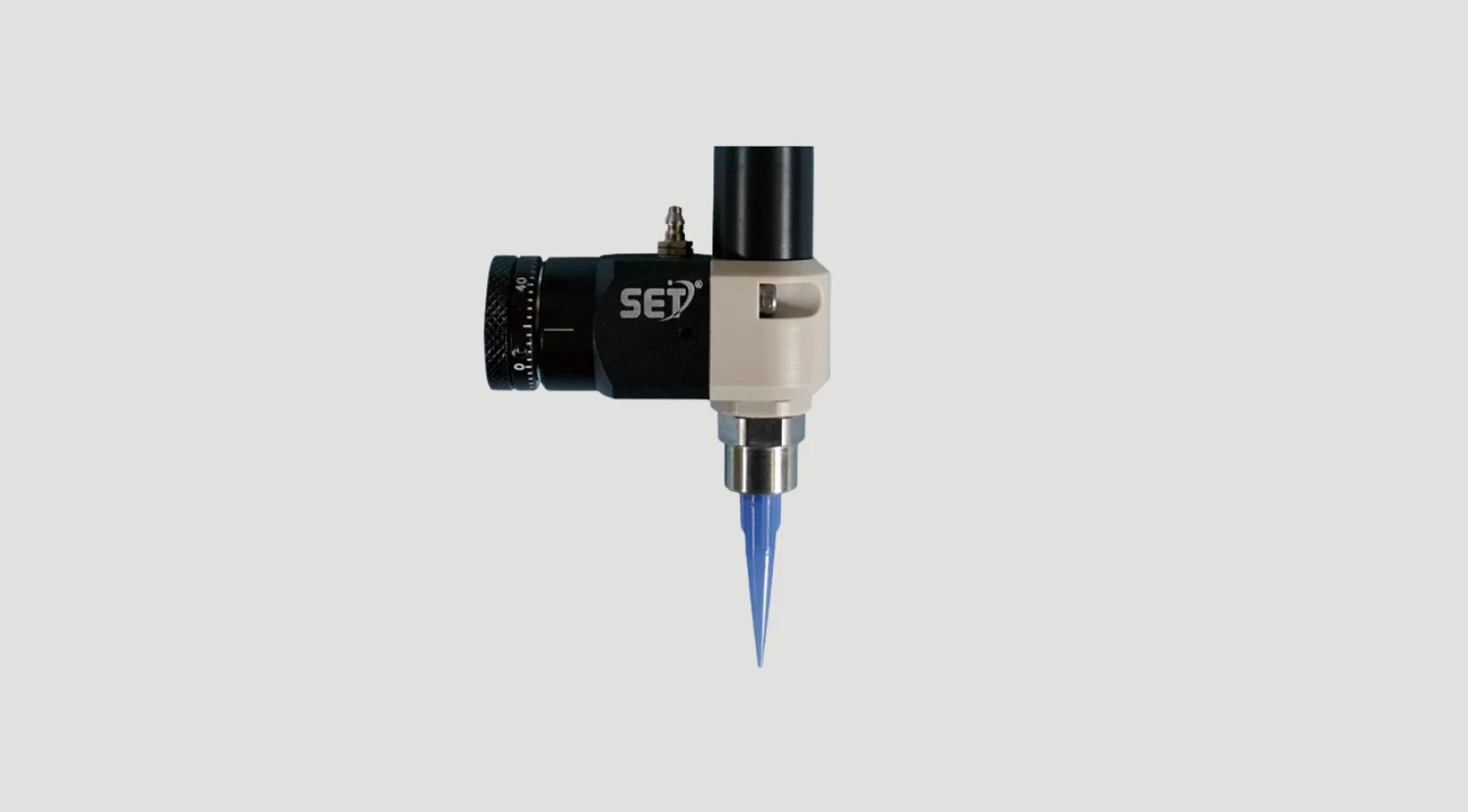

Compact direct syringe dispensing valve for precise and consistent small-to-medium volume applications from San-Ei Tech

Model: SV22

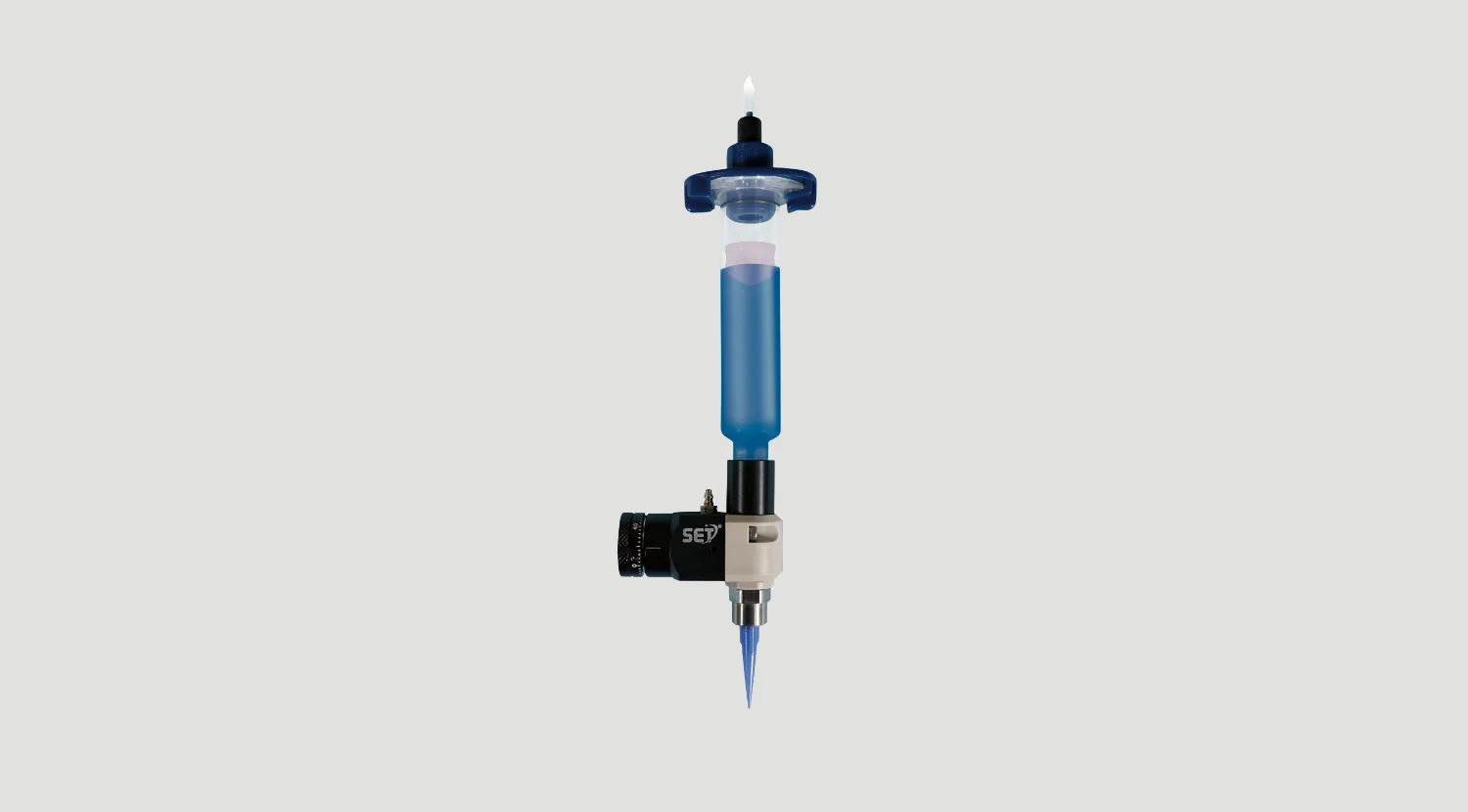

Directly attaches to syringe, saving space and simplifying setup.
Designed for low-to-medium viscosity materials, ideal for adhesives, oils, and similar fluids.
Eliminates dispensing inconsistencies caused by full-to-empty syringe conditions.
Greatly reduces water head difference phenomenon, ensuring stable output.
Wetted parts made of inert resin, compatible with instant and anaerobic adhesives.
Enables accurate, repeatable, and consistent dispensing in compact configurations.
Compact in-line design, easy to integrate into production systems.

Model	SV22
Size	20mm x 50mm x 52mm (W x D x H)
Weight	43g (Valve Alone)
Wetted parts	PEEK / PTFE / FFKM
Valve operating air pressure	0.4 ～ 0.62MPa
Maximum fluid pressure	0.5MPa
Fluid outlet	Lure lock for syringe mounting
Installation	Attached to syringe with syringe holder
Applicable nozzle	San-Ei Tech Needles
