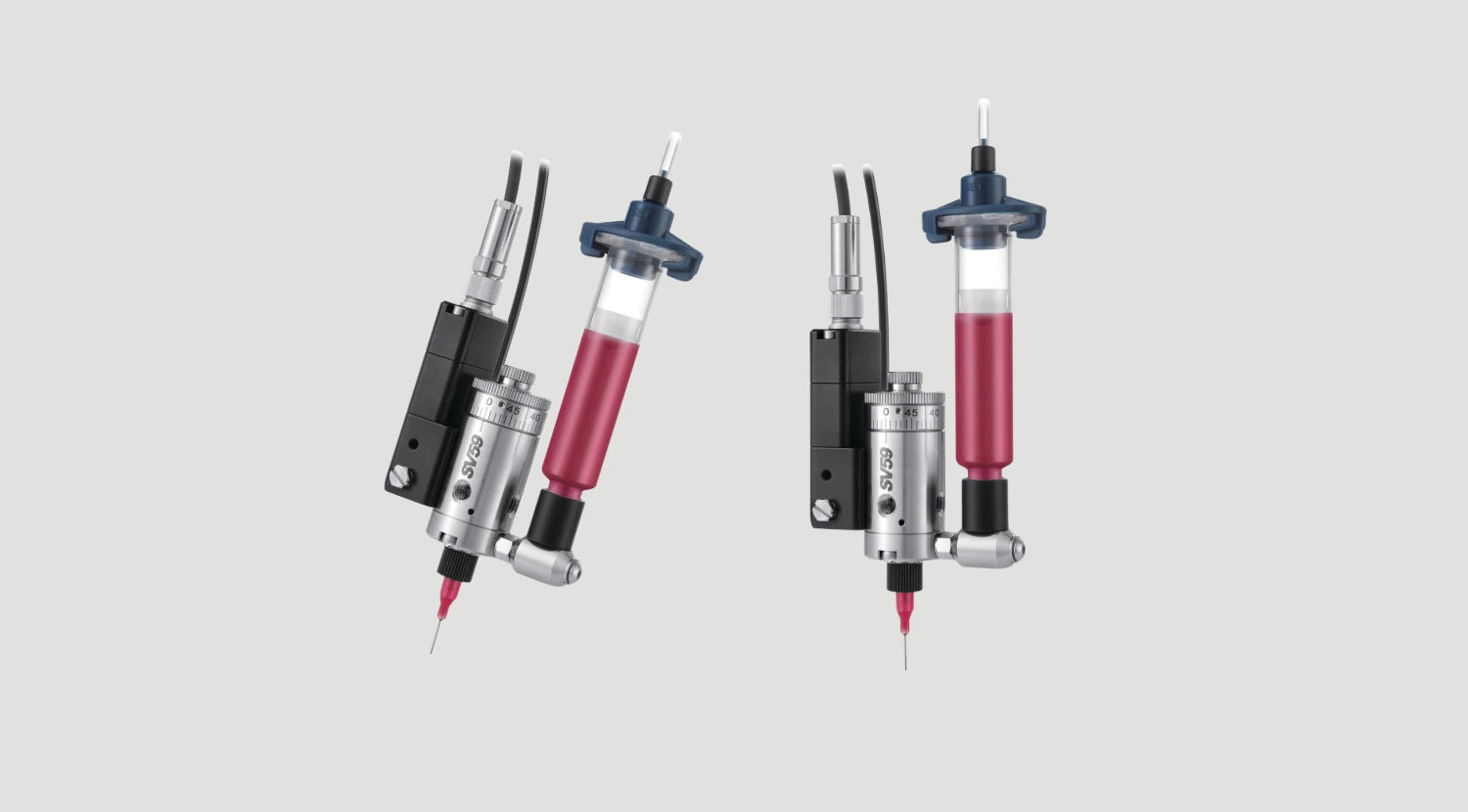

ULTRA-FINE NEEDLE VALVE SV59MD SAN-EI TECH

Ultra-fine needle valve for consistent and precise microdot dispensing from San-Ei Tech.

Model: SV59MD

Technical Information

Model SV59MD
Size H79mm×φ27mm
Weight 213g (except fluid inlet fitting part)
Air cylinder  SUS303
Needle  SUS303
Needle packing PTFE, FKM
Fluid chamber SUS303, PTFE
Syringe fitting SUS303, FKM, PP
Fluid inlet thread M5
Valve operating air inlet thread M6
Valve operating air pressure  0.4～0.62Mpa
Maximum fluid pressure 0.7Mpa
 Dispensing tip  GP Needle tip
 23G (ID:φ0.33mm)～33G(ID:φ0.11mm)
