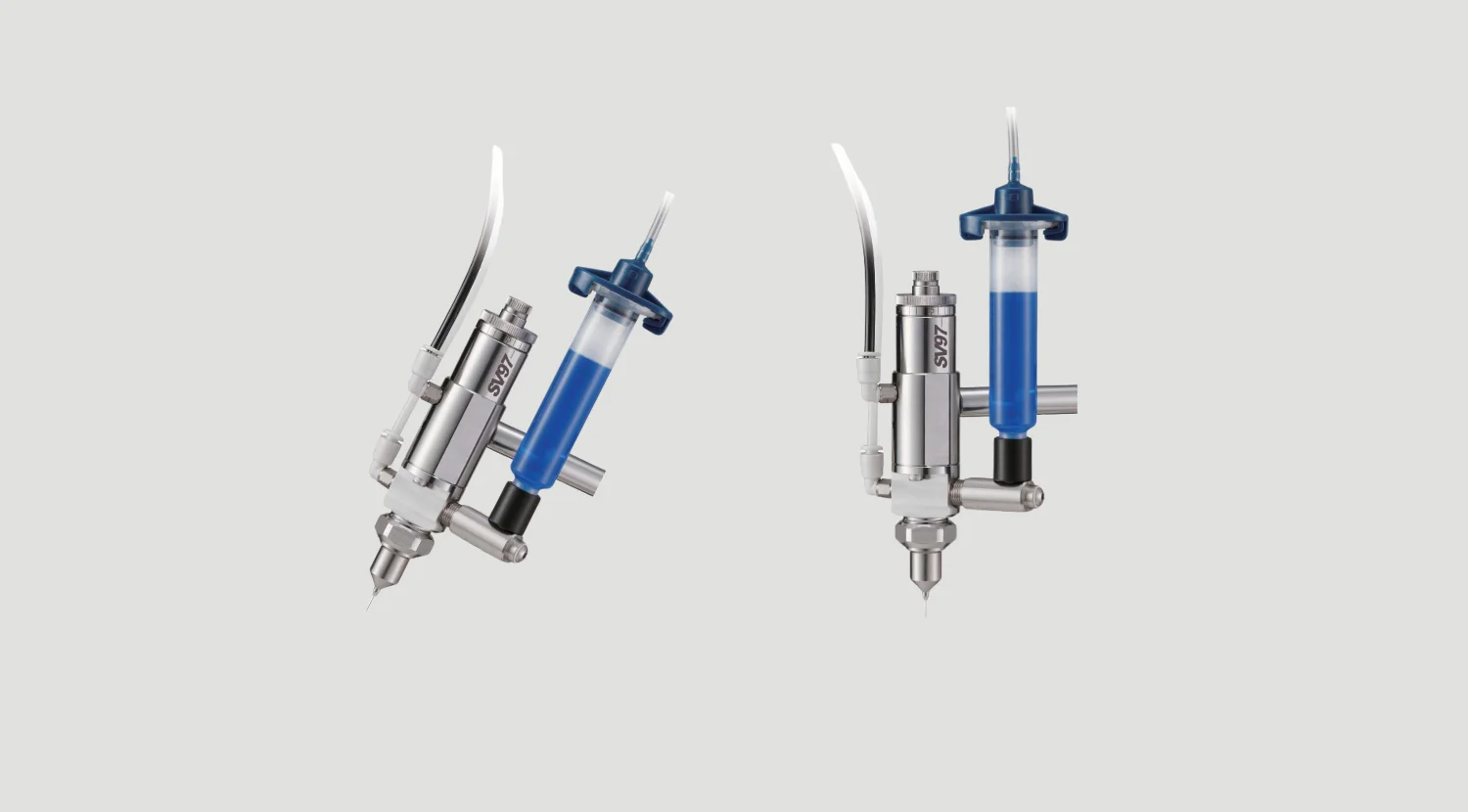

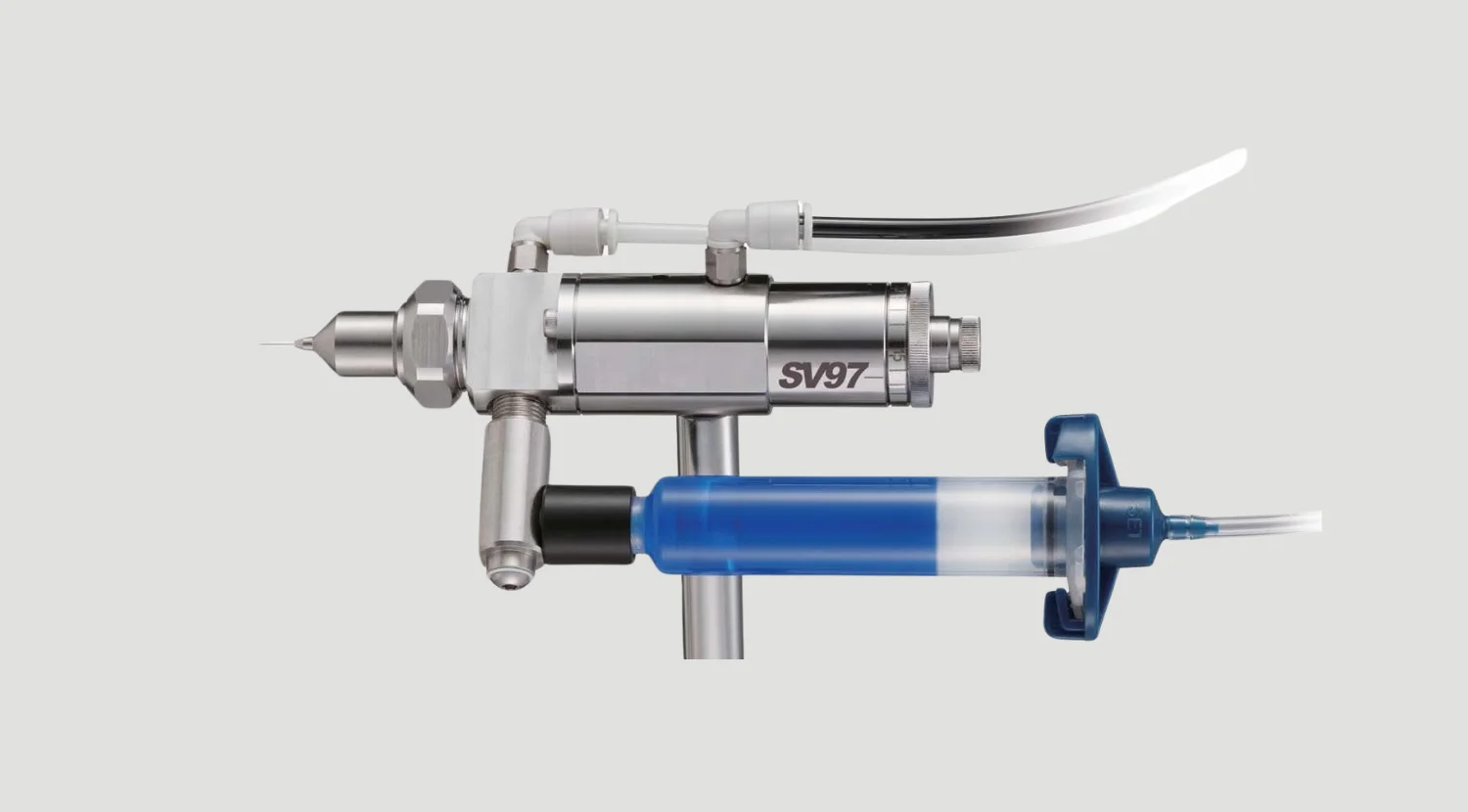

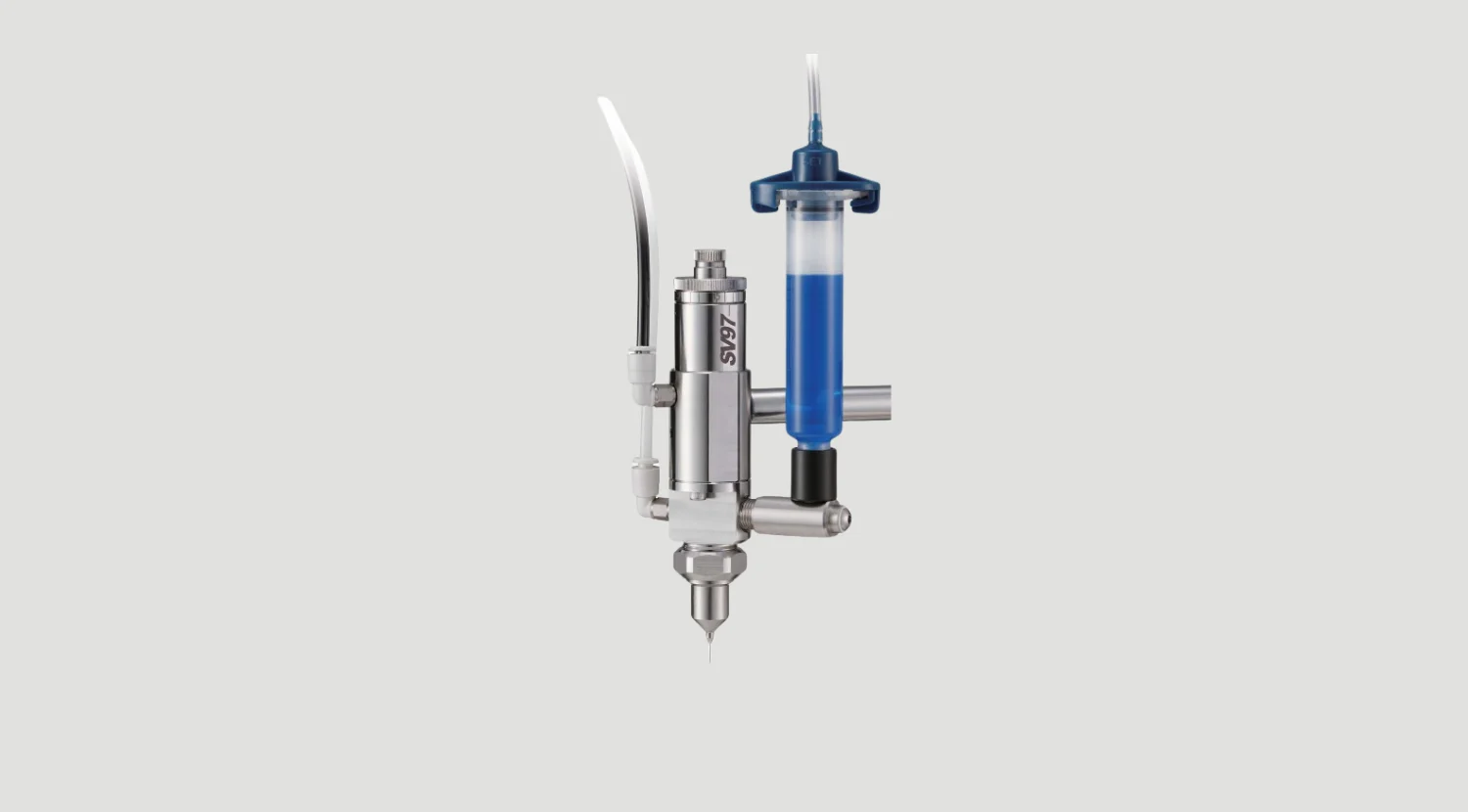

PRECISION MICRO SPRAY VALVE SV97MS SAN-EI TECH

Ultra-fine spray valve for consistent micro spray patterns as small as 3.0 mm, from San-Ei Tech.

Model: SV97MS

Technical Information

Model SV97MS
Size φ26.9mm (Fluid body) x 130mm length
Weight 308g
Fluid body SUS303
Fluid inlet fitting, tip adapter SUS303
Air cap SUS303
Air cylinder body SUS303
Piston needle SUS303
Needle packing Teflon®, SUS303
Fluid inlet thread 1/8NPT female
Valve operating air inlet thread M5 x 0.8 female
Mounting M6 tapped hole
Free flow orifice

 GP needle tips

23ga (IDφ0.33mm) to 33ga (IDφ0.1mm)
Valve operating air pressure 0.4～0.62MPa
Maximum nozzle air pressure 0.2MPa (regulated)
Maximum fluid pressure 0.7MPa
