SYRINGE FILLING SYSTEM SAN-EI TECH

Automatic and manual syringe filling devices for accurate, efficient filling of medium to high viscosity liquids, from San-Ei Tech.

Technical Information

Syringe filling equipment

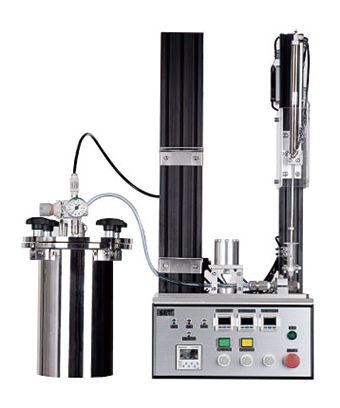

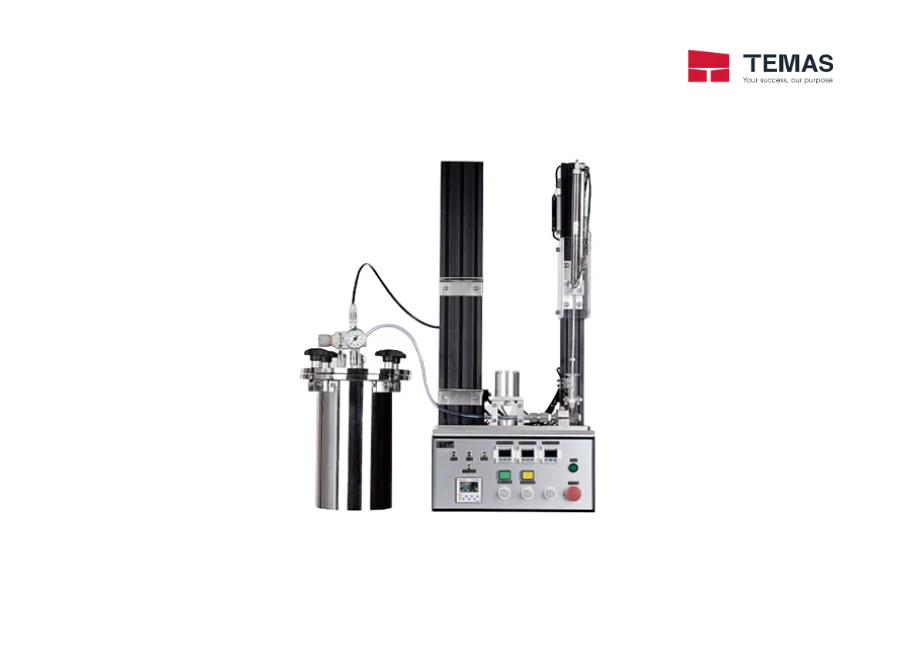

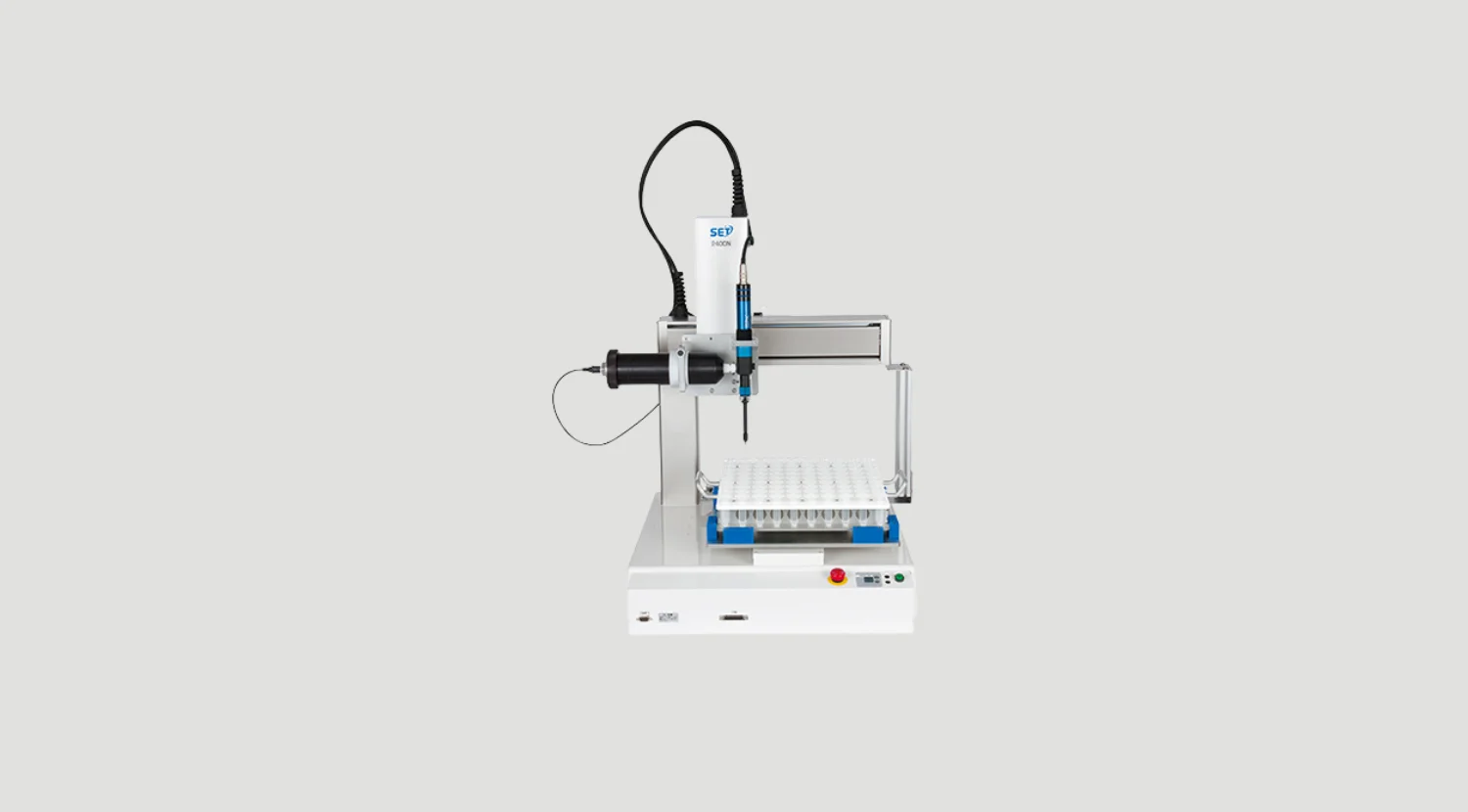

Type Automatic syringe filling equipment Syringe filling equipment
  syringe filling system syringe filling system
Filling method Positive displacement/syringe top filling Pressure filling type/bottom filling of syringe
Filling error ±1% (depending on setting conditions) ±2% (depending on setting conditions)
Filling flow rate Max 60cc/min By pressure feeding in the range up to 0.55MPa
Supply pressure 0～0.6MPa 0～0MPa
Power supply AC100V~240V AC100V~240V
Power 300W 100W
Number of bottles that can be filled Depends on syringe capacity and number of installed syringes 1 bottle/cycle

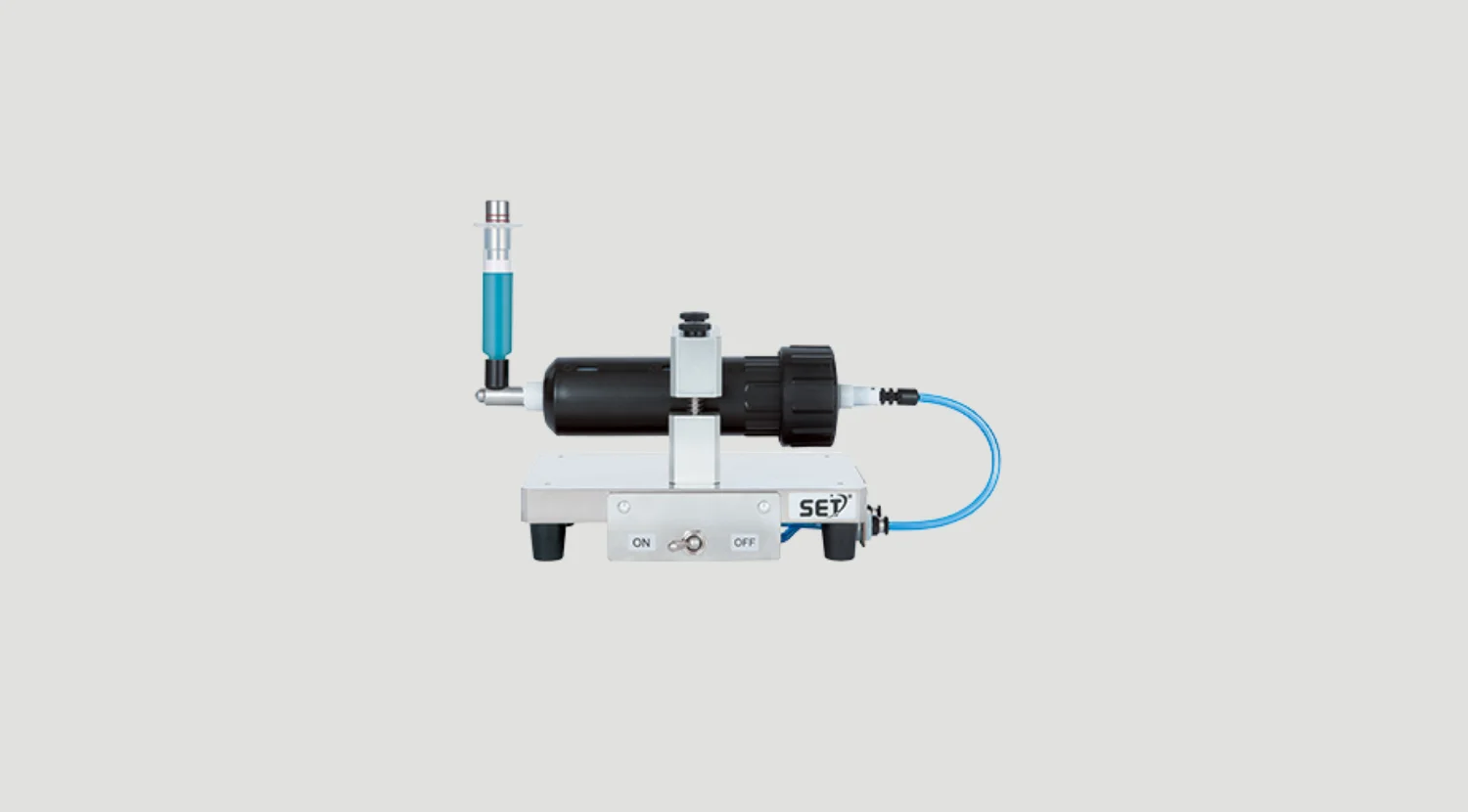

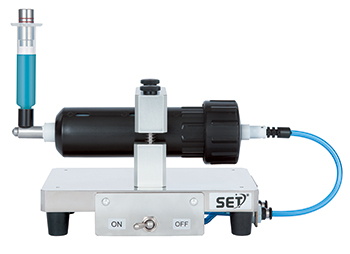

Manual loader

syringe filling system

  • Simple structure and easy filling
  • Compatible with commercially available 330ml cartridge containers
