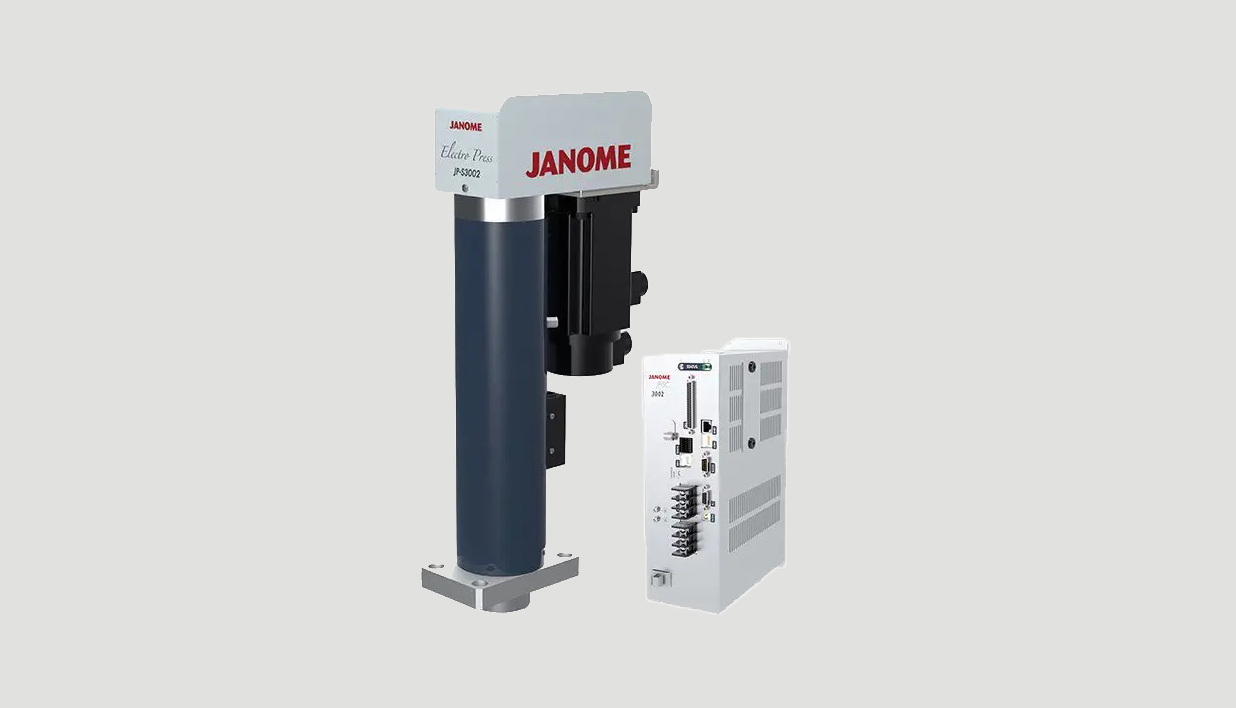

SERVO PRESS JANOME JP-S2 SERIES

Slim and Compact "inline specilist" servo press, wide rage capacity from 5kN to 200KN

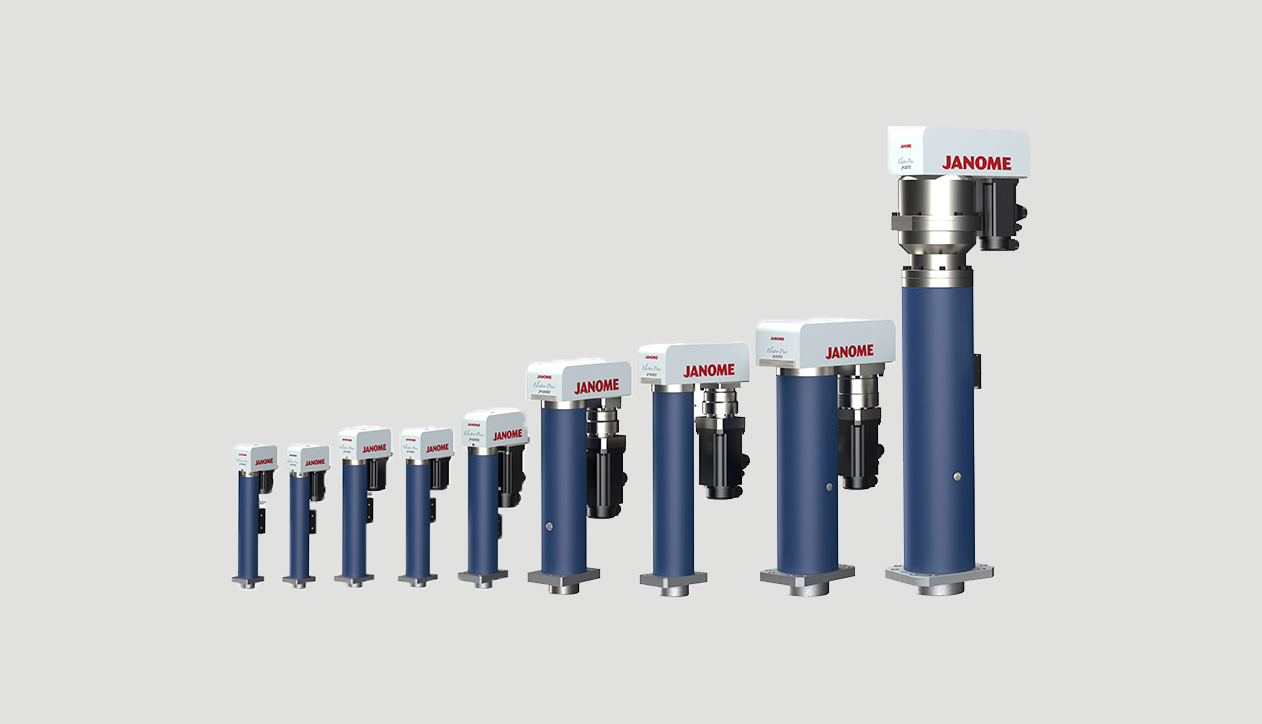

Model: JP-S0502, JP-S1002, JP-S1502, JP-S2002, JP-S3002, JP-S5002, JP-S8002, JP-S10T2, JP-S20T2

Ideal for replacing hydraulic and pneumatic presses!
Slim Body Type (only 65mm wide in the smallest model!)
Environmentally Friendly: Electrically-powered servo press runs more cleanly than oil or air presses.
Comprehensive Interfacing: Compatible with Digital I/O, Field Network, Ethernet and Pendant Unit interfacing.
Consistent Quality Control
Various Control Settings: You can freely set parameters such as Load, Position, Distance and Speed.
Reduced Start-up Costs

Model		JP-S0502	JP-S1002	JP-S1502	JP-S2002	JP-S3002	JP-S5002	JP-S8002	JP-S10T2	JP-S20T2
Capacity (kN)		5	10	15	20	30	50	80	100	200
Max. speed (mm/s)		216		200		210	200	135	100	50
Repeatability (mm)		±0.01 mm
Dimensions (mm)	W	65		80		100	148	135	200	292
	D	155		196		259	365	380	465	442
	H	455~655		505~845		570~930	643~943	820	889~1089	1499~1699
Weight (kg)		12~16		20~30		35~56	98~135	99	198~235	392~442

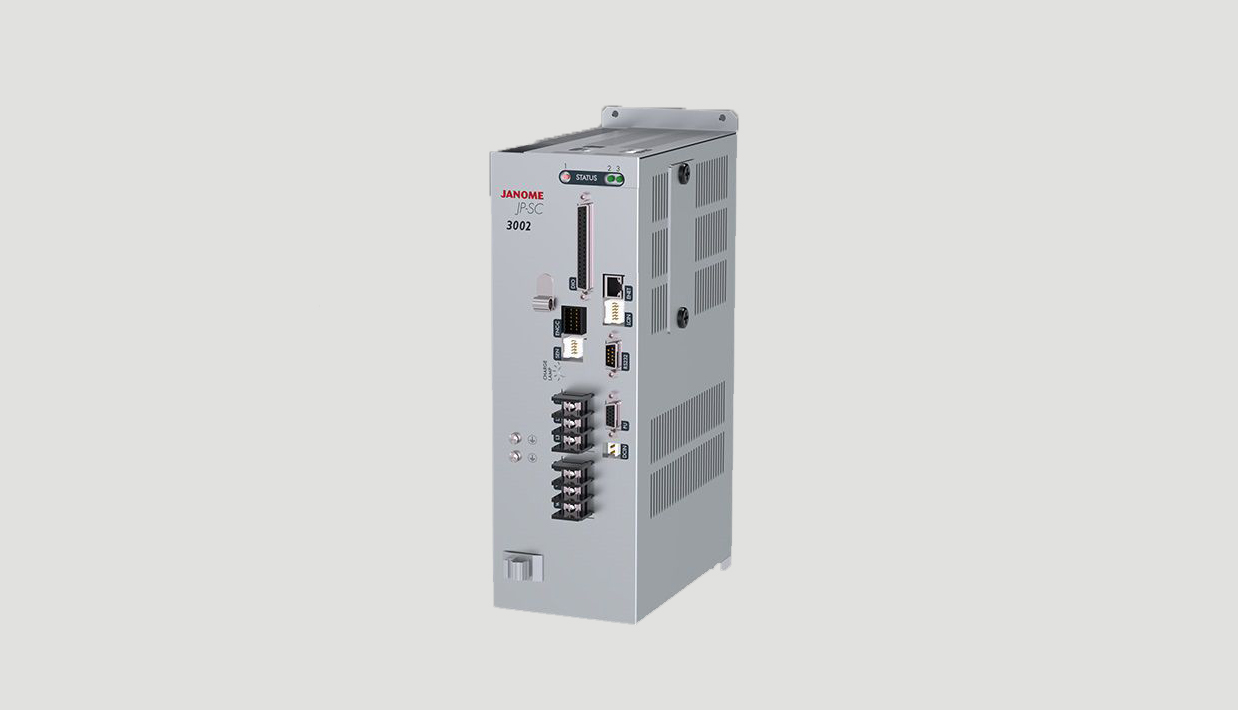

Dimensions of controller (kg)		79×163×287				104×188×328	147×188×365
Weight of controller (kg)		3.1				4.9	8
Interface		Ethernet、RS-232C
Fieldbus (Optional)		EtherNet/IP, PROFINET, CC-Link, DeviceNet, PROFIBUS, CANopen (confirm when place order)
Digital I/O		DIO (I/O: 17 inputs 16 outputs, NPN/PNP: confirm when place order)
Other outputs		Motor Encoder Output, Analog Monitor Output, Load Cell Output

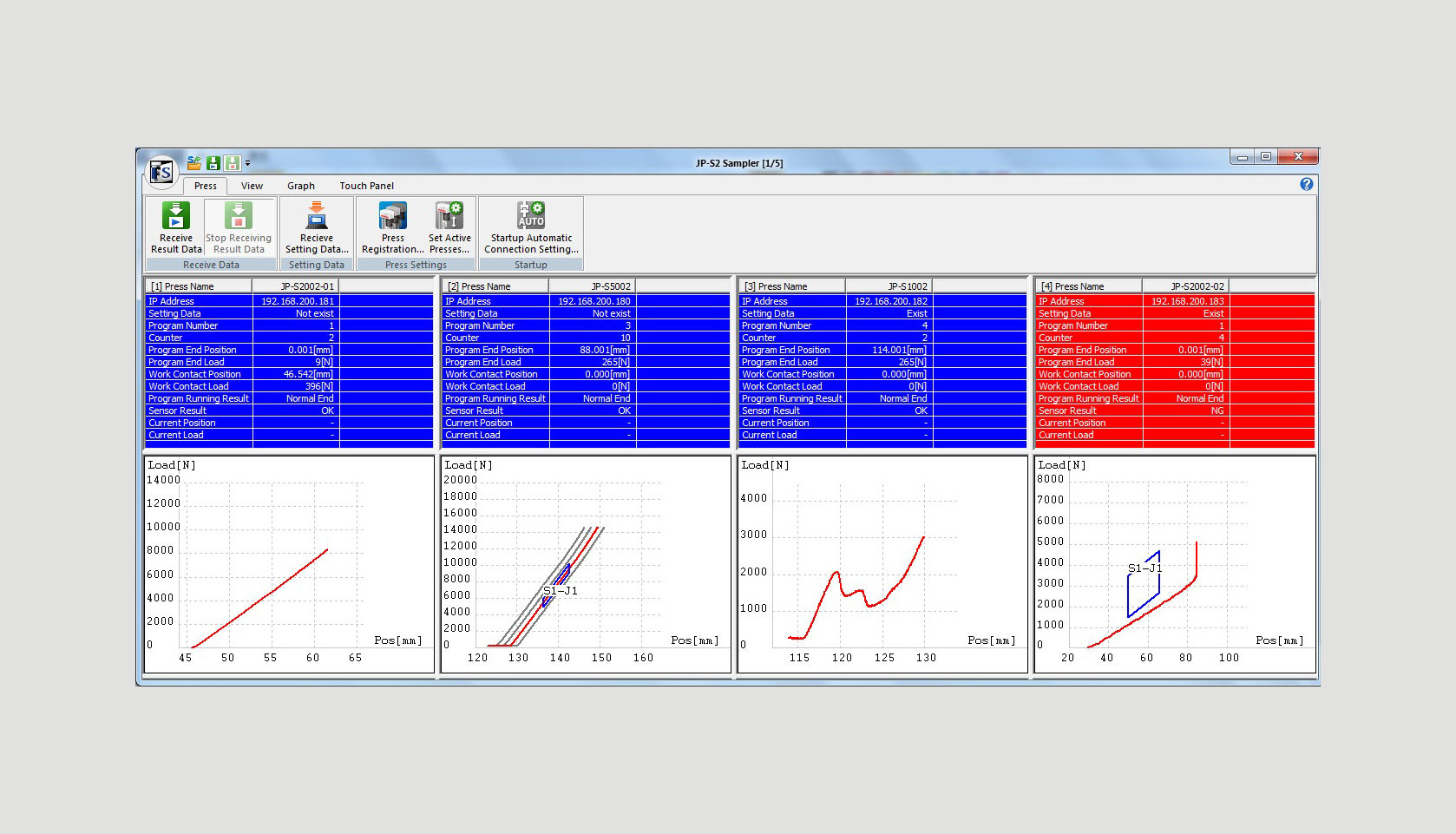

Setting device		PC or Teaching pendant (optional)
Power supply		Single Phase, 3 Phase 180～250V (for 20kN); 3 Phase 180～250V (for 30kN and above)
Power supply for controller		DC24V
Operating temperature		0～40℃
Humidity		20～90％ (non-condensing)
Protection level		IP20
