Technical Information

Model JP-054 JP-104 JP-204 JP-2004 JP-3004 JP-5004
Maximum Pressing Capacity(kN) 0.5 1 2 20 30 50
Ram Stroke(mm) 80 200
Maximum Speed(mm/sec)*1 166 200[166] 300[200]
Repeatability(mm)*2 ±0.005 ±0.005
Dimensions
W×D×H(mm)
(excluding cables and protrusions)

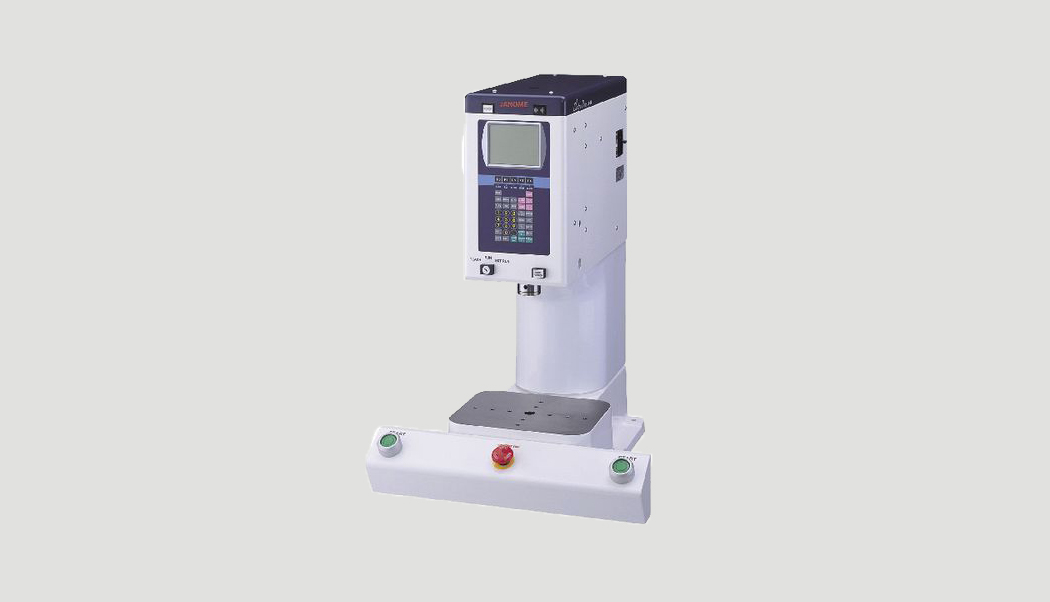

Stand-Alone Type Standard 520×567×750 520×813×1,236 560×985×1,315
Muting 520×567×783 560×985×1,350
Weight(kg) Stand-Alone Type 100 550 1,050

*1 - Maximum speed may vary depending upon conditions. The value in the parentheses is the initial speed setting.
*2 - Position repeatability is not a guarantee of absolute precision.

  • These values are for standard models and may differ with specification modifications.
    Please contact us for details.
  • When configuring your facility for use with this product, be sure to perform your own risk assessment.
